LIAN LI O11D MINI V2 Flow Compact ATX Mid-Tower Airflow Computer Case Instruction Manual

1. Introducció

This manual provides comprehensive instructions for the setup, operation, and maintenance of your LIAN LI O11D MINI V2 Flow computer case. Designed for high-performance airflow in a compact ATX mid-tower form factor, this case offers a panoramic view of your components and includes pre-installed fans for optimal cooling. Please read this manual thoroughly before beginning installation.

Figura 1: Frontal view of the LIAN LI O11D MINI V2 Flow computer case, showcasing its tempered glass panels and internal layout.

2. Característiques clau

• Pre-installed 5 Fans: Includes 5 pre-installed 120mm reverse blade fans positioned for superb cooling.
• Flux d'aire optimitzat: A 10° slanted bottom design enhances direct cold air intake and improves GPU cooling performance.
• Disseny compacte: Protruded mesh side panel accommodates full-sized ATX power supplies while maintaining a compact footprint. Pillar-less tempered glass front and side panels provide an unobstructed view.
• Compatibilitat de la placa base: Supports standard ATX, M-ATX, and Mini-ITX motherboards, optimized for ATX Back-Connect motherboards.
• GPU Support: Equipped with horizontal and vertical GPU anti-sag brackets for robust support.
• Gestió de cables: Special brackets for the 24-pin motherboard cable and 9 dedicated cable straps help maintain a tidy layout.

Figure 2: The O11D MINI V2 Flow with internal RGB lighting, showcasing its panoramic view i disseny compacte.

3. Configuració i instal·lació

3.1 Cas acabatview i Dimensions

The O11D MINI V2 Flow is designed for ease of assembly and maintenance. Most panels are removable without tools, simplifying the build process. The case dimensions are 423.6mm (L) x 273.3mm (W) x 391.95mm (H).

Figure 3: Detailed dimensions of the O11D MINI V2 Flow case.

3.2 Instal·lació de la placa base

This chassis supports standard ATX, M-ATX, and Mini-ITX motherboards. It is specifically optimized for ATX Back-Connect motherboards, allowing for cleaner cable management. The case features movable motherboard standoffs for radiator flexibility, enabling vertical adjustment of the M-ATX mounting position to accommodate various radiator sizes (280mm, 360mm, 240mm).

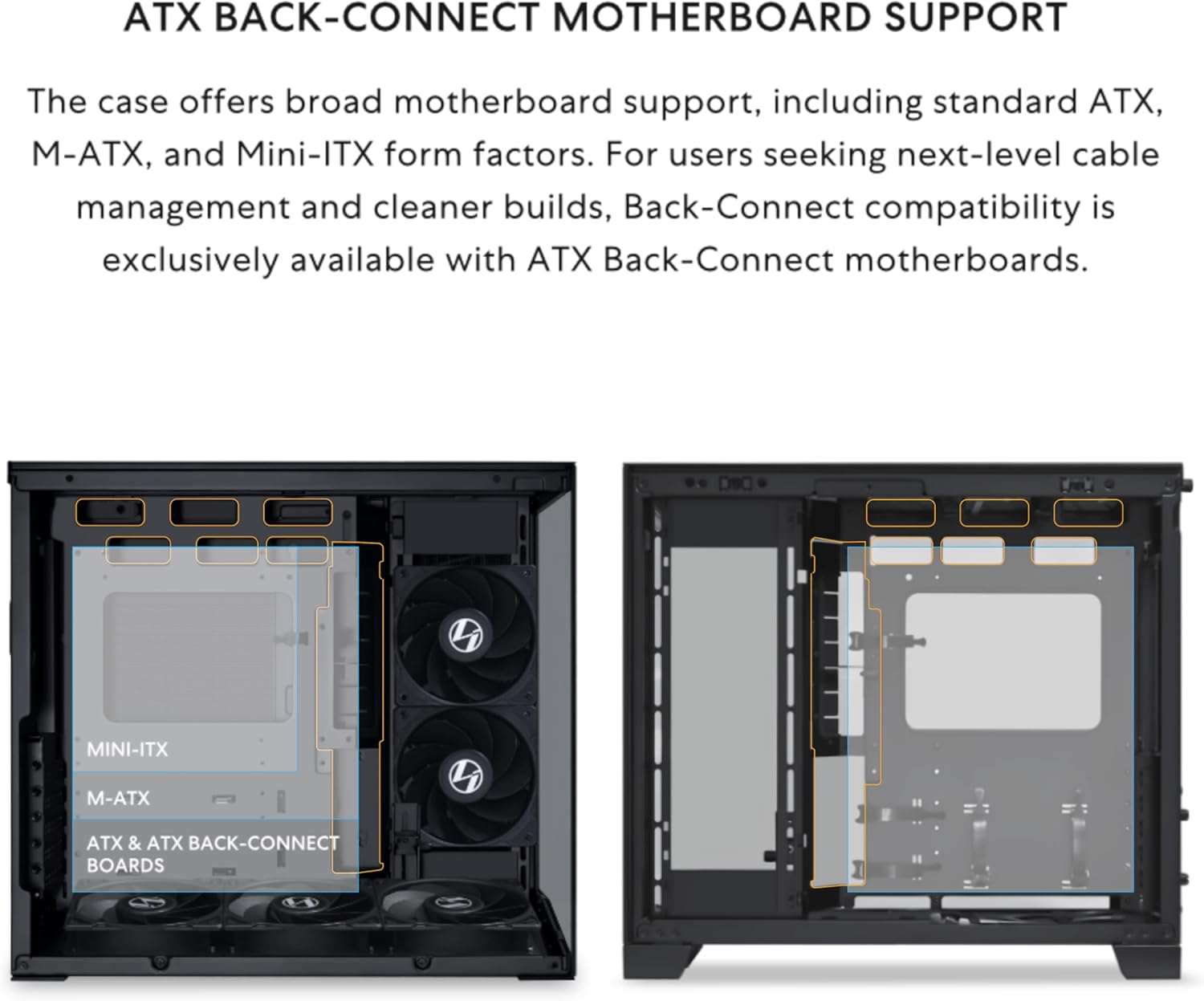

Figure 4: Illustration of motherboard compatibility, including ATX Back-Connect boards.

Figure 5: Adjustable motherboard standoffs for radiator compatibility.

3.3 Instal·lació de la unitat d'alimentació (PSU).

The O11D MINI V2 Flow features a protruded mesh side panel designed to accommodate full-sized ATX power supplies. The PSU is side-mounted. Ensure proper cable routing to maintain optimal airflow.

3.4 Instal·lació de la GPU

The case includes horizontal and vertical GPU anti-sag brackets to provide robust support for heavy graphics cards, reducing strain on the motherboard. The 10° slanted bottom design is specifically engineered to channel cool air directly to the GPU, enhancing cooling performance.

Figure 6: Angled base design for improved GPU airflow.

3.5 Fan Installation and Airflow

The Flow edition comes with 5 pre-installed 120mm reverse blade PWM fans: three at the bottom and two on the side, providing strong, silent airflow. The case design allows for easy installation of fans or radiators outside the case, which then drop into the entire bracket, simplifying the build process. Tool-less fan cover brackets are included to seal off unused fan mounts, concentrating airflow where it is most needed.

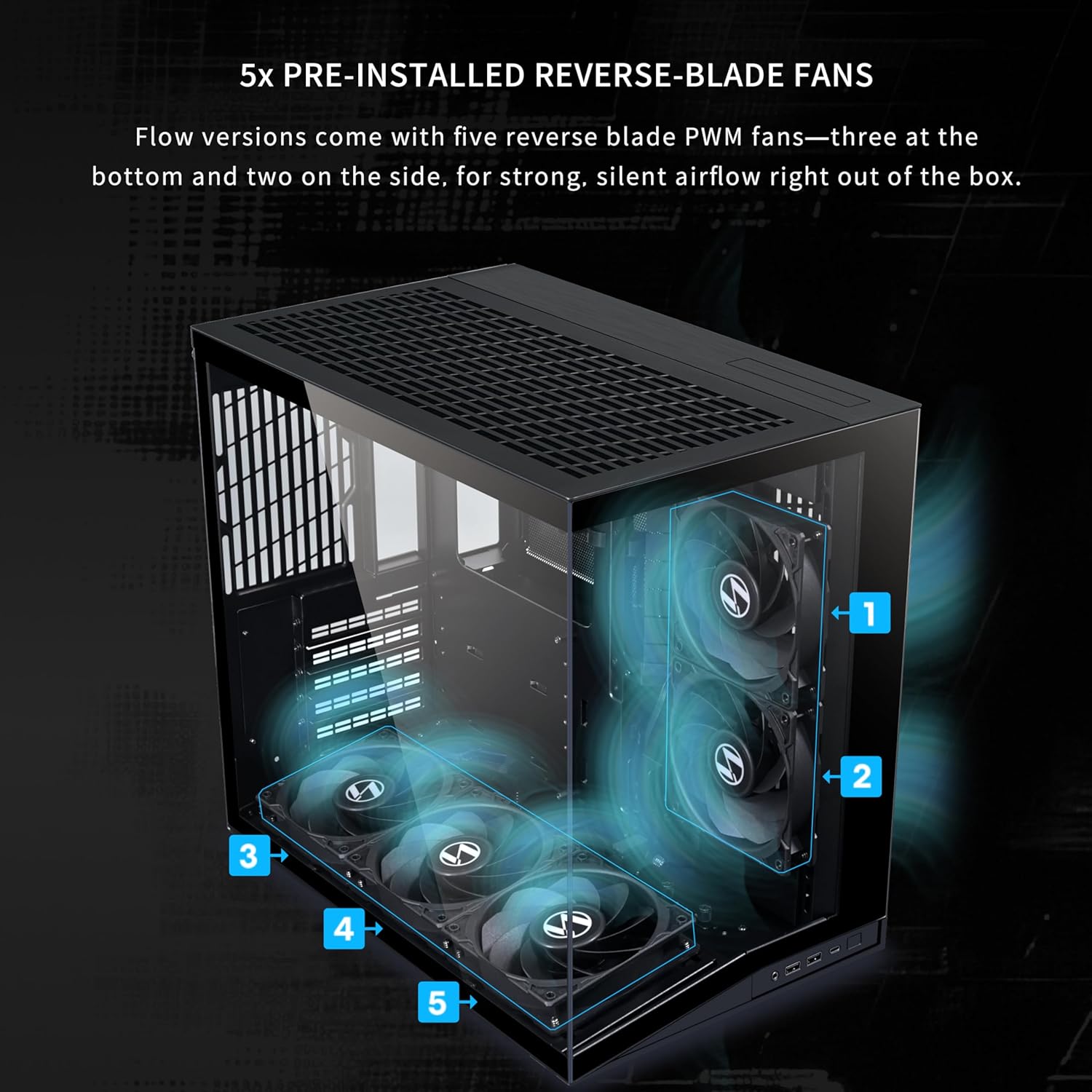

Figure 7: Location of the 5 pre-installed reverse blade fans.

Figura 8: Explotat view illustrating removable fan/radiator brackets and dust filters.

Figure 9: Airflow covers for optimizing pressure and directing airflow.

3.6 Instal·lació d'emmagatzematge

Dual-purpose drive cages accommodate 2.5" and 3.5" HDDs or offer dedicated space for cable management, ensuring a clean and tidy build.

3.7 Gestió de cables

The case is thoughtfully designed with 9 dedicated cable straps for simpler and cleaner cable routing. A built-in 24-pin cable bracket holds the 24-pin ATX power cable firmly in place, reducing strain and maintaining an organized appearance. Bottom cable grommets provide optimized pathways for cables in compact setups.

3.8 Tauler d'E / S

The I/O module supports top or bottom placement, offering flexibility for various build layouts and desk arrangements. With the I/O module relocated to the top, the lower I/O and cover can be removed to enhance bottom intake airflow.

4. Funcionament

Once all components are correctly installed and connected, power on your system using the power button on the I/O panel. The pre-installed fans will operate to provide optimal airflow. Monitor your system's temperatures using appropriate software to ensure stable operation.

5. Manteniment

Regular maintenance is crucial for maintaining optimal performance and longevity of your computer components. The O11D MINI V2 Flow features removable dust filters for easy cleaning.

• Filtres de pols: The top panel and the right side panel feature built-in mesh filters for effortless dust protection. The bottom dust filter can be quickly removed from the rear for convenient maintenance.
• Neteja: Periodically clean dust from all filters and internal components using compressed air or a soft brush. Ensure the system is powered off and unplugged before cleaning.

6. Solució De Problemes

If you encounter issues with your computer case, consider the following:

• Sense energia: Ensure all power cables (PSU to wall, PSU to motherboard, components) are securely connected. Check the power switch on the PSU.
• Sobreescalfament: Verify that all fans are spinning correctly and are free from obstructions. Clean dust filters. Ensure proper airflow configuration.
• Ajust de components: Refer to the Motherboard Compatibility and GPU Installation sections to ensure components are correctly sized and mounted. Utilize adjustable standoffs and anti-sag brackets as needed.

7. Especificacions

8. Garantia i Suport

For warranty information, technical support, or any inquiries regarding your LIAN LI O11D MINI V2 Flow computer case, please visit the official Lian Li weblloc web o contacteu directament amb el servei d'atenció al client. Conserveu el comprovant de compra per a reclamacions de garantia.

Visita el Lian Li Store per a més productes i suport.
