1. Producte acabatview
The TOWILD CL2000 is a high-performance bicycle headlight designed for enhanced visibility and safety during night riding. Featuring a powerful 2000 lumen output, advanced anti-glare lens, and a robust 5000mAh battery, it offers multiple lighting modes and smart functionalities for various cycling conditions.
Image: The TOWILD CL2000 bicycle headlight, showcasing its sleek black design and integrated mount.
2. Contingut del paquet
Si us plau, assegureu-vos que tots els elements estiguin presents al paquet:
- TOWILD CL2000 Bicycle Headlight
- Muntatge de manillar
- Cable de càrrega USB-C
- Manual d'usuari
- Hex Key (for mount adjustment, if applicable)
- Discharge Adapter (for power bank function)
Image: An illustration showing the TOWILD CL2000 headlight, handlebar mount, USB-C cable, user manual, and hex key.
3. Configuració i instal·lació
3.1 Muntatge del far
The CL2000 features a versatile, tool-free mounting system compatible with standard handlebars, under-mounted positions, and even helmets (with appropriate adapters, sold separately).
- Identify the desired mounting location on your handlebar.
- Obriu el clamp of the handlebar mount.
- Position the mount securely on the handlebar and tighten the screw until it is firm. Ensure the mount does not rotate freely.
- Slide the CL2000 headlight onto the mount until it clicks into place.
- To remove, press the release tab on the mount and slide the headlight off.
Image: The CL2000 headlight mounted on a bicycle handlebar, demonstrating its multi-position mounting capability.
Image: A visual guide showing how to easily install the CL2000 on a handlebar, including under-mounted and helmet-mounted options.
4. Instruccions de funcionament
4.1 Encès/Apagat
- To turn on: Press and hold the power button for approximately 1 second.
- To turn off: Press and hold the power button for approximately 1 second.
4.2 modes d'il·luminació
The CL2000 offers five distinct lighting modes. Press the power button briefly to cycle through the modes:
- Alt: Maximum brightness (2000 Lumens) for optimal visibility.
- Mitjà: Balanced brightness (800 Lumens) for general riding.
- Baix: Energy-saving brightness (400 Lumens) for extended runtime.
- Flaix nocturn: Pulsating light (0-400 Lumens) for increased visibility in low-light conditions.
- Flash del dia: Irregular flash pattern (0-600 Lumens) for daytime visibility.
Image: A graphic illustrating the five lighting modes (Low, Medium, High, Night Flash, Day Flash) with their respective lumen outputs and approximate runtimes.
Image: A table detailing the lumen output and runtime for each of the five lighting modes of the CL2000.
4.3 Smart Sensor (Vibration Sensing)
The CL2000 features an intelligent standby mode. In Smart Mode, the light will:
- Automatically turn off after 120 seconds of stillness (no vibration detected).
- Instantly turn on when vibration is detected (e.g., when you start riding).
To toggle between Manual and Auto (Smart) modes, refer to the specific instructions in the included quick start guide or product manual for button press sequences.
Image: A visual representation of the CL2000's vibration sensing feature, showing the light turning off when static and on when moving.
4.4 Indicador de nivell de bateria
The power button doubles as a battery indicator. The color and state of the LED indicate the remaining battery charge:
- Blau/verd sòlid: 100% - 30% charge remaining.
- Flashing Blue/Green Slowly: 29% - 10% charge remaining.
- Flashing Red Rapidly: Less than 10% charge remaining. Recharge immediately.
Image: A diagram showing the different LED indicator states (solid, slow flash, rapid flash) and their corresponding battery levels for both Smart and Manual modes.
4.5 Charging the Headlight
The CL2000 is equipped with a USB-C charging port for convenient and fast recharging.
- Connect the provided USB-C cable to the charging port on the headlight.
- Connect the other end of the cable to a USB power source (e.g., wall adapter, computer, power bank).
- The indicator light will show charging status (e.g., red blinking).
- Charging is complete when the indicator light turns solid green/blue. A full charge typically takes approximately 3.5 to 4 hours.
Image: The CL2000 headlight connected to a USB-C charger, demonstrating its recharging capability and universal compatibility with various USB power sources.
4.6 Portable Charger Function
The CL2000 can also function as an emergency power bank to charge small electronic devices like smartphones or bike computers using the included discharge adapter.
- Connect the discharge adapter to the USB-C port of the CL2000.
- Connect your device's charging cable to the discharge adapter.
- The CL2000 will begin charging your device.
Image: A person using the CL2000 headlight to charge a smartphone via its portable charger function, highlighting its versatility.
5. Manteniment i cura
- Neteja: Netegeu el cos de la llum amb un drap suauamp drap. No utilitzeu productes de neteja abrasius ni dissolvents. Mantingueu la lent neta per a una sortida de llum òptima.
- Resistència a l'aigua: The CL2000 is IPX6 waterproof, meaning it is protected against powerful water jets. It can withstand heavy rain but should not be submerged in water. Ensure the USB-C port cover is securely closed when not charging to maintain water resistance.
- Emmagatzematge: Store the headlight in a cool, dry place when not in use. For long-term storage, charge the battery to approximately 50% every 3-6 months to preserve battery life.
- Cura de la bateria: Avoid fully depleting the battery frequently. Recharge promptly when the low battery indicator appears.

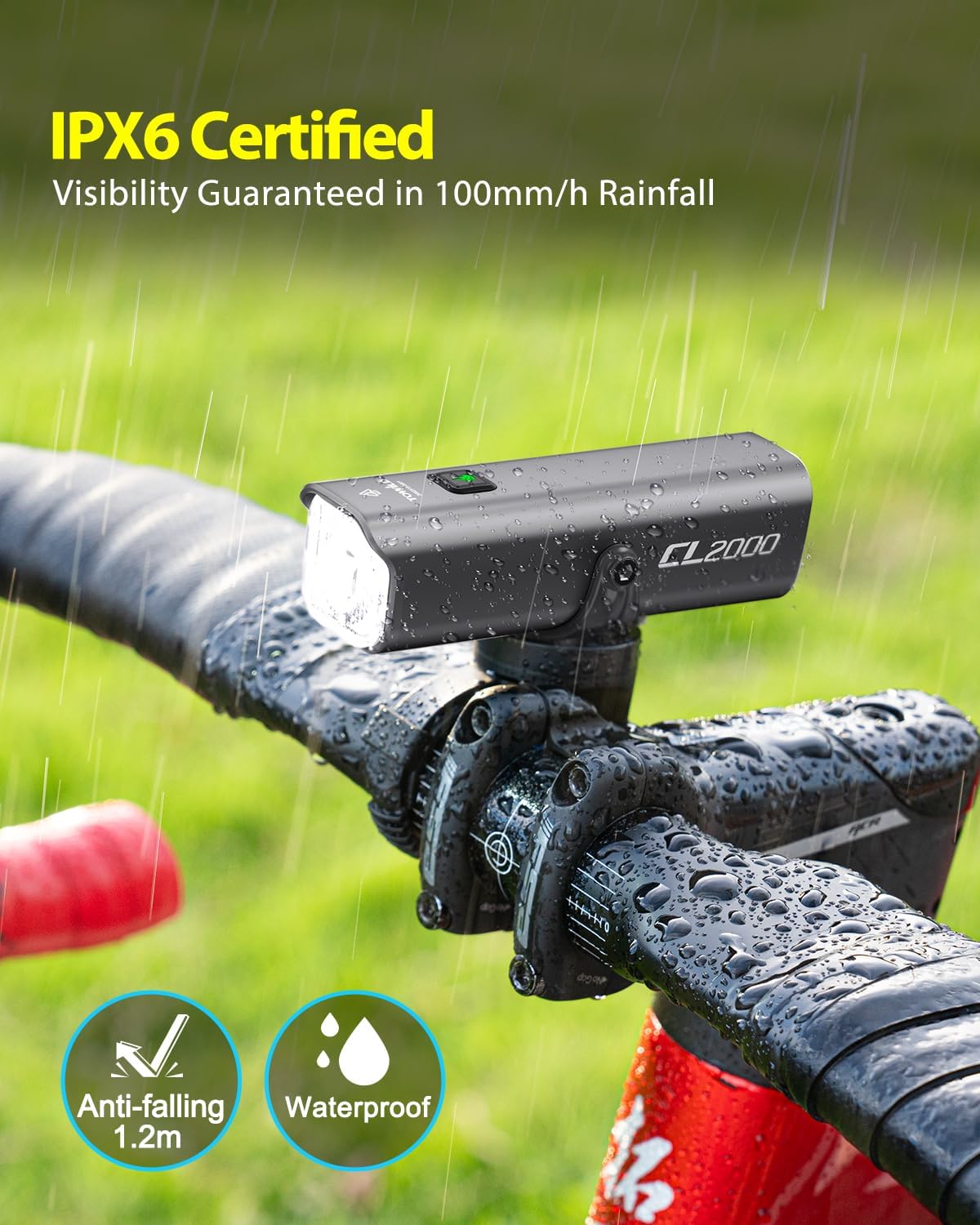

Image: The CL2000 headlight mounted on a bike handlebar in the rain, demonstrating its IPX6 waterproof rating.
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | La bateria està esgotada. | Charge the headlight using the USB-C cable. |
| La llum s'apaga de manera inesperada. | Low battery; Smart Sensor activated (in stillness). | Recharge the battery. If in Smart Mode, ensure continuous movement or switch to Manual Mode. |
| La sortida de llum és tènue. | Low battery; dirty lens. | Charge the battery. Clean the lens with a soft cloth. |
| No es poden canviar els modes. | Button malfunction; temporary software glitch. | Ensure button is pressed firmly. Try turning the light off and on again. If problem persists, contact support. |
7. Especificacions
| Característica | Detall |
|---|---|
| Model | CL2000 |
| Brillantor | Fins a 2000 lúmens |
| Capacitat de la bateria | 5000 mAh |
| Port de càrrega | USB-C |
| Temps de càrrega | Approx. 3.5 - 4 hours |
| Temps d'execució | Fins a 12 hores (segons la modalitat) |
| Resistència a l'aigua | IPX6 |
| Modes d'il·luminació | 5 (High, Medium, Low, Night Flash, Day Flash) |
| Material | Plastic, Metal, Polycarbonate |
| Tipus de muntatge | Handlebar Mount (compatible with Garmin/GoPro style mounts) |
8. Garantia i Suport
8.1 Informació de la garantia
The TOWILD CL2000 Bicycle Headlight comes with a full 2-year warranty from the date of purchase. This warranty covers manufacturing defects and material faults under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
Conserveu el vostre comprovant de compra per a reclamacions de garantia.
8.2 Atenció al client
For any questions, technical assistance, or warranty claims, please contact TOWILD customer support through the retailer where you purchased the product or visit the official TOWILD weblloc per obtenir informació de contacte.
També podeu visitar el TOWILD Store on Amazon per obtenir més informació i recursos de suport.
