Sunvivi 8-Quart 12-in-1 Programmable Multi-Cooker Roaster Oven

Introducció

The Sunvivi 8-Quart 12-in-1 Programmable Multi-Cooker Roaster Oven (Model ZES009) is a versatile kitchen appliance designed to simplify your cooking experience. This multi-functional unit combines the capabilities of a slow cooker, roaster oven, and more, offering 12 distinct cooking functions. Its intuitive digital controls allow for precise temperature and time management, ensuring consistent results for a wide range of dishes.

This manual provides essential information for the safe and effective operation of your Sunvivi multi-cooker. Please read all instructions carefully before first use and retain this manual for future reference.

Producte acabatview

Figure 1: Sunvivi 8-Quart Multi-Cooker in use, highlighting its spacious 8-quart capacity suitable for large meals like roasts.

The Sunvivi Multi-Cooker features an 8-quart capacity, making it suitable for preparing meals for families or gatherings. It includes a removable cast aluminum pot and a tempered glass lid. The control panel is digital, offering easy selection of cooking modes and adjustments for time and temperature. The appliance is designed for uniform heating, ensuring efficient and consistent cooking results.

Figure 2: Illustration of the uniform heating system for faster and energy-saving cooking.

Figure 3: Detailed dimensions of the multi-cooker and its components for proper placement and storage.

Característiques principals:

• Versatilitat 12 en 1: Offers Bake, Saute, Roast, Manual, Stew, Rice, Yogurt, Sous Vide, Smart Steam, Slow Cook, Keep Warm, and Delay Start functions.
• Programació intel·ligent: Intuitive LED screen with countdowns, mode selection, and automatic "Keep Warm" function.
• Control precís de la temperatura: Allows for customization of cooking to achieve desired flavors and textures.
• Fàcil de netejar: Ceramic inner pot, lid, and rack are dishwasher safe.
• Capacitat de 8 quarts: Spacious design for large roasts, soups, or multiple dishes.
• Nanses Cool-Touch: Designed for safe handling during and after cooking.
• Recobriment antiadherent: Ensures easy food release and simplified cleanup.

Figure 4: Key features including cool-touch handles, smart LED display, non-stick coating, and 8-quart capacity.

Instruccions de seguretat

• Assegureu-vos sempre que l'aparell estigui desendollat ​​abans de netejar-lo o quan no l'utilitzeu.
• Do not immerse the main unit (heating base) in water or other liquids.
• Use only non-metallic utensils to avoid damaging the non-stick coating of the inner pot.
• Mantenir l'aparell fora de l'abast dels nens.
• Assegureu-vos d'una ventilació adequada al voltant de l'aparell durant el funcionament.
• Do not scrub the inner pot with steel wool balls, as this can damage the coating.
• Always dry the inner pot thoroughly after cleaning before placing it back into the heating base.
• Use oven mitts when handling hot parts, such as the inner pot or lid, during or after cooking.

Configuració i primer ús

1. Desembalatge: Traieu amb cura tots els materials d'embalatge, incloses les pel·lícules o els adhesius protectors.
2. Neteja inicial: Wash the removable cast aluminum inner pot, tempered glass lid, and steam rack with warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp tela.
3. Col·locació: Place the multi-cooker on a stable, heat-resistant, and dry surface, away from walls and other appliances to allow for adequate ventilation.
4. Inseriu el recipient interior: Place the clean, dry inner pot into the heating base. Ensure it is seated correctly.
5. Connexió d'alimentació: Connecteu el cable d'alimentació a una presa de corrent amb connexió a terra. La pantalla LED s'il·luminarà.

Instruccions de funcionament

The Sunvivi Multi-Cooker features a user-friendly digital control panel with two rotary dials for selecting functions, adjusting time, and setting temperature.

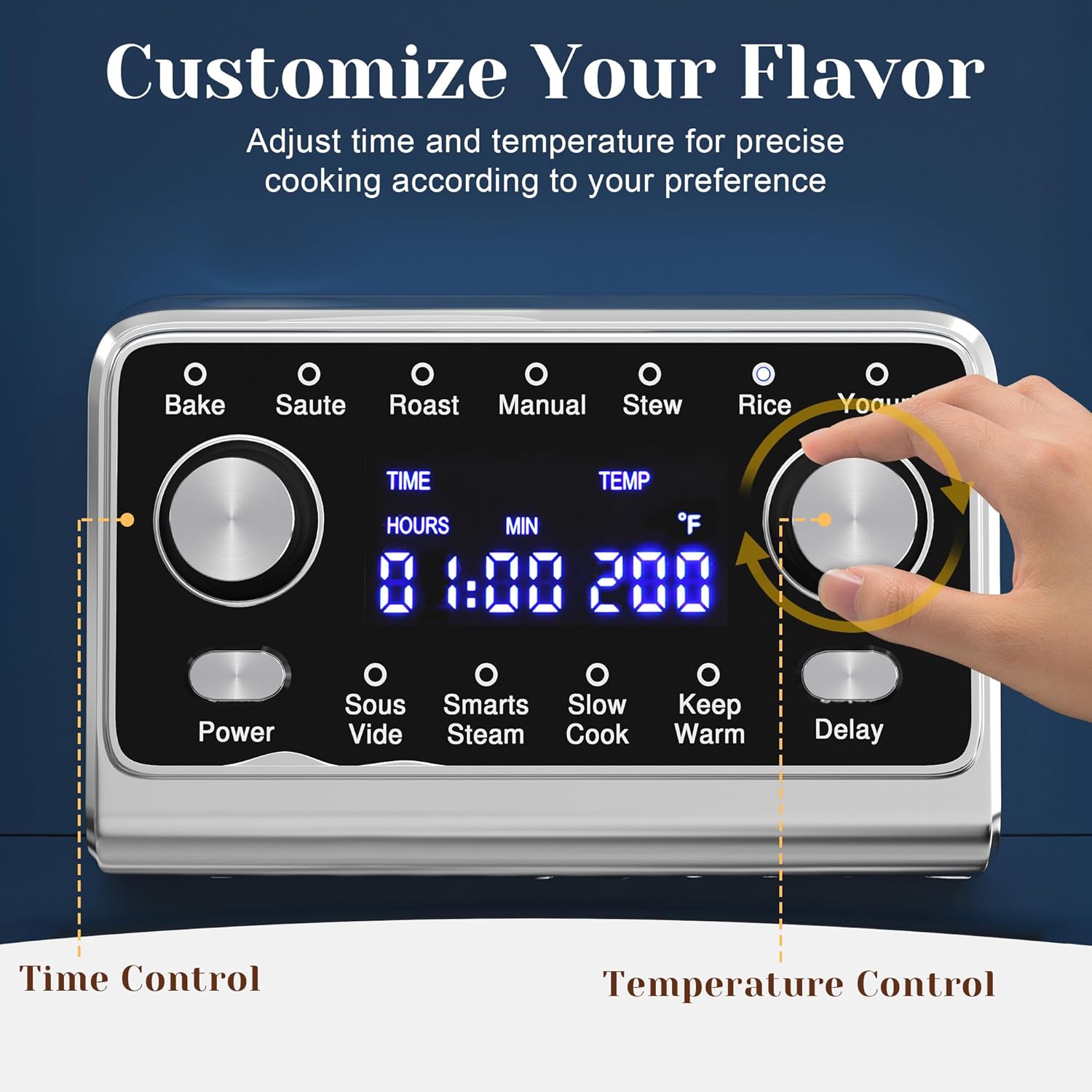

Figure 5: The digital control panel, showing the time and temperature dials and function indicators.

Selecció d'una funció:

1. Premeu el botó Poder botó per encendre l'aparell.
2. Rotate the left dial to cycle through the available cooking functions (Bake, Saute, Roast, Manual, Stew, Rice, Yogurt, Sous Vide, Smart Steam, Slow Cook, Keep Warm, Delay Start). The selected function will illuminate on the LED display.
3. Once a function is selected, the display will show default time and temperature settings.

Ajust de temps i temperatura:

• To adjust the cooking time, rotate the left dial. The time will increase or decrease in increments (e.g., minutes or hours, depending on the function).
• To adjust the temperature, rotate the right dial. The temperature will change in increments (e.g., degrees Fahrenheit).
• Some functions may only allow time adjustment, while others allow both. Refer to the specific function details below.

Inici i aturada:

• After setting the desired time and temperature, press both dials simultaneously to confirm and start the cooking process.
• To stop cooking at any time, press and hold the Poder botó fins que la pantalla s'apagui.

12 Cooking Functions Overview:

Figura 6: Mésview of the 12 versatile cooking functions with recommended temperature and time ranges.

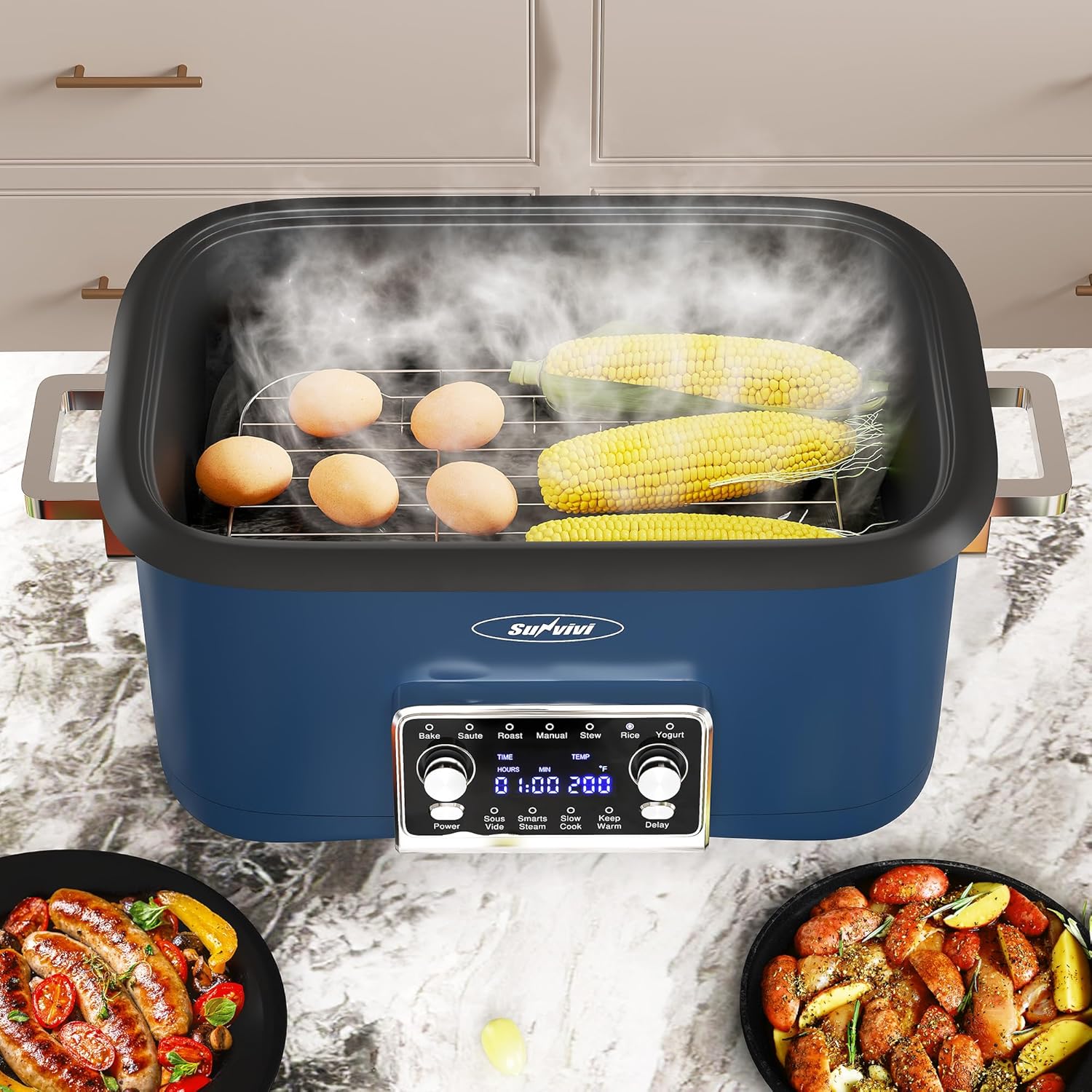

Figura 7: Example of using the Smart Steam function with the included steam rack.

Manteniment i Neteja

Proper maintenance ensures the longevity and optimal performance of your Sunvivi Multi-Cooker.

1. Desconnecta sempre: Abans de netejar-lo, desendolleu sempre l'aparell i deixeu-lo refredar completament.
2. Pot interior i tapa: The removable cast aluminum inner pot, tempered glass lid, and steam rack are dishwasher safe. For hand washing, use warm, soapy water and a non-abrasive sponge or cloth. Rinse thoroughly.
3. Assecat: Ensure all parts are completely dry before reassembling or storing. Pay special attention to drying the inner pot before placing it back into the heating base.
4. Exterior: Netegeu l'exterior de la unitat principal amb un drap suau i sec.amp drap. No utilitzeu productes de neteja abrasius ni submergiu la unitat principal en aigua.
5. Emmagatzematge: Store the multi-cooker in a dry place.

Figure 8: The inner pot and lid are dishwasher-safe for convenient cleaning.

Resolució de problemes

Especificacions

Garantia i Suport

For warranty information or technical support regarding your Sunvivi Multi-Cooker, please refer to the warranty card included with your product or visit the official SUNVIVI weblloc web. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.

Fabricant: Sunvivi
