1. Introducció
Thank you for choosing the Butterfly ZieraBlack 1000 Watt Mixer Grinder. This appliance is designed to simplify your cooking experience with its powerful motor, innovative blade technology, and durable jars. Please read this manual carefully before operating the appliance to ensure safe and efficient use. Keep this manual for future reference.
2. Instruccions de seguretat importants
Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica i lesions.
- Llegiu totes les instruccions abans d'utilitzar.
- No submergiu la unitat del motor en aigua o cap altre líquid.
- Assegureu-vos que el voltagLa potència indicada a l'aparell coincideix amb la vostra xarxa elèctrica local.
- Mantingueu les mans i els estris fora del recipient mentre tritureu per evitar lesions.
- Desendolleu sempre l'aparell de la presa de corrent abans de netejar-lo o quan no l'utilitzeu.
- No feu servir cap aparell amb un cable o un endoll danyats.
- Aquest aparell només és per a ús domèstic.
- Ensure the lid is securely locked before operating.
- No sobrecarregueu la trituradora.
- Allow the motor to cool down between consecutive uses.
3. Producte acabatview
The Butterfly ZieraBlack Mixer Grinder is equipped with advanced features for superior performance.
Figure 3.1: Complete Butterfly ZieraBlack Mixer Grinder Unit with Jars.
Components clau:
- Unitat motora: Powered by a Torx23 1000W motor with 23,000 RPM for fast and powerful grinding. Features overload protection.
- Jars: Includes 4 jars for various grinding needs.
- Tempered & Specially Annealed Steel Jars: Built for enhanced structural integrity and superior resistance to wear, ensuring long-lasting durability.
- PTFE-Coated Jars: Fingerprint-resistant and engineered with cool-touch functionality for enhanced user comfort and hygiene.
- Leakage-Free Durable Jars: Precision-crafted from high-gauge (0.27 mm) special-grade stainless steel with reinforced gaskets for leak-proof performance.
- Tornado Blades: SS304 blades designed for dual-level hybrid grinding, ensuring fast and uniform grinding across all ingredients.
- Tornado Lids: Inverted dome structure acts as a deep flow breaker, redirecting ingredient movement for better circulation and improved grinding consistency.
- Botó de control de velocitat: Allows selection of 3 speed settings and a pulse function.

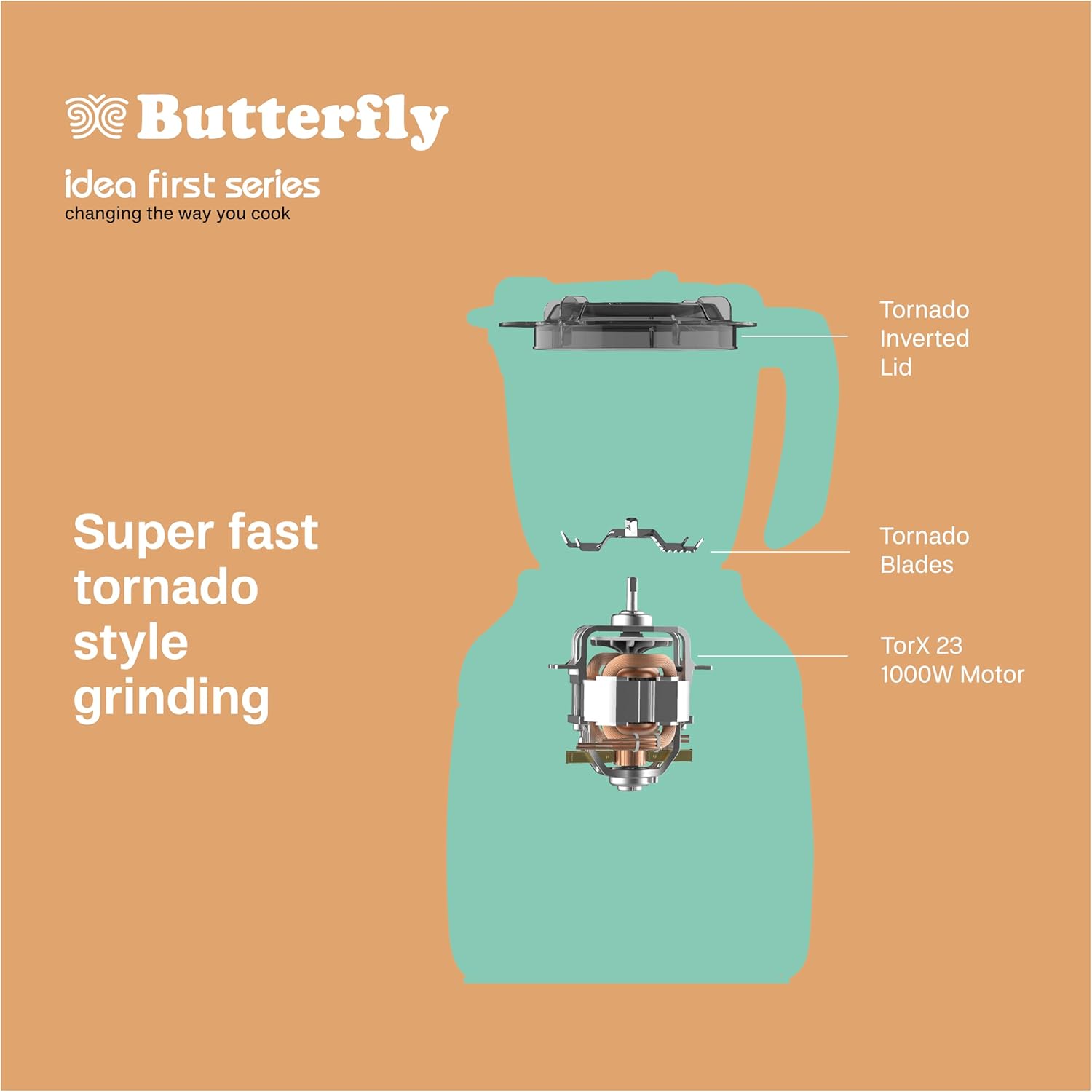

Figure 3.2: Internal components including Torx23 Motor, Tornado Blades, and Tornado Inverted Lid.
Figure 3.3: Tempered and specially annealed jar for crack resistance and durability.
Figure 3.4: Jar with fingerprint-resistant PTFE coating for easy maintenance.
4. Configuració i primer ús
- Desembalatge: Carefully unpack all components and remove any packaging materials. Verify that all parts are present as listed in the "Included Components" section.
- Neteja: Before first use, wash the jars, lids, and blades with warm soapy water. Rinse thoroughly and dry completely. Wipe the motor unit with a damp tela.
- Col·locació: Place the motor unit on a stable, flat, and dry surface, away from heat sources and direct sunlight.
- Muntatge:
- Ensure the jar base is clean and dry.
- Place the desired jar onto the motor unit, aligning the locking grooves. Twist gently until it locks into place.
- Add ingredients to the jar. Do not overfill.
- Securely place the lid on the jar and ensure it is properly seated.
- Connexió d'alimentació: Connecteu el cable d'alimentació a una presa de corrent adequada.
5. Instruccions de funcionament
The Butterfly ZieraBlack Mixer Grinder offers versatile grinding options. Always ensure the jar is securely locked and the lid is properly closed before starting the appliance.
- Càrrega d'ingredients: Place the ingredients into the appropriate jar. For best results, do not fill the jar more than two-thirds full for dry grinding and half full for wet grinding.
- Securing the Jar: Place the jar onto the motor unit and twist clockwise until it locks securely. Ensure the lid is firmly placed on the jar.
- Selecció de velocitat: Turn the speed control knob to the desired speed setting (1, 2, or 3).
- Velocitat 1: For light grinding and blending.
- Velocitat 2: For medium grinding and blending.
- Velocitat 3: For heavy-duty grinding and tough ingredients.
- Pols (P): For short bursts of power, ideal for coarse grinding or mixing. Hold the knob at 'P' for desired duration and release.
- Funcionament: Switch on the appliance. Allow the mixer grinder to run until the desired consistency is achieved.
- Protecció de sobrecàrrega: The appliance is equipped with an overload protector. If the motor stops due to overloading, switch off the appliance, unplug it, and press the reset button located at the bottom of the motor unit. Reduce the quantity of ingredients before restarting.
- Finalització: Once grinding is complete, turn the speed control knob to 'OFF' and unplug the appliance. Wait for the blades to stop completely before removing the lid and jar.
Consells per a un rendiment òptim:
- For wet grinding, add a small amount of water to facilitate smooth blending.
- For dry grinding, ensure ingredients are completely dry to prevent clogging.
- Do not run the mixer grinder continuously for more than 5 minutes. Allow a 2-3 minute break between cycles.
6. Manteniment i Neteja
Regular cleaning ensures the longevity and hygiene of your mixer grinder.
- Desconnectar: Desconnecteu sempre l'aparell abans de netejar-lo.
- Unitat motora: Netegeu la unitat del motor amb un suau, damp cloth. Do not use abrasive cleaners or immerse it in water. The smudge-free matt finish body is easy to clean.
- Jars and Lids:
- Traieu les partícules d'aliment restants.
- Wash the jars, lids, and blades with warm water and mild dish soap.
- Use a brush to clean around the blades carefully.
- Rinse thoroughly and dry immediately to prevent water spots and maintain shine.
- The PTFE-coated jars are designed for easy cleaning.
- Emmagatzematge: Store the mixer grinder and its accessories in a clean, dry place when not in use.
7. Solució De Problemes
If you encounter any issues, refer to the following table before contacting customer service.
| Problema | Causa possible | Solució |
|---|---|---|
| El motor no arrenca |
|
|
| La mòlta és desigual |
|
|
| Loud noise/Vibration |
|
|
8. Especificacions
| Característica | Detall |
|---|---|
| Marca | Papallona |
| Nom del model | Zeira |
| Número de model de l'article | M0970C00000 |
| Poder | 1000 Watt (Torx23 Motor) |
| Velocitat del motor | 23,000 RPM |
| Nombre de pots | 4 |
| Material de la fulla | Stainless Steel (SS304 Tornado Blades) |
| Característiques especials | Adjustable Speed Control, Anti-Skid, Heavy Duty, Overload Protection, Rust Resistant, Smudge-Free Jars, Tempered & SS Annealed Jars, PTFE-Coated Jars |
| Nombre de velocitats | 3 + pols |
| Color | Negre |
| Dimensions del producte | 58.5P x 29.5A x 27H centímetres |
| Pes de l'article | 6 kg 500 g |
| País d'origen | Índia |
9. Garantia i Suport
Your Butterfly ZieraBlack Mixer Grinder comes with comprehensive warranty coverage:
- Garantia del producte: 2 Anys
- Garantia del motor: 5 Anys
For any support, service, or warranty claims, please contact Butterfly customer service:
- Telèfon: 9362 01 9362
- Correu electrònic: service@butterflyindia.com
- Weblloc: www.butterflyindia.com/service/
You can also scan the QR code on the product packaging or visit the website for easy-to-read e-manuals and warranty details.
Figure 9.1: Customer Support Contact Details and QR Code for e-manuals.
