1. Introducció
Thank you for choosing the MEIKEE 100W LED Flood Light with Motion Sensor. This product is designed to provide efficient and reliable outdoor lighting with advanced motion detection and customizable settings. Please read this manual thoroughly before installation and operation to ensure proper use and safety.
2. Instruccions de seguretat
WARNING: To avoid electric shock, always disconnect power at the circuit breaker before installation or servicing.
- Ensure the power supply is turned off before commencing any electrical work.
- Installation should be performed by a qualified electrician if you are not familiar with electrical wiring.
- Aquest producte està dissenyat només per a ús a l'aire lliure.
- Assegureu-vos que l'aparell estigui correctament connectat a terra d'acord amb els codis elèctrics locals.
- No mireu directament a la font de llum LED quan estigui il·luminada, ja que podeu causar lesions oculars.
- Mantenir el producte allunyat de materials inflamables.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents abans de la instal·lació:
- 100W Motion Sensor Flood Light
- Control remot (2 piles AAA incloses)
- Screw Pack (mounting screws, wire nuts)
4. Característiques del producte
- Il·luminació ultra brillant: 9600 lumens, 6500K Daylight White.
- Capçals ajustables: Three independently adjustable LED heads for a wide 270° lighting angle.
- Sensor de moviment PIR: 180° detection angle, up to 12 meters (39 feet) range.
- 4 modes de treball: 24-Hour Detection, Night-Only Detection, Continuous Light, and Timer + Detection.
- Configuració personalitzable: Adjustable brightness (10%-100%), detection range (6m/9m/12m), and lighting duration (45s to 10min).
- Comandament a distància: Convenient adjustment of settings from a distance.
- Durador i resistent a la intempèrie: IP66 waterproof aluminum housing and IP65 waterproof sensor head for outdoor reliability.
- Dissipació de calor eficient: Designed for prolonged lifespan.
Image: Key features of the MEIKEE flood light, including adjustable heads, PIR motion sensor, heat dissipation, and high-brightness LEDs.
5. Guia d'instal·lació
Seguiu aquests passos per a una instal·lació segura i correcta:
- Preparació per a la instal·lació:
- Desconnecteu l'alimentació a l'interruptor automàtic abans de començar.
- Assegureu-vos que la superfície de muntatge sigui estable i que pugui suportar el pes del dispositiu.
- Recommended installation height: 6-8 meters (approximately 20-26 feet) for optimal motion sensor performance.
- Muntar l'aparell:
- Attach the mounting bracket to the wall or junction box using the provided screws.
- Feed the electrical wires through the gasket and mounting plate.
- Connexions de cable:
- Connect the live wire (usually black) from the fixture to the live wire from the power supply.
- Connect the neutral wire (usually white) from the fixture to the neutral wire from the power supply.
- Connect the ground wire (usually green or bare copper) from the fixture to the ground wire from the power supply.
- Assegureu totes les connexions amb femelles.
- Assegureu el dispositiu:
- Attach the flood light fixture to the mounting bracket, ensuring a tight and secure fit.
- Adjust the angle of the light heads and the motion sensor to cover the desired area.
- Restaura l'alimentació:
- Un cop finalitzada la instal·lació, torneu a engegar l'alimentació a l'interruptor.

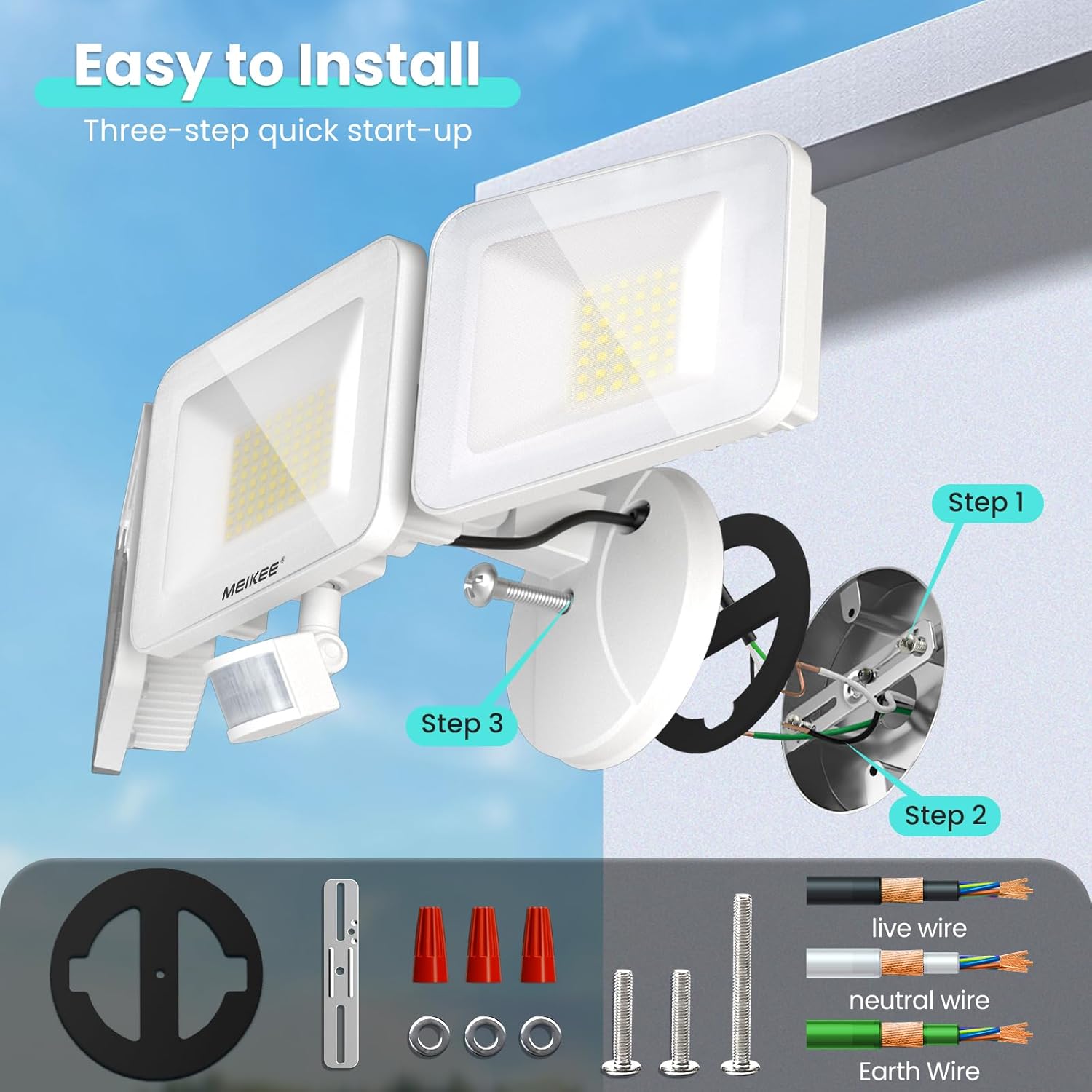

Image: Visual guide for the three-step installation process, illustrating mounting and wiring.
6. Instruccions de funcionament
The MEIKEE flood light offers various settings adjustable via the included remote control or directly on the sensor head.
6.1. Modes de treball
Select from four distinct operating modes:

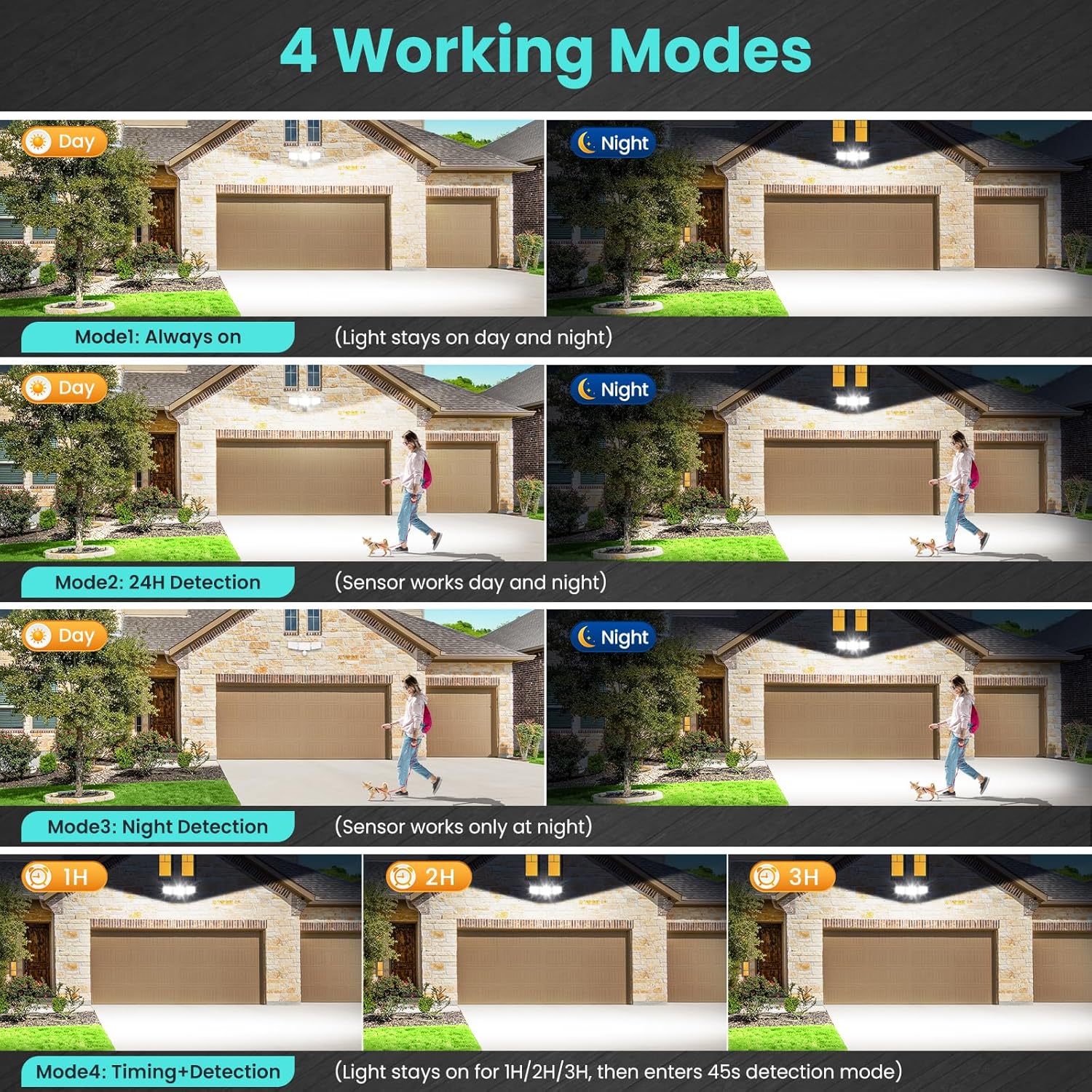

Imatge: Més deview of the four available working modes for the flood light.
- Mode 1: Always On (Constant Light Mode)
The light stays on continuously, day and night, regardless of motion. Activate by pressing the 'ON/OFF' button on the remote. - Mode 2: 24-Hour Detection
The sensor works day and night. The light will turn on when motion is detected and turn off after the set duration if no further motion is detected. Activate by pressing the 'DAY' button on the remote. - Mode 3: Night-Only Detection
The sensor works only at night. The light will turn on when motion is detected in low light conditions and turn off after the set duration if no further motion is detected. Activate by pressing the 'MOON' button on the remote. - Mode 4: Timing + Detection Mode
The light stays on for a set period (1, 2, or 3 hours) and then switches to 45-second night sensing mode automatically. Select 1H, 2H, or 3H on the remote.
6.2. Adjustable Settings
Customize the light's performance to your specific needs:
Image: Visual representation of adjustable sensing distance, brightness, and lighting duration settings.
- Brillantor: Adjust from 10% to 100% using the brightness control buttons on the remote.
- Interval de detecció: Set the motion sensor's sensitivity to 6m (20ft), 9m (30ft), or 12m (39ft) using the corresponding buttons on the remote.
- Durada de la il·luminació: Choose how long the light stays on after motion is detected: 45 seconds, 90 seconds, 120 seconds, 5 minutes, or 10 minutes. Select the desired time on the remote.
- 5-Second Test Feature: Allows for quick testing of sensor functionality during setup.
7. Funcions de control remot
The 15-key remote control provides convenient access to all settings. Ensure the remote has fresh AAA batteries and is pointed towards the sensor head for optimal communication.
Image: Remote control layout and indication of both remote and sensor head control options.
- ON/OFF: Toggles Constant Light Mode.
- 45S/90S/120S/5MIN/10MIN: Sets lighting duration.
- 6M/9M/12M: Adjusts detection distance.
- Brightness Buttons (Sun icons): Adjusts brightness levels (10% to 100%).
- TIMER (1H/2H/3H): Activates Timing + Detection Mode.
- DIA: Activates 24-Hour Detection Mode.
- LLUNA: Activates Night-Only Detection Mode.
8. Manteniment
Regular maintenance ensures optimal performance and longevity of your flood light:
- Neteja: Periodically wipe the light heads and sensor lens with a soft, damp drap per eliminar la pols i les restes. No utilitzeu productes de neteja abrasius.
- Inspecció: Annually check all electrical connections and mounting hardware for tightness and signs of wear or damage.
- Àrea del sensor: Keep the area around the motion sensor clear of obstructions (e.g., tree branches, tall plants) that could interfere with detection.
9. Solució De Problemes
Si teniu problemes, consulteu els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | No power; incorrect wiring; sensor settings. | Check circuit breaker; verify wiring connections; adjust sensor mode/sensitivity. |
| La llum es manté encesa contínuament. | Constant Light Mode activated; sensor malfunction. | Ensure Constant Light Mode is off; check sensor for obstructions. |
| El sensor de moviment no detecta. | Incorrect sensitivity/range settings; obstructions; improper installation height. | Adjust detection range and sensitivity; clear obstructions; verify installation height. |
| El comandament a distància no funciona. | Dead batteries; no line of sight; remote too far. | Replace AAA batteries; ensure direct line of sight to sensor; operate within range. |
| La llum parpelleja o s'atenua inesperadament. | Font d'alimentació inestable; cablejat fluix. | Consult an electrician to check power supply; inspect and tighten wiring connections. |
10. Especificacions tècniques
| Especificació | Valor |
|---|---|
| Nom del model | TSFA0100 |
| Wattage | 100 watts |
| Brillantor | 9600 lúmens |
| Temperatura de color | 6500 Kelvin (blanc llum del dia) |
| Voltage | 120 Volts |
| Material | Alumini |
| Nivell de resistència a l'aigua | IP66 (Housing), IP65 (Sensor Head) |
| Angle del sensor de moviment | 180° |
| Interval del sensor de moviment | Fins a 12 m (39 peus) |
| Dimensions del producte | 9 cm de llargada x 6.89 cm d'amplada x 7.13 cm d'alçada |
| Pes de l'article | 3.17 lliures |
| Font d'alimentació | AC |
| Mètode de control | Remot |
| Components inclosos | Flood light, Remote Control, Screw Pack |
11. Garantia i Suport
This MEIKEE product comes with a Limited Warranty. For specific warranty details and duration, please refer to the product packaging or contact MEIKEE customer support.
If you require further assistance, have questions, or need to report an issue, please contact MEIKEE customer support through the retailer's platform or the official MEIKEE website. Please have your model number (TSFA0100) and purchase information ready.
