Introducció
The MONTECH X5-Black is a high-performance ATX Mid-Tower PC case designed for gaming enthusiasts, offering excellent airflow, versatile component compatibility, and aesthetic appeal. It features a tempered glass side panel, carbon print accents, and comes with pre-installed ARGB fans to provide optimal cooling and vibrant lighting out of the box.
This manual provides detailed instructions for assembling your system within the X5-Black case, ensuring proper installation and optimal performance.
Característiques clau
- High Airflow Design: Optimized front mesh panel for superior air intake.
- Ventiladors ARGB preinstal·lats: Includes three 140mm front ARGB fans and one 120mm rear ARGB fan for immediate cooling and lighting.
- Panell lateral de vidre temperat: Proporciona un clar view dels teus components interns.
- Integrated GPU Holder: An adjustable support stand is included to prevent GPU sag.
- Carbon Print Accents: Refined carbon texture details on the front frame for a modern aesthetic.
- Excellent Hardware Compatibility: Supports GPUs up to 410mm, CPU coolers up to 165mm, and standard ATX PSUs up to 230mm.
- Optimized Cable Management: Ample routing space behind the motherboard tray and an extra-large PSU shroud.

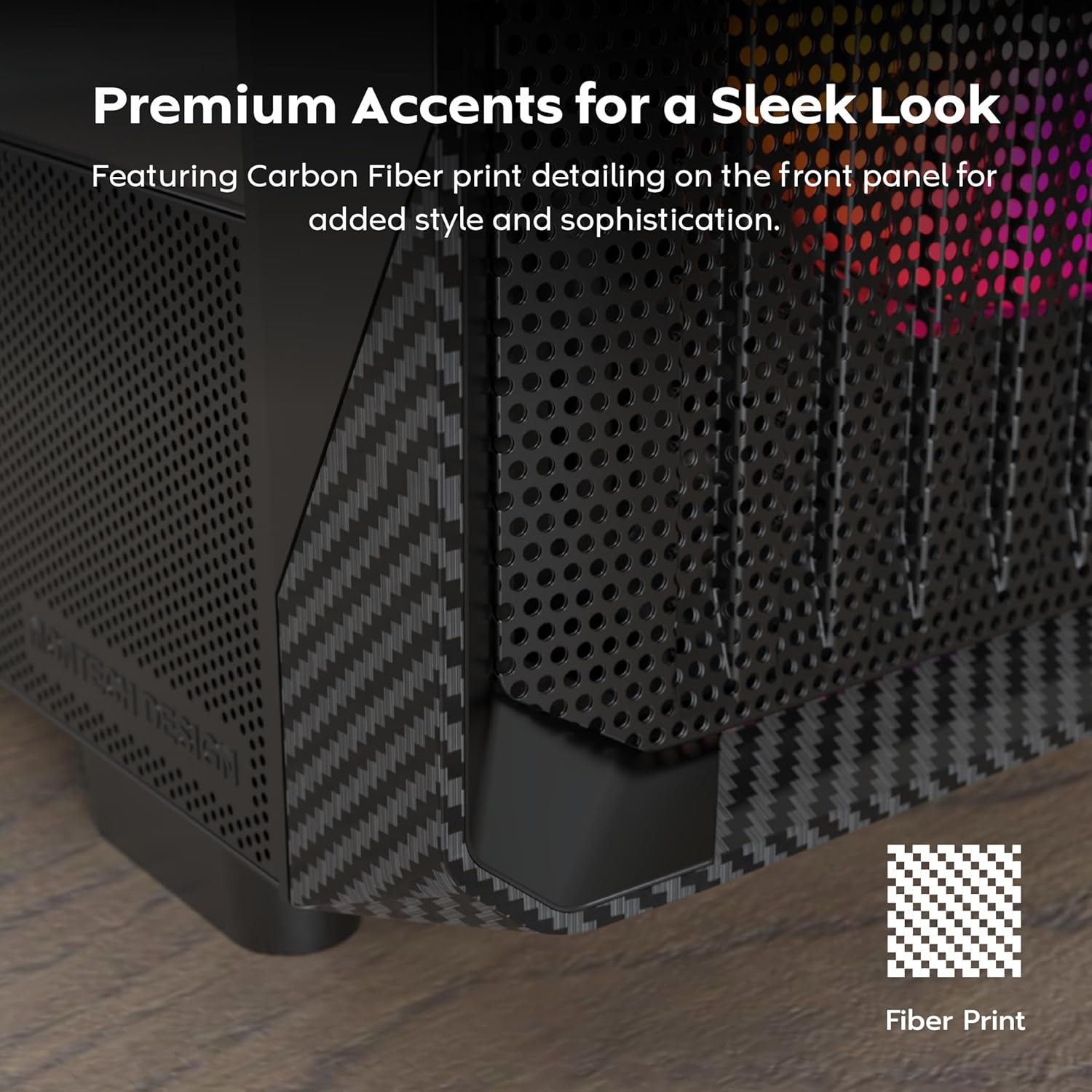

The carbon print accents provide a sleek and premium finish to the case's exterior.
The adjustable GPU holder ensures stability for even the heaviest graphics cards.
Guia de configuració
1. Desembalatge i preparació
- Traieu amb cura la caixa del seu embalatge.
- Remove the tempered glass side panel by gently swinging it open and lifting it off its hinges. Place it on a soft, flat surface to prevent scratches.
- Identify the accessory box, which contains screws, zip ties, and other small parts.
2. Instal·lació de components
Before installing components, familiarize yourself with the case's internal layout and compatibility:
This diagram illustrates the maximum dimensions for key components: GPU (410mm), CPU Cooler (165mm), and Power Supply (230mm).
2.1 Instal·lació de la placa base
- Ensure the correct standoffs are installed for your motherboard form factor (ATX, Micro ATX).
- Carefully place the motherboard into the case, aligning it with the standoffs and the I/O shield opening.
- Fixeu la placa base amb els cargols adequats.
2.2 Instal·lació de la font d'alimentació
- Slide the power supply unit (PSU) into the dedicated compartment at the bottom rear of the case.
- Fixeu la font d'alimentació amb els cargols de la part posterior de la carcassa.
2.3 Instal·lació de la GPU
- Traieu les cobertes de les ranures PCIe necessàries de la part posterior de la carcassa.
- Inseriu la targeta gràfica a la ranura PCIe adequada de la placa base.
- Secure the GPU with screws. Utilize the integrated GPU holder (Figure 3) to provide additional support.
2.4 Instal·lació d'unitats d'emmagatzematge (HDD/SSD)
- Locate the drive bays/mounts behind the motherboard tray or within the PSU shroud.
- Install 2.5" SSDs or 3.5" HDDs using the provided screws and brackets.
2.5 Instal·lació del ventilador i del radiador
The X5-Black supports various fan and radiator configurations:
The case supports up to 360mm AIO radiators on both the top and front. Ensure proper airflow direction for optimal cooling.
2.6 Gestió de cables
- Feu passar tots els cables d'alimentació i de dades pels retalls i canals designats que hi ha darrere de la safata de la placa base.
- Use zip ties or Velcro straps to bundle cables neatly, improving airflow and aesthetics.
Funcionament
1. Panell d'E/S frontal
El panell frontal d'E/S proporciona un accés convenient als ports i controls essencials:
- Botó d'encesa: Activa o desactiva el sistema.
- Botó LED: Cycles through various ARGB lighting modes for the pre-installed fans.
- Port USB 2.0: Per connectar dispositius USB 2.0.
- Port USB 3.0: Per connectar dispositius USB 3.0 d'alta velocitat.
- Mic & Audio Jacks: Per connectar auriculars i micròfons.
- Port USB tipus C: For modern USB-C connectivity (if applicable to your specific model).
2. Control del ventilador ARGB
The pre-installed ARGB fans can be controlled via the dedicated LED button on the front I/O panel. Press the button to cycle through different lighting effects and colors. For advanced synchronization and control, connect the ARGB headers to a compatible motherboard with ARGB software support (e.g., ASUS Aura Sync, MSI Mystic Light Sync, GIGABYTE RGB Fusion, ASRock Polychrome Sync).
Manteniment
- Neteja del filtre de pols: Regularly check and clean the removable dust filters located on the top, bottom, and front (if applicable) of the case. This helps maintain optimal airflow and prevents dust buildup inside your system.
- Neteja interior: Periodically use compressed air to remove dust from internal components, especially fan blades and heatsinks. Ensure the system is powered off and unplugged before cleaning.
- Neteja exterior: Netegeu les superfícies exteriors amb un damp cloth. Avoid abrasive cleaners or solvents that may damage the finish or carbon print accents.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El sistema no s'encén. | Connexions d'alimentació soltes, font d'alimentació defectuosa, connexió incorrecta del capçal del panell frontal. | Check all power cables (24-pin, CPU, GPU). Ensure front panel power switch cable is correctly connected to motherboard. Test PSU if possible. |
| Els ventiladors no giren. | Fan cables disconnected, insufficient power, faulty fans. | Verify fan power cables are securely connected to the motherboard or fan controller. Check BIOS settings for fan control. |
| ARGB lighting not working or stuck. | ARGB cable disconnected, incompatible motherboard header, software issue. | Ensure ARGB cables are connected to the correct 3-pin 5V ARGB header on the motherboard. Try pressing the LED button on the front I/O. Update or reinstall motherboard RGB software. |
| USB ports not functioning. | Front panel USB cables disconnected from motherboard. | Check that the USB 2.0, USB 3.0, and USB Type-C (if applicable) headers from the case are securely connected to the corresponding headers on your motherboard. |
Especificacions tècniques
| Característica | Especificació |
|---|---|
| Nom del model | X5-Black |
| Tipus de cas | Torre mitja |
| Compatibilitat amb la placa base | ATX, Micro ATX |
| Dimensions (L x A x A) | 18.98 x 8.5 x 19.53 polzades (482 x 216 x 496 mm) |
| Pes | 14.3 lliures (6.49 kg) |
| Material | Metal with Carbon Fiber Accents, Tempered Glass |
| Ventiladors preinstal·lats | Davant: 3 x 140 mm ARGB; Posterior: 1 x 120 mm ARGB |
| Suport del ventilador (màx.) | Davant: 3 x 120 mm / 3 x 140 mm; Superior: 2 x 120 mm / 2 x 140 mm; Posterior: 1 x 120 mm |
| Suport del radiador (màx.) | Front: 360mm; Top: 360mm; Rear: 120mm |
| Longitud màxima de la GPU | 410 mm |
| Alçada màxima del refrigerador de la CPU | 165 mm |
| Longitud màxima de la PSU | 230 mm |
| Drive Bays | 2.5" SSD, 3.5" HDD (specific configuration varies) |
| Ports d'E / S frontals | 1 x USB 3.0, 1 x USB 2.0, 1 x USB Type-C, Audio In/Out, Power Button, LED Button |
Garantia i Suport
For warranty information and technical support, please refer to the official MONTECH website or contact your local retailer. Warranty terms and conditions may vary by region and product. Please retain your proof of purchase for warranty claims.
