Manual d'instruccions de la unitat PTAC Amana HEH073K25DXXX de 7,000 BTU

1. Introducció

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Amana HEH073K25DXXX 7,000 BTU Packaged Terminal Air Conditioner (PTAC) unit. This high-efficiency unit features a heat pump, operates on 208/230 Volts and 15 Amps, and is designed to provide year-round comfort. Please read this manual thoroughly before installation and use, and retain it for future reference.

Figure 1: Amana HEH073K25DXXX PTAC Unit, showing the complete exterior housing.

2. Informació de seguretat

Always observe the following safety precautions to reduce the risk of fire, electric shock, or injury to persons.

• ADVERTÈNCIA: RISC DE DESCARGA ELÈCTRICA. Disconnect all remote electric power supplies before servicing. This compartment must be closed except when servicing.
• La instal·lació i el manteniment només els ha de dur a terme personal qualificat.
• Assegureu-vos que la unitat estigui correctament connectada a terra per evitar descàrregues elèctriques.
• No feu funcionar la unitat amb el cablejat o els components danyats.
• Mantingueu els materials inflamables allunyats de la unitat.
• Ensure proper ventilation around the unit as specified in installation instructions.

Figure 2: Internal wiring compartment with safety warning label. Always disconnect power before accessing this area.

3. Producte acabatview i Característiques

The Amana HEH073K25DXXX PTAC unit is designed for optimal performance and user comfort. Key features include:

• Alta eficiència: Engineered for energy-saving operation.
• Heat Pump Functionality: Provides both cooling and heating capabilities.
• Funcionament silenciós: Features upgraded DC motors for reduced noise levels (52 dB).
• Smart Door Economizer: Allows the unit to bring in cool, dry outside air to maintain room temperatures, reducing energy consumption.
• Easy Pull-Out Filters: Simplifies routine maintenance.
• Room Freeze Protection: Automatically activates to prevent freezing in unoccupied rooms.
• Zero Floor Clearance: Designed for flexible installation options.
• 100% Run Tested: Each unit undergoes rigorous testing to ensure reliability.
• Muntat als EUA: Quality manufacturing.

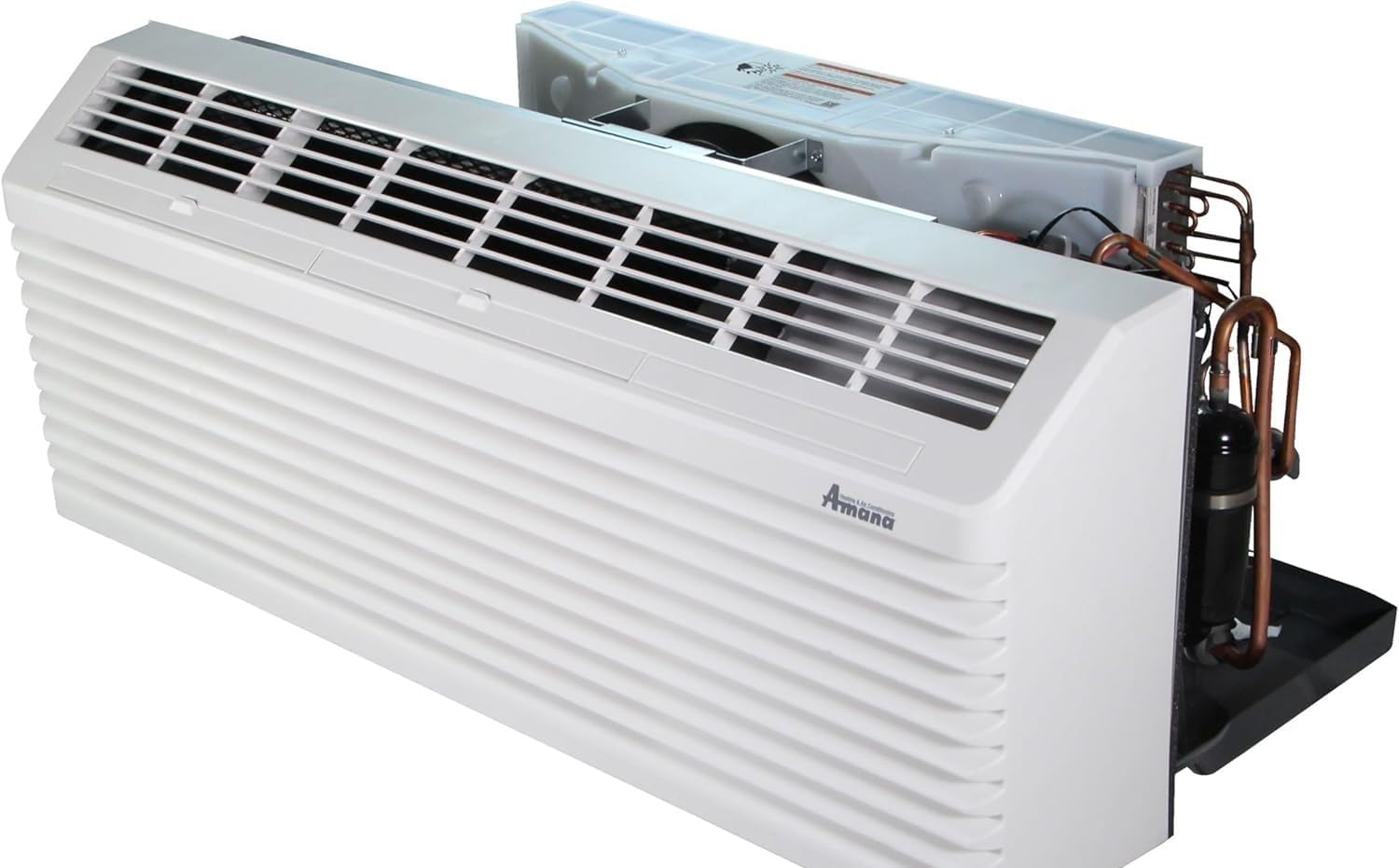

Figura 3: Frontal view of the Amana PTAC unit, showcasing its sleek design and air vents.

4. Configuració i instal·lació

This PTAC unit is designed for through-the-wall installation. Professional installation is highly recommended to ensure proper function and safety.

4.1 Consideracions prèvies a la instal·lació

• Requisits d'alimentació: The unit requires a 208/230 Volt, 15 Amp electrical supply. Ensure the electrical circuit meets these specifications.
• External Thermostat: This unit does no have an on-board control panel. An external thermostat (sold separately) is required for operation. Plan for its installation and wiring.
• Màniga de paret: A compatible wall sleeve is necessary for through-the-wall installation.
• Components inclosos: Verify that the front cover and installation hardware are present.

4.2 Passos d'instal·lació (resum)

1. Prepare the wall opening and install the wall sleeve according to its specific instructions.
2. Carefully slide the PTAC unit into the wall sleeve.
3. Connect the unit to the dedicated 208/230V, 15 Amp electrical supply. Refer to local electrical codes and the unit's wiring diagram.
4. Install and wire the external thermostat to the unit's control board.
5. Secure the unit within the sleeve and install the front cover.
6. Perform a test run to ensure all functions operate correctly.

Figura 4: Example of a 208/230V, 15 Amp power plug, similar to what may be used with this unit. Ensure proper electrical connection.

Figura 5: Intern view of the PTAC unit, showing the fan and coil components. Access for installation and maintenance.

5. Instruccions de funcionament

The Amana HEH073K25DXXX PTAC unit is controlled exclusively by an external thermostat. Once the unit is properly installed and connected to an external thermostat, you can manage its operation.

5.1 Basic Operation via External Thermostat

• Encès/apagat: Use the external thermostat to turn the unit on or off.
• Selecció del mode: Select desired operating mode (Cool, Heat, Fan Only) on your external thermostat. The unit will respond accordingly.
• Configuració de la temperatura: Adjust the desired room temperature using the external thermostat's controls.
• Velocitat del ventilador: If supported by your external thermostat, adjust the fan speed (e.g., Low, Medium, High, Auto).

5.2 Smart Door Economizer Function

The integrated Smart Door Economizer feature allows the unit to utilize favorable outdoor conditions to cool the room. When the outside air is cool and dry enough, the unit can bring in this air to maintain comfort, thereby reducing the need for mechanical cooling and saving energy. This function operates automatically based on programmed settings or external thermostat commands, if applicable.

6. Manteniment

Regular maintenance ensures optimal performance and extends the lifespan of your Amana PTAC unit. Always disconnect power to the unit before performing any maintenance.

6.1 Neteja/substitució del filtre d'aire

The unit is equipped with easy pull-out filters. Clean or replace filters regularly (e.g., monthly, or more frequently with heavy use) to maintain air quality and unit efficiency.

1. Desconnecteu l'alimentació de la unitat a l'interruptor automàtic.
2. Locate the filter access panel, typically on the front of the unit.
3. Gently pull out the air filters.
4. Clean filters with a vacuum cleaner or wash with mild soap and water. Ensure filters are completely dry before reinstallation. Replace if damaged or excessively dirty.
5. Reinsert the clean/new filters and close the access panel.
6. Restaura l'alimentació a la unitat.

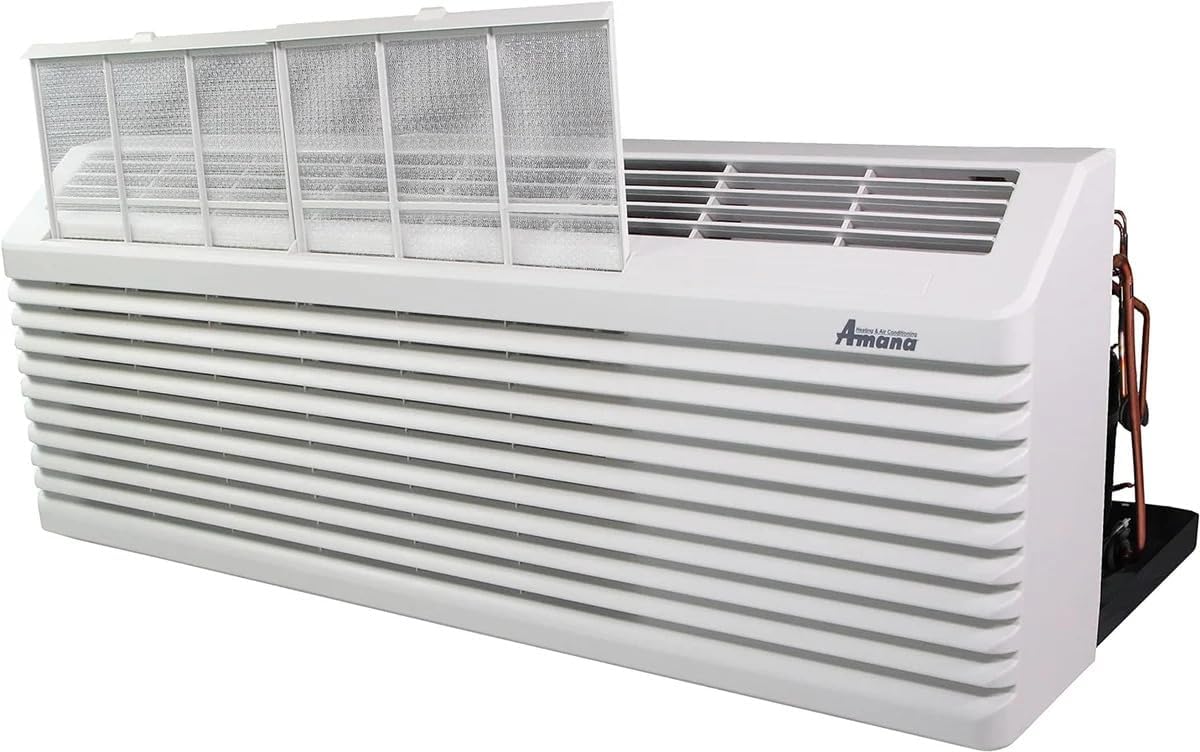

Figure 6: Accessing the easy pull-out air filters for cleaning or replacement.

6.2 Neteja de la bobina

Periodically inspect the evaporator and condenser coils for dirt and debris. If coils are dirty, professional cleaning is recommended to avoid damage and ensure efficient operation.

6.3 Neteja general

Netegeu l'exterior de la unitat amb un damp tela. No utilitzeu netejadors abrasius ni dissolvents.

7. Solució De Problemes

If your Amana PTAC unit is not operating correctly, refer to the following common issues and solutions. For problems not listed here, or if solutions do not resolve the issue, contact qualified service personnel.

8. Especificacions

9. Garantia i Suport

For warranty information, technical support, or to locate authorized service providers, please contact AMANA customer service. Keep your purchase receipt and model number (HEH073K25DXXX) readily available when contacting support.

You can typically find contact information on the official AMANA weblloc web o a través del vostre distribuïdor de productes.
