Introducció
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your AgiiMan 5000GPH Sump Utility Pump. Please read all instructions carefully before use and retain this manual for future reference.
Image: The AgiiMan 5000GPH Sump Utility Pump, blue in color, with its power cord and various hose adapters displayed alongside it.
Informació de seguretat
- Desconnecteu sempre la bomba de la xarxa elèctrica abans de manipular-la, netejar-la o realitzar qualsevol manteniment.
- Assegureu-vos que el cable d'alimentació i l'endoll estiguin en bon estat. No l'utilitzeu si està danyat.
- Do not operate the pump in dry conditions. Submerge the pump fully in water before starting.
- Keep hands, feet, and clothing clear of the pump's intake and discharge openings during operation.
- This pump is designed for water removal. Do not use it for flammable liquids, corrosive chemicals, or highly viscous fluids.
- The pump is equipped with thermal overload protection. If the motor temperature reaches 105℃/221℉, the pump will automatically shut down to prevent damage. It will resume operation after cooling.
Contingut del paquet
Verifiqueu que tots els components siguin presents:
- AgiiMan 5000GPH Sump Utility Pump
- 33FT UL Plug Power Cord (integrated)
- 3/4" GHT (Garden Hose Thread) Elbow 90° Adapter
- 3/4" GHT Adapter
- Adaptador de connexió ràpida
- Check Valve (may be integrated or separate)
Especificacions
| Característica | Especificació |
|---|---|
| Marca | AgiiMan |
| Número de model | YBBLBK |
| Potència de sortida | 1 CV (300 W) |
| Caudal màxim | 5000 GPH (37 galons per minut) |
| Alçada màxima d'elevació (capçal) | 36 peus |
| Voltage | 120V 60Hz |
| Longitud del cable d'alimentació | 33 peus |
| Màxim Amps | 4.2A |
| Temperatura màxima del fluid | 35 ℃ / 95 ℉ |
| Classe de protecció | IPX8 |
| Material | Acrilonitril butadiè estirè (ABS) |
| Pes de l'article | 8.8 lliures |
| Dimensions del producte | 7.5 cm de llargada x 7.5 cm d'amplada x 9 cm d'alçada |
Image: A visual representation of the pump's technical specifications, including dimensions, flow rate, and power details.
Configuració
- Choose a Discharge Hose: Select a hose appropriate for your application. The pump supports various connections.
- Connecteu l'adaptador: Screw the desired adapter (3/4" GHT elbow, 3/4" GHT, or Quick Connect) onto the pump's 1" NPT internal thread outlet. Ensure a tight seal to prevent leaks.
- Connecteu la mànega: Securely attach your discharge hose to the chosen adapter.
- Posició de la bomba: Place the pump in the area where water needs to be removed. Ensure it is on a stable, flat surface and fully submerged in water before plugging it in. The pump features a bottom suction design to filter impurities.

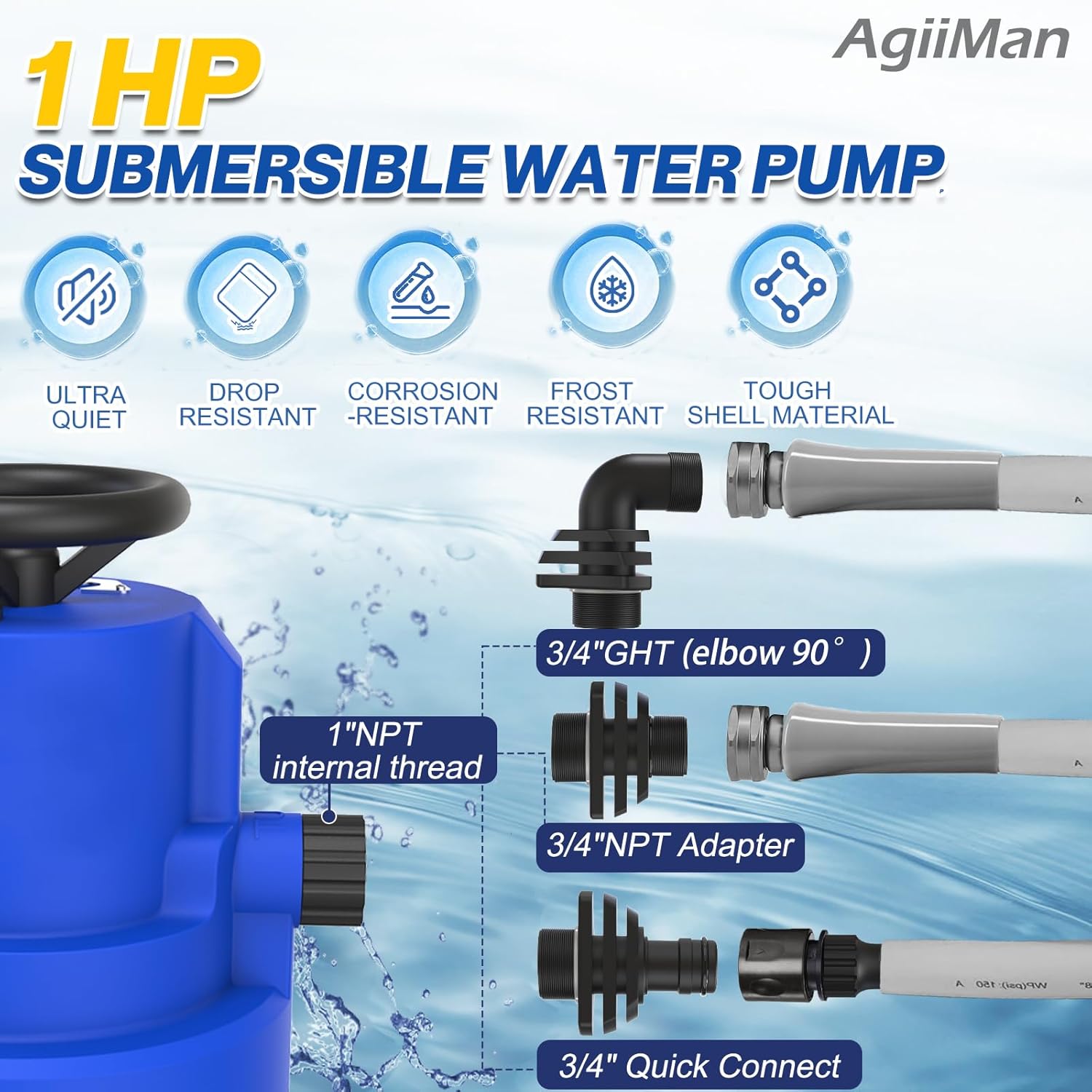

Image: The AgiiMan pump shown with its 1" NPT internal thread and the three included adapters: 3/4" GHT (elbow 90°), 3/4" NPT Adapter, and 3/4" Quick Connect.
Image: A diagram illustrating how to connect different hose adapters to the pump's outlet.
Video: A demonstration of the pump's features, including its portable handle, automatic operation, high water output, bottom suction design, and the process of installing accessories. This video is provided by QuickDeals Int.
Instruccions de funcionament
- Funcionament automàtic: The AgiiMan sump pump features an automatic on/off function. The pump will automatically turn on when the water level reaches approximately 5/8" (16mm) and will continue running for an extra 20 seconds before automatically shutting off when the water level drops below 1/3" (8mm).
- Connexió d'alimentació: Once the pump is correctly positioned and submerged, plug the 33FT power cord into a grounded electrical outlet. The pump will initiate operation if the water level is above the activation threshold.
- Seguiment: Observe the pump's operation to ensure water is being discharged effectively.
- Accionament manual (si escau): While primarily automatic, ensure the pump is unplugged if you need to manually stop operation or move the pump.
Image: A visual guide demonstrating the automatic turn-on threshold (above 5/8" water level) and turn-off threshold (below 1/3" water level) for the pump.
Image: Detailed illustration of the automatic ON/OFF switch function, showing the minimum start water level above 5/8" and minimum stop water level below 1/3".
Manteniment
- Neteja regular: Periodically inspect the pump's bottom suction area for debris, such as leaves or small particles. The bottom suction design includes screens to filter out impurities.
- Eliminació de bloquejos: If the pump's water output decreases or stops, it may be due to a blockage. Disconnect power, remove the base, and clean any accumulated impurities. Restart after a short period. The pump can handle particles up to 1/6" (approximately 4mm).
- Protecció contra sobrecàrrega tèrmica: If the pump stops due to thermal overload, allow it to cool down for a period before it automatically resumes operation. Do not attempt to force it to restart immediately.
- Emmagatzematge: When not in use for extended periods, clean the pump thoroughly, drain any remaining water, and store it in a dry, protected area.
Imatge: Primer pla view of the pump's bottom suction design, highlighting the screens that filter out impurities.
Image: A visual note explaining that while impurities up to 1/6" will not damage the motor, larger amounts can cause blockages, requiring the base to be removed for cleaning.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La bomba no arrenca | No power; Water level too low; Thermal overload activated; Blocked intake. | Check power connection; Ensure water level is above 5/8"; Allow pump to cool; Clear intake of debris. |
| Baixa sortida d'aigua | Partial blockage in intake or discharge hose; Kinked hose; Insufficient water level. | Clear blockages; Straighten hose; Ensure adequate water supply. |
| La bomba funciona contínuament | Water level not dropping below 1/3"; Sensor malfunction. | Verify water level is dropping; Contact customer support if sensor is suspected. |
| La bomba s'atura de manera inesperada | Thermal overload activated; Power interruption; Complete blockage. | Allow pump to cool; Check power supply; Clear blockages. |
Garantia i Suport
For warranty information or technical support, please refer to the product packaging or contact AgiiMan customer service directly. Keep your purchase receipt as proof of purchase.
La informació de contacte normalment es pot trobar a la pàgina oficial del fabricant weblloc web o a través del vostre distribuïdor.
