Introducció
Thank you for choosing the COWSAR Beverage Refrigerator. This compact and efficient mini fridge is designed to keep your beverages perfectly chilled, offering precise temperature control, quiet operation, and versatile storage. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your new appliance.
Instruccions importants de seguretat
- Llegiu totes les instruccions abans d'utilitzar l'aparell.
- Assegureu-vos que la font d'alimentació coincideixi amb el voltage especificat a l'etiqueta de qualificació.
- No feu servir l'aparell amb un cable o un endoll danyats.
- Mantenir les obertures de ventilació lliures d'obstruccions.
- No emmagatzemeu substàncies explosives com ara llaunes d'aerosol amb un propulsor inflamable en aquest aparell.
- Desendolleu l'aparell abans de netejar-lo o fer-ne el manteniment.
- Aquest aparell està dissenyat només per a ús domèstic.
Configuració
Desembalatge
Carefully remove all packaging materials, including foam and adhesive tape. Inspect the refrigerator for any shipping damage. Keep packaging materials until you are satisfied with the product's condition.
Col·locació
Place the refrigerator on a flat, stable surface away from direct sunlight or heat sources. Ensure adequate ventilation around the unit. Allow at least 4 inches (10 cm) of space on the back and sides for proper air circulation. This freestanding unit is suitable for countertops, home bars, dorm rooms, offices, or small kitchens.
The COWSAR Beverage Refrigerator is designed for versatile placement in various environments such as living rooms, bedrooms, kitchens, and offices.
Neteja inicial
Before first use, clean the interior and exterior of the refrigerator with a soft cloth and mild detergent. Rinse thoroughly and dry completely.
Connexió d'alimentació
Plug the refrigerator into a dedicated 115V AC outlet. Allow the unit to stand upright for at least 2 hours before plugging it in to allow refrigerants to settle.

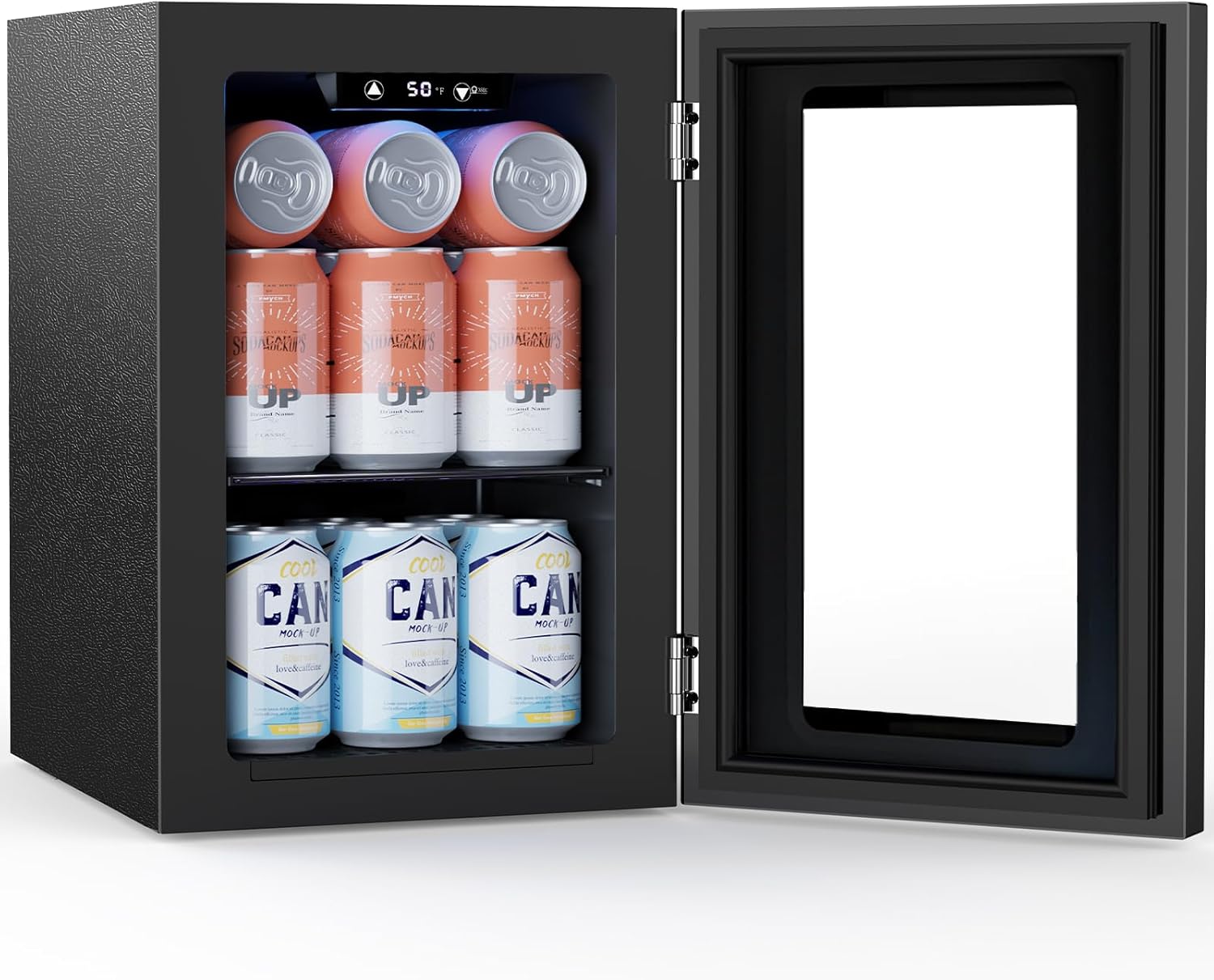

The COWSAR Beverage Refrigerator with its door open, displaying the interior shelves filled with various beverage cans and the digital temperature control panel at the top.
Instruccions de funcionament
Control de temperatura
The refrigerator features an adjustable digital thermostat to maintain temperatures between 40°F and 61°F (4°C and 16°C). Use the up and down arrows on the digital control panel located inside the unit to set your desired temperature. The display will show the current internal temperature.
Un detallat view of the digital control panel, featuring temperature setting buttons and a clear display of the current temperature in Fahrenheit.
Llum interior LED
The soft blue interior LED light enhances visibility and allows for easy drink access, even in dimly lit spaces. The light can be controlled via the digital control panel.
Storage Capacity and Shelves
This compact unit holds up to 24 standard 12oz cans in its 0.6 cu.ft capacity. It includes one adjustable and removable shelf, allowing you to customize the interior space to accommodate various bottle and can sizes. The UV protective double thermopane glass door helps maintain internal temperature and protects contents from harmful UV rays.
An illustration detailing the compact dimensions (16.5"H x 10.9"W x 14.8"D) and capacity of the refrigerator, indicating it can hold 24 beer cans and has adjustable temperature settings and sliding shelves.
Sistema de refrigeració
Equipped with a powerful and quiet compressor, the refrigerator ensures efficient cooling with minimal vibration, preserving the quality of your beverages. The advanced cooling and circulating system provides frost-free operation and deodorization.
This image illustrates the advanced cooling and circulating system, emphasizing its frost-free capability and deodorization feature for optimal beverage preservation.
Manteniment
Neteja
- Interior: Unplug the unit. Remove shelves and the drain tray. Wash with a solution of warm water and baking soda (2 tablespoons baking soda to 1 quart water). Rinse and dry thoroughly.
- Exterior: Clean with a mild detergent and warm water. Wipe dry with a soft cloth.
- Junta de la porta: Netegeu la junta de la porta regularment per garantir un segellat correcte.
Descongelació
This appliance features manual defrost. Frost will accumulate on the cooling plate. When the frost layer becomes too thick (approximately 1/4 inch or 6 mm), unplug the unit and allow the frost to melt naturally. Place a towel at the bottom to absorb water, or empty the removable drain tray. Do not use sharp objects to remove frost.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La nevera no funciona | Sense alimentació; Endoll no completament inserit; Interruptor automàtic saltat. | Comproveu el subministrament elèctric; assegureu-vos que l'endoll estigui ben connectat; reinicieu l'interruptor automàtic. |
| La temperatura no és prou freda | Door not closed properly; Excessive door openings; Warm items added; Poor ventilation; Temperature setting too high. | Ensure door is sealed; Reduce frequency of door openings; Allow warm items to cool before placing inside; Ensure adequate space around unit; Adjust temperature setting lower. |
| Soroll excessiu | Unit not level; Objects vibrating inside; Compressor noise. | Adjust leveling feet; Ensure items are not touching walls/shelves; Compressor noise is normal during operation. |
| Condensation on glass door | High humidity; Frequent door openings; Poor door seal. | This can be normal in humid conditions. Reduce door openings; Check door gasket for proper seal. |
| Sides of unit get hot | Funcionament normal. | The sides contain condenser coils which dissipate heat. Ensure proper ventilation around the unit. |
Especificacions
| Característica | Detall |
|---|---|
| Nom de marca | COWSAR |
| Informació del model | Mini Fridge-58018RWC0 |
| Pes de l'article | 21.6 lliures (9.8 kg) |
| Dimensions del producte (P x A x A) | 16.73 x 11.02 x 14.88 polzades (42.5 x 28 x 37.8 cm) |
| País d'origen | Xina |
| Capacitat | 0.6 Cubic Feet (approx. 24 standard cans) |
| Consum anual d'energia | 549 watts |
| Tipus d'instal·lació | Autònom |
| Factor de forma | mini nevera |
| Característiques especials | Easy to Install, Adjustable Digital Thermostat, LED Light, Quiet Operation |
| Color | Negre |
| Voltage | 115 volts (CA) |
| Sistema de descongelació | Manual |
| Nombre de portes | 1 |
| Prestatges | 1 (ajustable) |
| Components inclosos | Prestatgeria |
Garantia i Suport
For warranty information or technical support, please refer to the documentation included with your purchase or contact COWSAR customer service directly. Keep your purchase receipt for warranty claims.
