Kobalt 500-Lumen Portable Work Light User Manual

1. Introducció

Thank you for choosing the Kobalt 500-Lumen Portable Work Light. This manual provides essential information for the safe and efficient use of your new work light. Please read these instructions thoroughly before operation and retain them for future reference.

This versatile work light features 500 lumens of bright illumination, dimmable settings, embedded magnets for secure attachment, and an innovative 180-degree rotating hook design for flexible positioning.

2. Informació de seguretat

• Always ensure the work light is turned off before installing or replacing batteries.
• No barregeu piles velles i noves, o diferents tipus de piles.
• Eliminar les bateries usades d'acord amb la normativa local.
• Do not stare directly into the light beam, as it may cause eye strain or damage.
• Keep the work light away from extreme heat sources or open flames.
• This product is water-resistant, not waterproof. Do not submerge in water.
• Do not attempt to disassemble or modify the work light. This will void the warranty.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• Kobalt Portable Work Light (Puck Light)
• 3 x piles AA

4. Característiques del producteview

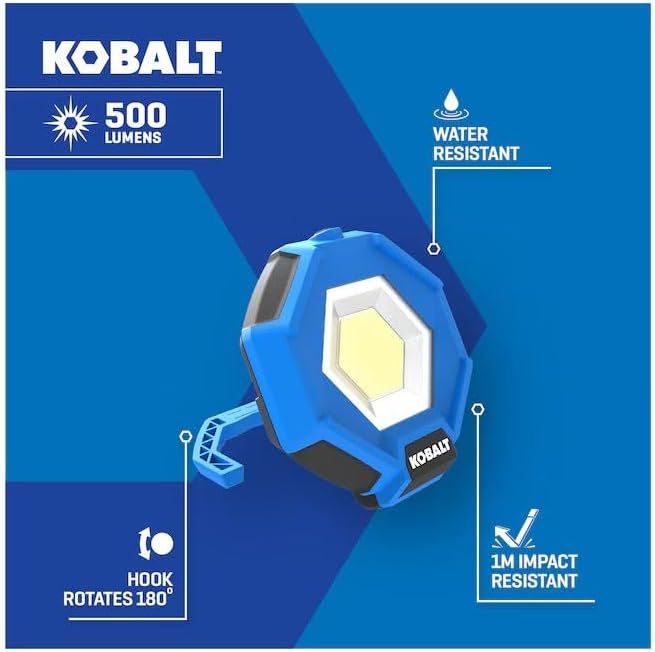

Aquest costat view illustrates key features including the 500-lumen output, water-resistant design, a hook that rotates 180 degrees for versatile positioning, and a 1-meter impact resistance for durability.

La part posterior view of the work light highlights its durable construction, two embedded magnets for attachment to metallic surfaces, and the two dimmable light modes: 500 lumens for high brightness and 50 lumens for lower illumination.

• Sortida de 500 lúmens: Proporciona una il·luminació potent per a diverses tasques.
• Regulable: Two light modes (High: 500 lumens, Low: 50 lumens) for adjustable brightness.
• Embedded Magnets: Two strong magnets allow for secure attachment to metal surfaces.
• Ganxo giratori de 180°: Offers flexible hanging options for hands-free use.
• Resistent a l'aigua: Dissenyat per resistir esquitxades i pluja lleugera.
• 1M Impact Resistant: Durable construction to endure drops from up to 1 meter.

5. Configuració

5.1 Instal·lació de la bateria

1. Locate the battery compartment cover on the back of the work light.
2. Twist or slide the cover to open it (refer to markings on the device).
3. Insert three (3) AA batteries, ensuring correct polarity (+/-) as indicated inside the compartment.
4. Col·loqueu la coberta del compartiment de la bateria amb seguretat.

6. Instruccions de funcionament

6.1 Engegada/Apagada i Ajust de la Brillantor

• Press the power button once to turn the light ON at 500 lumens (High mode).
• Press the power button a second time to switch to 50 lumens (Low mode).
• Press the power button a third time to turn the light OFF.

6.2 Opcions de muntatge

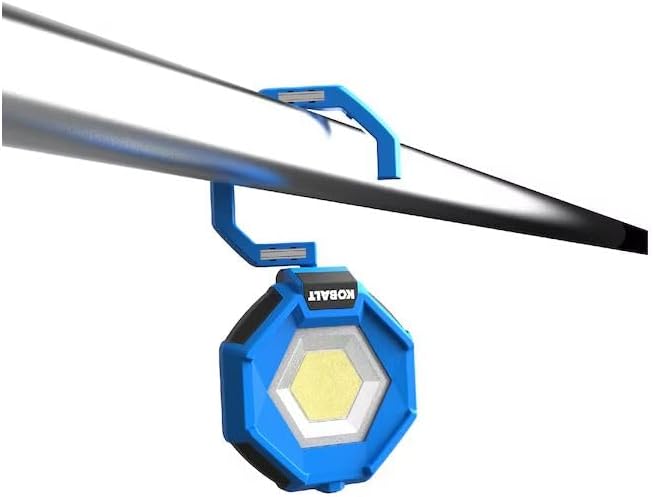

The Kobalt work light features an integrated hook, allowing it to be securely suspended from pipes, beams, or other suitable structures for hands-free illumination.

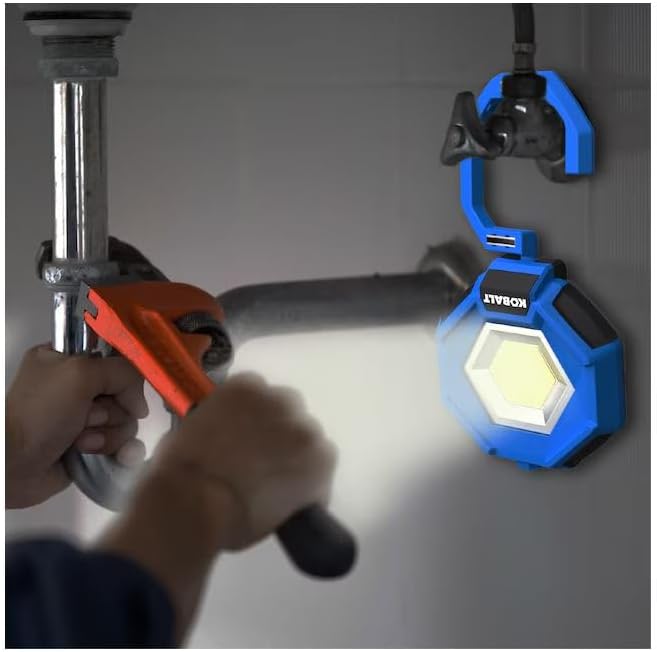

This image demonstrates the work light in action, providing bright illumination for tasks in confined or poorly lit areas, such as plumbing repairs.

• Enganxament magnètic: Utilize the two embedded magnets on the back of the light to attach it securely to any ferrous metal surface.
• Ganxo per penjar: Extend the integrated hook and rotate it up to 180 degrees to hang the light from various objects like pipes, wires, or hooks.
• Autònom: The flat base allows the light to stand upright on a flat surface.

7. Manteniment

• Neteja: Netegeu el llum de treball amb un drap suauamp tela. No utilitzeu netejadors abrasius ni dissolvents.
• Substitució de la bateria: Replace all three AA batteries when the light dims significantly or fails to turn on. Always use new, high-quality AA batteries.
• Emmagatzematge: If storing the work light for an extended period, remove the batteries to prevent leakage and corrosion. Store in a cool, dry place.

8. Solució De Problemes

• La llum no s'encén:
  • Comproveu si les piles estan instal·lades correctament amb la polaritat correcta.
  • Substituïu-les per piles noves.
• La llum és tènue:
  • Les bateries poden estar baixes. Substituïu-les per piles noves.
  • Ensure the light is not in Low mode (50 lumens). Press the power button to cycle to High mode (500 lumens).

9. Especificacions

10. Garantia i Suport

Warranty information for this product is typically provided with the original purchase documentation or on the product packaging. Please refer to those resources for details regarding warranty coverage and terms.

For further assistance or support, please contact the manufacturer or retailer where the product was purchased.
