maXpeedingrods 1-3" Front & 3" Rear Lift Leveling Kit with Shocks

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your maXpeedingrods 1-3" Front & 3" Rear Lift Leveling Kit with Shocks. Please read this manual thoroughly before beginning installation to ensure proper procedure and safety. Incorrect installation can lead to vehicle damage or personal injury.

This kit is designed to increase the ground clearance of your vehicle, allowing for larger tires and an enhanced off-road appearance and performance.

2. Informació de seguretat

WARNING: Professional installation is highly recommended. Improper installation can lead to serious injury or death, and may void your vehicle's warranty.

• Utilitzeu sempre l'equip de protecció individual (EPI) adequat, incloent-hi ulleres i guants de seguretat.
• Assegureu-vos que el vehicle estigui ben recolzat sobre els gats elevadors sobre una superfície plana abans de treballar-hi a sota. No confieu mai només en un gat.
• Desconnecteu la bateria del vehicle abans de començar qualsevol treball elèctric.
• Do not modify any components of this kit.
• After installation, perform a full alignment of the vehicle.
• Check all fasteners after 500 miles of driving and periodically thereafter.

3. Producte acabatview i Components

The maXpeedingrods Lift Leveling Kit includes the following components:

• Front Torsion Keys (Forged Adjustable Key)
• Rear Lift Blocks (High Strength Steel Block)
• Rear U-Bolts (Class 8.8 Bolts)
• Front Shocks (Extended, Nitrogen-charged)
• Rear Shocks (Extended, Nitrogen-charged)

Figure 3.1: Complete maXpeedingrods Lift Leveling Kit Components.

Figure 3.2: Key components including strong carbon steel blocks, forged adjustable keys, and shocks.

Figure 3.3: Individual component details: steel blocks, torsion keys, and U-bolts.

Figure 3.4: Rear lift blocks.

Figure 3.5: Shock absorber detail.

4. Compatibilitat del vehicle

This lift leveling kit is compatible with the following vehicles:

• Chevrolet Silverado 1500 4WD (1999-2006)
• GMC Sierra 1500 4WD (1999-2006)
• 2007 "Classic" models of Chevrolet Silverado 1500 4WD and GMC Sierra 1500 4WD.

Notes importants:

• This kit is NO compatible with HD models.
• This kit is NO compatible with 1999 GMT400 "Classic" body style.

5. Instruccions d'instal·lació (Configuració)

This section outlines the general steps for installing the maXpeedingrods Lift Leveling Kit. Due to the complexity and safety implications, professional installation is strongly recommended. Refer to your vehicle's service manual for specific torque specifications and detailed disassembly/assembly procedures.

5.1. Passos previs a la instal·lació

1. Park the vehicle on a firm, level surface.
2. Enganxeu el fre d'estacionament.
3. Chock the rear wheels when working on the front, and the front wheels when working on the rear.
4. Loosen the lug nuts on all wheels.
5. Raise the vehicle using a hydraulic jack and support it securely with jack stands under the frame.
6. Traieu les rodes.

5.2. Front Lift Installation (1-3" Adjustable)

The front lift is achieved by replacing the factory torsion keys with the adjustable maXpeedingrods torsion keys. This allows for a 1-3 inch lift depending on adjustment.

1. Locate the factory torsion bar keys.
2. Carefully relieve tension on the torsion bars using a specialized torsion bar unloading tool. WARNING: Torsion bars are under extreme tension and can cause severe injury if not handled properly.
3. Remove the factory torsion keys.
4. Install the new maXpeedingrods forged adjustable torsion keys.
5. Re-tension the torsion bars using the unloading tool, adjusting to achieve the desired lift height (1-3 inches). Ensure both sides are adjusted evenly.
6. Replace the front shocks with the provided extended maXpeedingrods front shocks.

5.3. Rear Lift Installation (3")

The rear lift is achieved by installing lift blocks between the leaf springs and the axle, secured with new U-bolts.

1. Suport l'eix posterior amb un gat.
2. Remove the factory U-bolts and lower the axle slightly to create space for the lift blocks.
3. Insert the maXpeedingrods high-strength steel lift blocks between the leaf springs and the axle. Ensure proper orientation.
4. Install the new, longer maXpeedingrods Class 8.8 U-bolts.
5. Gradually raise the axle with the jack, guiding the U-bolts and ensuring all components align correctly.
6. Tighten the U-bolt nuts evenly and to the manufacturer's specified torque.
7. Replace the rear shocks with the provided extended maXpeedingrods rear shocks.

Figure 5.1: Visual representation of vehicle lift before and after kit installation.

Figure 5.2: Shock absorber dimensions (compressed vs. extended).

5.4. Passos posteriors a la instal·lació

1. Reinstall the wheels and tighten lug nuts to factory specifications.
2. Baixeu completament el vehicle.
3. Bounce the vehicle several times to settle the suspension.
4. Re-check all fasteners for proper torque.
5. Immediately perform a professional wheel alignment. This is crucial for vehicle handling and tire wear.

6. Consideracions operatives

After installing a lift kit, your vehicle's driving characteristics will change. Be aware of the following:

• Centre de gravetat: The vehicle's center of gravity will be higher, which can affect stability, especially during cornering or sudden maneuvers. Drive cautiously until you are accustomed to the new handling.
• Frenatge: Braking performance may be slightly altered. Allow for increased stopping distances.
• Headlight Aim: Headlights may need to be re-aimed to prevent blinding oncoming traffic.
• Mida del pneumàtic: If larger tires are installed, ensure they clear all suspension and body components during full steering lock and suspension travel.
• Ús fora de carretera: While this kit enhances off-road capability, always drive within your limits and the vehicle's capabilities.

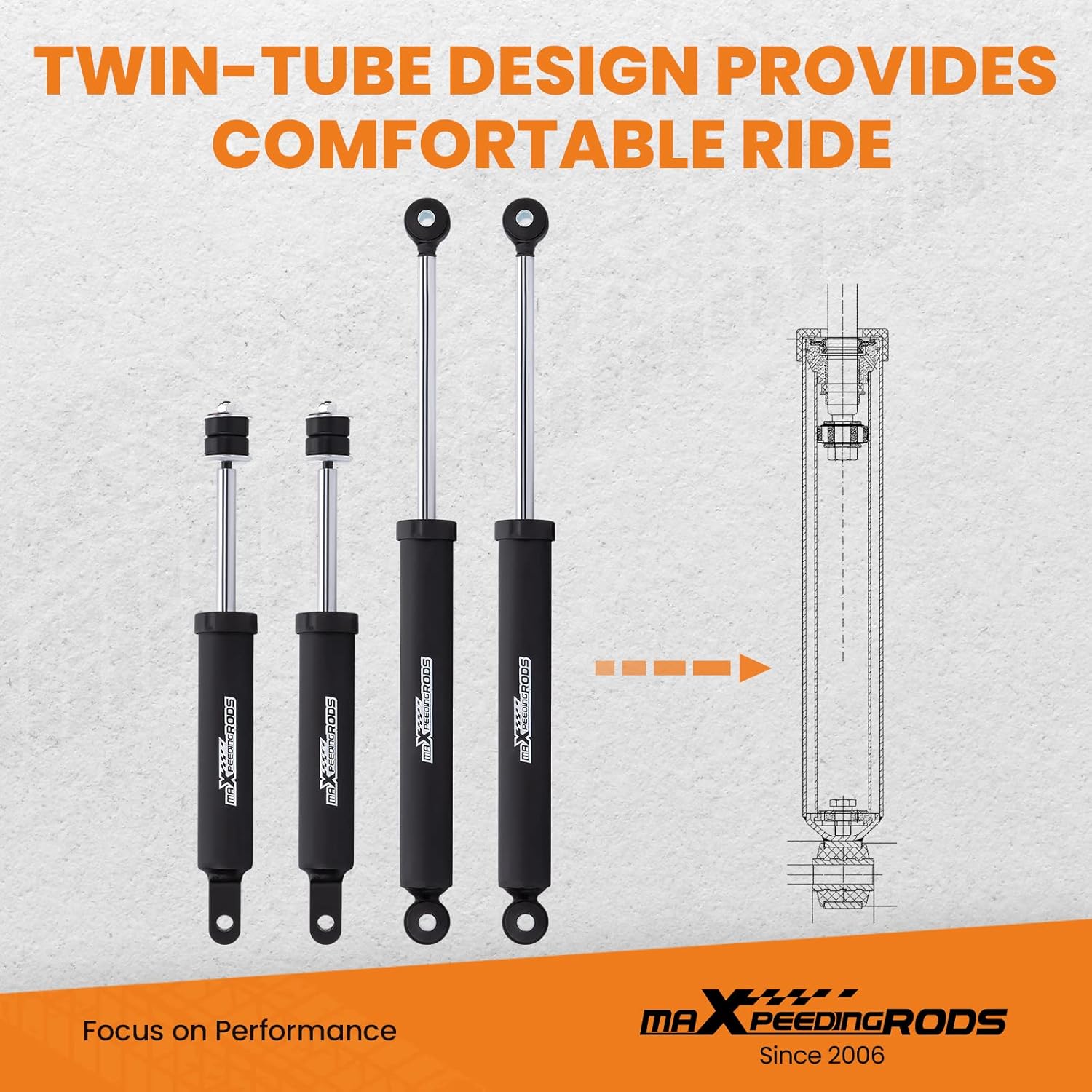

Figure 6.1: Twin-tube shock design for ride comfort.

7. Manteniment

Regular inspection and maintenance are crucial for the longevity and safe operation of your lift kit.

• Comprovació de fixacions: Re-torque all nuts and bolts associated with the lift kit after the first 500 miles of driving, and then every 3,000-5,000 miles or during routine vehicle maintenance.
• Inspecció de components: Periodically inspect all components (torsion keys, lift blocks, U-bolts, shocks, bushings) for signs of wear, damage, or corrosion. Replace any damaged parts immediately.
• Amortidors: Check shocks for leaks, dents, or bent rods. Replace if any damage is observed or if performance degrades.
• Alineació: If you notice uneven tire wear or changes in steering, have the vehicle's alignment checked and adjusted by a professional.

8. Solució De Problemes

9. Especificacions del producte

• Marca: maXpeedingrods
• Número de model: OI46HY
• Ascensor frontal: 1-3 inches (Adjustable)
• Ascensor posterior: 3 inches (Fixed)
• Material: High Carbon Steel (Blocks), Forged Steel (Torsion Keys)
• Front Shock Compressed Length: 16.9 polzades
• Front Shock Extended Length: 26 polzades
• Rear Shock Compressed Length: 14.05 polzades
• Rear Shock Extended Length: 19.68 polzades
• Pes de l'article: Aproximadament 44.7 lliures
• Dimensions del producte: 29.02 x 10.67 x 7.95 polzades (embalatge)

10. Garantia i Suport

maXpeedingrods is committed to providing high-quality products. This product comes with a warranty against manufacturing defects. Please refer to the official maXpeedingrods weblloc web o la documentació de compra per conèixer els termes i condicions específics de la garantia.

For technical assistance, installation questions, or warranty claims, please contact maXpeedingrods customer service. Support for free returns and exchanges is available within three months of purchase.

Informació de contacte:

• Visita el Botiga maXpeedingrods a Amazon
• Refer to your purchase invoice for direct seller contact details.
