1. Introducció
The Radtel RT-880G is a versatile and durable two-way radio designed for reliable communication in various environments. Featuring built-in GPS positioning and APRS automatic position reporting, it enhances safety and convenience for outdoor activities like hiking and camping, as well as professional applications. Its robust construction and user-friendly interface make it suitable for both casual users and professionals seeking clear, long-range communication.
Key features include hands-free VOX functionality, extensive channel capacity, and multiple charging options, ensuring continuous operation and adaptability to diverse communication needs.

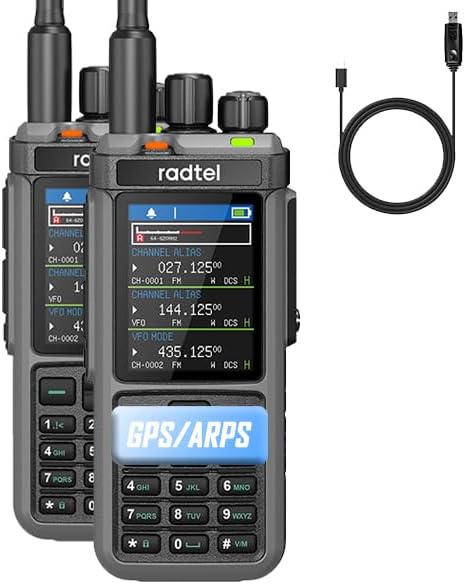

Figure 1: Radtel RT-880G Walkie Talkie and included USB-C charging cable.
2. Què hi ha a la caixa
Upon opening your Radtel RT-880G package, please verify that all the following items are included:
- 1x RT-880G Main unit
- 1 bateria de ions de liti de 2400 mAh
- 1x Dual band antenna
- 1x Clip de cinturó
- 1x Type C charging Cable
- 1x Power supply with USB port
- 1x MW Antenna
- 1x SW Antenna
- 1x Manual d'usuari en anglès
Figure 2: All components included in the Radtel RT-880G package.
3. Guia de configuració
3.1 Instal·lació i càrrega de la bateria
The RT-880G comes with a 2400mAh Li-ion battery. Ensure the battery is fully charged before first use.
- Alineeu la bateria amb la part posterior de la ràdio i feu-la lliscar fins que faci clic.
- To charge, connect the provided Type-C charging cable to the radio's Type-C port or place the radio in the desktop charging cradle.
- Connect the charging cable or cradle to the power supply with USB port, then plug into a wall outlet.
- The charging indicator light on the radio will show charging status (refer to the radio's display for battery level).
Figure 3: The Type-C charging port on the Radtel RT-880G.
3.2 Fixació de l'antena
The RT-880G supports dual antenna interfaces for versatile use. Attach the appropriate antenna (Dual band, MW, or SW) by screwing it clockwise onto the antenna connector until finger-tight.
Figure 4: Dual antenna interface for flexible antenna options.
4. Instruccions de funcionament
4.1 Engegada/Apagada i Volum
To power on or off, rotate the top knob clockwise or counter-clockwise. This knob also controls the volume. Adjust to a comfortable listening level.
4.2 Pantalla i navegació
The RT-880G features a 2.4-inch TFT HD large color screen display. Use the keypad and navigation buttons to access menus and settings.
Figure 5: The 2.4-inch TFT HD color display showing channel information.
4.3 Posicionament GPS i APRS
The built-in GPS allows for real-time positioning. The APRS (Automatic Packet Reporting System) feature enables automatic position reporting, crucial for tracking and safety during outdoor activities.
Figure 6: Visual representation of APRS and GPS capabilities.
4.4 Funció VOX
Activate the VOX (Voice-Activated Transmission) function for hands-free operation. This feature allows the radio to transmit automatically when it detects your voice, eliminating the need to press the PTT button.

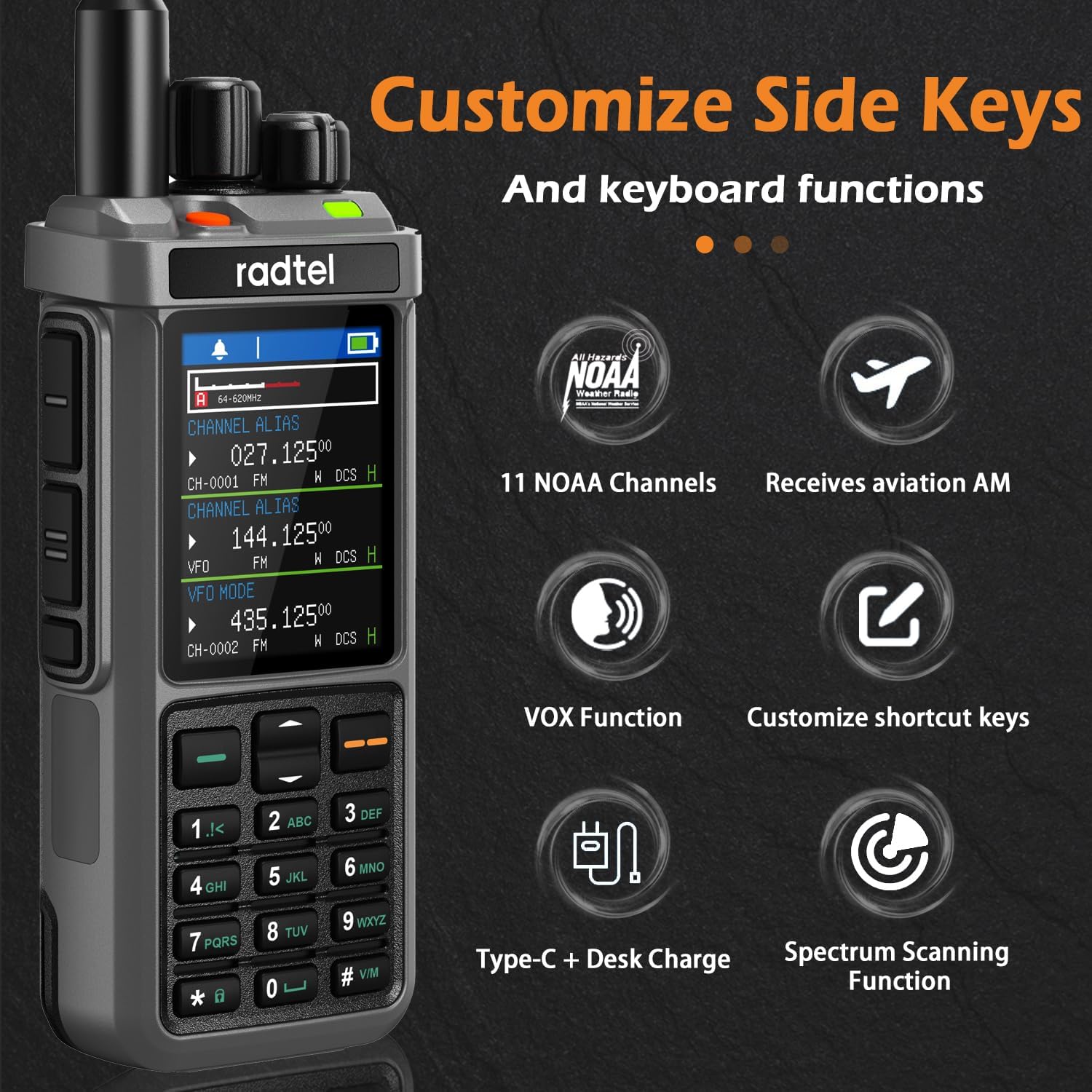

Figure 7: Customizable side keys and VOX function icon.
4.5 Channel Management and Frequencies
The RT-880G supports 1024 channels and three VFO (Variable Frequency Oscillator) channels, allowing for extensive frequency storage and flexible communication. It also features triple frequency standby, enabling monitoring of multiple frequencies simultaneously.
- Interval de freqüència: 144-148Mhz/420-450Mhz (TX/RX), 136-174Mhz (TX/RX), 400-520Mhz (TX/RX).
- AM/FM/SSB Reception: Supports various modulation types for broad compatibility.
- 11 NOAA Channels: Access to weather alerts and information.
- Cross Band Repeater: Extends communication range by relaying signals between different frequency bands.
- Spectrum Scanning Function: Scans for active frequencies.
4.6 Push-to-Talk (PTT) Buttons
The radio features dual PTT buttons for convenient operation. Press and hold the PTT button on the side of the radio to transmit, and release to receive.
Vídeo 1: Acabatview of Radtel RT-880G features, including dual PTT, charging options, and menu navigation.
5. Manteniment
To ensure the longevity and optimal performance of your Radtel RT-880G, follow these maintenance guidelines:
- Neteja: Utilitzeu un suau, damp drap per netejar l'exterior de la ràdio. Eviteu utilitzar productes químics agressius o netejadors abrasius.
- Cura de la bateria: Guardeu la bateria en un lloc fresc i sec quan no la feu servir. Eviteu descarregar completament la bateria amb freqüència per allargar-ne la vida útil.
- Emmagatzematge: Si guardeu la ràdio durant un període prolongat, traieu la bateria. Guardeu-la en un entorn sec i sense pols.
- Resistència a l'aigua: The RT-880G is No resistent a l'aiguaEviteu l'exposició a l'aigua o a una humitat elevada.
6. Solució De Problemes
If you encounter issues with your Radtel RT-880G, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La ràdio no s'encén. | La bateria està baixa o no està instal·lada correctament. | Carregueu la bateria o torneu-la a instal·lar de manera segura. |
| No es pot transmetre ni rebre. | Freqüència/canal incorrecte, antena no connectada o fora de l'abast. | Verifiqueu la configuració de freqüència/canal. Assegureu-vos que l'antena estigui ben connectada. Acosteu-vos a l'altra ràdio. |
| Mala qualitat d'àudio. | Low battery, interference, or incorrect squelch level. | Charge battery. Move away from sources of interference. Adjust squelch level. |
| El GPS/APRS no funciona. | Poor satellite signal, feature disabled in settings. | Mou-te a una zona oberta amb cel clar view. Check GPS/APRS settings in the menu. |
Si el problema persisteix després de provar aquestes solucions, poseu-vos en contacte amb l'atenció al client.
7. Especificacions
| Característica | Detall |
|---|---|
| Número de model | RT-880G |
| Pes de l'article | 2.2 lliures |
| Dimensions del producte | 1.26 x 2.36 x 12 polzades |
| Bateries | Calen 1 piles de 9V (incloses). |
| Fabricant | Xiamen Radtel Electronics Co.,Ltd |
| Nombre de canals | 1024 |
| Característiques especials | GPS/APRS, AM FM SSB Reception, 1024 Channels, Cross Band Repeater |
| Interval de freqüència | 144-148 MHz/420-450 MHz |
| Interval de conversa màxim | 10 quilòmetre |
| Tecnologia del sintonitzador | AM/FM/SSB |
| Voltage | 7.4 Volts |
| Nivell de resistència a l'aigua | No resistent a l'aigua |
8. Garantia i Suport
The Radtel RT-880G comes with a 1 anys de garantia from the date of purchase. This warranty covers manufacturing defects and ensures reliable operation under normal use.
For technical support, warranty claims, or any inquiries regarding your Radtel RT-880G, please contact the seller:
- Nom del venedor: Heng Sheng An Hong
- Fabricant: Xiamen Radtel Electronics Co.,Ltd
- For further assistance, please refer to the contact information provided with your purchase or visit the official Radtel store on Amazon: Radtel Store
