Betopper LF2405 300W Matrix Beam LED Strobe Effect Light User Manual

1. Introducció

This manual provides detailed instructions for the safe and effective operation of your Betopper LF2405 300W Matrix Beam LED Strobe Effect Light. Please read this manual thoroughly before installation, operation, or maintenance. Retain this manual for future reference.

Figure 1: Betopper LF2405 300W Matrix Beam LED Strobe Effect Light

2. Informació de seguretat

• Connecteu sempre a una presa de corrent amb connexió a terra.
• Assegureu-vos una ventilació adequada per evitar el sobreescalfament.
• No exposeu el dispositiu a la pluja o la humitat.
• Eviteu l'exposició directa dels ulls a la font de llum.
• Desconnecteu l'alimentació abans de netejar-la o reparar-la.
• This product is rated IP20 for indoor use only. Outdoor use requires additional weather protection.

3. Contingut del paquet

Verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet:

• Strobe Effect Light (LF2405) x 1
• Manual d'instruccions x 1
• Power Input Cable x 1

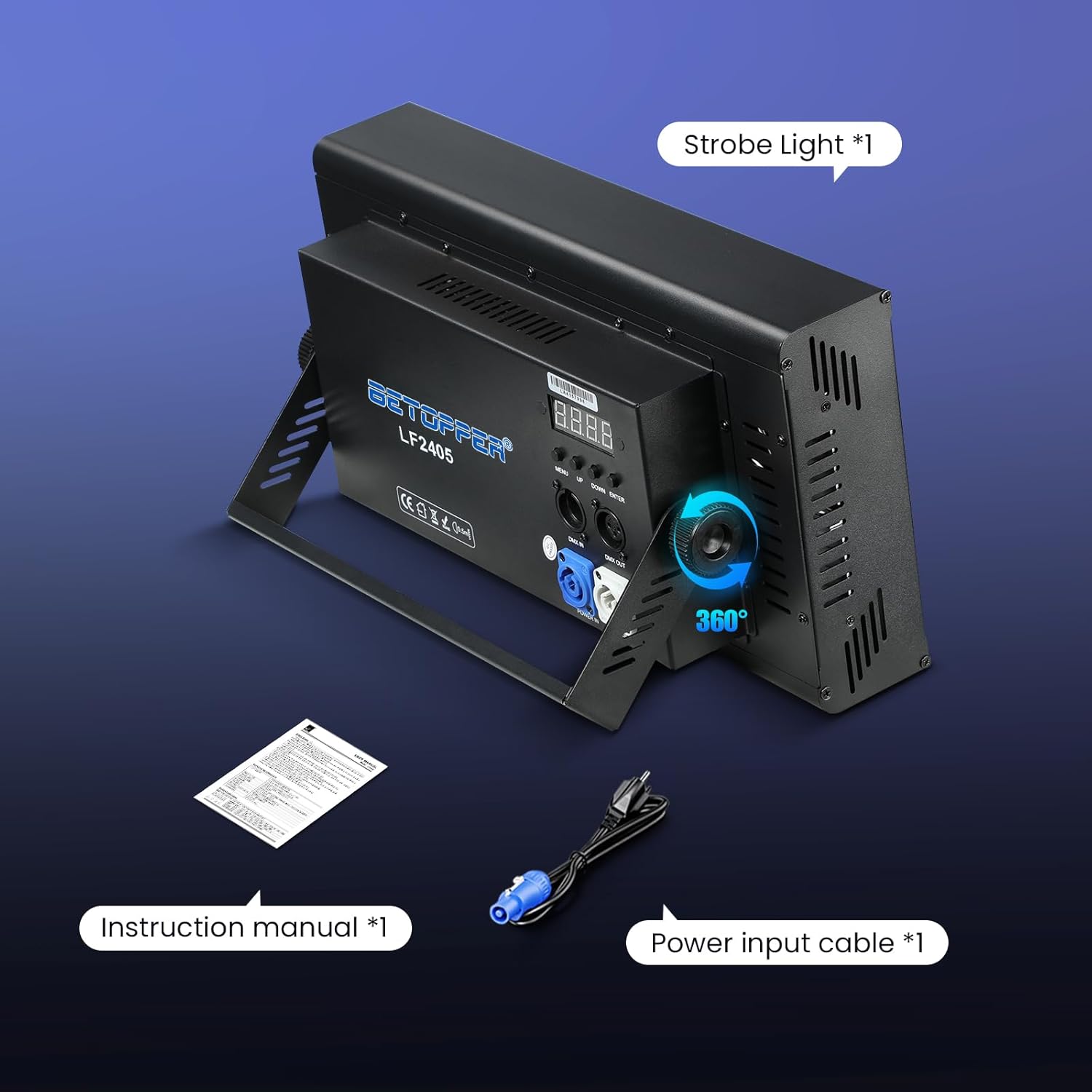

Figure 2: Included items in the Betopper LF2405 package

4. Producte acabatview

The Betopper LF2405 is a 300W Matrix Beam LED Strobe Effect Light designed for dynamic visual impact in various settings. It features a high-density RGB+White LED matrix capable of producing crisp beam lines, sweeping visual textures, and simulated rainfall effects.

4.1. Característiques clau

• Powerful LED Matrix: High-density RGB+White LED matrix for dynamic visual effects.
• Simulated Rainfall Effects: Creates cascading visual effects mimicking falling rain.
• Pixel Mapping: Individual LED control for custom patterns, chase sequences, and animations.
• Intense Strobe Capabilities: Adjustable high-speed strobe effects from 1 to 30Hz.
• Refrigeració eficient: Integrated heat sink and fan cooling system for optimal performance.

4.2. Light Sources

The LF2405 incorporates a combination of LED types for versatile lighting:

• 384 pieces of 0.3W 5050 RGB Wash Light LEDs
• 24 pieces of 5W 3535 White (Golden) Beam Light LEDs
• 256 pieces of 0.2W 5730 White LEDs

Figura 3: Detallada view of the LF2405 LED matrix components

5. Especificacions tècniques

6. Configuració

Follow these steps for initial setup of your LF2405 light:

1. Desembalar: Carefully remove the light and all accessories from the packaging.
2. Posicionament: Place the light on a stable surface or mount it securely using appropriate stage mounting hardware. The integrated bracket allows for adjustable positioning.
3. Connexió d'alimentació: Connect the provided power input cable to the 'POWER IN' port on the rear of the unit and then to a grounded power outlet.
4. Connexió DMX (opcional): If using DMX control, connect your DMX controller to the 'DMX IN' port. Use the 'DMX OUT' port to daisy-chain multiple units.

Figure 4: Betopper LF2405 with adjustable stand for flexible positioning

7. Modes de funcionament

The LF2405 offers multiple control modes to suit various applications:

• DMX512: For professional control via a DMX controller. Supports 5CH, 11CH, and 112CH modes.
• Automàtic: Pre-programmed light sequences for automatic operation.
• Mestre-Esclau: Link multiple units where one acts as the master, controlling the others.
• Control de so: Light effects react to ambient sound.
• RDM: Remote Device Management for advanced configuration.

Figure 5: Control panel with menu buttons and DMX ports

7.1. Adjusting Sound-Control Mode Sensitivity

To adjust the sensitivity of the sound-control mode, follow the instructions in the video below. This involves accessing a hidden menu to fine-tune the response to sound input.

Video 1: Instructions on how to adjust the sound-control mode sensitivity for the Betopper LF2405.

8. Dynamic Visual Effects

The LF2405 is engineered to deliver a wide array of visual effects, enhancing any stage or event environment.

8.1. Pixel Mapping

Utilize the pixel mapping feature to create custom graphics, text, or animations by controlling each individual LED. This allows for precise and unique light designs.

Figura 6: Examples of pixel-mapped patterns and animations

8.2. Strobe Effects

The unit provides intense strobe capabilities with an adjustable speed range of 1 to 30Hz, allowing synchronization with music or dramatic moments.

Figure 7: High-speed strobe effects in action

8.3. Rainfall Effects

Create captivating cascading visuals that simulate falling rain, adding depth and atmosphere to your lighting design.

Video 2: Demonstration of various matrix beam and strobe effects, including rainfall simulations.

Vídeo 3: Una repetició ràpidaview of the LF2405's matrix beam and strobe capabilities.

9. Manteniment

Regular maintenance ensures the longevity and optimal performance of your light:

• Neteja: Periodically clean the lenses and housing with a soft, lint-free cloth. Do not use abrasive cleaners.
• Inspecció: Regularly check power cables and DMX connections for any signs of wear or damage.
• Sistema de refrigeració: Ensure the fan and ventilation openings are free from dust and debris to maintain efficient cooling.

Figure 8: Rear panel highlighting the cooling system

10. Solució De Problemes

If you encounter issues with your LF2405, refer to the following common solutions:

• Sense energia: Comproveu la connexió del cable d'alimentació i assegureu-vos que la presa de corrent funcioni.
• Sense sortida de llum: Verify the selected operating mode and DMX settings (if applicable).
• Incorrect DMX Control: Ensure DMX cables are correctly connected and the DMX address is set appropriately on the unit.
• Sobreescalfament: Check for obstructions in the ventilation system and ensure the operating environment is within the recommended temperature range (-30°C to 80°C).

11. Garantia i Suport

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Betopper weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.
