GAOMON Twin Bed Frame with LED Headboard Instruction Manual

Introducció

This manual provides detailed instructions for the assembly, operation, and maintenance of your GAOMON Twin Bed Frame with Upholstered Adjustable Headboard and Smart LED lighting. Please read this manual thoroughly before beginning assembly or use to ensure proper function and safety.

Informació de seguretat

ADVERTIMENT:

• Do not load more than 650 lbs (295 kg) onto the bed frame.
• Exercise caution around sharp edges and metal legs during assembly and use.
• Seguiu sempre atentament les instruccions de muntatge per evitar inestabilitat o col·lapse.
• Keep all tools and small parts out of reach of children during assembly.
• Assegureu-vos que totes les connexions estiguin ben ajustades abans d'utilitzar-les.

Contingut del paquet

Before assembly, verify that all components are present and undamaged. Refer to the included parts list in your packaging. Typically, the package includes:

• Components del capçal
• Side rails and footboard
• Wood slats and support beams
• Legs and hardware kit (screws, bolts, Allen wrench)
• LED light strip and controller
• Manual d'instruccions

Instruccions de muntatge

Assembly is designed to be straightforward. It is recommended to assemble the bed frame with two people. Ensure you have ample space and all parts are laid out before starting.

1. Desempaquetar components: Carefully remove all parts from the packaging and place them on a clean, soft surface to prevent scratches.
2. Col·loca les cames: Securely attach the bed legs to the headboard, footboard, and side rails using the provided hardware.
3. Muntar el capçal del llit: Connect the headboard sections if necessary, ensuring the upholstered petal design is correctly oriented.
4. Connecteu els rails laterals: Attach the side rails to the headboard and footboard using the designated bolts and nuts. Ensure all connections are tight.
5. Suport del centre d'instal·lació: Place the center support beam(s) and any additional support legs as indicated in the detailed diagram.
6. Col·locar llistons de fusta: Position the wood slats across the bed frame. Many slats feature Velcro strips for secure attachment to the frame and noise reduction. Ensure they are evenly spaced and firmly in place.
7. Instal·lació de la tira de LED: Carefully attach the LED light strip to the designated area on the headboard. Connect the LED strip to the controller and power adapter.
8. Comprovació final: Verify all screws and bolts are tightened. The bed frame is now ready for a mattress (not included). No box spring is required.

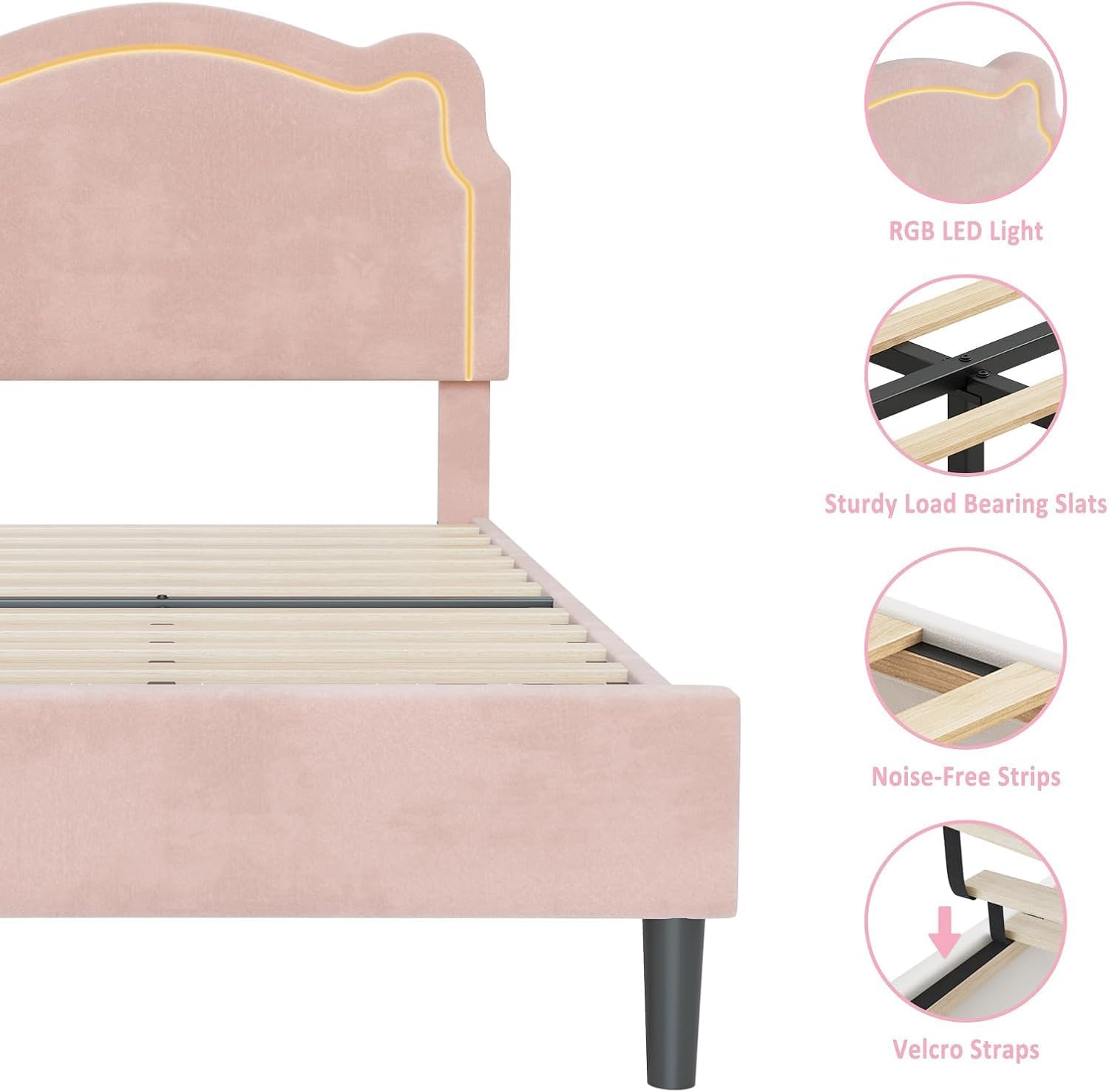

Image: Key features of the bed frame, including RGB LED light, sturdy load-bearing slats, noise-free strips, and Velcro straps for secure and quiet mattress support.

Instruccions de funcionament

A. Smart RGB LED Lighting System

The integrated LED light strips offer extensive customization via a remote control or a smartphone application. Ensure the LED strip is properly connected to its power source.

• Encès/apagat: Use the remote control or app to turn the LED lights on or off.
• Selecció de color: Choose from over 16 million colors. Use the color wheel or preset color options in the app/remote.
• Efectes d'il·luminació: Select from over 20 dynamic lighting effects, including flash, wave, and fade. Adjust brightness and speed.
• Mode de música: In music mode, the LED lights will synchronize and flash with the rhythm of music played through your device or detected by the microphone.
• Mode de micròfon: The lights respond to ambient sounds detected by the microphone on your phone or the controller.
• Funció de cronometratge: Set schedules for the LED lights to turn on or off automatically at specific times.

Image: Smartphone app interface for selecting multiple LED colors.

Image: Smartphone app interface for controlling LED lights in music mode.

Image: Smartphone app interface for setting the timing function of LED lights.

Image: Smartphone app interface for controlling LED lights in microphone mode.

B. Adjustable Headboard

The upholstered headboard can be adjusted in height to accommodate various mattress thicknesses. The adjustable range is typically from 42.5 inches to 46.1 inches. To adjust, loosen the bolts connecting the headboard to the side rails, slide the headboard to the desired height, and re-tighten the bolts securely.

Manteniment

Un manteniment regular ajuda a allargar la vida útil i l'aspecte del marc del llit.

• Neteja: For the velvet upholstery, gently vacuum with a brush attachment to remove dust. For spills, blot immediately with a clean, dry cloth. Do not use harsh chemicals.
• Cura del marc: Wipe down the frame and legs with a damp cloth as needed. Avoid abrasive cleaners.
• Comprovació de maquinari: Reviseu periòdicament tots els cargols i perns per assegurar-vos que romanen ajustats. Torneu a apretar-los si cal per mantenir l'estabilitat.
• Cura de LED: Ensure the LED strip and controller are kept dry. Do not attempt to repair damaged LED components; contact customer support.

Resolució de problemes

If you encounter issues with your bed frame, refer to the following common problems and solutions:

• El marc del llit és inestable:
  Solució: Check all bolts and screws. Ensure they are fully tightened. Verify that all legs are making even contact with the floor.
• Sorolls de grinyols:
  Solució: Ensure all slats are properly seated and secured. Check that the noise-free strips are correctly installed between the slats and the frame. Re-tighten all hardware.
• Els llums LED no funcionen:
  Solució: Check if the power adapter is securely plugged into a working outlet and the LED controller. Ensure the LED strip is properly connected to the controller. Try replacing the remote control battery if applicable.
• LED Lights Not Responding to App/Remote:
  Solució: Ensure Bluetooth is enabled on your device and the app is connected to the LED controller. For the remote, ensure it has fresh batteries and is pointed correctly at the receiver.

Especificacions

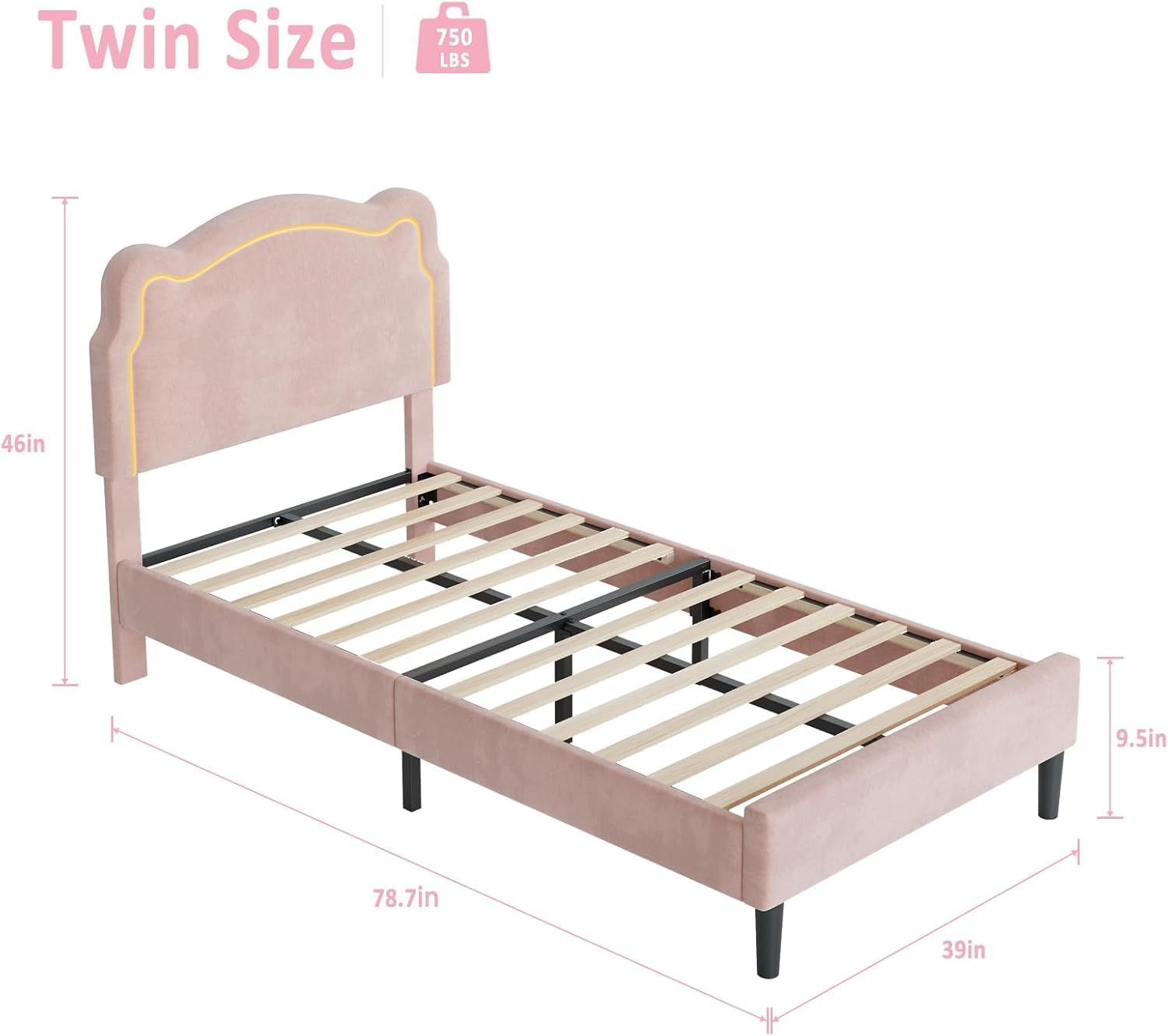

Imatge: Dimensional overview of the Twin Bed Frame.

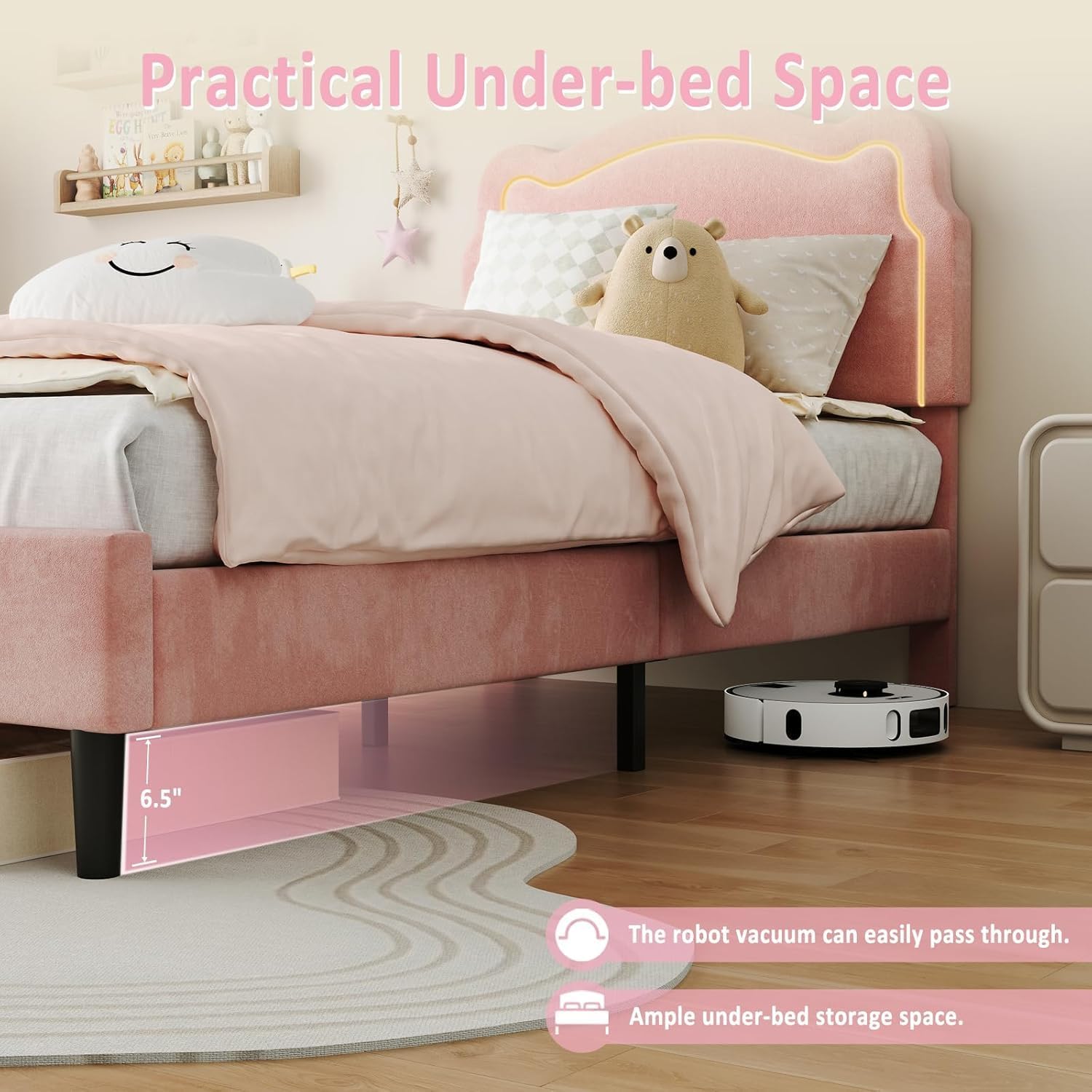

Image: Illustration of the practical under-bed space, showing 6.5 inches of clearance.

Garantia i Suport

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official GAOMON weblloc. Conserveu el rebut de compra per a reclamacions de garantia.
