SWIMLINE HYDROTOOLS Model 73152 Variable Speed Pool Pump Instruction Manual

1. Informació de seguretat

Read and understand all instructions before installing, operating, or maintaining this product. Failure to follow these instructions could result in serious injury or death.

• Seguretat elèctrica: Always disconnect power before servicing the pump. Ensure all electrical connections are made by a qualified electrician and comply with local and national electrical codes. The pump supports dual voltage (115V & 230V); ensure correct wiring for your power supply.
• Seguretat de l'aigua: Do not operate the pump without water. Ensure the pump is properly primed before starting to prevent damage.
• Instal·lació: Install the pump in a well-ventilated area, protected from direct sunlight and excessive moisture. Ensure stable mounting to prevent vibration and noise.
• Nens: Mantingueu els nens allunyats de la zona de la bomba i dels equips de la piscina.

2. Producte acabatview

The SWIMLINE HYDROTOOLS Model 73152 is a variable speed pool pump designed for energy-efficient water circulation and filtration in above-ground and select in-ground pools. Its robust construction and customizable settings provide optimal performance and quiet operation.

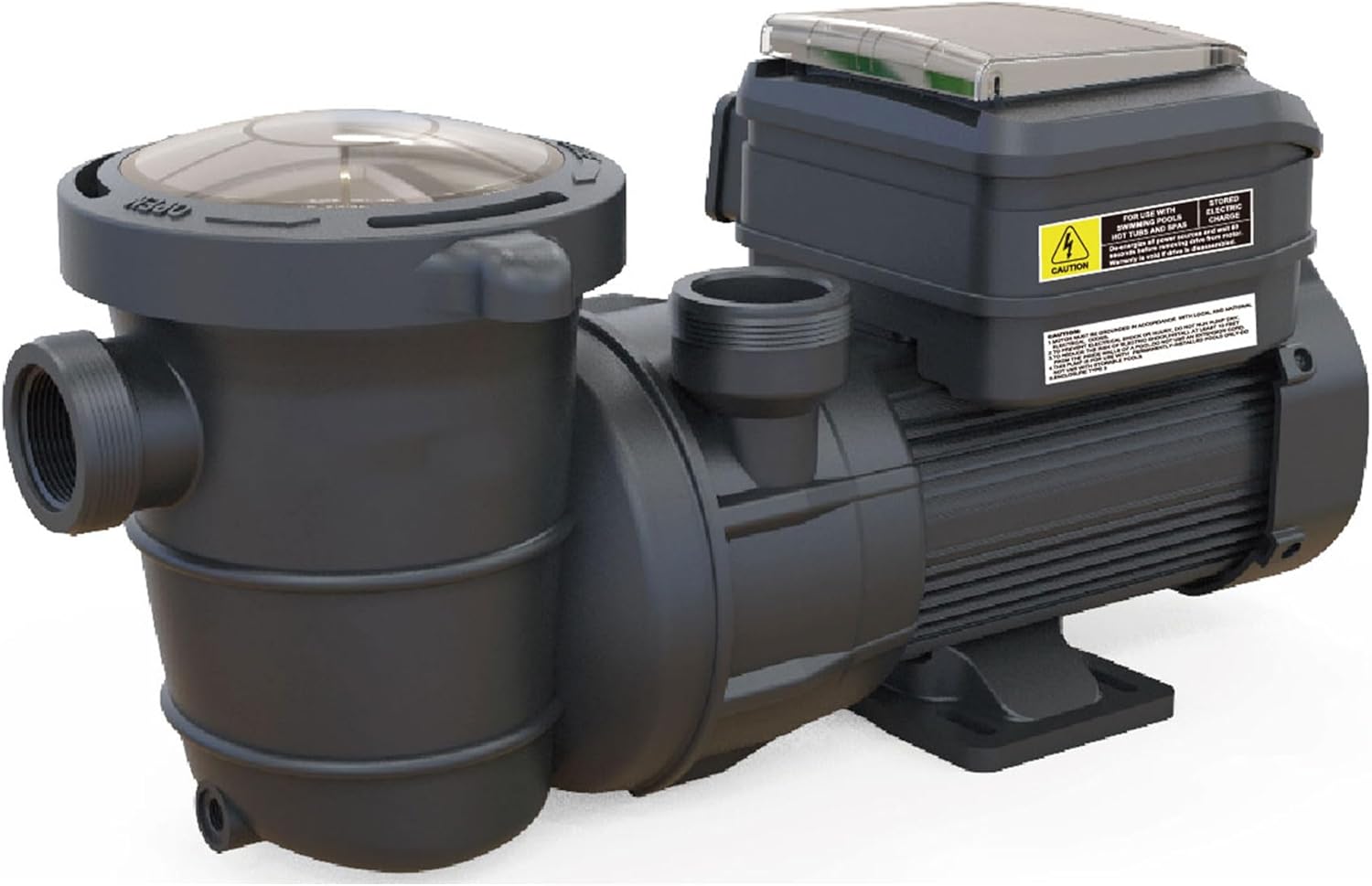

Image 1: The SWIMLINE HYDROTOOLS Model 73152 Variable Speed Pool Pump. This image displays the pump's main unit, including the motor and the strainer basket housing.

Característiques principals:

• Control de velocitat variable: Adjustable speeds from 1000-3450 RPM for tailored filtration and energy savings.
• High-Flow Performance: Delivers a maximum flow rate of 5340 GPH for efficient water movement.
• Dual Voltage Compatibilitat: Funciona amb fonts d'alimentació de 115V i 230V.
• Construcció duradora: Commercial-grade thermoplastic housing, UV-resistant, corrosion-proof, and copper coil motor for longevity.
• Self-Priming Vertical Discharge: Compact design for efficient water movement and space-saving installation.

Imatge 2: acabatview of the SWIMLINE HYDROTOOLS Pool Pump, highlighting its 1.5 HP performance, 5,340 GPH flow rate, variable speed control, versatile compatibility, and self-priming vertical discharge design. Key dimensions are also indicated.

3. Configuració i instal·lació

3.1 Llista de comprovació prèvia a la instal·lació

• Ensure the installation site is level, well-drained, and protected from direct weather exposure.
• Verify that the electrical supply matches the pump's voltage requirements (115V or 230V).
• Gather necessary plumbing fittings, PVC pipes, and electrical wiring.

3.2 Muntatge de la bomba

Securely mount the pump to a solid, level surface to minimize vibration and ensure stable operation. The vertical discharge design allows for compact installation.

3.3 Connexions de fontaneria

Connect the pump to your pool's filtration system using appropriate PVC piping. Ensure all connections are watertight to prevent leaks. Due to the pump's specific geometry, minor adjustments to existing PVC piping may be necessary for a proper fit.

3.4 Connexions elèctriques

Aquesta bomba és de doble voltage compatible (115V & 230V). Refer to the wiring diagram on the pump's motor label for correct electrical connections. It is crucial to ensure the pump is wired for the correct voltage of your power supply. All electrical work should be performed by a qualified professional.

Image 3: Detailed specifications and wiring diagram for the SWIMLINE HYDROTOOLS Pool Pump motor, showing connections for 115V operation and the switch for high/low speed settings.

3.5 Initial Start-up and Priming

Before starting the pump, ensure the strainer basket is clean and filled with water. Open all necessary valves to allow water to flow to the pump. Turn on the power. The pump is self-priming, but it may take a few minutes to establish a steady flow. If the pump does not prime within five minutes, turn it off, check for air leaks, and re-prime.

4. Instruccions de funcionament

4.1 Control de velocitat variable

The pump features variable speed control, allowing you to adjust the motor's RPM (1000-3450 RPM) to suit your pool's needs. Lower speeds are ideal for continuous filtration and heating, offering energy savings and quieter operation. Higher speeds provide maximum flow for tasks like vacuuming or rapid water circulation.

Image 4: Illustration of the SWIMLINE HYDROTOOLS Pool Pump's 4-programmable speed feature, highlighting its benefits for scheduling, energy savings, and environmental friendliness.

4.2 Programmable Schedule

Utilize the integrated timer and pre-loaded 4-stage schedule to automate your pump's operation. You can customize the time, schedule, and power settings to optimize filtration and heating cycles for your specific pool system and usage patterns.

4.3 Optimizing for Filtration and Heating

For general filtration, especially when vacuuming the pool, operate the pump at a higher speed setting to ensure sufficient suction and debris removal. When using a pool heater, such as an inverter heater, a lower speed setting is often sufficient to circulate water through the heater efficiently while maintaining quiet operation and energy conservation.

5. Manteniment

5.1 Neteja rutinària

Regularly inspect and clean the extra-large strainer basket to prevent clogs and maintain optimal flow. The transparent lid allows for easy visual inspection. Turn off the pump before opening the lid and removing the basket for cleaning.

Imatge 5: Primer pla view of the SWIMLINE HYDROTOOLS Pool Pump's extra-large filter basket and transparent lid, demonstrating its ability to capture debris like gravel, hair, and leaves for efficient filtration.

5.2 Hivernització

In colder climates, proper winterization is essential to prevent damage. Drain all water from the pump and plumbing lines. Store the pump in a dry, protected area if possible, or cover it securely to shield it from freezing temperatures.

6. Solució De Problemes

This section addresses common issues you might encounter with your pool pump. For problems not listed here, contact customer support.

• La bomba no s'aclareix: Check for air leaks in the suction line, ensure the strainer basket is full of water, and verify all valves are open.
• Cabal d'aigua reduït: Inspect the strainer basket for debris, backwash or clean your filter, and check for obstructions in the plumbing. Ensure the pump is operating at an appropriate speed setting for the task.
• Soroll inusual: Check for foreign objects in the impeller, ensure proper water flow, and verify the pump is securely mounted.
• La bomba no arrenca: Check electrical connections, circuit breakers, and ensure the power supply is active.

7. Especificacions

8. Garantia i Suport

The SWIMLINE HYDROTOOLS Model 73152 Variable Speed Pool Pump is backed by a 1 any de garantia del fabricant. For technical assistance, troubleshooting, or warranty claims, please contact Swimline customer support.

For more information and support resources, visit the official Swimline Brand Store.
