Genérico MP3 MP4 Player Bluetooth 5.0 User Manual

1. Introducció

Thank you for choosing the Genérico MP3 MP4 Player. This device is designed to provide a versatile portable media experience, featuring Bluetooth 5.0 connectivity, lossless audio playback, FM radio, and support for various media formats. This manual provides essential information for setting up, operating, and maintaining your player.

Important Bluetooth Note: The Bluetooth function on this MP3 player is designed for connecting to Bluetooth headphones or speakers only. It does not connect to mobile phones, computers, or car radios for data transfer or control.

2. Contingut del paquet

Si us plau, comproveu el paquet per veure si hi ha els elements següents:

• 1 x Genérico MP3 MP4 Player (Model MP3-05B)
• 1 x cable de càrrega USB
• 1 x Auriculars amb cable
• 1 x Manual d'usuari

3. Producte acabatview

The MP3-05B player features a compact design with a 2.4-inch sensitive touch screen for easy navigation. It includes built-in speakers, an FM radio, and a voice recorder. The device supports a MicroSD card for expandable storage.

Image: The Genérico MP3 MP4 Player, showcasing its sleek black design and the various accessories included in the package, such as wired headphones and a USB charging cable.

4. Configuració

4.1. Càrrega del dispositiu

Before first use, fully charge the player. Connect the provided USB cable to the player's USB 2.0 port and the other end to a USB power adapter (not included) or a computer's USB port. The battery indicator on the screen will show charging status. A full charge typically takes 2 to 3 hours.

4.2. Inserció d'una targeta MicroSD

The player requires a MicroSD memory card (not included) to store and play music, videos, and other files. The device supports cards up to 128 GB.

1. Localitza la ranura per a targetes MicroSD al lateral del reproductor.
2. Introduïu suaument la targeta MicroSD a la ranura amb els contactes daurats cap avall fins que encaixi al seu lloc.
3. Per treure-la, empenyeu lleugerament la targeta fins que surti.

Image: A visual representation of a MicroSD card, highlighting its compatibility with the player for memory expansion up to 128GB.

4.3. Encès / apagat

Press and hold the power button (usually located on the side) for a few seconds to turn the player on or off.

5. Instruccions de funcionament

5.1. Navegació bàsica

The player features a touch screen interface. Tap icons to select functions and swipe to navigate menus.

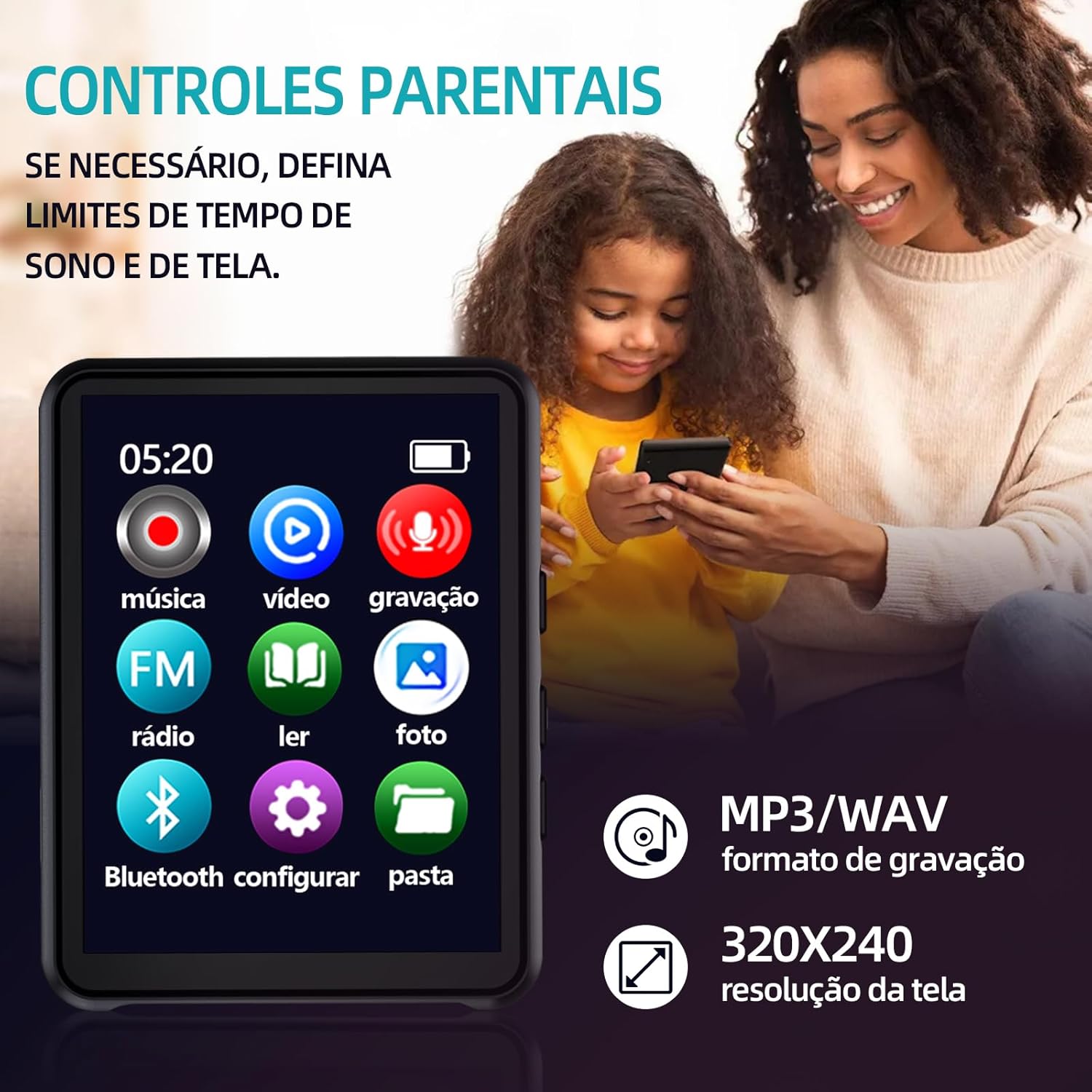

Image: The player's main menu interface, displaying icons for various functions such as music, video, FM radio, and Bluetooth settings.

5.2. Reproducció de música

The player supports MP3, WMA, APE, WAV, and FLAC audio formats, offering lossless sound quality.

1. Tap the 'Music' icon on the main menu.
2. Browse your music files'emmagatzema a la targeta MicroSD.
3. Toca una cançó per començar la reproducció.
4. Use the on-screen controls for play/pause, skip tracks, and volume adjustment.

Image: The player's music interface, showing album art and playback controls, demonstrating its powerful music application.

Image: The player in use with wired headphones, illustrating its HiFi HD audio playback capabilities.

5.3. Reproducció de vídeo

The player supports video playback with a resolution of 320x240 pixels.

1. Tap the 'Video' icon on the main menu.
2. Seleccioneu un vídeo file from your MicroSD card to play.

5.4. Ràdio FM

The built-in FM radio allows you to listen to your favorite stations.

1. Tap the 'FM Radio' icon on the main menu.
2. Use the on-screen controls to scan for stations or manually tune.

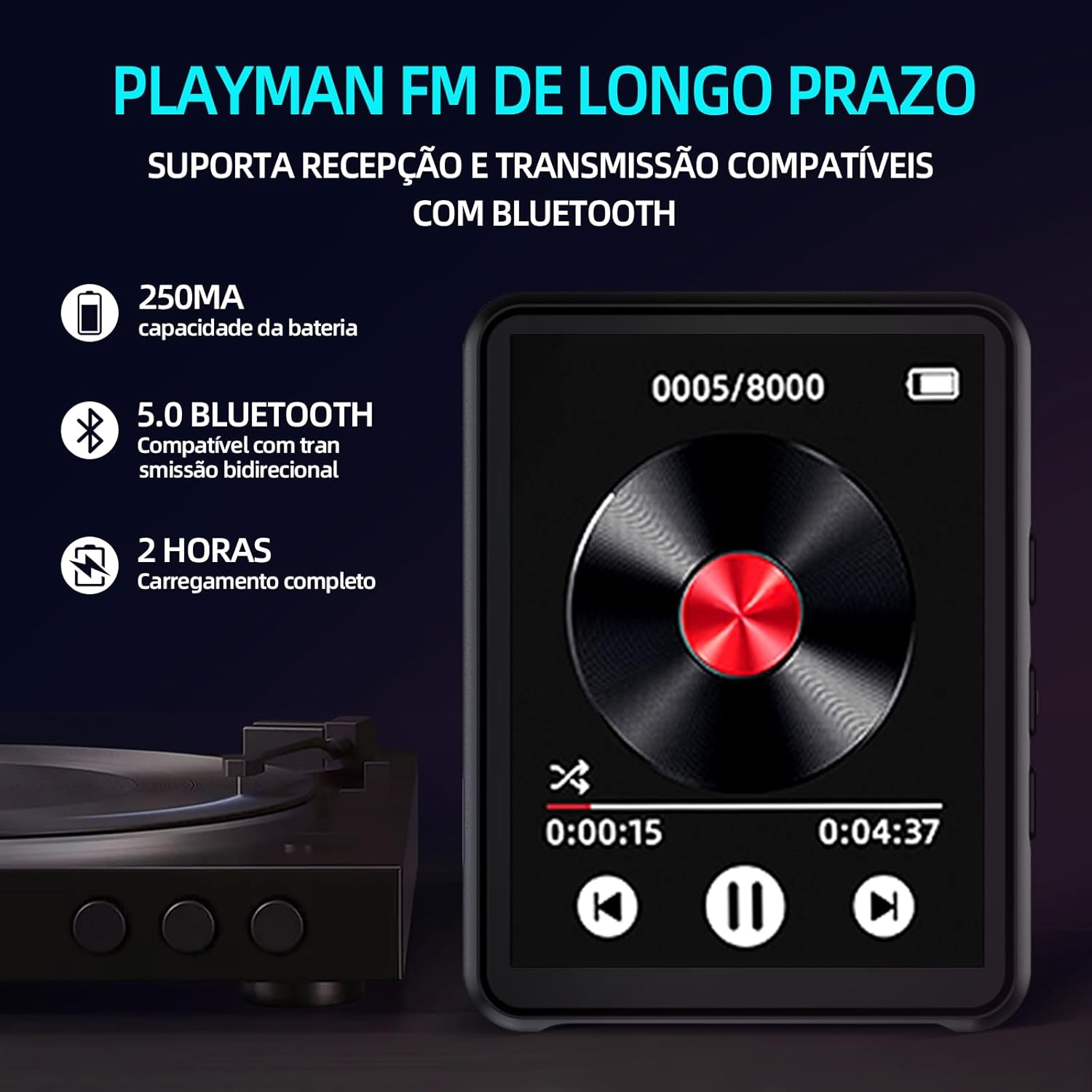

Image: The player's FM radio interface, also highlighting key features like Bluetooth 5.0 and battery information.

5.5. Connectivitat Bluetooth

Connect your player to Bluetooth headphones or speakers for wireless audio.

1. Assegureu-vos que els vostres auriculars o altaveu Bluetooth estiguin en mode d'emparellament.
2. On the MP3 player, tap the 'Bluetooth' icon from the main menu.
3. Turn Bluetooth 'On' if it's not already.
4. El reproductor buscarà els dispositius disponibles. Seleccioneu el vostre dispositiu de la llista per emparellar-lo.

5.6. E-book Reader

The player supports TXT format e-books.

1. Tap the 'E-book' icon.
2. Select a TXT file per llegir.

5.7. Imatge Viewer

View JPG and GIF images on the player's screen.

1. Tap the 'Photo' icon.
2. Seleccioneu una imatge file a view.

5.8. Gravadora de veu

The player includes a voice recording function.

1. Tap the 'Recording' icon.
2. Follow the on-screen prompts to start, pause, and save recordings. Recordings are typically saved in MP3/WAV format.

6. Manteniment

6.1. Neteja del dispositiu

Use a soft, dry, lint-free cloth to clean the player's screen and body. Avoid using harsh chemicals or abrasive materials.

6.2. Cura de la bateria

To prolong battery life, avoid fully discharging the battery frequently. Charge the device regularly, even if not in use for extended periods. Do not expose the device to extreme temperatures.

6.3. Emmagatzematge

Guardeu el reproductor en un lloc fresc i sec, allunyat de la llum solar directa i de la humitat quan no l'utilitzeu.

7. Solució De Problemes

Si teniu problemes amb el reproductor, consulteu els següents problemes i solucions habituals:

• El dispositiu no s'encén: Ensure the battery is charged. Connect the player to a power source and try again. If the battery is completely drained, it may take a few minutes of charging before it can power on.
• No es pot connectar mitjançant Bluetooth: Ensure your Bluetooth headphones/speaker are in pairing mode. Remember, the player's Bluetooth does not connect to phones or computers.
• Sense so: Check the volume level. Ensure headphones are properly plugged in (if using wired). If using Bluetooth, ensure it's paired correctly and the volume on both devices is up.
• MicroSD card not recognized: Ensure the card is inserted correctly. Try reinserting it. If the issue persists, try a different MicroSD card to rule out card malfunction.
• La pantalla no respon: Try restarting the device by holding the power button. If it remains unresponsive, allow the battery to fully drain and then recharge it.

8. Especificacions

Image: An illustration of the player's internal audio components, emphasizing its Hi-Fi sound quality with enhanced audio DSP and dual-port decoder.

9. Informació de la garantia

This Genérico MP3 MP4 Player comes with a manufacturer's warranty of 3 mesos from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.

10. Suport

For further assistance, technical support, or warranty inquiries, please contact the retailer or manufacturer directly. Refer to your purchase documentation for contact details.
