1. Producte acabatview
The CITLLA PRO MAX E510 is an ergonomic wireless mouse designed for comfort and efficiency across multiple devices. It features dual Bluetooth and 2.4G wireless connectivity, adjustable DPI settings, and a unique smart flying scroll wheel with a side thumb wheel for enhanced navigation.
Image: The CITLLA PRO MAX E510 Wireless Bluetooth Mouse in white, showcasing its ergonomic design and multiple buttons.
2. Instruccions de configuració
2.1 Càrrega inicial
Before first use, fully charge the mouse using the provided USB-C cable. The charging port is located at the front of the mouse. A full charge can last up to 60 days. The mouse features an auto-sleep mode after 15 minutes of inactivity to conserve battery life.
Image: The mouse connected to a USB-C charging cable, illustrating the rechargeable battery feature.
2.2 Connexió a dispositius
The mouse supports connection to up to three devices via 2.4G wireless (USB receiver) and two Bluetooth channels (Bluetooth 1, Bluetooth 2).
- Connexió sense fil 2.4G:
- Localitzeu el receptor USB que es troba al compartiment de la part inferior del ratolí.
- Connecteu el receptor USB a un port USB disponible de l'ordinador.
- Engegueu el ratolí amb l'interruptor d'encesa/apagada que es troba a la part inferior.
- Press the 'Devices Switch Button' (labeled 6 in the button diagram) until the white indicator light for 2.4G (labeled 7) illuminates. The mouse should now be connected.
- Bluetooth Connection (Bluetooth 1 / Bluetooth 2):
- Enceneu el ratolí amb l'interruptor On/Off.
- Press the 'Devices Switch Button' (6) to select either Bluetooth 1 (blue indicator) or Bluetooth 2 (green indicator).
- Press and hold the 'Devices Switch Button' for 3-5 seconds until the selected Bluetooth indicator light starts flashing rapidly. This indicates pairing mode.
- Al dispositiu (portàtil, tauleta, telèfon intel·ligent), aneu a la configuració de Bluetooth i cerqueu dispositius nous.
- Select "CITLLA E510" (or similar name) from the list of available devices to pair.
- Un cop emparellat, l'indicador lluminós deixarà de parpellejar i romandrà fix.
Image: Diagram showing the mouse wirelessly connected to a laptop, desktop monitor, and tablet, illustrating its multi-device capability.
3. Instruccions de funcionament
3.1 Funcions dels botons
Image: Detailed diagram of the mouse buttons and their corresponding functions.
- 1. Left Button: Funció estàndard del clic esquerre.
- 2. Right Button: Funció estàndard del clic dret.
- 3. Smart Flying Scroll Wheel: For ultra-fast, nearly silent vertical scrolling.
- 4. DPI Button: Press to cycle through 4 adjustable DPI levels (1000/1600/2400/3200).
- 5. Side Wheel: For fast horizontal scrolling.
- 6. Devices Switch Button: Press to switch between connected devices (2.4G, Bluetooth 1, Bluetooth 2). Press and hold to enter Bluetooth pairing mode.
- 7. Devices Indicators: White for 2.4G, Blue for Bluetooth 1, Green for Bluetooth 2. Also includes a low power indicator.
- 8. Forward/Back Buttons: Navigate forward/back in web browsers or switch applications (macOS).
- 9. Return to Desktop Button: Instantly minimizes all windows to show the desktop (Windows only). For macOS, this button can be used for Full Screen (Control+Command+F).
3.2 Scrolling Functions
The mouse features two distinct scrolling mechanisms:
- El Roda de desplaçament volant intel·ligent (3) on top provides smooth and rapid vertical scrolling, ideal for long documents or web pàgines.
- El Roda lateral (5) allows for horizontal scrolling, which is particularly useful for navigating wide spreadsheets or timelines.

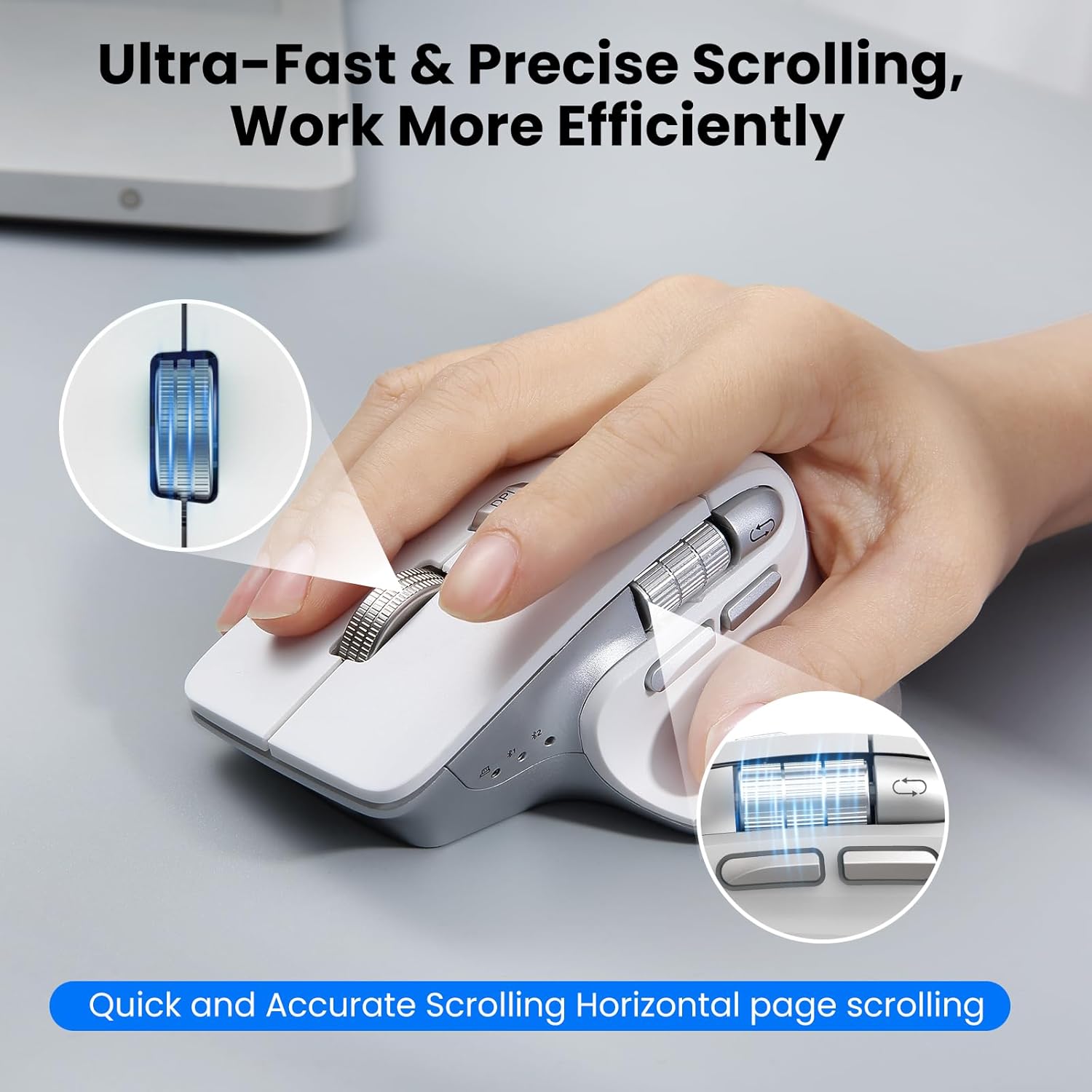

Image: A hand operating the mouse, highlighting the smart flying scroll wheel and the side thumb wheel for efficient navigation.
3.3 Ajust de DPI
The DPI (Dots Per Inch) button (4) allows you to adjust the cursor sensitivity. Press the DPI button to cycle through the four available settings: 1000, 1600, 2400, and 3200 DPI. Choose a setting that best suits your task, whether it's precise graphic design or fast-paced gaming.
Image: A visual representation of the 4-level adjustable DPI settings (1000, 1600, 2400, 3200 DPI).
3.4 Característiques especials
- Silent Click Design: The mouse is engineered for quiet operation, making it suitable for shared workspaces and quiet environments.
- Return to Desktop (Windows Only): The dedicated button (9) provides a quick way to minimize all open windows and display your desktop. This feature is specific to Windows operating systems.
Image: A laptop screen showing multiple open windows, with an arrow indicating the 'Return to Desktop' button on the mouse minimizing them.
3.5 Product Feature Video
Video: An official product video from CITLLA showcasing the key features and functionality of the PRO MAX E510 Wireless Bluetooth Mouse, including its ergonomic design, multi-device connectivity, and smart scrolling.
4. Manteniment
4.1 Neteja
To maintain optimal performance, regularly clean your mouse. Use a soft, dry cloth to wipe the exterior. For stubborn dirt, a slightly damp es pot fer servir un drap, assegurant-se que no entri humitat als components interns. Eviteu productes químics agressius o materials abrasius.
4.2 Cura de la bateria
The mouse is equipped with a rechargeable battery. Charge it using a standard USB-C cable. The low power indicator will alert you when charging is needed. To prolong battery life, the mouse enters an auto-sleep mode after 15 minutes of inactivity. Click any button to reactivate it.
5. Solució De Problemes
- El ratolí no respon:
- Assegureu-vos que el ratolí estigui encès.
- Comproveu el nivell de la bateria i carregueu-la si cal.
- Verify the correct connection mode (2.4G, BT1, BT2) is selected using the Devices Switch Button.
- Per a 2.4G, assegureu-vos que el receptor USB estigui ben connectat.
- For Bluetooth, re-pair the mouse with your device.
- El moviment del cursor és erràtic o lent:
- Adjust the DPI setting using the DPI button (4) to a higher sensitivity.
- Ensure the mouse sensor is clean and free from obstructions.
- Use the mouse on a suitable surface (e.g., a mouse pad).
- No es pot canviar entre dispositius:
- Ensure all devices are properly paired/connected to their respective channels (2.4G, BT1, BT2).
- Press the Devices Switch Button (6) firmly to cycle through the connections.
- Return to Desktop button not working:
- This feature is only supported on Windows systems.
- Assegureu-vos que el vostre sistema operatiu Windows estigui actualitzat.
6. Especificacions
| Dimensions del producte | 4.6 x 2.6 x 0.04 polzades |
| Pes de l'article | 6.7 unces |
| Bateries | 1 bateria no estàndard (inclosa) |
| Tecnologia de connectivitat | Bluetooth, USB sense fil 2.4G |
| Característiques especials | 4 Way Scrolling, Ergonomic Design, Rechargeable, Silent Click, Wireless |
| Tecnologia de detecció de moviment | Òptic |
7. Compatibilitat
The CITLLA PRO MAX E510 Wireless Bluetooth Mouse is compatible with a wide range of operating systems:
- Windows
- Mac OS
- Chrome OS
- Linux
- iOS
- Android
Image: Icons for Android, Linux, Windows, Chrome OS, and Mac OS, indicating wide compatibility.
8. Què hi ha a la caixa
- CITLLA PRO MAX E510 Wireless Bluetooth Mouse
- Cable de càrrega USB-C
- Receptor USB de 2.4 G (emmagatzemat al ratolí)
- Manual d'usuari
9. Garantia i Suport
For warranty information, technical support, or any inquiries regarding your CITLLA PRO MAX E510 Wireless Bluetooth Mouse, please refer to the contact information provided in the packaging or visit the official CITLLA website. Our customer service team is available to assist you with any product-related concerns.
