1. Introducció
This manual provides instructions for the installation, operation, and maintenance of your VECYS Bottleless Water Cooler, Model FY1185. This appliance is designed to provide filtered hot, cold, and room temperature water directly from your water line, eliminating the need for traditional water bottles. Please read this manual thoroughly before use and retain it for future reference.
2. Informació de seguretat
Observe the following safety precautions to reduce the risk of fire, electric shock, or injury.
- Assegureu-vos que l'aparell estigui connectat a una presa de corrent amb connexió a terra.
- No feu funcionar l'aparell amb un cable d'alimentació o endoll danyats.
- Manteniu l'aparell lluny de la llum solar directa i de les fonts de calor.
- No submergiu l'aparell, el cable o l'endoll en aigua o altres líquids.
- The hot water dispenser features a child safety lock. Always engage this lock when not in use to prevent accidental burns.
- Assegureu-vos una ventilació adequada al voltant de la unitat.
- Only use the provided installation accessories or VECYS approved parts for water line connection.
3. Producte acabatview
The VECYS Bottleless Water Cooler FY1185 integrates a water dispenser with a 4-stage filtration system. It provides convenient access to hot, cold, and room temperature water.
Imatge: Frontal view of the VECYS Bottleless Water Cooler with the filter compartment door open, revealing the internal filtration cartridges.
Els components clau inclouen:
- Tauler de control: Buttons for hot, room, and cold water dispensing.
- Dispensing Area: Location for placing cups and glasses.
- Compartiment del filtre: Houses the 4-stage filtration cartridges.
- Entrada d'aigua: Connection point for the external water line.
Imatge: Primer pla view of the water cooler's dispensing area, highlighting the hot, room, and cold water selection buttons and the drip tray.
4. Advanced 4-Stage Sistema de filtració
The VECYS FY1185 features a comprehensive 4-stage filtration system designed to purify tap water, providing up to 2,000 gallons or 12 months of clean water, depending on usage and water quality.
Image: A diagram showing the four stages of filtration: PP filter, two CTO carbon filters, and a UF membrane filter, with illustrations of what each stage removes.
The filtration stagsón:
- PP Filter (Polypropylene): Captures particles 5 microns or larger, such as sediment, rust, and other suspended solids.
- CTO Filters (Carbon Block, x2): Adsorb chlorine, odors, and organic contaminants, improving water taste and clarity.
- UF Filter (Ultrafiltration Membrane): Removes fine particles, colloids, and other impurities, ensuring the water meets direct consumption standards.
5. Contingut del paquet
Verifiqueu que tots els elements siguin presents al paquet:
- VECYS Bottleless Water Cooler FY1185 Unit
- 16.4 ft PE Water Tube
- Cinta de lampista
- Stainless Steel 3-way 1/4-inch Ball Valve
- Manual d'usuari (aquest document)

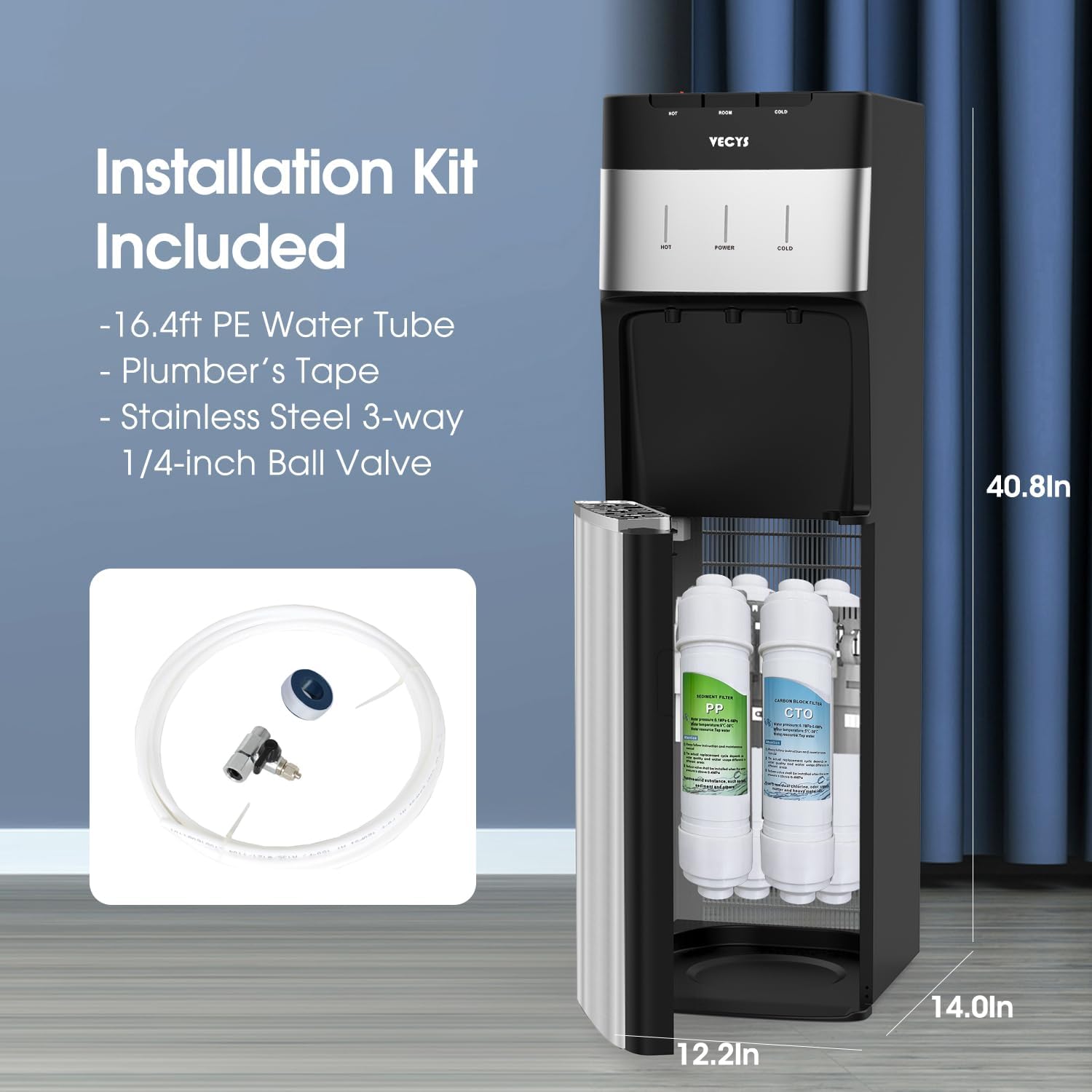

Image: The VECYS water cooler displayed next to the included installation kit, which contains the PE tube, plumber's tape, and a 3-way ball valve.
6. Configuració i instal·lació
Follow these steps to install your VECYS Bottleless Water Cooler. It is recommended to have basic plumbing knowledge or consult a professional for installation.
- Desembalatge: Carefully remove the unit from its packaging. Place it on a flat, stable surface near a grounded electrical outlet and a cold water supply line.
- Connexió de la línia d'aigua:
- Tanqueu el subministrament d'aigua principal.
- Locate a cold water supply line (typically under a sink).
- Install the stainless steel 3-way 1/4-inch ball valve onto the cold water line. Use plumber's tape on threaded connections to prevent leaks.
- Connect one end of the 16.4 ft PE water tube to the ball valve and the other end to the water inlet on the back of the water cooler. Ensure all connections are secure.
- Instal·lació del filtre: Open the filter compartment door. Insert the PP, CTO, and UF filters into their designated slots. Ensure they are securely twisted into place.
- Buidat inicial: Before consuming water, flush the system. Turn on the main water supply. Open the cold water tap on the cooler and let water run for approximately 5-10 minutes to flush out air and carbon fines. Repeat for the hot and room temperature taps.
- Connexió d'alimentació: Connecteu el cable d'alimentació a una presa elèctrica amb connexió a terra.
Image: The VECYS water cooler shown in a home setting, with a visual representation of its connection to a household water line, emphasizing its bottleless operation.
7. Funcionament
Once installed and flushed, your water cooler is ready for use.
- Encès: Press the power button (if available) or ensure the unit is plugged in. The indicator lights for hot, cold, and power will illuminate.
- Distribució d'aigua freda: Place your cup under the cold water spout. Press and hold the 'COLD' button until the desired amount of water is dispensed.
- Dispensació d'aigua a temperatura ambient: Place your cup under the room temperature water spout. Press and hold the 'ROOM' button until the desired amount of water is dispensed.
- Dispensing Hot Water (with Child Safety Lock): The hot water tap is equipped with a child safety lock. To dispense hot water, first press and hold the safety lock button (usually red), then simultaneously press and hold the 'HOT' button. Release both buttons once the desired amount of hot water is dispensed.

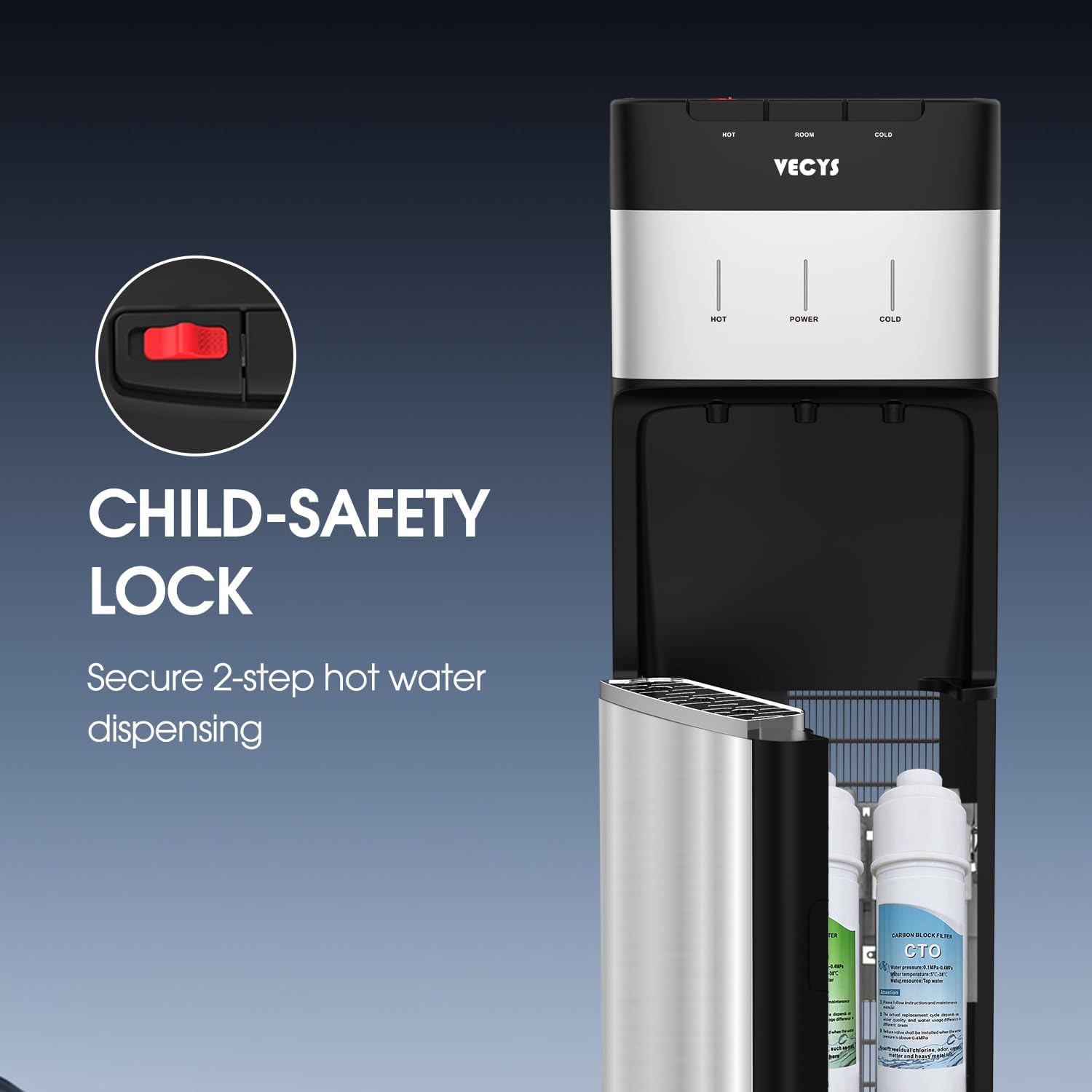

Imatge: Una imatge detallada view of the hot water dispensing button, clearly showing the red child safety lock mechanism that must be pressed before hot water can be dispensed.
8. Manteniment
Un manteniment regular garanteix un rendiment òptim i una qualitat de l'aigua òptima.
- Substitució del filtre: Filters should be replaced approximately every 12 months or after 2,000 gallons, whichever comes first. Filter life may vary based on local water quality and usage. Reduced flow or changes in water taste indicate a need for replacement. Only use official VECYS replacement filters. Refer to the detailed filter replacement instructions in the full user guide.
- Sistema d'autoneteja: The unit features a self-cleaning system. Consult the full user guide for instructions on how to activate and utilize this feature.
- Neteja exterior: Netegeu les superfícies exteriors amb un damp tela. No utilitzeu netejadors abrasius ni dissolvents.
- Safata de degoteig: Regularly empty and clean the drip tray to prevent overflow and bacterial growth.
9. Solució De Problemes
If you encounter issues with your water cooler, refer to the following common problems and solutions. For more complex issues, contact customer support.
| Problema | Causa possible | Solució |
|---|---|---|
| No es distribueix aigua | Water supply off, clogged filter, air in lines | Check water supply valve, replace filters, flush system |
| Water not hot/cold | Heating/cooling switch off, unit not plugged in | Ensure unit is powered and heating/cooling functions are active |
| Flux d'aigua lent | Clogged filter, kinked water line | Replace filters, check water line for obstructions |
| Fuga d'aigua | Loose connections, damaged tubing | Tighten all water line connections, inspect tubing for damage |
10. Especificacions
| Característica | Detall |
|---|---|
| Número de model | FY1185 |
| Marca | VECYS |
| Color | Negre |
| Material | Plàstic, acer inoxidable |
| Dimensions del producte | 13.1 "P x 12.9" W x 34.9" H |
| Pes de l'article | 38 lliures |
| Tipus d'instal·lació | Enclavat |
| Capacitat de filtració | 2000 galons |
| Classificació de temperatura superior | 140 graus Fahrenheit |
| Font d'alimentació | Elèctric amb cable |
11. Garantia i Suport
VECYS products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your product or visit the official VECYS website. For technical support, troubleshooting assistance, or to purchase replacement parts and filters, please contact VECYS customer service through the contact information provided on the official weblloc web o la vostra plataforma de compra.
