Manual d'usuari del rellotge intel·ligent LIGE FV18

1. Producte acabatview

The LIGE Smart Watch FV18 is a versatile wearable device designed to enhance your daily life with health monitoring, fitness tracking, and smart communication features. It features a 1.47-inch HD display, IP68 water resistance, and supports Bluetooth calls.

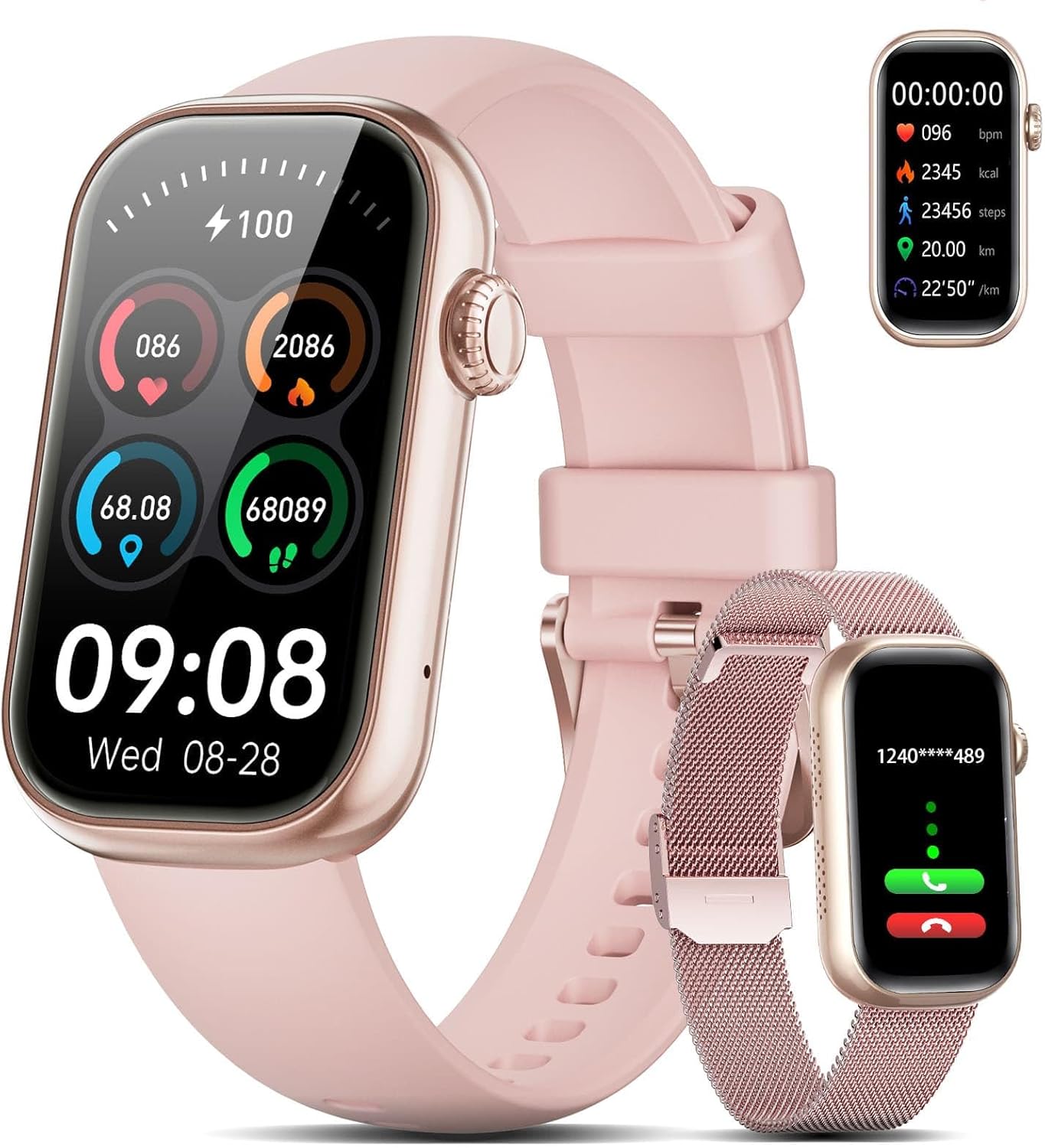

Image 1.1: LIGE Smart Watch FV18 with interchangeable straps.

2. Guia de configuració

2.1 Desembalatge i components

En obrir el paquet, trobareu els elements següents:

• 1 x LIGE Smart Watch FV18
• 1 x Stainless Steel Mesh Strap
• 1 x corretja de silicona
• 1 x cable de càrrega magnètic
• 1 x Manual d'usuari

Video 2.1: Unboxing the LIGE Smart Watch FV18 and its components.

2.2 Attaching the Straps

The LIGE Smart Watch FV18 comes with two interchangeable straps. To attach a strap, align the pins on the strap with the holes on the watch body and slide them into place until they click securely. To remove, pull the small lever on the strap pin and gently detach.

2.3 Descàrrega i instal·lació d'aplicacions

To utilize all features of your smart watch, download the GloryFit application on your smartphone. You can find the app by:

• Scanning the QR code provided in the user manual or on the watch display.
• Searching for "GloryFit" in the Apple App Store (for iOS) or Google Play Store (for Android).

Segueix les instruccions que apareixen a la pantalla per instal·lar l'aplicació.

Image 2.2: Guide for downloading and installing the GloryFit app.

2.4 Emparellament de dispositius

After installing the GloryFit app, follow these steps to pair your smart watch:

1. Assegureu-vos que el Bluetooth del telèfon estigui activat.
2. Open the GloryFit app and navigate to the "Device" section.
3. Tap "Add Device" or "Select device" and allow location permissions if prompted.
4. The app will search for nearby devices. Select "QS-50(ID-5B05)" or a similar identifier for your LIGE Smart Watch FV18.
5. Confirma la sol·licitud d'emparellament tant al telèfon com al rellotge.

2.5 Notification and Contact Synchronization

To receive notifications and make calls directly from your watch:

• Notificacions: In the GloryFit app, go to "Device" > "Push message" and grant "Notification access" to GloryFit. Then, enable notifications for desired applications (e.g., WhatsApp, Facebook, Instagram).
• Contactes: In the GloryFit app, go to "Device" > "Bluetooth call with watch" > "Address Book" to synchronize up to 100 contacts from your phone to the watch.

3. Instruccions de funcionament

3.1 Navegació bàsica

The LIGE Smart Watch FV18 features a full touchscreen display. Swipe left, right, up, or down to navigate through menus, access quick settings, and view different functions. Press the side button to return to the home screen or wake the device.

3.2 Fer i respondre trucades

Once paired via Bluetooth, you can manage calls directly from your watch:

• Contestar trucades: When a call comes in, tap the green icon on your watch to answer.
• Fer trucades: Access the call menu on your watch to dial numbers or select from synchronized contacts. The watch uses its built-in speaker and microphone for clear communication.

Image 3.1: Smart Bluetooth Call feature on the LIGE Smart Watch FV18.

3.3 Recepció de notificacions

After enabling notification access in the GloryFit app, your watch will display real-time alerts for incoming calls, SMS messages, and various app notifications (e.g., Facebook, WhatsApp, TikTok).

Image 3.2: The watch receives notifications from various social media and messaging apps.

3.4 Vigilància de la salut

The watch is equipped with optical sensors for continuous health tracking:

• Freqüència cardíaca: Controla la teva freqüència cardíaca durant tot el dia.
• Oxigen en sang (SpO2): Mesura els nivells de saturació d'oxigen a la sang.
• Seguiment del son: Analitza els teus patrons de son, incloent-hi el son profund, el son lleuger i els horaris de vigília.
• Seguiment de l'activitat: Records steps taken, distance covered, and calories burned.

Image 3.3: 24/7 Health Management features including Heart Rate, Sleep Tracking, and Blood Oxygen.

3.5 modes esportius

The watch supports over 70 sports modes to track your workouts. Select your activity from the watch menu or the GloryFit app to record real-time data such as duration, heart rate, and calories burned.

Image 3.4: The watch offers a wide range of sports modes for tracking physical activities.

Video 3.5: Demonstrating health tracking and various sports modes on the LIGE Smart Watch FV18.

3.6 Personalització de les esferes del rellotge

Personalize your watch with over 165 selectable watch faces available through the GloryFit app. You can also upload your own photos to create custom dials.

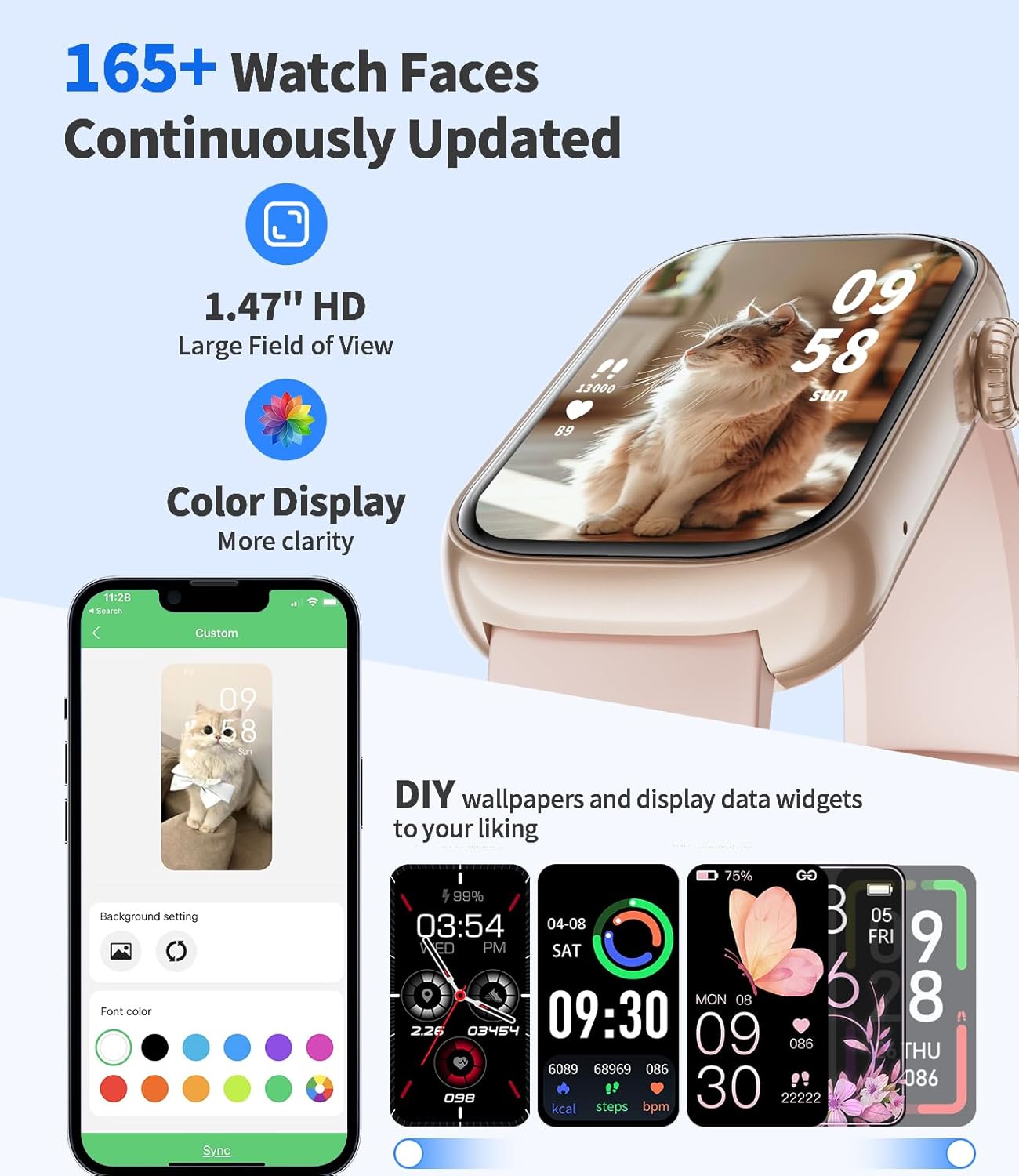

Image 3.6: A selection of watch faces and options for custom backgrounds.

3.7 Music and Camera Control

Control your smartphone's music playback and camera shutter directly from your watch when connected via Bluetooth.

3.8 Find Phone Feature

If your phone is misplaced, use the "Find Phone" feature on your watch to make your phone ring, helping you locate it.

4. Manteniment

4.1 Càrrega del dispositiu

Connect the magnetic charging cable to the charging points on the back of the watch and a USB power source. A full charge takes approximately 2 hours. The watch provides 5-10 days of typical usage and up to 20 days in standby mode.

Image 4.1: Information on IP68 water resistance and battery life.

4.2 Resistència a l'aigua

The LIGE Smart Watch FV18 is IP68 certified, meaning it is resistant to dust and can withstand splashes, rain, and sweat. It is no apte for swimming, diving, or use in saunas or hot showers, as steam and hot water can compromise the seals.

Video 4.2: Demonstrating the durability and water resistance of the LIGE Smart Watch FV18.

4.3 Neteja i cura

To maintain your watch, regularly clean the watch body and straps with a soft, dry cloth. If necessary, use a slightly damp cloth for the silicone strap. Avoid using harsh chemicals or abrasive materials.

5. Solució De Problemes

If you encounter issues with your LIGE Smart Watch FV18, please refer to the following common solutions:

• El rellotge no s'encén: Assegura't que el rellotge estigui completament carregat. Connecta'l al carregador magnètic durant almenys 30 minuts.
• No es pot emparellar amb el telèfon:
  • Assegura't que el Bluetooth estigui activat al telèfon i que el rellotge estigui dins del seu abast.
  • Reinicia tant el telèfon com el rellotge.
  • Check if the GloryFit app has necessary permissions (location, Bluetooth).
  • Try unpairing and re-pairing the device through the GloryFit app.
• Notificacions no rebudes:
  • Verify that "Notification access" is granted to GloryFit in your phone's settings.
  • Ensure specific app notifications are enabled within the GloryFit app.
  • Check if "Do Not Disturb" mode is active on either your phone or watch.
• Dades de salut inexactes: Assegureu-vos de portar el rellotge ben ajustat al canell, ni massa ajustat ni massa fluix. Netegeu el sensor de la part posterior del rellotge regularment.
• Autonomia curta de la bateria: Reduce screen brightness, disable unnecessary notifications, or limit continuous heart rate monitoring to extend battery life.

6. Especificacions

7. Garantia i Suport

7.1 Informació de la garantia

Your LIGE Smart Watch FV18 comes with a 2-year warranty. Please retain your proof of purchase for warranty claims.

7.2 Atenció al client

If you have any questions, require technical assistance, or need to make a warranty claim, please contact our professional customer service team. We aim to respond to your inquiry within 24 hours and provide the best solution.

Contact details can typically be found on the product packaging, the official LIGE weblloc web o a través de la vostra plataforma de compra.
