1. Introducció
This manual provides detailed instructions for the safe and efficient use of your GYMAX Walking Pad Treadmill. Please read this manual thoroughly before operating the device and retain it for future reference.
The GYMAX Walking Pad is a versatile 3-in-1 exercise machine designed for walking, jogging, and under-desk use. It features a powerful 2.5 HP brushless motor, a 7-layer non-slip running belt with shock absorption, an LED display, and remote control operation. It offers a speed range of 0.5-4 MPH, 12 preset programs, and 3 countdown modes to support various fitness goals.
2. Informació important de seguretat
To reduce the risk of serious injury, read all important precautions and instructions in this manual before using the walking pad. GYMAX assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
- Consulteu el vostre metge abans de començar qualsevol programa d'exercici.
- Keep children and pets away from the walking pad at all times.
- Place the walking pad on a level surface with at least 2 feet of clear space behind it.
- Porteu roba esportiva i calçat esportiu adequats.
- No feu servir la plataforma per caminar si està danyada o no funciona correctament.
- No supereu la capacitat màxima de pes de 340 lliures (154 kg).
- Always hold the remote control securely during operation.
- Desendolleu el caminador de la presa de corrent quan no l'utilitzeu o abans de netejar-lo/mantenir-lo.
3. Contingut del paquet
Verifiqueu que tots els components estiguin presents i no estiguin danyats en obrir l'envàs:
- 1 x GYMAX Walking Pad Treadmill
- 1 x comandament a distància
- 1 x Treadmill Lubricant
- 1 x manual d'instruccions
4. Configuració
4.1 Desembalatge i col·locació
The GYMAX Walking Pad comes fully assembled. Carefully remove all packaging materials. Place the walking pad on a firm, level surface. Ensure there is adequate space around the unit for safe operation, particularly at the rear.
Image: The GYMAX Walking Pad Treadmill in use, showing its compact design and the included remote control.
4.2 Connexió d'alimentació
Connect the power cord to a grounded 110V AC outlet. Ensure the power switch on the walking pad is in the "OFF" position before plugging it in.
5. Instruccions de funcionament
5.1 Engegada/apagada
- To power on: Plug in the walking pad and flip the main power switch to "ON". The LED display will illuminate.
- To power off: Flip the main power switch to "OFF" and unplug the unit from the wall outlet.
5.2 Ús del comandament a distància
The included remote control allows for easy adjustment of speed, programs, and modes.

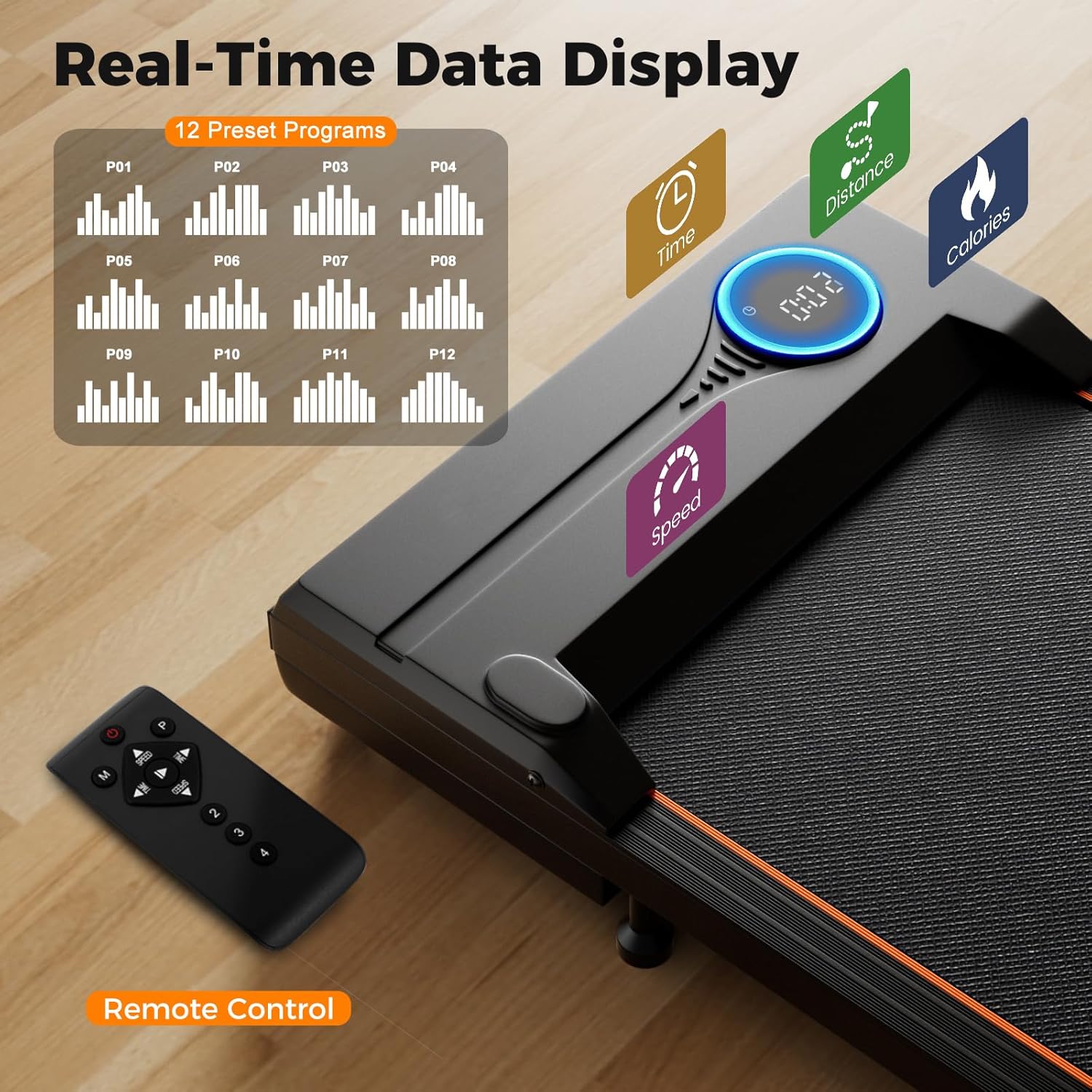

Image: Close-up of the LED display showing real-time data and the remote control for operation.
- Botó d'inici / aturada: Press to start or pause the walking pad.
- Botons de velocitat +/-: Adjust the speed in increments of 0.1 MPH.
- Botó de mode: Cycle through different display modes (Time, Distance, Calories).
- Botó del programa: Select from 12 preset programs (P01-P12).
5.3 Ajust de velocitat i modes
The walking pad offers a speed range of 0.5-4 MPH, suitable for various activities:
- Treballant: 0.5-1.5 MPH (ideal for use under a standing desk)
- Caminant: 0.5-2.5 MPH
- córrer: 2.5-4 MPH
Image: Visual representation of the three primary usage modes: Working, Walking, and Jogging, with their corresponding speed ranges.
5.4 Programes predefinits (P01-P12)
The walking pad includes 12 pre-programmed workouts. Press the "Program" button on the remote to cycle through P01 to P12. Each program has varying speed profiles to challenge your workout.
5.5 Countdown Modes
Utilize the 3 countdown modes to set specific workout goals:
- Compte enrere del temps: Set a target workout duration (5-99 minutes).
- Distance Countdown: Set a target distance (1-99 miles).
- Calories Countdown: Set a target calorie burn (20-990 calories).
The walking pad retains fitness data even after pausing, allowing for breaks without losing progress.

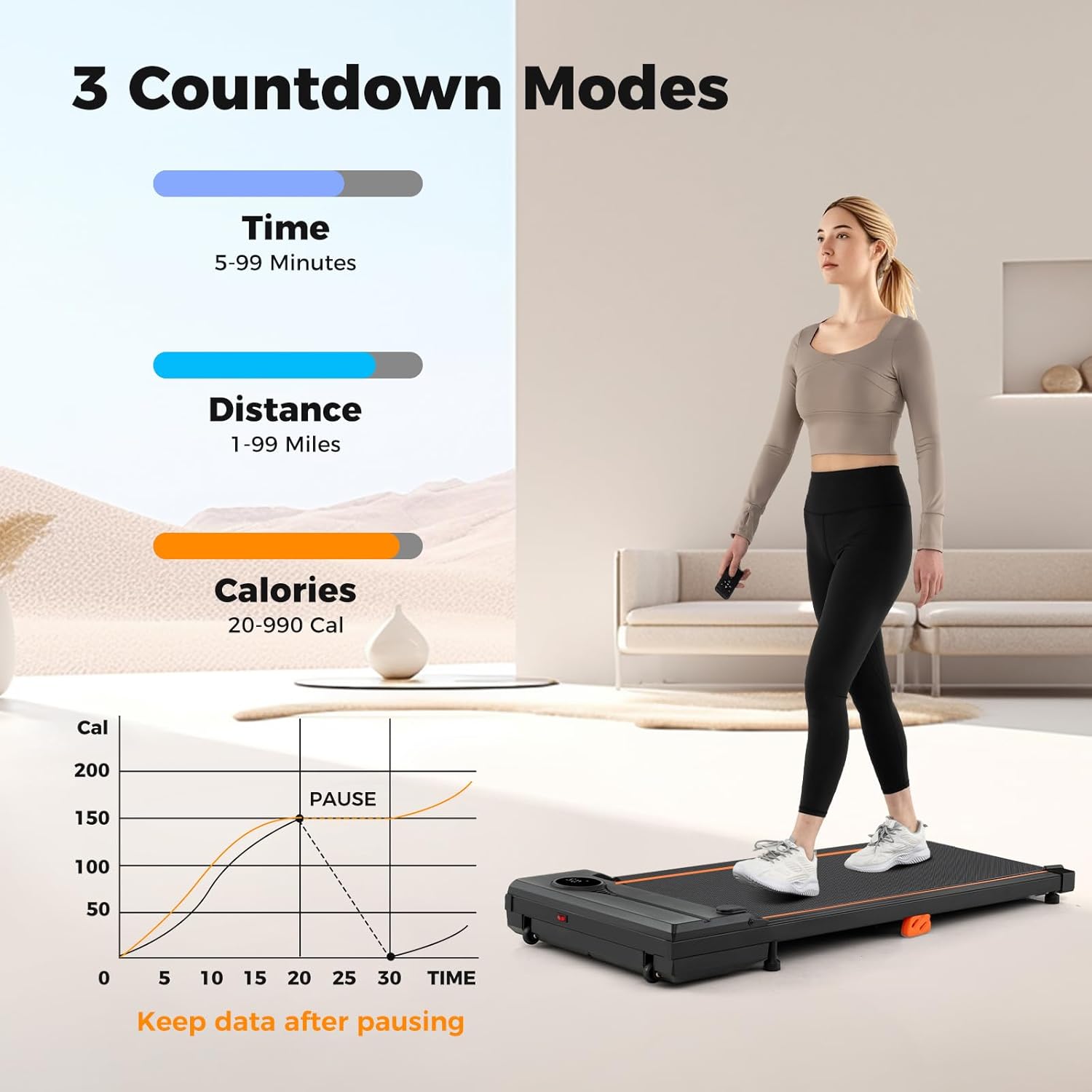

Image: Illustration of the three countdown modes (Time, Distance, Calories) and the feature to retain data when paused.
6. Manteniment
6.1 Neteja
Regularly clean the walking pad to ensure optimal performance and longevity.
- Desconnecteu sempre la unitat abans de netejar-la.
- Netegeu la superfície amb un anunciamp drap. Eviteu productes de neteja o dissolvents abrasius.
- Periodically vacuum under the walking pad to prevent dust buildup.
6.2 Lubricació
The running belt requires periodic lubrication to reduce friction and extend its lifespan. Use the provided treadmill lubricant.
- Desendolla la plataforma per caminar.
- Gently lift the edge of the running belt.
- Apply a small amount of lubricant evenly under the belt, towards the center.
- Plug in the walking pad and run it at a low speed (e.g., 1 MPH) for 2-3 minutes to distribute the lubricant.
- Lubricate every 3-6 months, or after approximately 100 hours of use, depending on usage frequency.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La plataforma per caminar no s'encén. | No connectat; interruptor apagat; interruptor automàtic saltat. | Ensure power cord is securely plugged in. Check main power switch. Reset household circuit breaker if necessary. |
| La cinta de córrer rellisca o dubta. | Belt requires lubrication; belt tension is incorrect. | Lubricate the running belt as per Section 6.2. If slipping persists, contact customer support for belt tension adjustment instructions. |
| El comandament a distància no respon. | Remote battery low or depleted; obstruction between remote and sensor. | Replace the CR2025 battery in the remote control. Ensure a clear line of sight to the walking pad's sensor. |
| Soroll inusual durant el funcionament. | Loose components; foreign object under belt; motor issue. | Stop the walking pad immediately. Inspect for loose parts or foreign objects. If noise persists, discontinue use and contact customer support. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact GYMAX customer support.
8. Especificacions
| Nom del model: | Coixinet de passeig |
| Número de model: | GM2204 |
| Color: | Negre |
| Material: | Metal, ABS, MDF (Alloy Steel) |
| Dimensions del producte (L x A x A): | 43" x 19" x 4.7" (109.2 cm x 48.3 cm x 11.9 cm) |
| Running Belt Size (L x W): | 90.2 cm x 39.4 cm |
| Pes net: | 36.5 lliures (16.5 kg) |
| Capacitat de pes: | 340 lliures (154 kg) |
| Potència del motor: | 2.5 HP (Brushless) |
| Voltage: | 110 V |
| Freqüència: | 60 Hz |
| Actual: | 10A |
| Interval de velocitat: | 0.5-4 MPH |
| Longitud del cable d'alimentació: | 6.2 peus (1.9 m) |
| Bateria de control remot: | CR2025 |
| Característiques especials: | Compact Design, Lightweight, 7-Layer Running Belt, 6 Shock Absorbers, Low Noise (<45dB), 2 Built-in Wheels |
Image: Detailed product dimensions and electrical specifications of the GYMAX Walking Pad.
9. Garantia i Suport
9.1 Informació de la garantia
The GYMAX Walking Pad Treadmill comes with a 90 dies de garantia from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or improper maintenance.
Conserveu el vostre comprovant de compra per a reclamacions de garantia.
9.2 Atenció al client
For technical assistance, warranty claims, or to order replacement parts, please contact GYMAX customer support. Refer to the contact information provided on the GYMAX official weblloc web o la documentació de la compra.
Podeu visitar la botiga oficial de GYMAX per a més informació: Botiga GYMAX
