Bextgoo 7024B-Pro 2K WiFi Video Doorbell User Manual

1. Producte acabatview i contingut del paquet

Thank you for choosing the Bextgoo 7024B-Pro 2K WiFi Video Doorbell. This device provides enhanced security and convenience for your home. Please ensure all components are present before proceeding with installation.

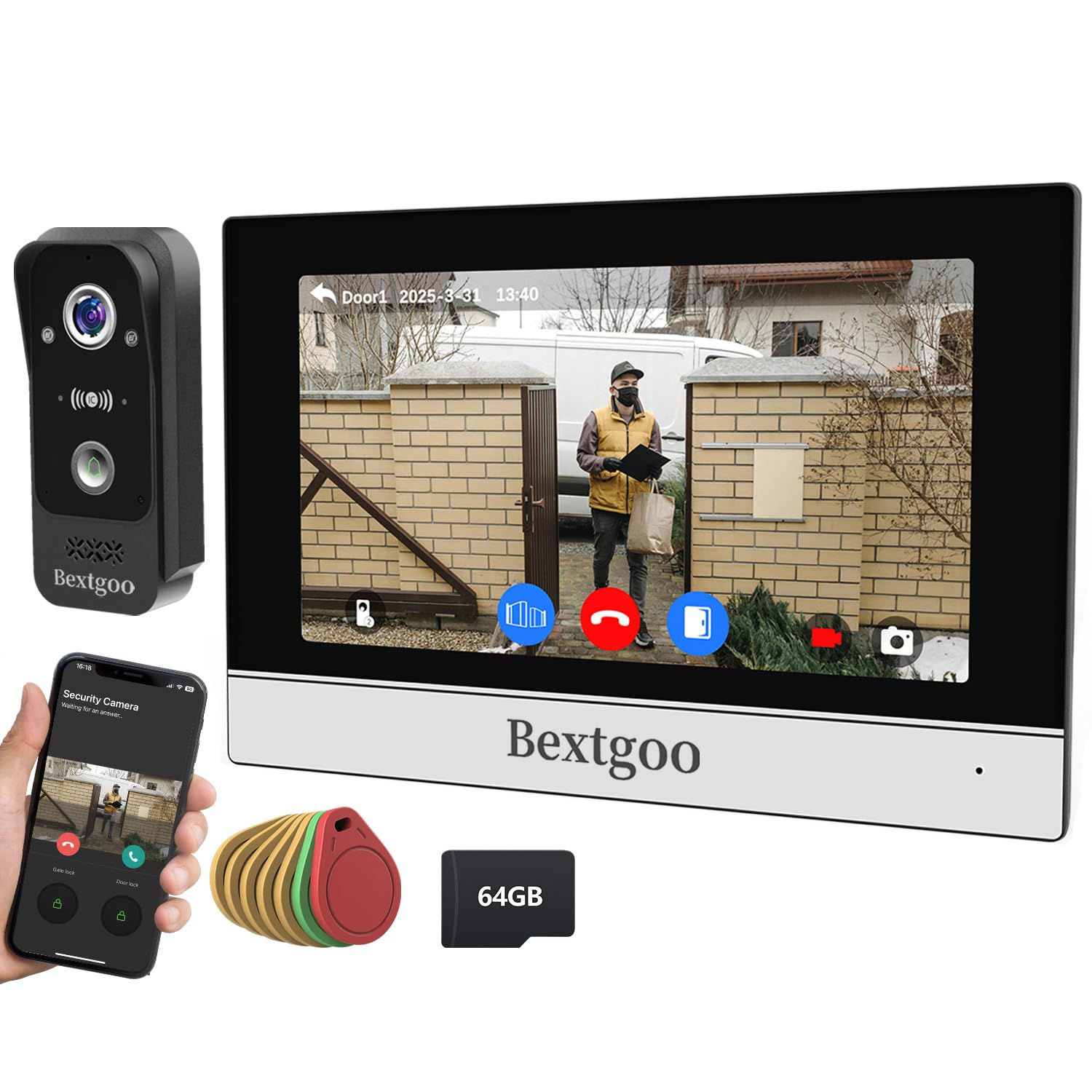

Image: The Bextgoo 7024B-Pro 2K WiFi Video Doorbell system, showing the outdoor doorbell unit and the indoor monitor.

Contingut del paquet:

• 1 x WiFi Video Doorbell Unit
• 1 monitor d'interior
• Targetes RFID (la quantitat pot variar)
• Kit de cablejat
• Cable d'alimentació
• Screw Kit for Installation
• Manual d'usuari (Aquest document)

2. Configuració i instal·lació

Proper installation is crucial for the optimal performance of your video doorbell system. This device supports wall mounting and wired connectivity.

2.1 Mounting the Outdoor Unit

1. Tria la ubicació: Select a suitable location near your entrance, ensuring a clear view and access to power. The recommended viewangle d'inclinació és de 170 graus.
2. Forats: Use the provided screw kit and template (if included) to mark and drill holes for wall mounting.
3. Unitat segura: Attach the video doorbell unit securely to the wall using the screws.

2.2 Cablejat i connexió d'alimentació

1. Connect Wiring Kit: Follow the wiring diagram in the separate quick start guide for connecting the doorbell unit to the indoor monitor and power supply. Ensure all connections are secure.
2. Font d'alimentació: Connect the power cable to the system. The system operates on 5 Volts.
3. Encesa inicial: Once all connections are made, power on the system. The indoor monitor should activate.

2.3 Network Configuration (WiFi)

1. Descarregar l'aplicació: Download the official Bextgoo application on your smartphone (compatible with Android and iOS).
2. Parella el dispositiu: Follow the in-app instructions to pair your video doorbell system with your home WiFi network. This typically involves scanning a QR code or entering network credentials.
3. Prova de connexió: Verify that the doorbell and monitor are connected to the network and accessible via the app.

3. Instruccions de funcionament

This section details the daily operation of your Bextgoo 2K WiFi Video Doorbell system.

3.1 Respondre a una trucada

• When a visitor presses the doorbell, the indoor monitor will ring and display the live video feed.
• You will also receive a notification on your paired smartphone via the Bextgoo app.
• To answer, press the 'Answer' button on the indoor monitor or within the smartphone app.
• You can then communicate with the visitor using two-way audio.

3.2 Remote Access and Monitoring

• Open the Bextgoo app on your smartphone to view the live feed from your doorbell at any time.
• The app allows you to initiate two-way communication, capture screenshots, or record video.

3.3 Using RFID Cards

• The system supports RFID cards for convenient access control.
• To grant access, present a pre-programmed RFID card to the designated reader area on the outdoor doorbell unit.
• Refer to the app settings for adding or removing RFID cards.

3.4 Visió nocturna

The doorbell unit is equipped with infrared night vision, providing clear video up to 15 meters in low-light conditions.

4. Manteniment

Regular maintenance ensures the longevity and optimal performance of your video doorbell system.

• Neteja: Gently wipe the camera lens and housing of the outdoor unit with a soft, damp tela. Eviteu els netejadors abrasius.
• Actualitzacions de firmware: Periodically check the Bextgoo app for available firmware updates to ensure your system has the latest features and security enhancements.
• Inspecció del cablejat: Annually inspect all wiring connections for any signs of wear or damage.
• Emmagatzematge: The system includes a 64 GB card for video storage. Regularly review i gestionar foo gravattagi segons sigui necessari.

5. Solució De Problemes

If you encounter issues with your Bextgoo 2K WiFi Video Doorbell, refer to the following common troubleshooting steps.

5.1 No Power to Unit

• Comproveu el cable d'alimentació: Ensure the power cable is securely connected to both the unit and the power source.
• Verifica la presa de corrent: Proveu la presa de corrent amb un altre dispositiu per confirmar que funciona.
• Inspeccioneu el cablejat: Review all wiring connections for any loose or damaged wires.

5.2 No Video Feed / Poor Quality Video

• Comproveu la connexió de xarxa: Ensure both the doorbell and your smartphone are connected to a stable WiFi network.
• Neteja la lent: Clean the camera lens on the outdoor unit to remove any dirt or obstructions.
• Intensitat del senyal: If the WiFi signal is weak, consider relocating your router or using a WiFi extender.

5.3 RFID Cards Not Working

• Reprogram Card: Try reprogramming the RFID card through the Bextgoo app.
• Col·locació de la targeta: Ensure the card is held correctly against the reader area.
• Restabliment del sistema: As a last resort, a system reset might resolve the issue (refer to the app for reset options).

6. Especificacions

Key technical specifications for the Bextgoo 7024B-Pro 2K WiFi Video Doorbell system.

7. Garantia i Suport

Bextgoo is committed to providing high-quality products and customer satisfaction.

7.1 Informació de la garantia

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or visit the official Bextgoo weblloc per obtenir els termes i condicions detallats.

7.2 Atenció al client

For technical assistance, troubleshooting, or any inquiries regarding your Bextgoo 2K WiFi Video Doorbell, please contact our customer support team:

• Correu electrònic: suport@bextgoo.com (Example)
• Weblloc: www.bextgoo.com/support (Example)

Please have your model number (7024B-Pro) and purchase details ready when contacting support.
