Splenssy HS7080 Wireless Video Doorbell User Manual

1. Introducció

The Splenssy HS7080 Wireless Video Doorbell system provides enhanced security and convenience for your home, apartment, or office. It features a 4.3-inch IPS indoor monitor and a 1080P outdoor camera with a 170° wide-angle view. Enjoy two-way audio communication, IP65 weather resistance, and long-lasting battery performance. This manual provides detailed instructions for installation, operation, and maintenance of your new video doorbell.

2. Característiques clau

• 4.3" IPS Display & 1080P Full HD Camera: Offers crystal-clear day and night vision with LED light, supporting recording to a TF card (not included).
• IP65 Waterproof & Wide Temperature Range (-10°C~50°C): Designed to withstand rain, dust, and extreme weather conditions for permanent outdoor use.
• Real-time Two-Way Communication: Speak with visitors from anywhere using the integrated microphone and speaker.
• 170° Ultra-Wide Angle: Covers the entire access area, eliminating blind spots for comprehensive monitoring.
• Long Battery Life (3 Months) & USB Charging: Equipped with a 1000Ah rechargeable battery (USB 5V/2A charging), ideal for intensive use.
• 5-Minute Wireless Installation: Bluetooth connection ensures easy setup without complex wiring, suitable for homes, offices, or buildings.

3. Contingut del paquet

Si us plau, comproveu el paquet per veure si hi ha els elements següents:

• Indoor Monitor (4.3-inch IPS screen)
• Outdoor Camera (1080P)
• Cable de càrrega USB
• Adaptador d'alimentació
• Cargols de muntatge i ancoratges de paret
• Suport de muntatge
• Manual d'usuari

Image: All components included in the Splenssy HS7080 package, including the indoor monitor, outdoor camera, charging cable, power adapter, mounting hardware, and user manual.

4. Configuració

4.1 Càrrega inicial

Before first use, ensure both the indoor monitor and outdoor camera are fully charged. Use the provided USB cable and power adapter.

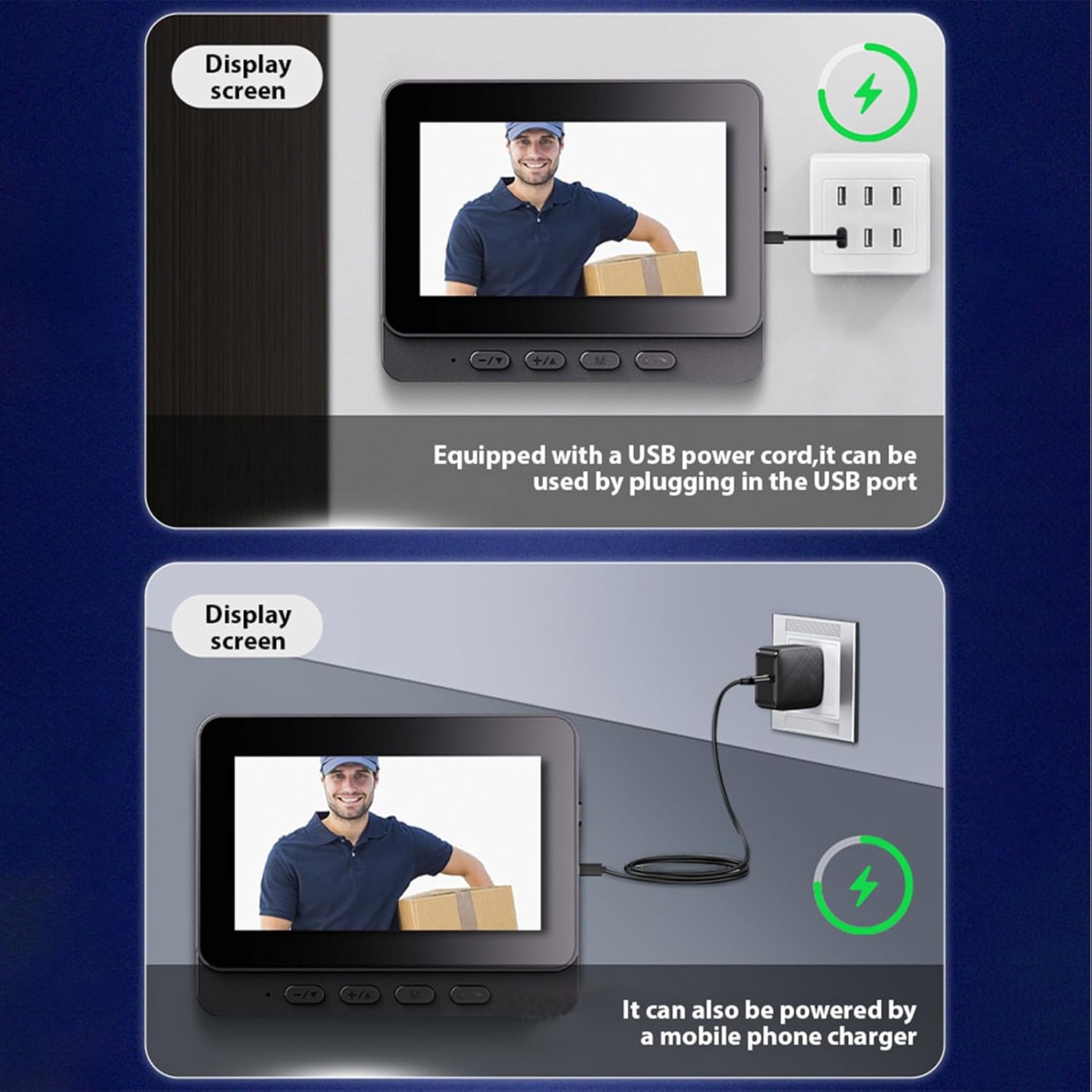

Image: The indoor monitor and outdoor camera being charged via USB cable, illustrating the charging ports and methods.

4.2 Pairing the Doorbell

The indoor monitor and outdoor camera should be paired for communication. Follow these steps:

1. Turn on the indoor monitor.
2. On the indoor monitor, navigate to the pairing function (often found in settings or by pressing a specific button).
3. Press the doorbell button on the outdoor camera to initiate pairing.
4. The monitor will display a 'Pairing...' message and a countdown. Once successful, it will show 'Connected'.

4.3 Instal·lació

The Splenssy HS7080 is designed for wireless installation. Choose a suitable location for both the outdoor camera and indoor monitor.

1. Outdoor Camera Placement: Mount the outdoor camera near your door, ensuring a clear view of the entrance. Use the provided mounting bracket, screws, and wall anchors.
2. Indoor Monitor Placement: Place the indoor monitor in a convenient location within your home, ensuring it is within range of the outdoor camera.

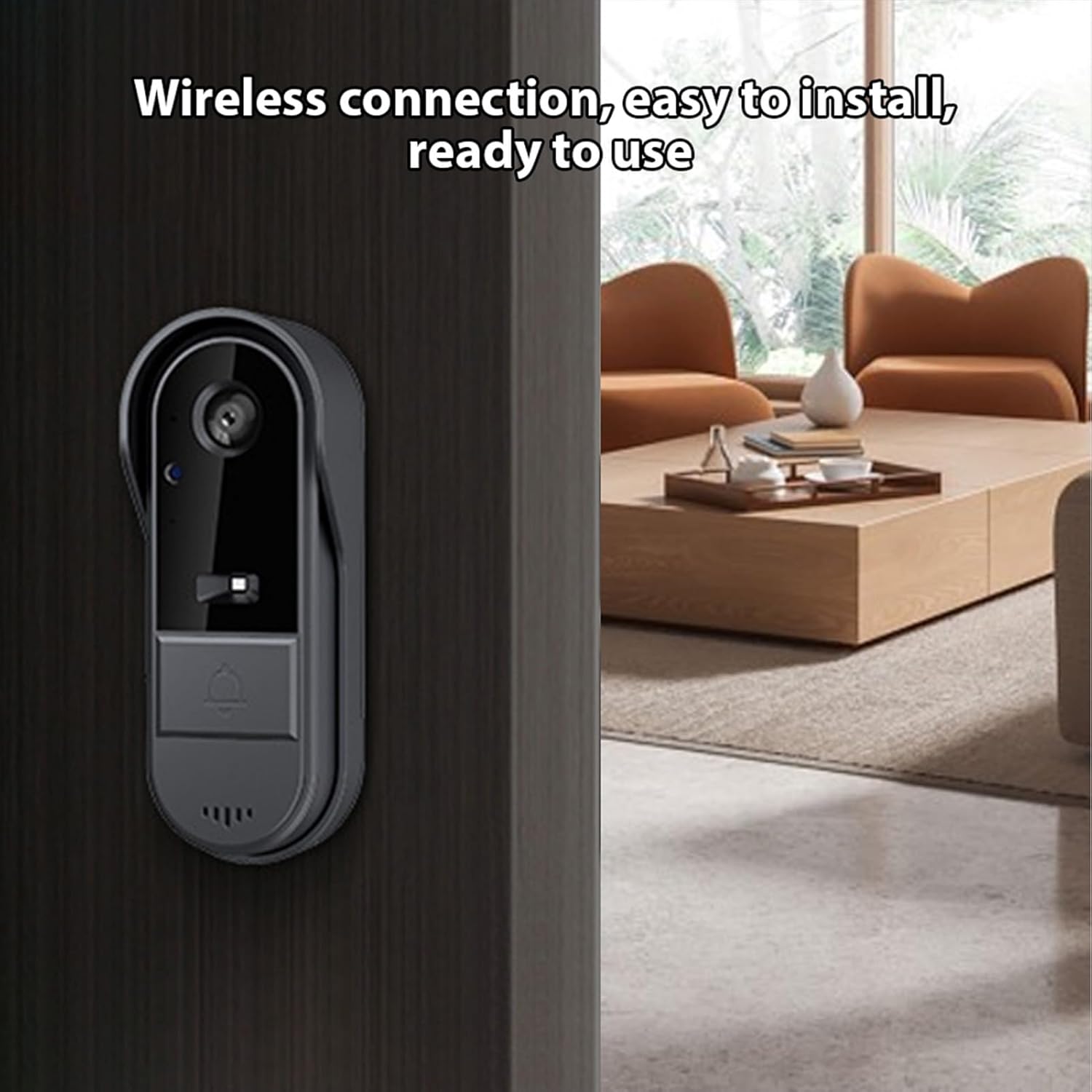

Image: The outdoor camera mounted wirelessly next to a door, demonstrating its ease of installation.

4.4 Smart Home Integration (Alexa & Google Home)

The Splenssy HS7080 can be integrated with Amazon Alexa and Google Home for enhanced control and monitoring. Refer to the following videos for detailed instructions:

5. Instruccions de funcionament

5.1 Respondre a una trucada

When a visitor presses the doorbell button, the indoor monitor will ring and display the live video feed. Press the phone icon button on the monitor to answer the call.

5.2 Comunicació bidireccional

During an active call, hold down the phone icon button on the indoor monitor to engage in two-way communication with the visitor. Release the button to listen.

Image: Illustrates the two-way communication feature, showing a family interacting with a visitor through the indoor monitor.

5.3 Ajust del volum

Utilitza el botons +/- on the indoor monitor to adjust the ring volume and communication volume.

5.4 Accessing Menu and Settings

Premeu el botó Botó M. on the indoor monitor to access the main menu. From here, you can navigate through various settings such as language, brightness, ring volume, and time settings.

5.5 Viewing Recorded Videos

The system supports recording events to a TF card (not included). To view vídeos gravats:

1. Accediu al menú principal prement el botó Botó M..
2. Select the 'Video file' option.
3. Browse and select the desired video for playback.

5.6 Configuració de l'hora i la data

Per garantir un temps precísamps on recordings:

1. Accediu al menú principal prement el botó Botó M..
2. Select 'Time Setting'.
3. Adjust the year, month, day, hour, and minute using the navigation buttons.
4. After setting, use the doorbell to make a call once to save the result.

6. Manteniment

• Neteja: Use a soft, dry cloth to clean the indoor monitor and outdoor camera. Avoid abrasive cleaners or solvents.
• Cura de la bateria: Recharge the devices regularly to maintain optimal battery life. Avoid extreme temperatures during charging and storage.
• Protecció meteorològica: While the outdoor camera is IP65 rated for water and dust resistance, ensure its mounting location provides some shelter from direct, prolonged exposure to severe weather conditions to maximize longevity.
• Actualitzacions de firmware: Comproveu el del fabricant website or app for any available firmware updates to ensure optimal performance and security.

7. Solució De Problemes

7.1 No Video Feed on Indoor Monitor

• Ensure both the outdoor camera and indoor monitor are powered on and fully charged.
• Verify that the devices are properly paired. If not, repeat the pairing process (Section 4.2).
• Check the distance between the outdoor camera and indoor monitor. Excessive distance or thick walls can interfere with the wireless signal.

7.2 Mala qualitat de vídeo

• Clean the camera lens on the outdoor unit.
• Ensure adequate lighting conditions. The camera has night vision, but extreme darkness can still affect clarity.
• Comproveu si hi ha obstruccions al camp de la càmera view.

7.3 Doorbell Not Ringing

• Check the ring volume settings on the indoor monitor (Section 5.3).
• Ensure the outdoor camera button is functioning correctly.
• Re-pair the devices if necessary (Section 4.2).

7.4 Durada curta de la bateria

• Assegureu-vos que els dos dispositius estiguin completament carregats abans d'utilitzar-los.
• Frequent use, especially two-way communication and video recording, can reduce battery life.
• Les temperatures extremes poden afectar el rendiment de la bateria.

8. Especificacions

9. Garantia i Suport

For warranty information, technical support, or service inquiries, please refer to the contact information provided with your purchase or visit the official Splenssy weblloc web. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.
