1. Introducció
Thank you for choosing the lionelo TONI Balance Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your balance bike. Please read it thoroughly before first use and keep it for future reference.
The lionelo TONI Balance Bike is designed to help children aged 18 months and older develop balance, coordination, and motor skills, preparing them for a traditional bicycle. It supports a maximum weight of 30 kg.
2. Advertències de seguretat
- Always supervise children when using the balance bike.
- Ensure the child wears appropriate safety gear, including a helmet, knee pads, and elbow pads.
- Do not use the balance bike on public roads, near motor vehicles, or on steep inclines.
- Ensure all bolts and fasteners are securely tightened before each use.
- The balance bike is designed for one rider only.
- Pes màxim de l'usuari: 30 kg.
- Minimum age: 18 months.
- Regularly inspect the bike for any signs of wear or damage. Do not use if damaged.
3. Components del producte
Familiarize yourself with the parts of your lionelo TONI Balance Bike.

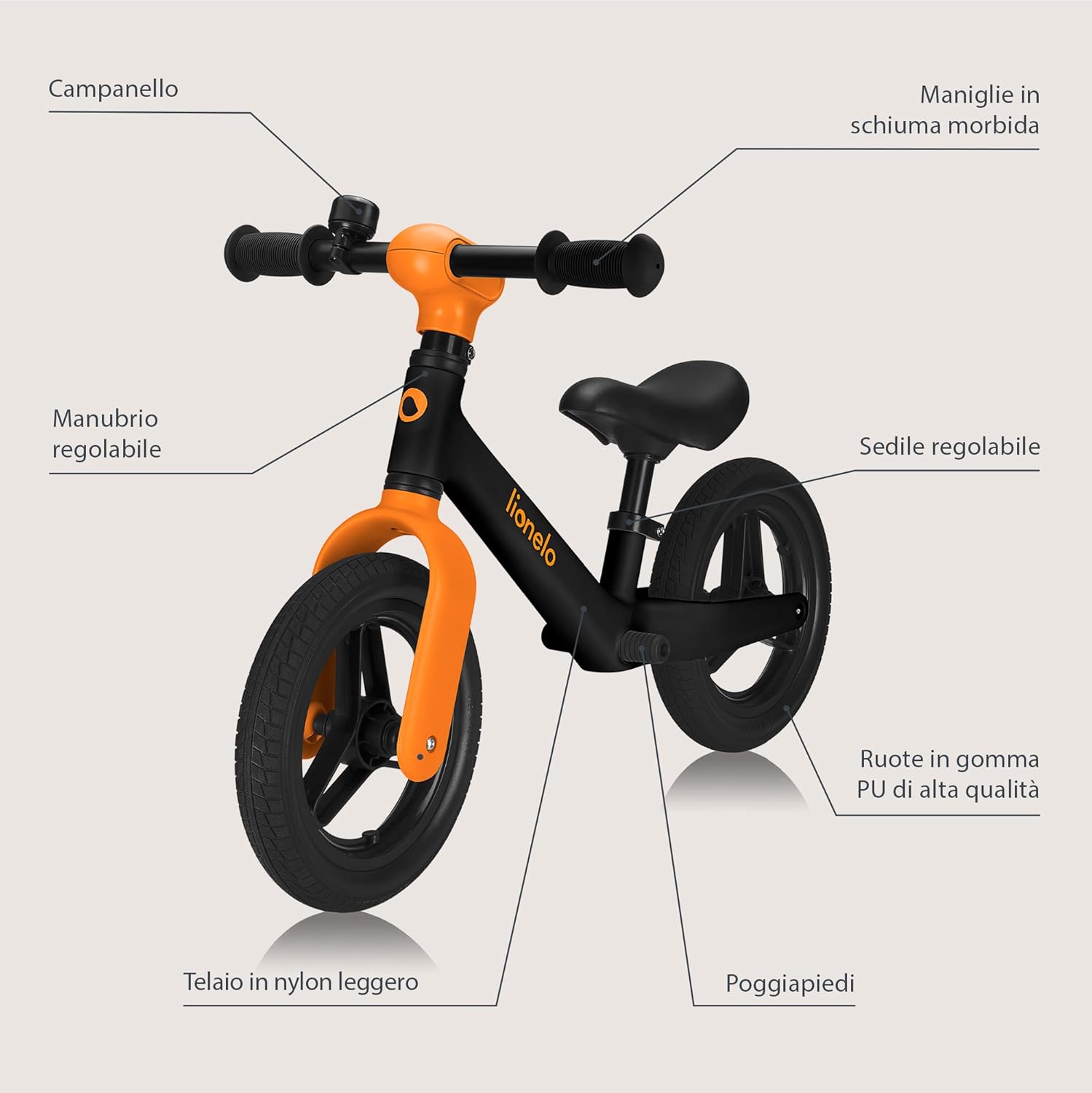

Figura 3.1: Acabatview of the lionelo TONI Balance Bike components. This image shows the main parts of the bike, including the handlebar, bell, soft foam grips, adjustable seat, lightweight nylon frame, high-quality PU rubber wheels, and footrest.
- Manillar: Adjustable for height.
- Soft Foam Grips: For comfortable and secure handling.
- Campana: Included for added fun and safety.
- Seient ajustable: Ergonomically designed, adjustable in height.
- Lightweight Nylon Frame: Durable and easy for children to maneuver.
- PU Rubber Wheels (25cm): Puncture-proof and maintenance-free.
- Reposall: Allows the child to rest their feet while gliding.
- Clau Allen: Included for assembly and adjustments.
4. Muntatge i muntatge
The lionelo TONI Balance Bike requires minimal assembly. Follow these steps carefully.
- Desempaquetar components: Traieu amb cura totes les peces de l'embalatge. Verifiqueu que hi hagi tots els components que figuren a la secció 3.
- Fixar el manillar: Insert the handlebar stem into the frame's front tube. Ensure the handlebar is aligned straight with the front wheel. Tighten the handlebar clamp bolt securely using the provided Allen key.
- Instal·lar el seient: Insert the seat post into the frame's seat tube. Adjust the seat height to the appropriate level for the child (see Section 5.1 for guidance). Secure the seat post with the quick-release lever or bolt.
- Comprovar les rodes: Ensure the wheels are securely attached and spin freely. The PU wheels are maintenance-free and do not require inflation.
- Inspecció final: Before first use, double-check all bolts, nuts, and quick-release levers to ensure they are securely fastened.

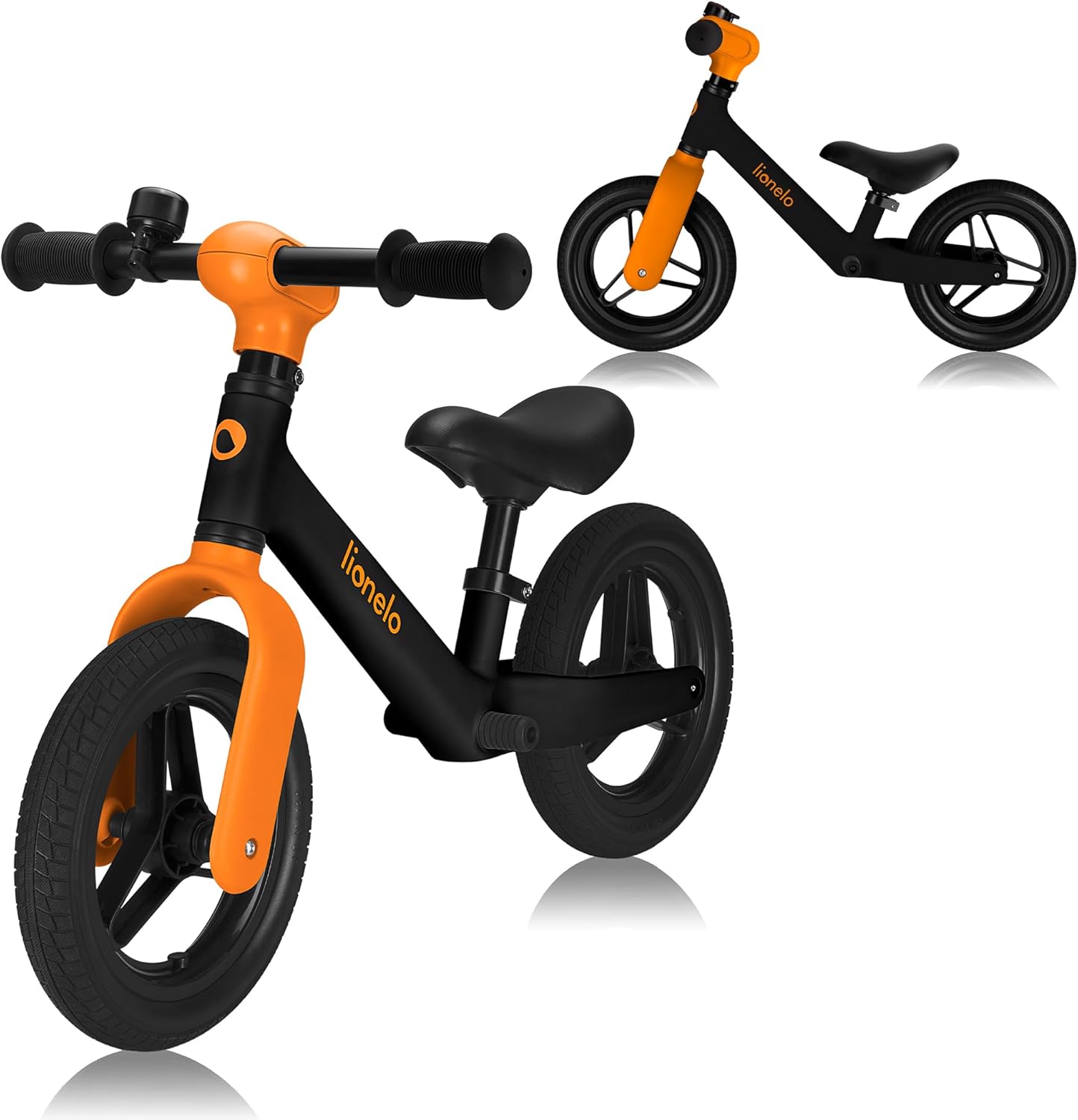

Figura 4.1: The lionelo TONI Balance Bike fully assembled. This image shows the bike ready for use, highlighting its compact and lightweight design.
5. Instruccions de funcionament
5.1 Adjusting Seat and Handlebar Height
Proper adjustment of the seat and handlebar is crucial for comfort and effective learning.
- Alçada del seient: The child should be able to place both feet flat on the ground with a slight bend in their knees when seated. The seat is adjustable from 26 cm to 32 cm.
- Alçada del manillar: The handlebar should be at a comfortable height, allowing the child to maintain an upright posture with a slight bend in their elbows. The handlebar is adjustable from 45 cm to 50 cm.
Figura 5.1: Illustration of adjustable handlebar and seat. This image demonstrates how the handlebar and seat can be raised or lowered to fit the child's height, ensuring ergonomic posture.
5.2 Aprendre a muntar
The balance bike teaches children to balance and steer before introducing pedals.
- Caminant: Encourage the child to walk with the bike between their legs, pushing off the ground with their feet.
- Lliscament: As they gain confidence, encourage them to push off and lift their feet, gliding for short distances.
- Direcció: Teach them to steer by gently turning the handlebars. The bike features a 120° steering limiter to prevent sharp turns and falls.
- Parada: Children will naturally stop by placing their feet on the ground.
Figura 5.2: A child confidently riding the lionelo TONI Balance Bike. This image highlights the bike's suitability for children aged 18 months and up, supporting motor skill development and balance up to 30 kg.
6. Manteniment
Regular maintenance ensures the longevity and safety of your balance bike.
- Neteja: Wipe the bike clean with a damp tela. Eviteu els productes químics durs.
- Inspeccions: Periodically check all bolts, nuts, and connections for tightness. Re-tighten if necessary.
- Rodes: The PU wheels are maintenance-free and do not require inflation. Check for any debris or damage.
- Emmagatzematge: Store the balance bike in a dry place, away from direct sunlight and extreme temperatures, to prevent material degradation.
Figura 6.1: The lionelo TONI Balance Bike, emphasizing its compliance with EN 71-1 safety standards and test-confirmed safety. Regular checks ensure continued safety.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Handlebar is loose or wobbly. | Manillar clamp bolt is not tightened sufficiently. | Apretar el manillar clamp bolt securely with the Allen key. |
| Seat is slipping down. | Seat post quick-release or bolt is not tightened. | Tighten the seat post quick-release lever or bolt. |
| Bike makes unusual noises. | Loose components or debris in moving parts. | Inspect all connections for tightness. Clean wheels and axles of any debris. |
| Child finds it difficult to balance. | Seat height is too high. | Lower the seat so the child can comfortably place both feet flat on the ground. |
8. Especificacions
- Model: lionelo TONI
- Product Code (ASIN): B0FCYLNDC7
- Franja d'edat: 18 mesos +
- Pes màxim de l'usuari: 30 kg
- Mida de la roda: 25 cm (PU Rubber, maintenance-free)
- Material del marc: Lightweight Nylon
- Ajust del manillar: 45 cm - 50 cm
- Ajust del seient: 26 cm - 32 cm
- Dimensions del producte: 74 x 36.7 x 53.5 cm (Llarg x Amplada x Altura)
- Pes del producte: 2.3 kg
- Característiques especials: 120° Steering Limiter, Ergonomic Seat, Footrest, Non-slip Grips, Bell included.
- Normes de seguretat: Conforme a EN 71-1
Figura 8.1: Detailed dimensions of the lionelo TONI Balance Bike. This image provides the length (74 cm), width (36.7 cm), and height (53.5 cm) of the assembled bike.
9. Garantia i Suport
For warranty information, product support, or to purchase replacement parts, please visit the official lionelo weblloc o poseu-vos en contacte amb el seu servei d'atenció al client.
Podeu trobar més informació i dades de contacte a lionelo Brand Store on Amazon.
