Wireless Bluetooth Lavalier Microphone Kit - User Manual

1. Producte acabatview

The Wireless Bluetooth Lavalier Microphone Kit is designed for high-quality audio recording, offering a convenient and portable solution for various applications such as video recording, live streaming, online classes, and interviews. This kit features intelligent noise cancellation, stable 2.4GHz wireless transmission, and broad compatibility with Android, iPhone, cameras, and PCs.

Image 1.1: The complete Wireless Bluetooth Lavalier Microphone Kit, including two microphones, a USB-C receiver, and a Lightning receiver.

Contingut del paquet:

• 2 x micròfons sense fil
• 1 x Receptor USB-C
• 1 x receptor de llamps
• 2 x Windproof Foam Covers
• 1 x cable de càrrega USB-C
• 1 x Manual d'usuari

2. Guia de configuració

2.1 Charging the Microphones

Before initial use, ensure the microphones are fully charged. Connect the provided USB-C charging cable to the charging port on each microphone and to a standard USB power source. A full charge typically takes approximately 1.5 hours.

2.2 Connexió al dispositiu

The microphone kit features a 'Plug and Play' design, requiring no additional apps or drivers for most compatible devices.

1. For USB-C Devices (Android, PC): Insert the USB-C receiver directly into your device's USB-C port.
2. For Lightning Devices (iPhone): Insert the Lightning receiver directly into your iPhone's Lightning port.
3. Micròfons d'encesa: Press and hold the power button on each microphone until the indicator light illuminates, indicating they are powered on and ready to pair. The microphones will automatically pair with the receiver.

Image 2.1: The microphone receiver connected to a smartphone, ready for use.

2.3 Connectar el micròfon

Each microphone features a built-in clip for easy attachment. Securely clip the microphone to your clothing, ideally near your mouth, for optimal audio capture. The included windproof foam covers can be placed over the microphone head to reduce wind noise in outdoor environments.

3. Instruccions de funcionament

3.1 Enregistrament d'àudio

Once the receiver is connected and the microphones are powered on and paired, open your preferred audio or video recording application on your device. The system will automatically recognize the external microphone. Begin recording as you normally would within the application.

Image 3.1: The microphone kit can be used for online classes, video recording, meetings, and live streaming.

3.2 Dual Microphone Use

The kit includes two microphones, allowing for simultaneous recording from two sources. Simply connect the receiver to your device and power on both microphones. Both microphones will transmit audio to the single receiver.

Image 3.2: The kit supports both single and dual microphone operation.

3.3 Característiques clau

• Transmissió sense fil de 2.4 GHz: Provides stable and interference-free audio transmission up to 20 meters.
• Cancel·lació intel·ligent de soroll: Reduces ambient noise, ensuring clear voice capture even in noisy environments.
• Omnidirectional Audio Pickup: Captures sound from all directions, suitable for interviews and group recordings.
• Llarga vida útil de la bateria: Fins a 6 hores d'ús continu amb una sola càrrega.

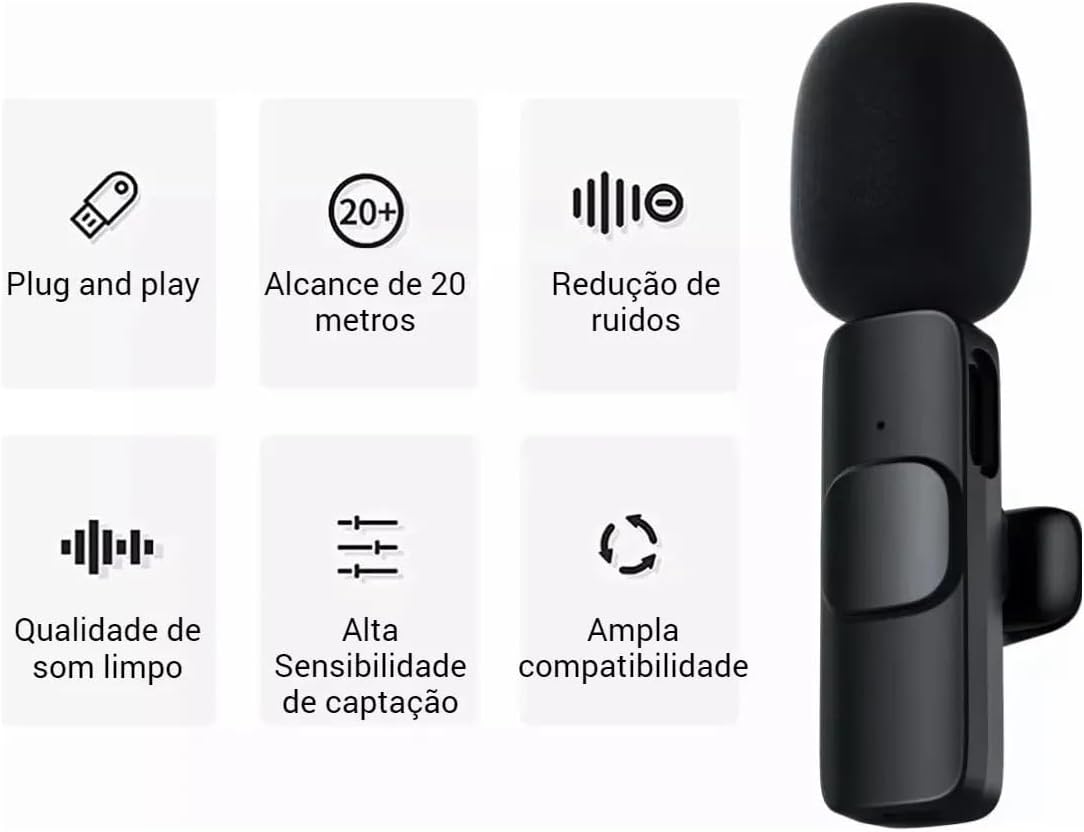

Image 3.3: Visual representation of the microphone's key features: Plug and Play, 20-meter range, noise reduction, clean sound quality, high sensitivity, and wide compatibility.

4. Manteniment i cura

To ensure the longevity and optimal performance of your microphone kit, follow these maintenance guidelines:

• Neteja: Use a soft, dry cloth to clean the microphones and receivers. Avoid using harsh chemicals or abrasive materials.
• Emmagatzematge: Store the kit in a cool, dry place away from direct sunlight and extreme temperatures.
• Cura de la bateria: Recharge the microphones regularly, even if not in frequent use, to maintain battery health. Avoid fully depleting the battery for extended periods.
• Windproof Foam Covers: Periodically check and clean the foam covers. Replace them if they become damaged or worn to maintain effective wind noise reduction.
• Manejar amb cura: The microphones are lightweight and compact. Avoid dropping them or subjecting them to strong impacts.

5. Solució De Problemes

If you encounter issues with your microphone kit, refer to the following common problems and solutions:

5.1 Sense so o volum baix

• Comprova la connexió: Ensure the receiver is fully inserted into your device's port.
• Potència del micròfon: Verify that the microphones are powered on and their indicator lights are active.
• Nivell de bateria: Charge the microphones fully. Low battery can affect performance.
• Configuració del dispositiu: Check your device's audio input settings to ensure the external microphone is selected. Adjust the volume levels on your recording application or device.
• Compatibilitat d'aplicacions: While generally plug-and-play, some specific applications might require manual selection of the audio input device.

5.2 Problemes de connexió

• Torna a emparellar: Turn off both the microphones and the receiver, then turn them back on to re-establish the connection.
• Reinici del dispositiu: Restart your smartphone, camera, or PC.
• Interferència: Move away from other 2.4GHz wireless devices (e.g., Wi-Fi routers, other wireless microphones) that might cause interference.
• Compatibilitat: Ensure your device's USB-C or Lightning port is fully functional and compatible with external audio input. Note that some specific phone models, like certain Samsung S series, might have unique compatibility requirements.

5.3 Soroll o distorsió no desitjats

• Soroll del vent: Ensure the windproof foam covers are properly installed, especially in outdoor or windy conditions.
• Proximitat: Ensure the microphone is not too close to the sound source, which can cause distortion. Maintain an appropriate distance.
• Soroll ambiental: While the microphone has noise cancellation, extreme background noise may still be audible. Try to record in quieter environments when possible.
• Comprovació del cable: Ensure the charging cable is not connected during recording, as it is for charging only.

6. Especificacions

7. Garantia i Suport

7.1 Garantia del fabricant

This product comes with a manufacturer's warranty of 30 days from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims.

7.2 Plans de protecció ampliada

Extended protection plans may be available for purchase separately, offering coverage against failures and defects for 12 or 24 months beyond the manufacturer's warranty period. Please refer to the specific terms and conditions of these plans for details.

7.3 Atenció al client

For further assistance, technical support, or warranty inquiries, please contact your retailer or the manufacturer's customer service department. Refer to the product packaging or purchase documentation for contact information.
