1. Instruccions de seguretat importants
Please read all instructions carefully before operating your Euhomy IM007-BBL ice maker. Retain this manual for future reference.
- Seguretat elèctrica: Assegureu-vos que la presa de corrent coincideixi amb el voltage requirements (115 Volts). Do not operate with a damaged power cord or plug.
- Col·locació: Place the ice maker on a stable, level surface away from direct sunlight and heat sources. Allow at least 6 inches of clearance around the unit for proper ventilation.
- Qualitat de l'aigua: Use potable water only. For best results and to prolong the life of the unit, consider using filtered or demineralized water.
- Nens: Keep the appliance out of reach of children. Supervise children to ensure they do not play with the appliance.
- Manteniment: Unplug the ice maker before cleaning or performing any maintenance.
- Refrigerant: This appliance contains R600a refrigerant. Servicing should only be performed by qualified personnel.
2. Producte acabatview
The Euhomy IM007-BBL is a compact countertop ice maker designed for convenience and efficiency, producing bullet-shaped ice cubes quickly.
Image: The Euhomy IM007-BBL Countertop Ice Maker, showcasing its sleek black design, transparent lid, control panel, and included ice scoop. A glass with ice and a beverage is also depicted.
2.1. Components inclosos
- Euhomy IM007-BBL Ice Maker Machine
- Scoop de gel
- Manual d'instruccions (aquest document)
2.2. Característiques clau
- Producció ràpida de gel: Produces 9 bullet-shaped ice cubes in approximately 6-8 minutes, with a daily output of up to 26.8 pounds.
- Dues mides de glaçons de gel: Offers small (S) and large (L) bullet-shaped ice cubes to suit various needs.
- Disseny compacte: Lightweight and portable with dimensions of 9.6" L × 12.6" W × 12.6" H, suitable for various settings.
- Simple Control Panel: Easy-to-use interface with indicator lights for 'Add Water' and 'Ice Full'.
- Funció d'auto-neteja: One-touch self-cleaning mode for convenient maintenance.
Image: A visual representation of the ice maker's compact dimensions (9.64in width, 12.59in depth, 12.59in height) and the included ice scoop and ice basket.
3. Configuració i primer ús
- Desembalatge: Traieu amb cura la màquina de gel del seu embalatge. Traieu tots els materials d'embalatge, inclosa la cinta adhesiva o la pel·lícula protectora.
- Col·locació: Place the unit upright on a flat, stable surface. Ensure there is adequate ventilation around the unit (at least 6 inches on all sides).
- Període d'estabilització: After transportation, allow the ice maker to stand upright for at least 24 hours before plugging it in. This allows the refrigerant to settle.
- Neteja inicial: Before first use, it is recommended to clean the unit. Refer to the 'Maintenance and Cleaning' section for instructions on using the self-cleaning function.
- Connexió d'alimentació: Connecteu la màquina de gel a una presa de corrent amb connexió a terra.
4. Instruccions de funcionament
4.1. Afegir aigua
Open the lid and fill the water reservoir with potable water up to the 'MAX' fill line. Do not overfill.
4.2. Fer gel
- Assegureu-vos que la unitat estigui connectada i que el dipòsit d'aigua estigui ple.
- Press the 'ON/OFF' button to turn on the ice maker.
- Press the 'SELECT' button to choose your desired ice cube size: 'S' for small or 'L' for large. The corresponding indicator light will illuminate.
- La màquina de gel començarà el cicle de fabricació de gel. El primer lot de gel sol trigar entre 6 i 8 minuts.

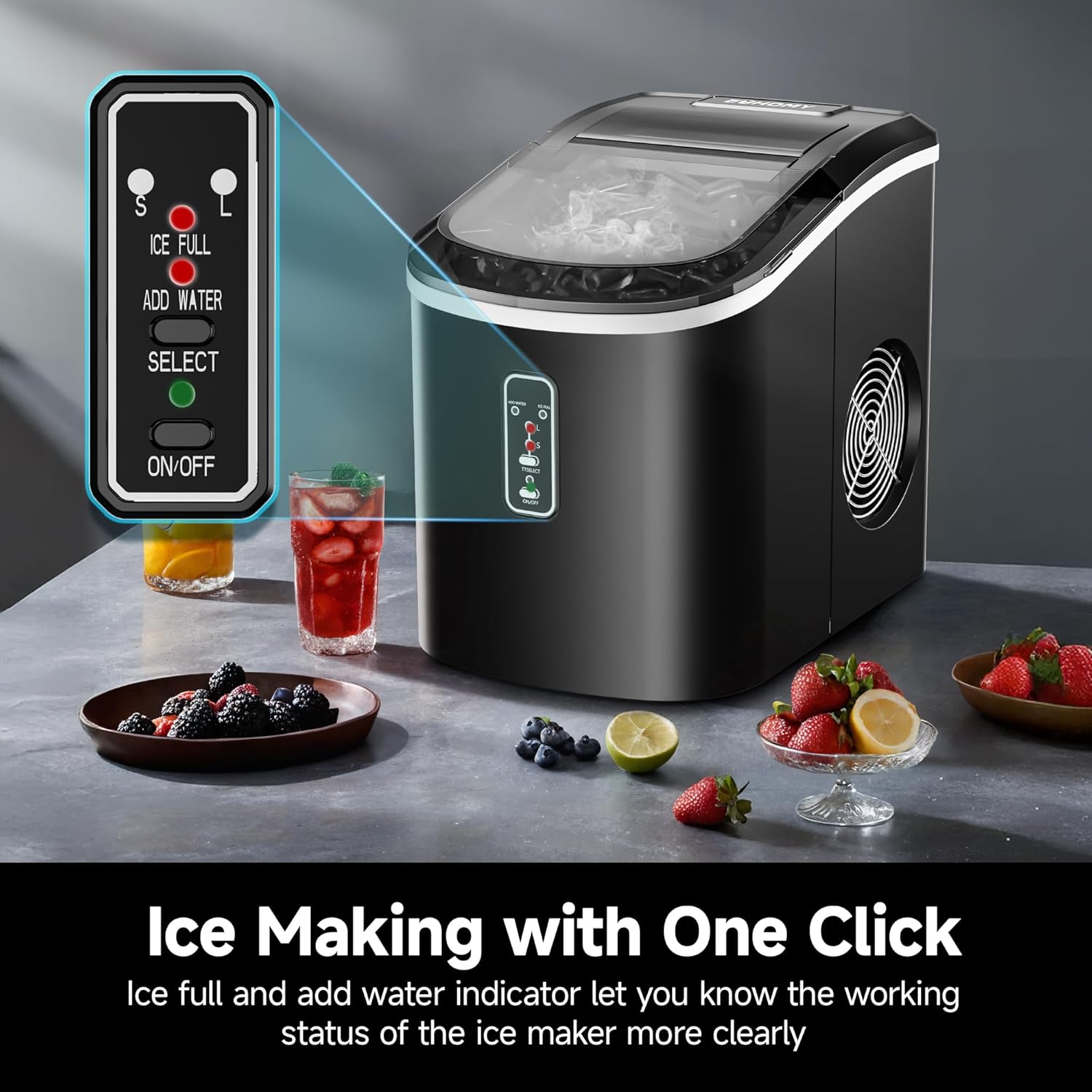

Image: The control panel of the ice maker, highlighting the 'S' and 'L' size selection, 'ICE FULL' and 'ADD WATER' indicators, and the 'SELECT' and 'ON/OFF' buttons.
Image: A graphic demonstrating the ice maker's speed, indicating that 9 ice cubes are produced in approximately 6 minutes.
Image: A visual comparison of the two available ice cube sizes: small (S) and large (L), with their respective dimensions.
4.3. Llums indicadores
- GEL PLEN: Aquest llum s'il·lumina quan la cistella de gel està plena. La màquina de gel posarà en pausa el funcionament fins que es retiri el gel.
- AFEGEIX AIGUA: This light illuminates when the water reservoir is low. The ice maker will pause operation until water is refilled.
5. Manteniment i Neteja
5.1. Funció d'auto-neteja
La màquina de gel té un mode d'autoneteja convenient:
- Assegureu-vos que el dipòsit d'aigua estigui ple d'aigua neta.
- Press and hold the 'ON/OFF' button for 5 seconds. The unit will enter self-cleaning mode.
- The cleaning cycle typically lasts for 15 minutes.
- Once the cycle is complete, drain the water from the unit.
Imatge: Un retall view of the ice maker demonstrating the self-cleaning process, with water flowing through the internal components.
5.2. Neteja periòdica
- Drenatge d'aigua: Regularly drain any unused water from the reservoir. The drain plug is located at the bottom of the unit.
- Neteja les superfícies: Utilitzeu un drap suau dampened with mild detergent to wipe the exterior and interior surfaces. Rinse thoroughly.
- Cistella i cullera de gel: Wash the ice basket and scoop with warm, soapy water. Rinse and dry completely before reinserting.
- Descalcificació: If mineral deposits build up, use a descaling solution suitable for ice makers, following the product's instructions.
6. Solució De Problemes
Si teniu problemes amb la màquina de gel, consulteu els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| La màquina de gel no produeix gel. | No water in reservoir; 'ADD WATER' light on. | Ompliu el dipòsit d'aigua fins a la línia "MAX". |
| La màquina de gel no produeix gel. | Ice basket is full; 'ICE FULL' light on. | Traieu el gel de la cistella. |
| Els glaçons són massa petits o no es formen correctament. | La temperatura de l'aigua és massa alta; la temperatura ambient és massa alta. | Use colder water. Ensure the unit is in a cool, well-ventilated area. |
| La unitat fa soroll. | Sons de funcionament normal (compressor, bomba d'aigua). | This is normal. If unusual noises occur, contact customer support. |
| Drain plug is difficult to remove. | Tight seal. | Gently twist and pull. It may loosen with repeated use. |
7. Especificacions del producte
| Especificació | Detall |
|---|---|
| Marca | EUHOMIA |
| Nom del model | IM007-BBL |
| Dimensions del producte (P x A x A) | 12.6" x 9.6" x 12.6" |
| Capacity (Ice Basket) | 1.3 lliures |
| Wattage | 170 watts |
| Voltage | 115 Volts |
| Refrigerant | R600a |
| Ice Production per Day | 26.8 lliures |
| Pes de l'article | 18.71 lliures |
| UPC | 850077022104 |
| Color | Negre |
8. Garantia i Suport
For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Euhomy weblloc web. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.
Recursos en línia: For additional support and frequently asked questions, you may visit the Euhomy Store on Amazon.
