1. Producte acabatview
This manual provides comprehensive instructions for the maXpeedingrods 12V/24V 8KW Portable Diesel Heater, model MXR-3M. This device is designed to provide efficient heating for various applications including cars, trucks, boats, and yachts. It features multiple control options, including a Bluetooth application, LCD panel, and remote control.
Image 1.1: The maXpeedingrods 12V/24V 8KW Portable Diesel Heater, showcasing el seu disseny compacte i la nansa integrada.
2. Informació de seguretat
- Assegureu-vos que hi hagi una ventilació adequada quan feu servir l'escalfador per evitar l'acumulació de monòxid de carboni.
- Do not block the air intake or exhaust outlets.
- Mantingueu els materials inflamables allunyats de l'escalfador durant el funcionament.
- Always use the specified fuel type (diesel).
- Desconnecteu l'alimentació abans de realitzar qualsevol manteniment o neteja.
- Mantenir fora de l'abast dels nens i mascotes.
- Ensure all connections are secure and free from leaks before operation.
3. Contingut del paquet
Verifiqueu que tots els elements que s'enumeren a continuació siguin presents al vostre paquet:
Image 3.1: All components included in the maXpeedingrods 8KW Portable Diesel Heater package.
- Unitat d'escalfador d'aire
- Panell de control LCD
- Manual d'usuari
- Filtre d'aire
- Reixa de sortida d'aire
- Control remot
- Silenciador d'escapament
- Guants
- Kit d'instal·lació (clamps, screws, etc.)
- Tub d'escapament
- Arnès de filferro
- Tubs de sortida d'aire calent
- Tub d'entrada d'aire
4. Configuració i instal·lació
The maXpeedingrods portable diesel heater is designed for ease of installation and portability. Follow these steps for initial setup:
- Col·locació: Position the heater on a stable, non-flammable surface. Ensure adequate clearance around the unit for air circulation and exhaust.
- Sistema d'escapament: Connect the exhaust pipe and silencer. Secure all connections with the provided clamps. Ensure the exhaust is directed away from any enclosed spaces or flammable materials. The upgraded exhaust wrap tape can withstand high temperatures and should be used for insulation.
- Entrada/sortida d'aire: Attach the air inlet pipe and hot air outlet tubing. The air outlet grid should be positioned to direct heat effectively.
- Connexió de combustible: Fill the integrated fuel tank with diesel. The upgraded white nylon fuel hose reduces the risk of oil leakage. Monitor the oil usage via the transparent fuel level indicator on the side of the unit.
- Font d'alimentació: The heater supports 12V/24V power. Connect the wire harness to a suitable power source. The unit also features a tool battery direct-plug power supply system.
Image 4.1: The power source selector switch. Move the switch UP for Battery Mode or DOWN for Binding Post Mode.
For tool battery operation, ensure the battery slot specifications match your 12V-24V lithium battery. A 5Ah battery can provide approximately 2-6 hours of operation when fully charged. Batteries are sold separately.
Image 4.2: The heater operating wirelessly with a tool battery, demonstrating its portability for outdoor use.
The portable handle allows for easy transport of the unit.
5. Instruccions de funcionament
The heater offers multiple methods for control:
5.1. Panell de control LCD
The integrated LCD control panel allows direct management of the heater's functions. Use the buttons to adjust temperature, set timers, and monitor operational status. The 1.5m LCD panel extension cable provides flexible placement options.
Image 5.1: The three primary methods for starting the heater: LCD Panel, Smartphone App, and Remote Controller.
5.2. Control de l'aplicació Bluetooth
Download the 'Booyood' application to your smartphone to control the heater remotely via Bluetooth. The app allows you to turn the heater on/off, adjust temperature, and monitor its status from up to 80 meters away.
Image 5.2: Controlling the heater via the Bluetooth smartphone application, showing temperature and status.
Image 5.3: Icons representing the app's functions: Control at Distance, ON/OFF, Adjust Temperature, and Switch Mode.
5.3. Control remot
Use the included remote controller to preheat or defrost your vehicle from a distance. This provides convenience, especially in cold conditions.
5.4. 24-Hour Timer Function
The heater includes a 24-hour timer function, allowing you to schedule the heater to turn on in advance or turn off with a delay.
Image 5.4: Illustration of the 24-hour timer function, enabling scheduled operation.
5.5. Automatic Altitude Adjustment
The heater automatically adjusts its operating frequency based on the altitude to maintain optimal performance and temperature output, up to 5000m (16404ft).

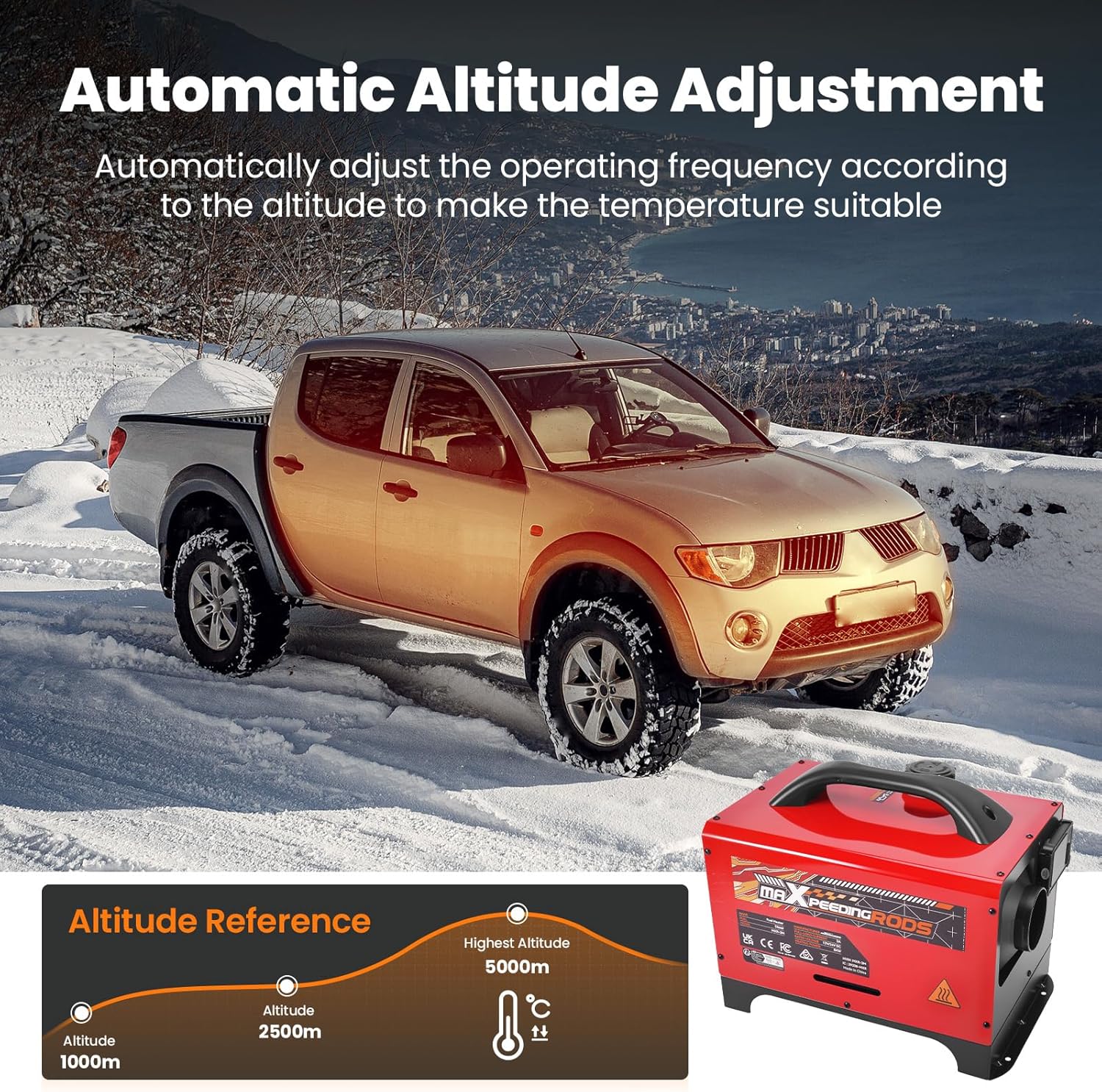

Image 5.5: Diagram illustrating the heater's automatic altitude adjustment capability, ensuring consistent performance at varying elevations.
6. Manteniment
Un manteniment regular garanteix la longevitat i el funcionament eficient del vostre escalfador dièsel.
- Neteja: Periodically clean the exterior of the heater with a damp cloth. Ensure the air intake and exhaust ports are free from obstructions.
- Filtre d'aire: Check and clean the air filter regularly. Replace if heavily soiled or damaged.
- Sistema de combustible: Inspect the fuel hose and connections for any signs of wear or leakage. Ensure the fuel tank is free from contaminants.
- Connexions elèctriques: Verify that all electrical connections are secure and free from corrosion. The upgraded plug design helps reduce the risk of electrical leakage.
Image 6.1: The transparent fuel level indicator on the side of the heater for monitoring diesel usage.
7. Solució De Problemes
If you encounter issues with your heater, refer to the following common troubleshooting tips:
- L'escalfador no s'engega:
- Check power connections and ensure the power source is adequate (12V/24V).
- If using a tool battery, ensure it has sufficient capacity. A 5Ah battery may run for 2-6 hours, but higher capacity batteries may be needed for extended use or higher power draw.
- Verify the fuel tank has enough diesel.
- Ensure the power source selector switch is in the correct position (Battery Mode or Binding Post Mode).
- Sortida de calor insuficient:
- Check for blockages in the air intake or exhaust system.
- Assegureu-vos que el filtre d'aire estigui net.
- Verify the temperature setting on the control panel or app.
- Sorolls o olors inusuals:
- Immediately turn off the heater.
- Inspect for loose components or fuel leaks.
- Assegureu-vos una ventilació adequada.
- Remote Control/App Not Responding:
- Check battery in the remote control.
- Ensure Bluetooth is enabled on your smartphone and the heater.
- Confirm you are within the 80m Bluetooth range.
For persistent issues, contact maXpeedingrods customer service.
8. Especificacions
| Característica | Especificació |
|---|---|
| Marca | maXpeedingrods |
| Model | MXR-3M |
| Número de model de l'article | MXR-3M |
| Número de peça del fabricant | ED95SG |
| Potència de sortida | 8KW |
| Voltage | 12V/24V |
| Pes de l'article | 23.1 lliures |
| Dimensions del producte | 18.5 x 12.2 x 14.57 polzades |
| Mètodes de control | Bluetooth App, LCD Panel, Remote Control |
| Ajust d'altitud | Automatic, up to 5000m (16404ft) |
| Certificacions | E-mark, FCC, CE |
Image 8.1: Detailed dimensions of the heater unit and included tubing.
9. Garantia i Suport
The maXpeedingrods 12V/24V 8KW Portable Diesel Heater is E-mark, FCC, and CE certified, ensuring compliance with relevant standards. maXpeedingrods provides a complete and detailed manual, installation instructions, and offers free technical support and customer service.
For any inquiries or support, please refer to the contact information provided with your purchase or visit the official maXpeedingrods weblloc.
