Beautiful 10-Cup Food Processor User Manual

1. Informació important de seguretat

Please read all instructions carefully before using your Beautiful 10-Cup Food Processor. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Desendolleu sempre l'aparell de la presa de corrent quan no l'utilitzeu, abans de muntar o desmuntar peces i abans de netejar-lo.
• No submergiu la base del motor en aigua ni altres líquids. Netegeu-la amb un adhesiu.amp només tela.
• Avoid contact with moving parts. Keep hands and utensils out of the processing bowl while operating to prevent personal injury and/or damage to the food processor.
• No alimentar mai els aliments amb la mà. Utilitzeu sempre l'empunyador d'aliments proporcionat.
• Les fulles són afilades. Manipuleu-les amb molta cura en muntar-les, desmuntar-les o netejar-les.
• Ensure the lid and bowl are securely locked in place before operating the appliance. The "Twist & Lock" system is designed for safety.
• No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi caigut o s'hagi danyat de cap manera.
• Aquest aparell només és per a ús domèstic. No utilitzar a l'aire lliure.

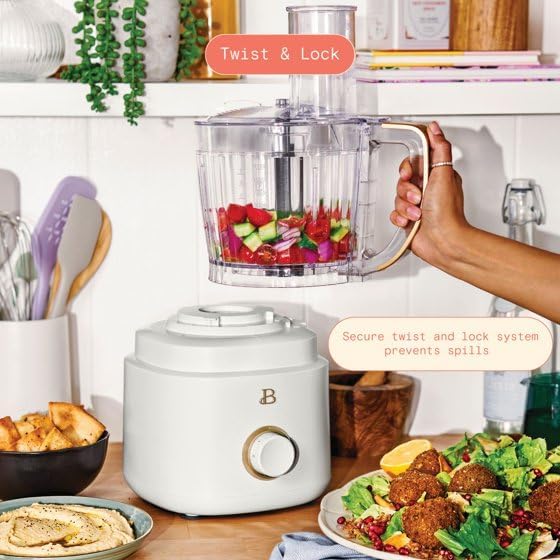

Figure 1.1: The secure twist-and-lock system ensures the bowl and lid are properly seated before operation, preventing spills and enhancing safety.

2. Producte acabatview

The Beautiful 10-Cup Food Processor is a versatile kitchen appliance designed to simplify your food preparation tasks. It features a powerful 500-watt motor and a touch-activated LED display for intuitive control.

2.1 Components

• Base del motor: Contains the 500-watt motor and touch-activated LED display.
• 10-Cup Processing Bowl: Large capacity bowl for various ingredients.
• Lid with Feed Chute: Features a secure twist-and-lock mechanism and an opening for adding ingredients during operation.
• Empenyedor d'aliments: Used to guide ingredients through the feed chute.
• Fulla multiusos: For chopping, mincing, mixing, and pureeing.
• Fulla de massa: Dissenyat específicament per pastar massa.
• Disc de trituració reversible: For fine or coarse shredding.
• Disc de tall: For consistent slicing of fruits and vegetables.
• Estoig d'emmagatzematge: Keeps all accessories neatly organized.

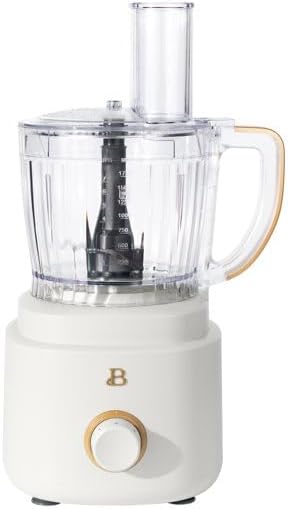

Figure 2.1: The Beautiful 10-Cup Food Processor with its main components visible, including the motor base, processing bowl, and feed chute.

2.2 Característiques clau

• Touch-Activated LED Display: Provides a sleek interface for selecting functions.
• Twist-and-Lock System: Ensures secure assembly and safe operation.
• Components sense BPA: All food-contact parts are made from BPA-free materials.
• Peces aptes per al rentavaixelles: Bowl, lid, blades, and food pusher are safe for dishwasher cleaning.
• Emmagatzematge compacte: Accessories can be stored within the processing bowl for space-saving convenience.

3. Muntatge i muntatge

Before first use, wash all parts that will come into contact with food in warm, soapy water, then rinse and dry thoroughly. Ensure the motor base is unplugged from the power outlet.

1. Col·loqueu la base del motor sobre una superfície neta, seca i estable.
2. Carefully place the 10-cup processing bowl onto the motor base. Align the handle with the right side of the base and twist clockwise until it locks into place.
3. Select the desired blade or disc:
   • For chopping, mixing, or pureeing: Carefully place the multipurpose blade onto the center shaft in the bowl.
   • For kneading dough: Carefully place the dough blade onto the center shaft in the bowl.
   • For slicing or shredding: Place the disc adapter onto the center shaft, then carefully place the desired slicing or shredding disc onto the adapter. Ensure the cutting edge is facing up for slicing, or the appropriate side for shredding.
4. Place the lid onto the processing bowl, aligning the feed chute with the handle. Twist the lid clockwise until it securely locks into place. The appliance will not operate unless the bowl and lid are correctly locked.
5. Ensure the food pusher is inserted into the feed chute if you plan to add ingredients during operation.
6. Connecteu el cable d'alimentació a una presa de corrent de 120 volts de CA.

4. Instruccions de funcionament

The Beautiful Food Processor features a touch-activated LED display with three speed options: Low, High, and Pulse.

4.1 Funcionament bàsic

1. Prepare ingredients: Cut large ingredients into pieces that fit easily through the feed chute.
2. Assemble the food processor as described in Section 3.
3. Add ingredients to the processing bowl or through the feed chute. Do not overfill the bowl; ensure the liquid level does not exceed the maximum fill line.
4. Select your desired speed using the touch-activated dial:
   • Baix: For lighter tasks like chopping soft vegetables or mixing batters.
   • Alt: For heavier tasks like shredding hard cheeses or processing tougher ingredients.
   • Pols: For short bursts of power, ideal for chopping, mincing, or controlling consistency. Press and hold for continuous pulsing, release to stop.
5. When processing is complete, turn the dial to the "OFF" position and unplug the appliance.
6. Wait for the blade or disc to stop completely before removing the lid and then the bowl.

Figure 4.1: The intuitive dial allows selection of Low, High, or Pulse speeds for precise control over processing tasks.

4.2 Funcions específiques

• Chopping/Mincing/Pureeing (Multipurpose Blade): Use the Pulse setting for coarse chopping. For finer results or pureeing, use the Low or High setting continuously until desired consistency is reached. Add liquids through the feed chute if needed for smoother purees.
• Dough Kneading (Dough Blade): Add dry ingredients to the bowl, then gradually add liquids through the feed chute while the processor is running on Low. Process until a dough ball forms and cleans the sides of the bowl. Do not over-process.
• Slicing (Slicing Disc): Place ingredients vertically in the feed chute for round slices, or horizontally for longer slices. Use the food pusher to guide ingredients through. For best results, use firm, chilled ingredients.
• Shredding (Reversible Shredding Disc): Place ingredients in the feed chute. Use the food pusher to guide ingredients through. For fine shredding, use one side of the disc; for coarse shredding, flip the disc to the other side.

Figure 4.2: The food processor efficiently processes ingredients, making meal preparation quicker and easier.

5. Manteniment i Neteja

Una neteja i un manteniment adequats garantiran la longevitat i el rendiment òptim del vostre robot de cuina.

5.1 Neteja

1. Desendolla sempre el processador d'aliments abans de netejar-lo.
2. Base del motor: Netegeu la base del motor amb un anunciamp drap. No submergiu la base del motor en aigua ni en cap altre líquid.
3. Processing Bowl, Lid, Blades, and Discs: All removable parts are dishwasher safe (top rack recommended). For hand washing, use warm, soapy water and a non-abrasive sponge. Handle blades and discs with extreme care due to their sharpness.
4. Rinse all parts thoroughly and dry completely before storing.

Figure 5.1: The processing bowl, lid, blades, and food pusher are designed for easy cleaning and are dishwasher safe.

5.2 Emmagatzematge

The food processor is designed for compact storage. All accessories, including blades and discs, can be neatly stored inside the 10-cup processing bowl when not in use. Use the provided storage case for blades and discs to ensure safety and organization.

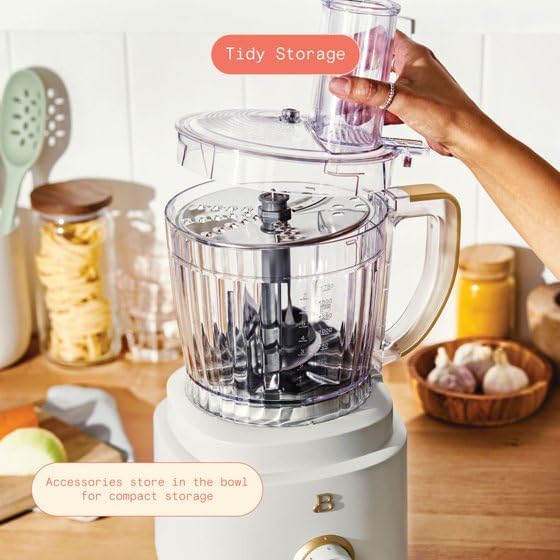

Figure 5.2: Accessories can be stored conveniently within the processing bowl, saving counter and cabinet space.

6. Solució De Problemes

If you encounter issues with your food processor, please refer to the following common problems and solutions before contacting customer support.

7. Especificacions del producte

• Nom del model: Beautiful 10-Cup Food Processor
• Número de model: 19665
• Marca: Beautiful by Drew Barrymore (Manufactured by Made By Gather)
• Color: Glaça blanca
• Capacitat del bol: 10 tasses
• Potència: 500 watts
• Voltage: 120 Volts
• Nombre de velocitats: 3 (Baix, Alt, Pols)
• Material de la fulla: Acer inoxidable
• Dimensions del producte: 8.89 "P x 10.31" W x 17.05" H
• Pes de l'article: 14 lliures
• Característiques especials: Touch-Activated Display, BPA-Free, Dishwasher Safe Parts, Includes Storage Case, Soft Matte Finish, Reversible Shredding Disc, Easy to Clean.

Figura 7.1: Dimensional view of the food processor, indicating its height and width for space planning.

8. Garantia i atenció al client

For warranty information or customer support inquiries, please refer to the warranty card included with your product or visit the manufacturer's official weblloc web. Si us plau, tingueu a mà el número de model (19665) i la data de compra quan us poseu en contacte amb el servei d'assistència.

Manufacturer: Made By Gather

Nota: Els termes i condicions específics de la garantia poden variar i estan subjectes a canvis.
