Lifelong Eden Primiera Digital Coffee Machine

1. Introducció

Thank you for choosing the Lifelong Eden Primiera Digital Coffee Machine. This appliance is designed to provide a versatile coffee experience, allowing you to prepare a variety of beverages including Espresso, Americano, Cold Brew, Latte, and Cappuccino with ease. Please read this manual thoroughly before first use to ensure safe operation and optimal performance.

2. Instruccions de seguretat importants

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Read all instructions.

• No toqueu superfícies calentes. Utilitzeu nanses o poms.
• Per protegir-se contra incendis, descàrregues elèctriques i lesions a les persones, no submergiu el cable, els endolls o l'aparell en aigua o altres líquids.
• És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
• Desendolleu la presa de corrent quan no utilitzeu i abans de netejar. Deixeu refredar abans de posar o treure peces i abans de netejar l'aparell.
• No feu servir cap aparell amb un cable o un endoll danyats o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
• L'ús d'accessoris no recomanats pel fabricant de l'aparell pot provocar incendis, descàrregues elèctriques o lesions a persones.
• No utilitzar a l'aire lliure.
• No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
• No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
• Connecteu sempre primer l'endoll a l'aparell i després connecteu el cable a la presa de corrent. Per desconnectar, gireu qualsevol control a "apagat" i després traieu l'endoll de la presa de corrent.
• No utilitzeu l'aparell per a un altre ús que el previst.
• Si es treu la tapa del dipòsit d'aigua durant el cicle de preparació, es poden cremar.

3. Components del producte

The Lifelong Eden Primiera Digital Coffee Machine comes with the following components:

• 1 N Coffee Maker Machine (Main Unit)
• 1 N Portafilter
• 1 N Tamper & Spoon Combination Tool
• Built-in Milk Tank
• Safata de goteig desmuntable
• Dipòsit d'aigua extraïble (capacitat d'1.2 L)

Image: The main unit of the Lifelong Eden Primiera Digital Coffee Machine, showcasing its stainless steel finish and touchscreen display.

Image: The coffee machine in operation, highlighting the 5-in-1 coffee options available on the digital display.

4. Configuració

1. Desembalatge: Carefully remove all packaging materials. Ensure all components listed in Section 3 are present.
2. Neteja inicial: Before first use, wash the water tank, milk tank, portafilter, and drip tray with warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the machine with a damp tela.
3. Posicionament: Place the coffee machine on a stable, flat, heat-resistant surface, away from water sources and heat. Ensure adequate ventilation around the unit.
4. Omplir el dipòsit d'aigua: Remove the 1.2L water tank from the back of the machine. Fill it with fresh, cold water up to the MAX level indicator. Reinsert the water tank securely.
5. Attach Milk Tank: If preparing milk-based beverages, fill the built-in milk tank with desired milk. Attach it to the designated slot on the machine.
6. Connexió d'alimentació: Connecteu el cable d'alimentació a una presa elèctrica amb connexió a terra.
7. Primer ús / Imprimació:
   • Turn on the machine using the power button on the touchscreen.
   • Allow the machine to heat up (indicator light will change).
   • Run a cycle without coffee or milk to flush the system. Place a cup under the coffee spout and select a single espresso cycle. Repeat for the milk frother by selecting a milk frothing cycle with water in the milk tank.

Image: Illustration of the detachable drip tray and the removable 1-liter milk tank, demonstrating ease of cleaning and refilling.

5. Instruccions de funcionament

The Lifelong Eden Primiera features a digital touchscreen for intuitive operation.

Imatge: Un primer pla view of the digital touchscreen display, showing various coffee selection icons.

5.1 Preparació de l'espresso

1. Assegureu-vos que el dipòsit d'aigua estigui ple.
2. Add ground coffee to the portafilter. Use the tamper to press the coffee evenly.
3. Insert the portafilter into the brewing head and lock it into place. The lock-unlock indicator ensures proper assembly.
4. Col·loqueu una tassa sota els brocs del portafiltre.
5. On the touchscreen, select either Espresso únic or Doble Espresso. The machine will automatically brew.

Image: Demonstrates the simple locking mechanism for the portafilter and the process of espresso extraction into a cup.

5.2 Preparing Milk-Based Beverages (Latte, Cappuccino)

1. Fill the built-in milk tank with cold milk.
2. Prepare your espresso shot as described in Section 5.1, brewing it directly into your serving cup.
3. Position your cup under the milk frothing spout.
4. On the touchscreen, select Llet amb llet or Cappuccino. The machine will automatically froth and dispense milk into your cup.

Image: The built-in automatic milk frother dispensing frothed milk into a cup, illustrating its integrated design.

5.3 Other Coffee Modes

• americà: Brew an espresso shot, then select the Americano option for hot water to be added.
• Espresso Cool (Cold Brew): This mode prepares a cold coffee concentrate. Follow the on-screen instructions after selecting this option.

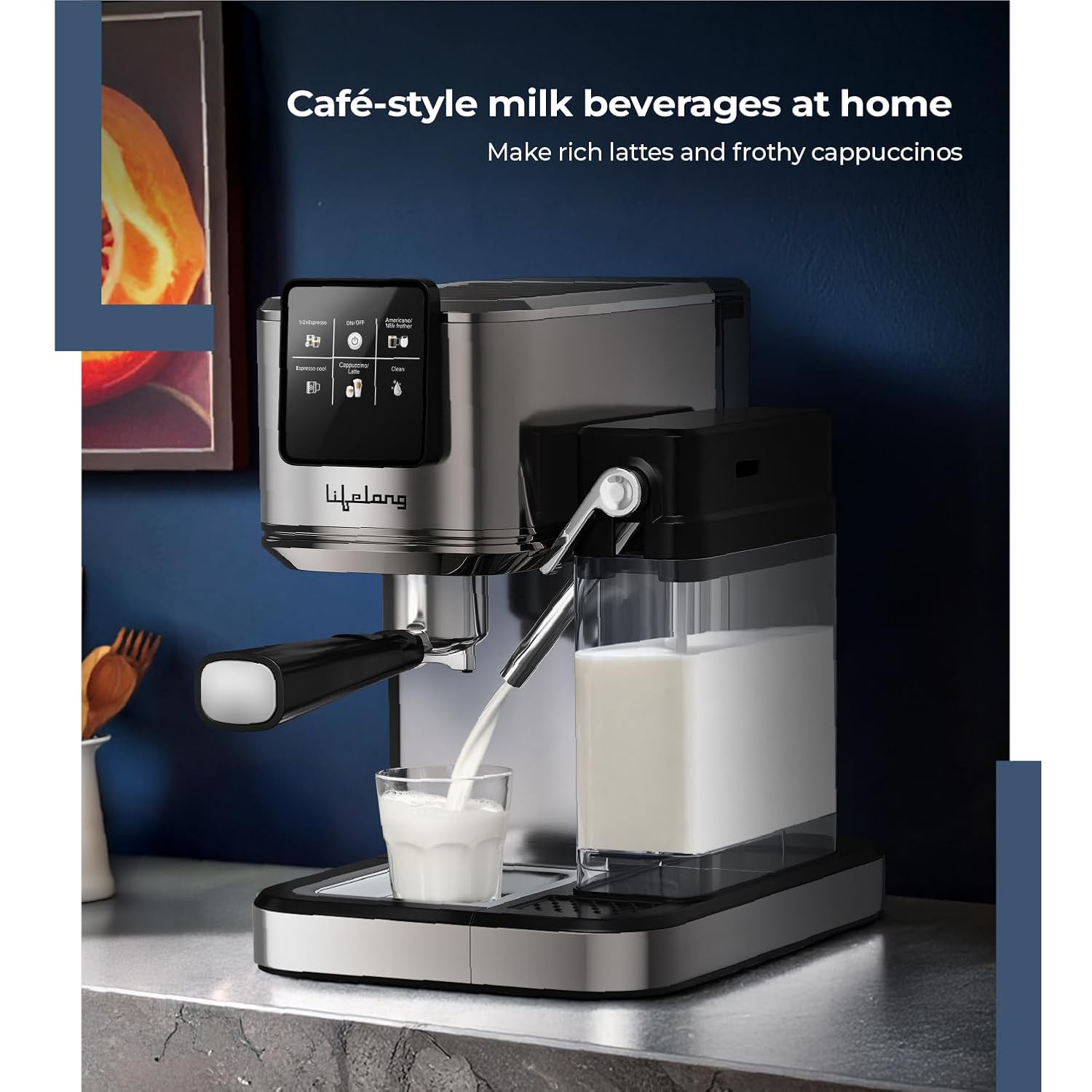

Image: The coffee machine dispensing milk into a glass, demonstrating its capability to create café-style milk beverages.

6. Manteniment

Una neteja i un manteniment regulars garanteixen la longevitat i el rendiment òptim de la teva màquina de cafè.

6.1 Neteja diària

• Safata de degoteig: Empty and clean the detachable drip tray after each use or when the indicator shows it is full.
• Portafiltre: Remove spent coffee grounds and rinse the portafilter under running water.
• Tanc de llet: After each use, empty any remaining milk and rinse the milk tank and frothing spout thoroughly. The machine has a dedicated 'Clean' function on the touchscreen for the milk system.
• Exterior: Netegeu l'exterior de la màquina amb un damp tela. No utilitzeu netejadors o fregalls abrasius.

6.2 Descalcificació

Amb el temps, els dipòsits minerals (calç) es poden acumular a la màquina, cosa que afecta el rendiment. Descalcifiqueu la màquina cada 2 o 3 mesos o amb més freqüència si teniu aigua dura.

1. Empty the water tank and fill it with a descaling solution mixed according to the manufacturer's instructions, or a solution of white vinegar and water (1:1 ratio).
2. Place a large container under the coffee spout and milk frothing spout.
3. Run several brewing cycles without coffee until the water tank is empty.
4. Esbandiu bé el dipòsit d'aigua i ompliu-lo amb aigua fresca.
5. Feu diversos cicles amb aigua fresca per eliminar qualsevol resta de solució descalcificadora.

7. Solució De Problemes

8. Especificacions

Image: Visual representation of the coffee machine's dimensions: 32 cm (depth), 21.5 cm (width), and 31.7 cm (height).

9. Garantia i Suport

Your Lifelong Eden Primiera Digital Coffee Machine is covered by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions.

For technical support, service, or warranty claims, please contact Lifelong customer care:

• Telèfon: +91 9711558877
• Correu electrònic: customercare@lifelongonline.com
• Adreça: 5th Floor, Unit No. 508, DLF South Court, Saket District Center, Saket New Delhi, India - 110017

Please have your model number (LLCMK921) and purchase details ready when contacting support.
