Arrow RO-5555GSF 4-Burner Gas Oven Instruction Manual

1. Introducció

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new Arrow RO-5555GSF 4-burner gas oven. Please read all instructions carefully before using the appliance and retain this manual for future reference.

2. Informació de seguretat

WARNING: Gas appliances can cause carbon monoxide poisoning. Use only in well-ventilated areas. Read all safety warnings before use.

• Ensure proper ventilation when operating the gas oven.
• No emmagatzemeu materials inflamables a prop de l'aparell.
• Mantingueu els nens i les mascotes allunyats del forn durant el funcionament.
• Utilitzeu sempre guants de forn quan manipuleu articles calents.
• No utilitzeu aigua en incendis de greix; apagueu el foc o utilitzeu un extintor de pols química seca.
• Regularly check gas connections for leaks using a soapy water solution (never an open flame).
• Ensure the appliance is installed by a qualified technician.

3. Producte acabatview

The Arrow RO-5555GSF is a freestanding 4-burner gas oven designed for versatile cooking. It features a durable stainless steel construction and manual controls for precise heat management.

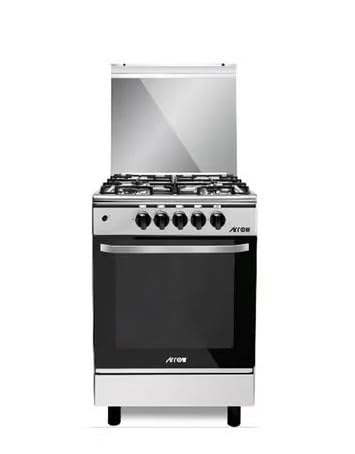

Figura 3.1: Frontal view of the Arrow RO-5555GSF Gas Oven.

Característiques principals:

• Dimensions: This gas oven measures 55 cm (Depth) x 55 cm (Width) x 55 cm (Height), designed to fit standard kitchen spaces.
• Burner Configuration: Equipped with four efficient gas burners and six control knobs, allowing for precise heat adjustment across multiple cooking zones.
• Característiques de seguretat: Includes heat-resistant control knobs and a durable glass top cover for enhanced safety during operation.
• Construcció: Constructed from high-quality stainless steel with robust supports, ensuring durability and stability.
• Disseny: Features a modern design with easy-to-clean surfaces, optimized for efficient gas consumption and practical daily cooking.

4. Configuració i instal·lació

Installation of this gas oven must be performed by a qualified and certified technician in accordance with local regulations and standards.

4.1 Desembalatge

1. Traieu amb cura el forn del seu embalatge.
2. Remove all packing materials, tapes, and protective films from the appliance.
3. Check for any damage during transit. Contact your retailer immediately if damage is found.

4.2 Col·locació

• Col·loqueu el forn sobre una superfície estable i plana.
• Ensure adequate clearance from walls and cabinets as specified by local building codes.
• Do not place the oven near flammable materials.

4.3 Connexió de gas

The gas connection must be made by a qualified technician. Ensure the gas supply pressure is compatible with the appliance specifications. Use appropriate gas hoses and fittings.

4.4 Electrical Connection (if applicable)

If your model includes an electric igniter or oven light, ensure it is connected to a properly grounded electrical outlet. Consult the electrical diagram for specific requirements.

5. Instruccions de funcionament

5.1 Ús dels cremadors de gas

1. Place cookware centrally on the burner grate.
2. Push and turn the desired burner control knob counter-clockwise to the maximum flame setting.
3. Hold the knob in for a few seconds to allow the igniter to spark and light the gas.
4. Once lit, release the knob and adjust the flame to the desired intensity.
5. Per apagar, gireu el botó en sentit horari fins a la posició 'OFF'.

5.2 Using the Gas Oven

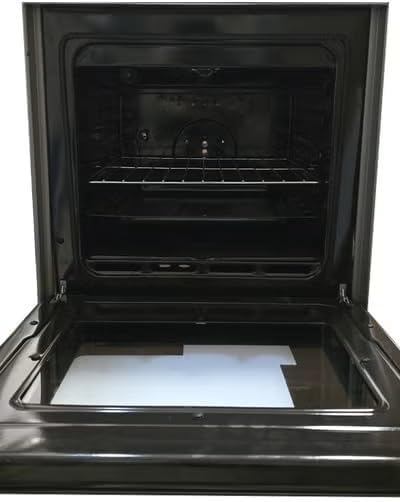

Figure 5.1: Interior of the oven with racks.

1. Obriu la porta del forn.
2. Push and turn the oven control knob to the desired temperature setting.
3. Hold the knob in for a few seconds to allow the igniter to light the oven burner.
4. Once the burner is lit, release the knob. The oven will preheat to the set temperature.
5. Monitor cooking through the oven door window.
6. Per apagar el forn, gireu el botó de control a la posició "OFF".

Figura 5.2: Example of food placed on oven racks for cooking.

6. Manteniment i Neteja

Una neteja i un manteniment regulars garantiran la longevitat i el rendiment òptim del vostre forn.

6.1 Neteja diària

• Wipe down the stainless steel surfaces with a soft cloth and mild detergent after each use.
• Clean burner grates and caps with warm soapy water. Ensure they are completely dry before reassembling.

6.2 Neteja profunda

• For stubborn stains, use a non-abrasive stainless steel cleaner.
• The oven interior can be cleaned with oven cleaner, following the product's instructions. Ensure adequate ventilation.
• Traieu les reixetes del forn i netegeu-les per separat.

6.3 Consells de manteniment

• Periodically check the oven door seal for damage. A damaged seal can affect oven performance.
• Ensure burner ports are clear of food debris to maintain efficient flame distribution.
• Have gas connections inspected annually by a qualified technician.

7. Solució De Problemes

Abans de contactar amb el servei d'atenció al client, consulteu els següents problemes i solucions habituals:

8. Especificacions

9. Garantia i Suport

Specific warranty information for the Arrow RO-5555GSF gas oven is not provided in the product data. Please refer to your purchase documentation or contact your retailer for details regarding warranty coverage and customer support.

For technical assistance or service inquiries, please contact the authorized Arrow service center in your region.
