1. Introducció
The Flashpoint Zoom Li-Ion V480C is a high-performance on-camera flash designed for Canon cameras, offering advanced features for professional and enthusiast photographers. This flash integrates with the Flashpoint R2 wireless system, providing versatile lighting control. Key features include a Guide Number of GN50, rapid 1.7-second recycle time, TTL auto flash, manual flash modes, and 2.4GHz wireless control.
Image 1.1: Flashpoint Zoom Li-Ion V480C with an overview of its main features.
2. Components inclosos
Verifiqueu que tots els elements següents estiguin inclosos al vostre paquet:
- Flashpoint Zoom Li-on Compact V480 Flash
- VB22 7.2 V / 2200 mAh Rechargeable Li-ion Battery Pack
- Carregador de bateria
- Mini suport
- Funda protectora
3. Producte acabatview
Familiarize yourself with the various parts of your Flashpoint V480C flash unit.
Imatge 3.1: Frontal i lateral view of the Flashpoint V480C with numbered components.
- Catchlight Panel (White)
- Built-in Wide Angle Diffuser
- Cap de flaix
- Modelatge LED Lamp
- Sensor de fotocèl·lules
- Anell de bloqueig
- Sabata calenta
- Conector de cable de sincronització
- Pantalla tàctil
- Port d'actualització del firmware USB-C
- Botó d'interruptor d'alimentació
- Botó de configuració
- Seleccioneu Marcar
- Botó de prova/indicador de reciclatge
- Sivella de fixació de sabates
4. Configuració
4.1. Instal·lació i càrrega de la bateria
The Flashpoint V480C uses a VB22 7.2V / 2200mAh rechargeable Li-ion battery pack. Ensure the battery is fully charged before first use.
- To install the battery, slide open the battery compartment cover located on the side of the flash unit.
- Insert the VB22 Li-ion battery pack, ensuring the contacts align correctly.
- Tanqueu la tapa del compartiment de la bateria fins que encaixi correctament al seu lloc.

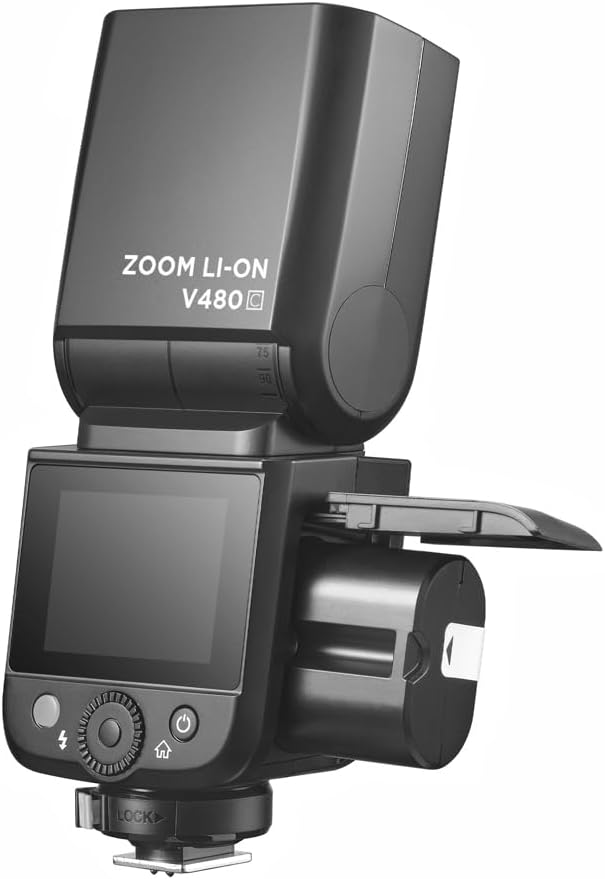

Image 4.1: Battery compartment open for installation.
To charge the battery, use the provided battery charger. Connect the battery to the charger and plug the charger into a power outlet. The indicator light on the charger will show the charging status.
4.2. Muntatge del flaix a la càmera
The V480C is designed to mount onto a camera's hot shoe.
- Assegureu-vos que la càmera estigui apagada.
- Slide the flash's hot shoe (7) into your camera's hot shoe mount.
- Rotate the Hot Shoe Fixing Buckle (15) clockwise to secure the flash firmly in place. Do not overtighten.
5. Funcionament del flaix
5.1. Powering On/Off and Basic Controls
To power on the flash, press and hold the Power Switch Button (11) until the screen illuminates. To power off, press and hold the same button.
The V480C features a crisp color touchscreen (9) and tactile buttons for intuitive control.
Image 5.1: Touchscreen and button interface for adjusting flash settings.
- Set Button (12): S'utilitza per confirmar seleccions o entrar a opcions de menú.
- Select Dial (13): Rotate to navigate menus and adjust values.
- Test Button / Recycle Indicator (14): Press to fire a test flash. The indicator light shows when the flash is ready to fire.
5.2. Modes de flaix
The V480C supports various flash modes:
- Flaix automàtic TTL: Ajusta automàticament la sortida del flaix per a una exposició correcta.
- Flash manual: Allows manual control over flash power output (1/1 to 1/256 in 1/3 stop increments).
- Multi Flash (Stroboscopic): Dispara una sèrie de flaixos ràpids durant una sola exposició per capturar múltiples moviments.
5.3. Wireless Operation (R2 System)
The V480C features built-in 2.4GHz R2 wireless functionality, allowing it to act as a master or slave unit within the Flashpoint R2 system. It supports 4 groups and 32 channels with a transmission range of up to 100m.
Imatge 5.2: Ex.ample of 2.4GHz R2 wireless integration in a studio environment.
Refer to the on-screen menu for setting master/slave modes, group assignments, and channel selection.
5.4. Sincronització d'alta velocitat (HSS)
High-Speed Sync allows the flash to synchronize with shutter speeds up to 1/8000s, enabling you to use flash with wide apertures in bright conditions or to freeze fast motion.
Image 5.3: Demonstration of High-Speed Sync (HSS) capability.
Activate HSS through the flash's menu or your camera's flash control settings.
5.5. Modelatge LED Lamp
The built-in LED Modeling Lamp (4) provides continuous light for focusing in low-light conditions or for previewing lighting effects. Adjust its brightness through the flash's menu.
5.6. Actualització del firmware
The Flashpoint V480C supports firmware updates via its USB-C Firmware Upgrade Port (10). Visit the Flashpoint weblloc web per obtenir el firmware i les instruccions més recents.
6. Manteniment
6.1. Neteja
To clean the flash unit, use a soft, dry cloth. For stubborn dirt, a slightly damp cloth can be used, followed by a dry cloth. Do not use strong detergents or solvents.
6.2. Emmagatzematge
When not in use for extended periods, remove the battery from the flash unit. Store the flash in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided protective case for storage and transport.
7. Solució De Problemes
If you encounter issues with your Flashpoint V480C, refer to the following common problems and solutions:
- El flaix no es dispara:
- Ensure the flash is powered on and securely mounted to the camera's hot shoe.
- Comproveu el nivell de la bateria; recarregueu-la si cal.
- Verify camera and flash settings are compatible (e.g., flash enabled in camera menu).
- If using wireless, ensure master and slave units are on the same channel and group.
- Incorrect exposure (too dark/too bright):
- In TTL mode, check for Flash Exposure Compensation (FEC) settings on both flash and camera.
- En el mode manual, ajusteu la potència de sortida del flaix.
- Ensure flash head zoom matches lens focal length or is set to auto.
- Flash recycle time is slow:
- Battery may be low; recharge or replace.
- High power settings naturally result in longer recycle times.
- Problemes de connexió sense fil:
- Ensure all units are within range (100m).
- Comproveu si hi ha interferències d'altres dispositius de 2.4 GHz.
- Verify channel and group settings are identical on all units.
If problems persist, consult the Flashpoint support weblloc o contacteu amb el servei d'atenció al client.
8. Especificacions
| Model | V480C |
| Número de guia | GN50 (ISO 100, en metres) |
| Temps de reciclatge | Aprox. 1.7 segons |
| Modes de flaix | TTL, Manual, Multi |
| Funció sense fils | Mestre, esclau, apagat |
| abast sense fils | Aprox. 100m |
| Canals | 32 (1-32) |
| Grups | 4 (A, B, C, D) |
| Sincronització d'alta velocitat | Fins a 1/8000s |
| Font d'alimentació | VB22 Li-ion Battery (7.2V / 2200mAh) |
| Dimensions | 6.54" x 2.8" x 1.93" (16.6 x 7.1 x 4.9 cm) |
| Pes (amb bateria) | 12.7 oz (360g) |
| Muntatges compatibles | Cànon |
9. Garantia i Suport
For warranty information, technical support, or service inquiries, please refer to the documentation provided with your purchase or visit the official Flashpoint weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.
