CYCPLUS DC1 Self-Generating Aeromagnetic Fitness Bike User Manual

1. Introducció

Thank you for choosing the CYCPLUS DC1 Self-Generating Aeromagnetic Fitness Bike. This compact and efficient pedal exerciser is designed to provide a convenient workout solution for your home or office. Featuring a self-generating power system, a 160W brushless motor, and dual training modes, the DC1 offers a smooth and quiet exercise experience. Please read this manual thoroughly before use to ensure proper operation and maintenance.

2. Informació de seguretat

• Consulteu sempre amb un professional de la salut abans de començar qualsevol nou programa d'exercici.
• Place the device on a stable, flat surface. Use the provided anti-slip mat to prevent movement during exercise.
• Ensure adequate space around the device for safe operation.
• Mantingueu els nens i les mascotes lluny del dispositiu durant l'ús.
• Do not exceed the maximum user weight (if applicable, not specified in provided data).
• Si experimenteu dolor, marejos o molèsties, deixeu de fer exercici immediatament.
• El dispositiu està dissenyat només per a ús en interiors.
• After prolonged use at high intensity, the device may become warm. Allow it to cool down before resuming.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• CYCPLUS DC1 Mini Pedal Exerciser Unit
• Mat antilliscant
• Buckle Strap (for securing to a chair)
• Manual d'usuari

Image: Contents of the CYCPLUS DC1 package, showing the main unit, anti-slip mat, buckle strap, and user manual.

4. Configuració

The CYCPLUS DC1 comes 100% pre-assembled and requires no charging, making it ready for immediate use.

1. Col·locació: Place the DC1 on a flat, stable surface. For optimal stability and to protect your floor, position the included anti-slip mat underneath the unit.
2. Securing the Device: If using the device while seated in a chair, utilize the buckle strap to secure the exerciser to the chair's leg. This prevents the unit from sliding during intense pedaling.
3. Col·locació del peu: Place your feet securely into the pedals. The pedals are designed to accommodate various foot sizes.

Image: The CYCPLUS DC1 unit shown immediately after unboxing, highlighting its assembly-free design.

Image: Illustration of the triple anti-slip design, demonstrating how the buckle strap secures the exerciser to a chair and the anti-slip mat provides stability.

5. Instruccions de funcionament

5.1 Power and Self-Generation

The DC1 is equipped with an intelligent self-generating system. Simply begin pedaling, and the device will power on automatically, displaying your workout data. No external power source or charging is required.

Imatge: Una imatge interna view of the CYCPLUS DC1, illustrating the intelligent self-generating system and the 160W brushless motor.

5.2 Dual Training Modes

The DC1 offers two distinct training modes to suit your fitness goals:

• Mode manual: Allows you to manually adjust the resistance level across 10 stages. This mode is suitable for warm-ups, rehabilitation, and high-intensity training.
• Mode ERG: Automatically adjusts the magnetic resistance to maintain a target power output between 30W and 100W, regardless of your pedaling cadence. This mode is ideal for structured workouts and achieving specific power goals.

Image: A visual representation of the Manual and ERG modes, detailing how resistance is applied and adjusted in each mode.

5.3 Ajust de la resistència

In Manual Mode, you can adjust the resistance using the dial located on the unit. Turn the dial clockwise to increase resistance and counter-clockwise to decrease it. There are 10 distinct levels of resistance.

Image: The CYCPLUS DC1 with an emphasis on the resistance adjustment dial, illustrating how different resistance levels can be used for walking, jogging, or cycling intensity.

5.4 Visualització de dades

The large LED display provides real-time feedback on 8 key workout metrics:

• Potència (Watts)
• Temps
• Distància
• Revolutions (RPM)
• Calories cremades
• Velocitat
• Potència mitjana
• Potència actual

This allows you to monitor your performance and track your progress effectively.

Image: The LED display of the CYCPLUS DC1, showing real-time workout data such as power, time, and distance.

5.5 Forward and Reverse Pedaling

The DC1 supports both forward and reverse pedaling directions, offering diverse exercise benefits:

• Pedal cap endavant: Primarily targets fat burning and cardiovascular health.
• Pedal al revés: Provides gentle joint support and is beneficial for rehabilitation, focusing on muscles around the back, ankles, and knees.

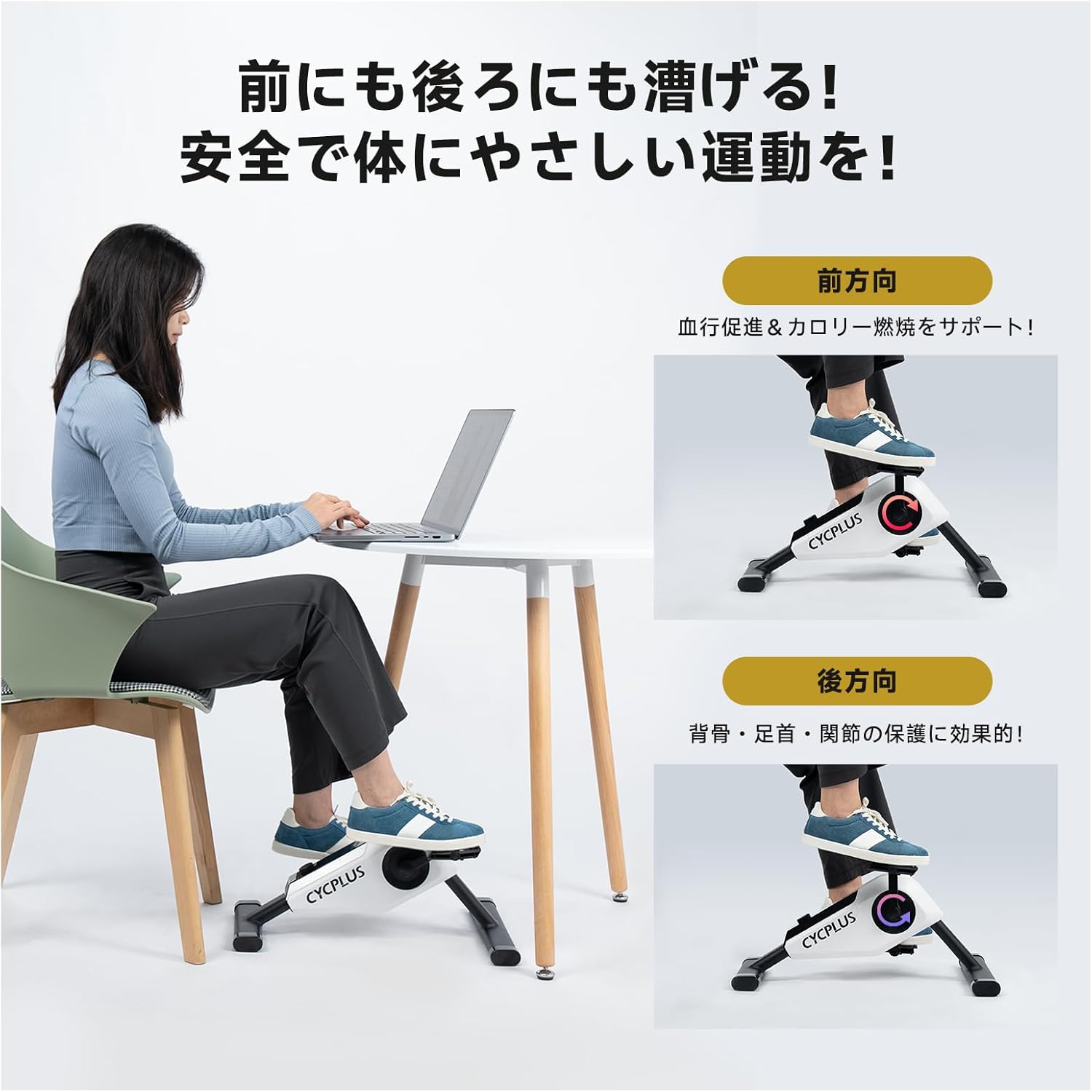

Image: A user demonstrating both forward and reverse pedaling on the CYCPLUS DC1, highlighting the different muscle groups engaged.

5.6 Connectivitat de l'aplicació

Enhance your workout experience by connecting the DC1 to compatible fitness applications:

• Zwift: Engage in virtual cycling rides and connect with a global community.
• CYCPLUS FIT App: Easily record and share your training data, track progress, and access additional features.

Refer to the respective app's instructions for pairing and usage.

6. Manteniment

To ensure the longevity and optimal performance of your CYCPLUS DC1, follow these maintenance guidelines:

• Neteja: Netegeu el dispositiu amb un suau, damp drap després de cada ús per eliminar la suor i la pols. No utilitzeu productes de neteja abrasius ni dissolvents.
• Emmagatzematge: Store the device in a cool, dry place away from direct sunlight and extreme temperatures. Its compact size allows for easy storage in small spaces.
• Inspecció: Periodically check all moving parts and connections for any signs of wear or damage. If any issues are found, discontinue use and contact customer support.

Image: The compact design of the CYCPLUS DC1, illustrating its dimensions (50.3 x 35.5 x 12.3 cm) and weight (4.8 kg) for easy storage.

7. Solució De Problemes

If you encounter any issues with your CYCPLUS DC1, refer to the following common problems and solutions:

• El dispositiu no s'encén: Ensure you are actively pedaling. The device is self-generating and requires movement to activate the display.
• Device sliding during use: Verify that the anti-slip mat is correctly placed and the buckle strap is securely fastened to your chair.
• Soroll inusual durant el funcionament: Check for any obstructions around the pedals or moving parts. Ensure all components are properly tightened. If the noise persists, contact customer support.
• Resistance not changing: In Manual Mode, ensure the resistance dial is functioning correctly. In ERG Mode, verify app connectivity and target power settings.
• Problemes de connectivitat de l'aplicació: Ensure Bluetooth is enabled on your device and the fitness bike is within range. Refer to the app's troubleshooting guide for specific pairing instructions.

8. Especificacions

9. Garantia i Suport

CYCPLUS products are manufactured to the highest quality standards. For warranty information, technical support, or service inquiries, please refer to the warranty card included in your package or visit the official CYCPLUS website. Please have your product model (DC1) and purchase information ready when contacting support.
