Olvy A10 Cordless Stick Vacuum Cleaner with Mop Function User Manual

1. Introducció

Thank you for choosing the Olvy A10 Cordless Stick Vacuum Cleaner with Mop Function. This appliance is designed for efficient cleaning of various floor types, offering both vacuuming and mopping capabilities. Please read this manual thoroughly before use to ensure proper operation, maintenance, and safety.

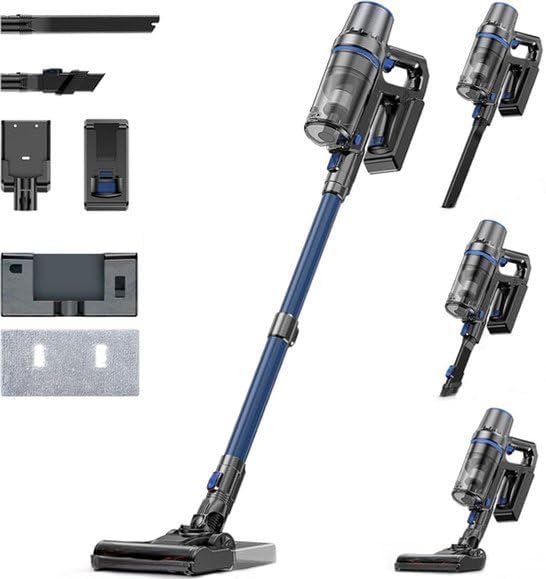

Image: The Olvy A10 Cordless Stick Vacuum Cleaner in its full assembly, alongside various attachments and the wall mount.

2. Instruccions de seguretat

Per reduir el risc d'incendi, descàrrega elèctrica o lesions, seguiu sempre les precaucions de seguretat bàsiques quan feu servir un aparell elèctric.

• Llegiu totes les instruccions abans d'utilitzar l'aparell.
• No l'utilitzeu a l'aire lliure ni sobre superfícies humides.
• No permetre que s'utilitzi com a joguina. Cal prestar molta atenció quan l'utilitzen nens o a prop dels nens.
• Utilitzeu només com es descriu en aquest manual. Utilitzeu només els accessoris recomanats pel fabricant.
• No l'utilitzeu amb un cable o endoll danyats. Si l'aparell no funciona com hauria de fer, s'ha deixat caure, s'ha fet malbé, s'ha deixat a l'aire lliure o s'ha caigut a l'aigua, torneu-lo a un centre de servei.
• No estireu ni porteu el cable, no utilitzeu el cable com a nansa, no tanqueu una porta al cable ni estireu el cable per vores o cantonades afilades. No feu passar l'aparell per sobre del cable. Mantingueu el cable lluny de les superfícies escalfades.
• No desconnecteu estirant del cable. Per desconnectar, agafa l'endoll, no el cable.
• No manipuleu l'endoll o l'aparell amb les mans mullades.
• No introduïu cap objecte a les obertures. No utilitzar amb cap obertura bloquejada; mantenir lliure de pols, pelusses, cabells i qualsevol cosa que pugui reduir el flux d'aire.
• Mantingueu els cabells, la roba solta, els dits i totes les parts del cos lluny de les obertures i les parts mòbils.
• Apagueu tots els controls abans de desconnectar.
• Tingueu molta cura quan netegeu les escales.
• No l'utilitzeu per recollir líquids inflamables o combustibles, com ara la gasolina, ni l'utilitzeu en zones on puguin estar presents.
• No agafeu res que estigui cremant o fumant, com ara cigarrets, llumins o cendres calentes.
• No l'utilitzeu sense el got de pols i/o els filtres al seu lloc.
• Eviteu l'arrencada no intencionada. Assegureu-vos que l'interruptor estigui a la posició d'apagat abans de connectar-lo a la bateria, agafar o transportar l'aparell.
• Recarregueu només amb el carregador especificat pel fabricant. Un carregador adequat per a un tipus de bateria pot generar un risc d'incendi quan s'utilitza amb un altre paquet de bateries.
• En condicions abusives, es pot expulsar líquid de la bateria; evitar el contacte. Si es produeix un contacte accidental, esbandiu amb aigua. Si el líquid entra en contacte amb els ulls, també busqueu ajuda mèdica. El líquid expulsat de la bateria pot causar irritació o cremades.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents al paquet:

• Unitat principal (aspiradora de mà)
• Tub d'extensió ajustable
• Capçal de raspall de terra
• Bateria extraïble
• Water Tank (for mopping)
• Coixinet de fregona
• Eina de raspall 2 en 1
• Eina per esquerdes
• Suport de muntatge a la paret
• Adaptador d'alimentació
• Replacement HEPA Filter (2x)
• Manual d'usuari

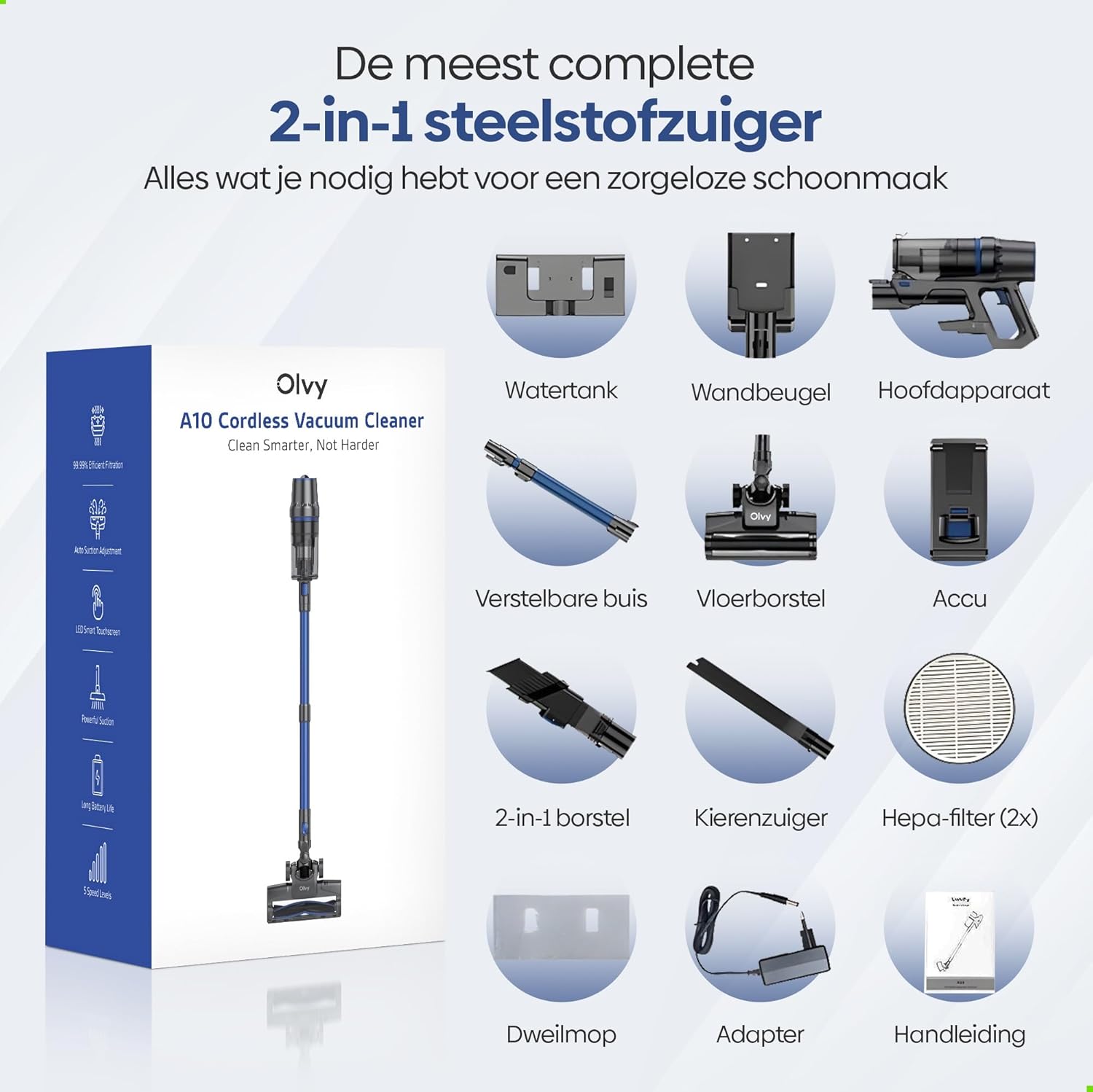

Image: A visual representation of all components included with the Olvy A10 Cordless Stick Vacuum Cleaner.

4. Producte acabatview

The Olvy A10 features a powerful 350W motor providing up to 35,000 Pa suction, an integrated mop function, and a multi-stage HEPA filtration system. It includes an intelligent LED display for monitoring status and an auto-mode for adaptive cleaning.

Característiques principals:

• Succió potent: 350W motor with 35,000 Pa for deep cleaning on various surfaces.
• Funcionalitat 2 en 1: Seamlessly switch between vacuuming and mopping.
• Pantalla LED intel·ligent: Provides real-time information on battery level, suction mode, and dust concentration.
• Mode automàtic: Automatically adjusts suction power based on detected dirt levels.
• HEPA 13 Filtration: Captures 99.99% of fine particles, suitable for allergy sufferers.
• Temps llarg: Up to 60 minutes on a single charge with a 2200 mAh removable battery.
• Lightweight and Versatile: Easy to maneuver and convert into a handheld vacuum for various cleaning tasks.

Image: Close-up of the intelligent LED display showing battery indicator, low power warning, auto mode, dust concentration, and control panel.

Image: The LED display indicating 'Auto-mode' and the current power level during operation.

5. Muntatge i muntatge

5.1 Càrrega inicial

Before first use, fully charge the battery. The battery takes approximately 4-5 hours to fully charge.

1. Remove the battery from the main unit by pressing the release button.
2. Connect the power adapter to the charging port on the battery.
3. Plug the adapter into a power outlet. The battery indicator on the LED display will show charging status.
4. Un cop carregat completament, desconnecteu l'adaptador.

Image: The removable battery unit, highlighting its 2200 mAh capacity, 4-5 hour charging time, and up to 60 minutes run time.

5.2 Muntatge de l'aspiradora

1. Connecteu la bateria: Slide the charged battery into the main unit until it clicks into place.
2. Connecteu el tub d'extensió: Connect the adjustable extension tube to the main unit. Ensure it clicks securely.
3. Connecteu el raspall de terra: Connect the floor brush head to the other end of the extension tube.
4. Instal·leu el suport de paret (opcional): Choose a suitable location for the wall mount. Secure it to the wall using the provided screws and anchors. This allows for convenient storage and charging.

Image: The vacuum cleaner demonstrating both wall-mounted storage and self-standing capability.

6. Instruccions de funcionament

6.1 Funcionament bàsic

1. Encès/apagat: Premeu el botó d'engegada de la unitat principal per encendre o apagar l'aspiradora.
2. Ajustar la potència d'aspiració: The vacuum offers 5 suction levels. Use the control panel on the LED display to cycle through the power modes (Low, Normal, High, Turbo).
3. Mode automàtic: Activate the intelligent auto mode for automatic suction adjustment based on dirt detection. The LED display will show 'Auto' when this mode is active.

Image: The vacuum cleaner demonstrating its 4 suction levels (Low, Normal, High, Turbo) and intelligent auto mode, which adapts to dirt levels.

Image: A user operating the Olvy A10, showcasing its powerful 350W motor and 35,000 Pa suction for effective cleaning of various debris like hair, dust, crumbs, and sand.

6.2 Using the Mop Function

The integrated mop function allows for simultaneous vacuuming and wet cleaning of hard floors.

1. Omplir el dipòsit d'aigua: Detach the water tank from the floor brush head. Fill it with clean water. Do not use corrosive liquids or detergents that may damage the tank or floor.
2. Fixeu el coixinet de la fregona: Securely attach the mop pad to the bottom of the water tank.
3. Reattach Water Tank: Reinstall the filled water tank onto the floor brush head.
4. Begin Mopping: Operate the vacuum cleaner as usual. The mop pad will dampen the floor as you vacuum, providing a streak-free clean.

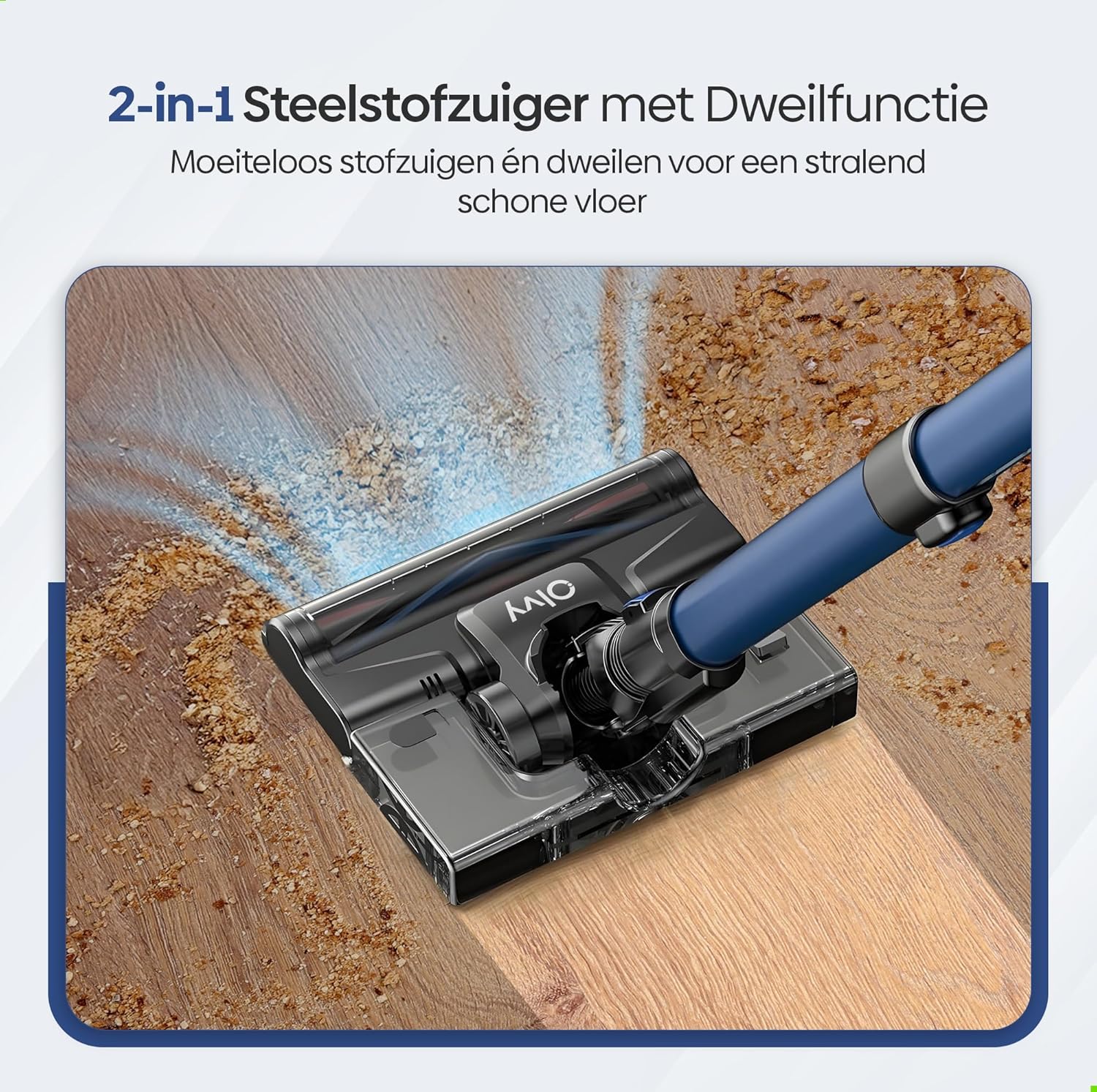

Imatge: Una imatge detallada view of the 2-in-1 stick vacuum with mop function, showing water being dispensed for simultaneous vacuuming and mopping on a hard floor.

Image: The mop function of the Olvy A10 actively cleaning a hard floor, demonstrating its effectiveness in removing dirt and leaving a clean surface.

6.3 Ús d'adjunts

• Eina de pinzell 2 en 1: Ideal per netejar tapisseria, cortines i superfícies delicades.
• Eina per esquerdes: Perfecte per arribar a espais reduïts, cantonades i vores.
• To use, detach the extension tube and connect the desired attachment directly to the main unit.

Image: The Olvy A10 being used in different configurations, including as a stick vacuum for floors, a handheld for high areas, and for cleaning under furniture.

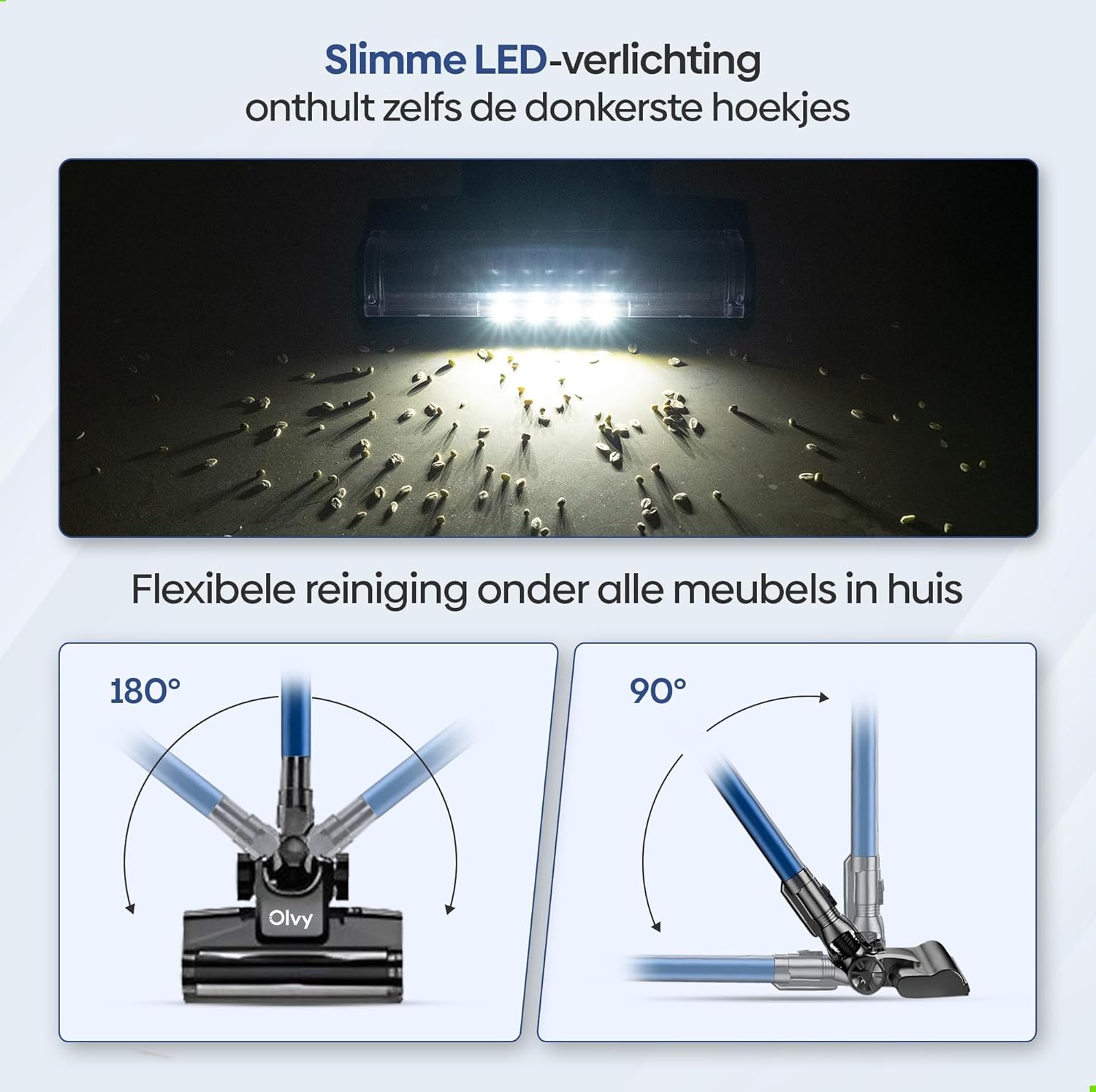

Image: The vacuum's LED lighting revealing hidden dust particles on the floor, and diagrams illustrating its 180° and 90° flexible head rotation for cleaning under furniture.

7. Manteniment

Regular maintenance ensures optimal performance and extends the lifespan of your Olvy A10 vacuum cleaner.

7.1 Buidar el contenidor d'escombraries

Empty the dustbin regularly, especially when the 'Dust Concn' indicator on the LED display shows high concentration.

1. Assegureu-vos que l'aspiradora estigui apagada.
2. Premeu el botó d'alliberament del contenidor de pols per separar-lo de la unitat principal.
3. Hold the dustbin over a trash can and press the bottom release latch to open the lid and empty the contents.
4. Close the lid and reattach the dustbin to the main unit.

Image: The dustbin being emptied with a single click, demonstrating its large 0.8L capacity.

Image: A user washing the dustbin under running water, illustrating the washable components for easy cleaning.

7.2 Neteja dels filtres

The Olvy A10 uses a multi-stage filtration system, including an HEPA filter, which should be cleaned regularly.

1. Traieu la paperera.
2. Twist and pull out the filter assembly (HEPA filter, dust filter, stainless steel filter).
3. Tap off loose dirt from each filter component.
4. Rinse the filters under cold running water. Do not use hot water or detergents.
5. Deixeu que tots els components del filtre s'assequin completament a l'aire durant almenys 24 hores abans de tornar-los a muntar. No feu servir l'aspiradora amb filtres humits.
6. Reassemble the filters and place them back into the dustbin, then reattach the dustbin to the main unit.

Image: A cutaway diagram illustrating the multi-stage HEPA filtration system, including the dustbin filter, stainless steel filter, dust filter, HEPA air filter, and air outlet filter.

7.3 Neteja del raspall rotatiu

Reviseu periòdicament el corró del raspall per si hi ha cabells enredats o restes.

1. Apagueu l'aspiradora.
2. Press the release tab on the side of the floor brush head to remove the brush roll cover.
3. Aixequeu el rotlle del pinzell.
4. Utilitzeu tisores o una eina de neteja per tallar i eliminar els cabells o les fibres enredades.
5. Torneu a inserir el corró del raspall i fixeu la coberta.

7.4 Cleaning the Mop Pad

After each use of the mop function, remove and clean the mop pad.

1. Despreneu la fregona del dipòsit d'aigua.
2. Rinse the mop pad under running water or machine wash it with mild detergent.
3. Allow the mop pad to air dry completely before storing or reusing.

8. Solució De Problemes

If you encounter any issues with your Olvy A10, refer to the following common problems and solutions:

9. Especificacions

10. Garantia i Suport

Olvy products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the contact information provided with your purchase documentation or visit the official Olvy weblloc web. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.
