MSI MAG Coreliquid A12 360 CPU Liquid Cooler Instruction Manual

1. Producte acabatview

The MSI MAG Coreliquid A12 360 is an All-In-One (AIO) liquid cooling solution designed for efficient CPU temperature management. It features a 360mm radiator, three 120mm ARGB PWM fans, and a rotatable blockhead for flexible installation and aesthetic customization.

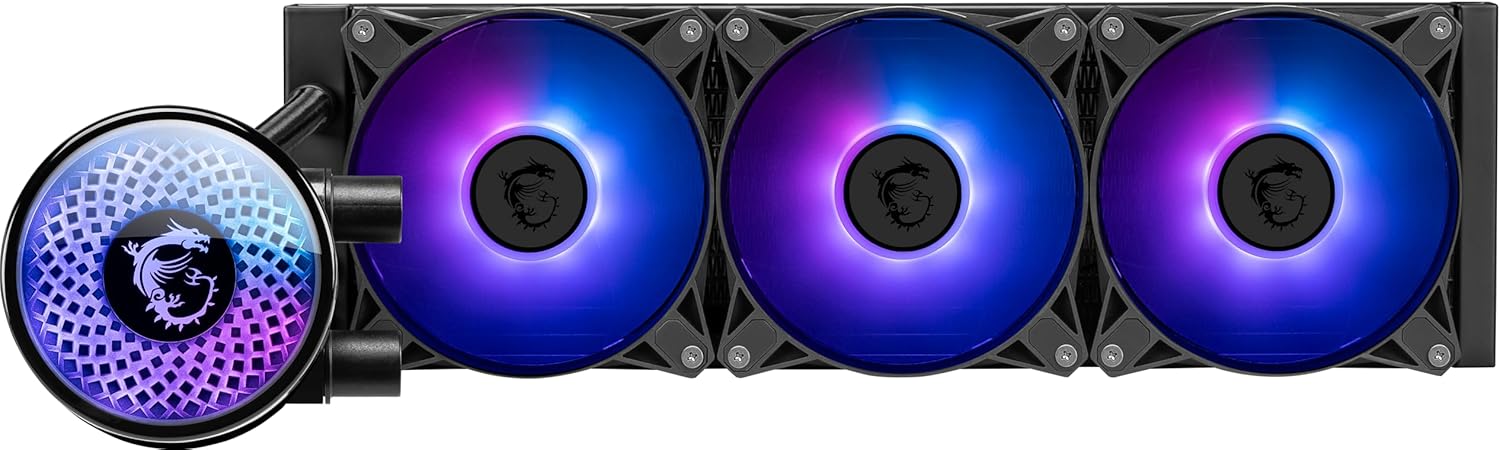

Figure 1: MSI MAG Coreliquid A12 360 CPU Liquid Cooler.

Característiques clau

• Mystic Light Compatible: Customize your ARGB fans through MSI's Mystic Light software for personalized lighting effects.
• Evaporation Proof Tubing: Designed to prevent coolant loss and offer flexibility for convenient assembly and long-term durability.
• Pump Motor Resonance Elimination: Engineered for silent operation while maintaining optimized cooling performance.
• Double Ball Bearing Fans: The 120mm ARGB PWM fans utilize double ball bearings, delivering powerful airflow and exceptional durability.
• Rotatable Blockhead: The CPU blockhead can be rotated to align the MSI logo correctly, regardless of mounting orientation.
• Elevated Copper Plate: Ensures optimal contact with the CPU for efficient heat transfer.
• High Thermal Dissipation Radiator: The 360mm radiator is designed for maximum heat exchange, keeping your CPU cool under load.

2. Configuració i instal·lació

This section provides general installation guidelines. Always refer to the detailed user manual included with your product for specific instructions and safety warnings.

2.1 Desembalatge i components

Upon opening the package, verify that all components are present. The package typically includes the liquid cooler unit (radiator with pre-installed fans and pump/blockhead), mounting brackets for various CPU sockets, screws, and thermal paste.

2.2 CPU Socket Compatibility

The MAG Coreliquid A12 360 supports a wide range of Intel and AMD sockets, including:

• Intel: LGA 1700, LGA 1851
• AMD: AM5, AM4

2.3 Installation Steps (Intel LGA 1700/1851 Example)

1. Prepara la placa base: Ensure your motherboard is ready for cooler installation.
2. Instal·leu la placa posterior: Attach the appropriate Intel backplate to the rear of your motherboard.
3. Aplicar pasta tèrmica: Apply a small amount of thermal paste to the center of your CPU.
4. Traieu la pel·lícula protectora: Carefully peel off the protective film from the cold plate of the pump.
5. Mount Pump/Blockhead: Align the pump/blockhead with the mounting holes on the motherboard and secure it using the provided screws. Tighten screws in a diagonal pattern to ensure even pressure.
6. Muntar el radiador: Install the 360mm radiator to an available mounting location in your PC case (e.g., top, front).
7. Connectar els cables: Connect the pump and fan cables to the appropriate headers on your motherboard (CPU_FAN, AIO_PUMP, ARGB headers).

3. Instruccions de funcionament

3.1 ARGB Lighting Control (MSI Mystic Light)

The ARGB fans and pump head are compatible with MSI Mystic Light software. Download and install Mystic Light from the official MSI website to customize lighting effects, colors, and synchronization with other compatible components.

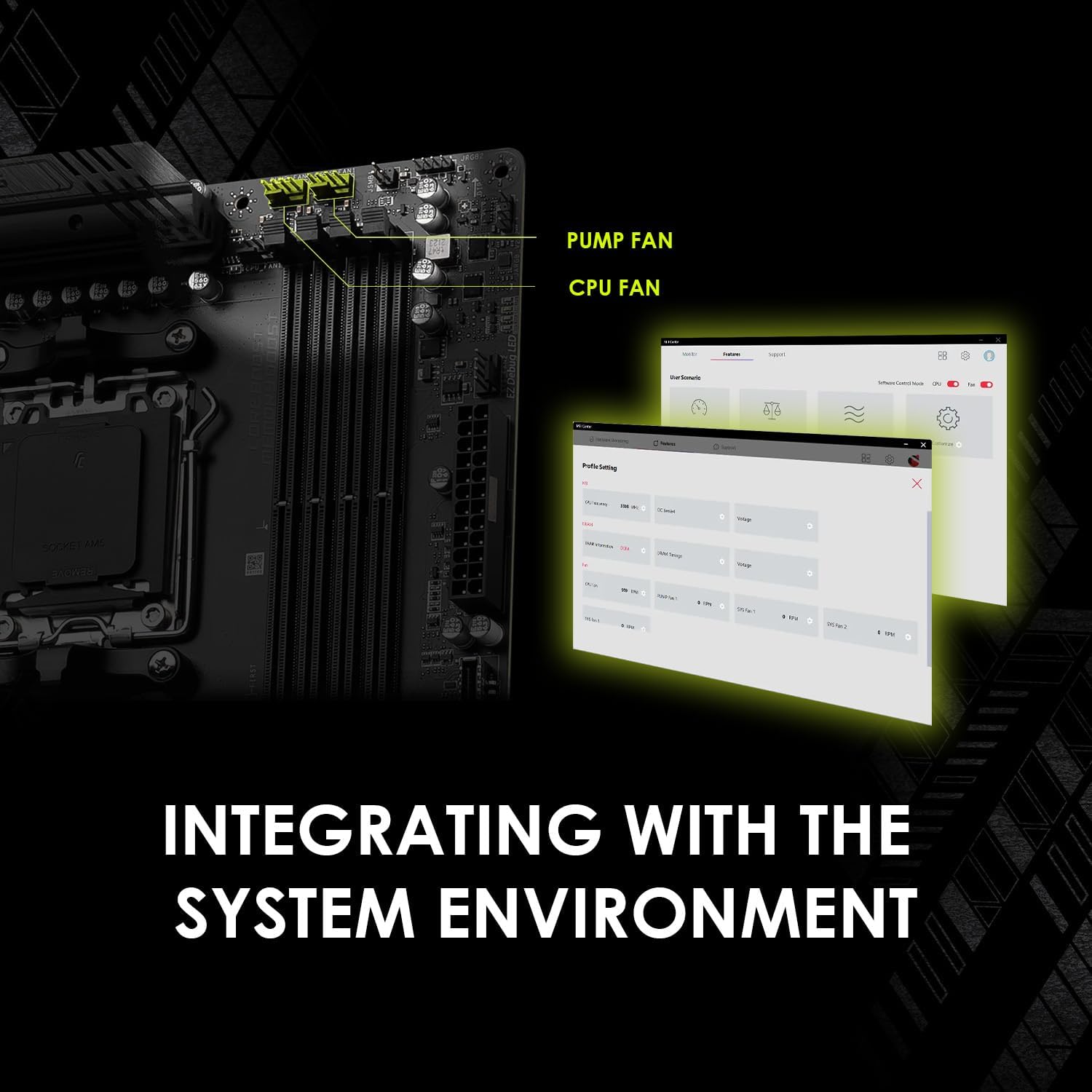

Figure 2: Integrating with the system environment for software control.

3.2 Fan and Pump Speed Control

Fan and pump speeds are typically controlled via your motherboard's BIOS/UEFI settings or through motherboard-specific software utilities. Adjust settings to balance cooling performance and noise levels according to your preference.

4. Manteniment

The MSI MAG Coreliquid A12 360 is designed for low maintenance. The evaporation-proof tubing minimizes coolant loss over time. Regular maintenance includes:

• Eliminació de pols: Periodically clean dust from the radiator fins and fan blades using compressed air to maintain optimal airflow and cooling efficiency.
• Inspeccionar tubs: Occasionally check the tubing for any signs of wear, kinks, or leaks.

Figure 3: Evaporation-proof tubing for reduced maintenance.

5. Solució De Problemes

If you encounter issues with your liquid cooler, consider the following common troubleshooting steps:

• Sense alimentació/Els ventiladors no giren: Check all power connections to the pump and fans. Ensure they are securely plugged into the correct motherboard headers.
• Temperatures altes de la CPU: Verify that the pump is running (you might feel a slight vibration or hear a faint hum). Ensure the cold plate has good contact with the CPU and that thermal paste was applied correctly. Check for dust buildup on the radiator.
• Sorolls inusuals: Listen for abnormal pump noises (e.g., grinding, gurgling). This could indicate air bubbles in the loop or a faulty pump. Ensure the radiator is mounted securely to prevent vibration noise.
• ARGB Not Working: Confirm ARGB cables are connected to the correct 3-pin 5V ARGB headers (not 4-pin 12V RGB headers). Use MSI Mystic Light software to troubleshoot and configure lighting.

6. Especificacions

7. Garantia i Suport

This MSI MAG Coreliquid A12 360 CPU Liquid Cooler is backed by MSI's manufacturer warranty. For specific warranty terms, duration, and support, please refer to the warranty card included in your product packaging or visit the official MSI website. You can also find additional support resources and FAQs on the MSI support page.

For technical assistance or customer service, please contact MSI directly through their official support channels.
