Introducció
Thank you for choosing the Ducard 3-in-1 Electric Toothbrush with Water Flosser Combo. This device is designed to provide a comprehensive oral care experience, combining the power of a sonic toothbrush with the effectiveness of a high-pressure water flosser. Please read this manual thoroughly before first use to ensure proper operation and maintenance.
Què hi ha a la caixa
Carefully unpack your Ducard 3-in-1 Electric Toothbrush with Water Flosser Combo and ensure all items are present:
Image showing the contents of the Ducard Electric Toothbrush with Water Flosser Combo box, including the brush handle, multiple brush heads, power plug, and travel case.
- 1 x Electric Toothbrush Handle
- 3 x caps de raspall
- 1 x Power Plug (Charging Base)
- 1 x estoig de viatge
- 1 x manual d'instruccions
Configuració
1. Càrrega inicial
Before first use, fully charge the device. The detachable handle can be charged directly, or the entire base unit can be plugged in. The built-in long-lasting battery ensures weeks of cordless use on a single charge.
Image illustrating the two charging methods for the Ducard Electric Toothbrush with Water Flosser Combo: direct charging of the handle and charging the base unit.
2. Attaching Brush Head or Flosser Tip
Select your desired brush head or flosser tip. Align it with the metal shaft on the handle and push down firmly until it clicks into place. To remove, pull the head straight off.
Video demonstrating how to attach the flosser tip and brush head to the Ducard Electric Toothbrush with Water Flosser Combo.
3. Omplir el dipòsit d'aigua
The device features a large 500mL (17oz) water tank. Detach the tank from the base unit and fill it with lukewarm water. Reattach the tank securely to the base unit, ensuring it is properly seated to prevent leaks.
Image showing the large 500ml (17oz) water tank being filled from a faucet, highlighting its capacity and ease of refilling.
Instruccions de funcionament
1. Engegada/Apagada i Selecció de Mode
Press and hold the power button to turn the device on or off. Once on, single-click the mode button to cycle through the 3 brushing modes (Whitening, Sensitive, Gum Care) and 5 flosser speeds. The device combines a powerful sonic brush (40,000 VPM) and a high-pressure flosser (1,400-1,800 pulses/minute, 40-100 PSI).

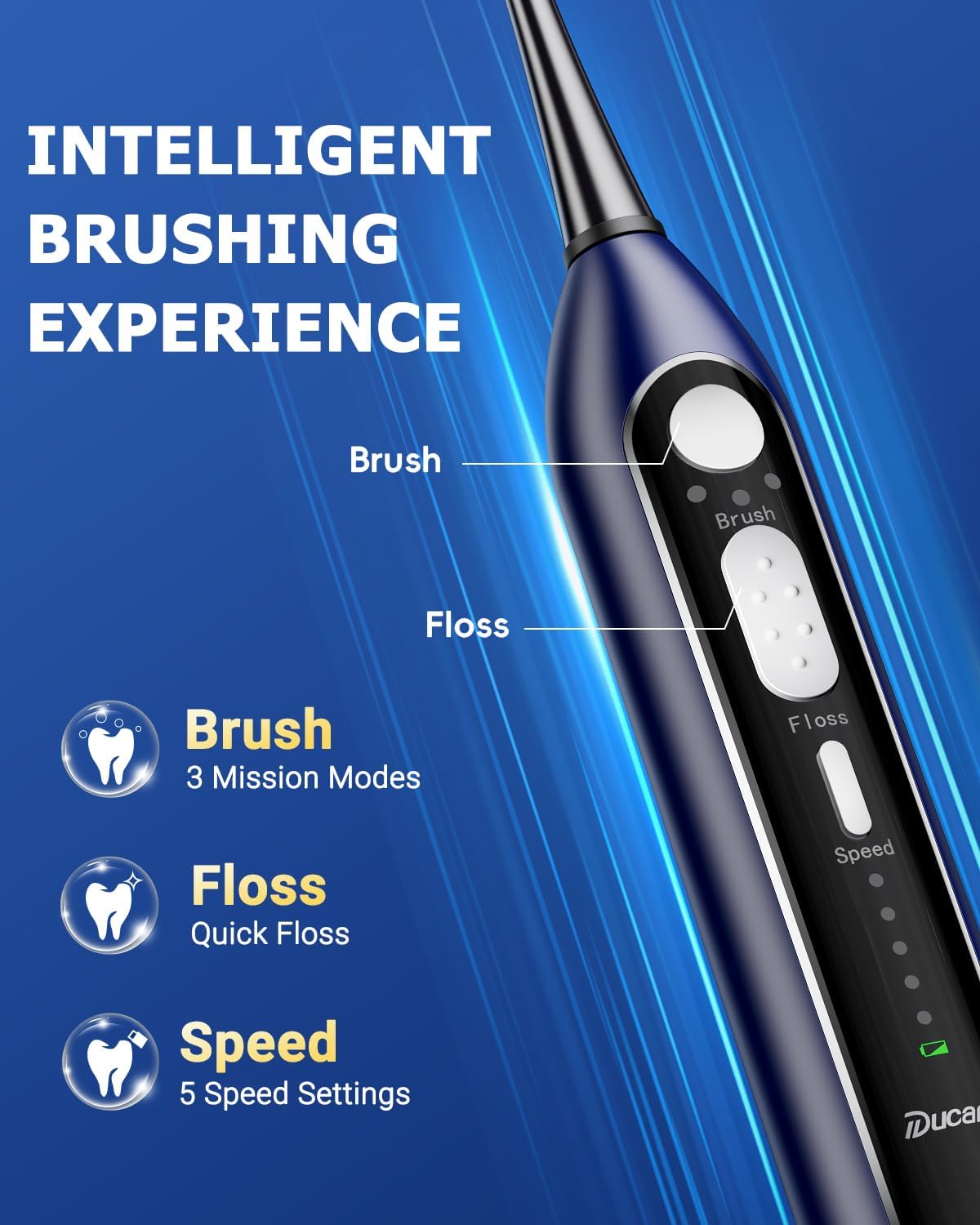

Image detailing the control panel of the Ducard Electric Toothbrush, showing buttons for Brush, Floss, and Speed, along with indicators for 3 brushing modes and 5 flossing speeds.
2. Combined Brush and Floss Functionality
The 3-in-1 design allows for simultaneous brushing and flossing, providing a complete clean in half the time. This feature is up to 2X as effective as regular brushing and flossing.
Image illustrating the 3-in-1 functionality of the Ducard device, showing separate toothbrush and water flosser actions, and a combined brush + water flosser action for comprehensive cleaning.
3. Smart Timer & Quadpacer
The built-in 2-minute timer with a 30-second pacer ensures you brush all sides of your mouth evenly and for the dentist-recommended duration.
Image depicting the smart timer and quadpacer feature, showing a 2-minute brushing cycle divided into four 30-second intervals for thorough cleaning of all mouth quadrants.
Manteniment i Neteja
1. Disseny impermeable
The device features an IPX7 waterproof design, making it safe for use in the shower. Always ensure the base cover is closed tightly to maintain its waterproof integrity.

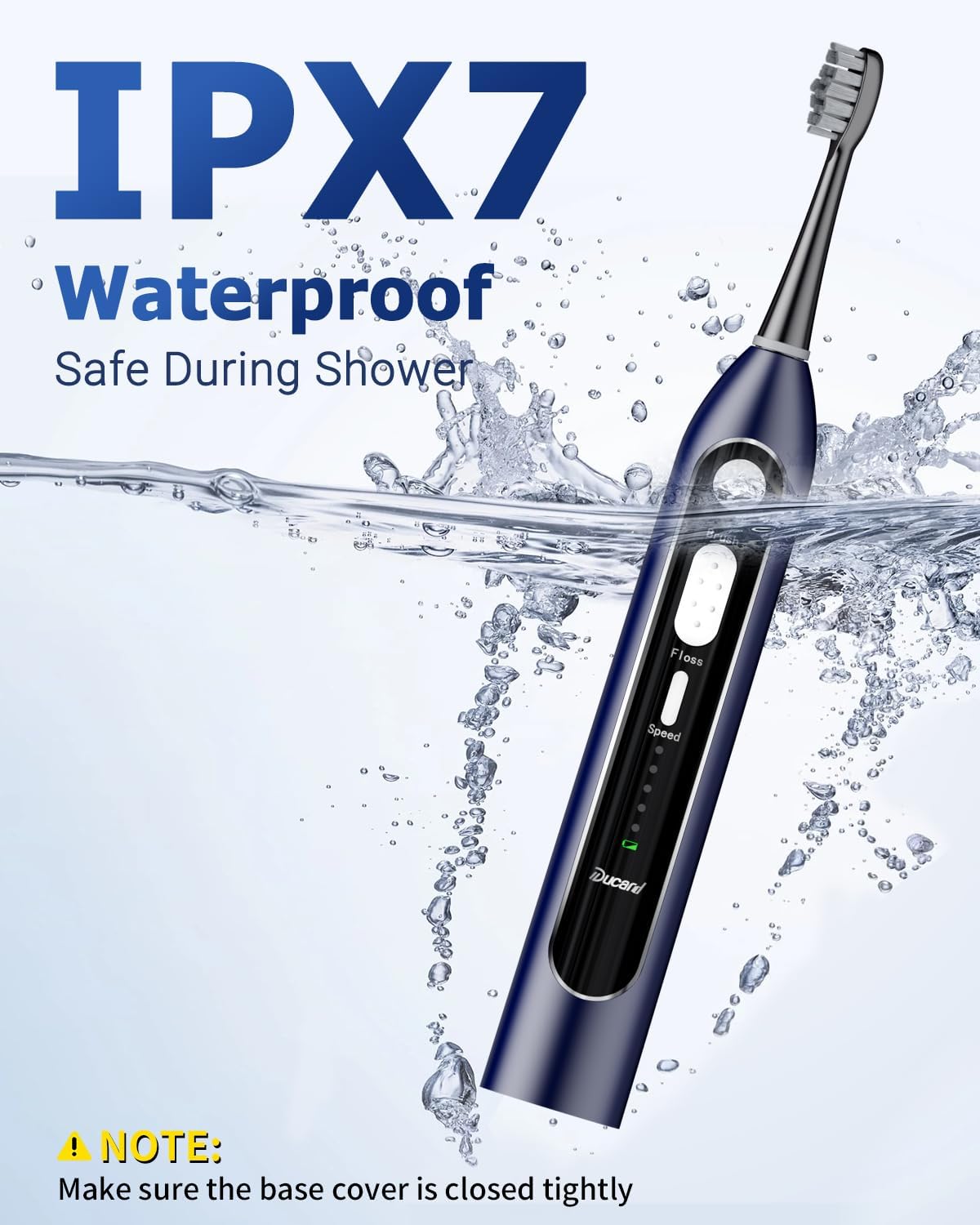

Image showing the Ducard Electric Toothbrush submerged in water, demonstrating its IPX7 waterproof rating for safe use in the shower, with a note to ensure the base cover is closed tightly.
2. Neteja del dipòsit d'aigua
The 500mL water tank is removable for easy filling and cleaning. Regularly clean the tank to prevent mineral buildup and ensure hygienic use.
3. Substitució del capçal del raspall
Replace brush heads every 3 months, or sooner if bristles become frayed, to maintain optimal cleaning performance.
Resolució de problemes
- El dispositiu no s'encén: Ensure the device is fully charged. If charging, check the power connection.
- Water not flowing: Check if the water tank is filled and properly seated. Ensure the flosser tip is securely attached.
- Pressió d'aigua baixa: Adjust the flosser speed settings. Ensure the flosser tip is not clogged.
- Excessive leaking: Ensure the water tank is properly attached and the base cover is tightly closed.
Especificacions
- Dimensions del paquet: 8.98 x 6.02 x 5.91 polzades; 1.76 lliures
- Número de model de l'article: toothbrush with water flosser
- Bateries: Necessites 1 piles AAA (incloses)
- Marca: Ducard
- Font d'alimentació: Funciona amb bateria
- Característiques especials: Ergonomic, Portable, Waterproof, Rechargeable
- Beneficis del producte: Elimina la placa
- Recompte d'unitats: 1 recompte
Garantia i suport
Your Ducard 3-in-1 Electric Toothbrush with Water Flosser Combo comes with dedicated customer support. For detailed warranty information, product registration, or assistance with any issues, please visit the official Ducard weblloc web o contacteu amb el servei d'atenció al client a través de la vostra plataforma de compra.
