1. Producte acabatview
The Autel MaxiIM KM100 (X) is a professional key programming tool designed for automotive technicians and DIY enthusiasts. It offers comprehensive functionalities for key generation, learning, cloning, and advanced diagnostic features. This device is equipped with a built-in APB112 for enhanced key generation capabilities and supports a wide range of vehicle models.

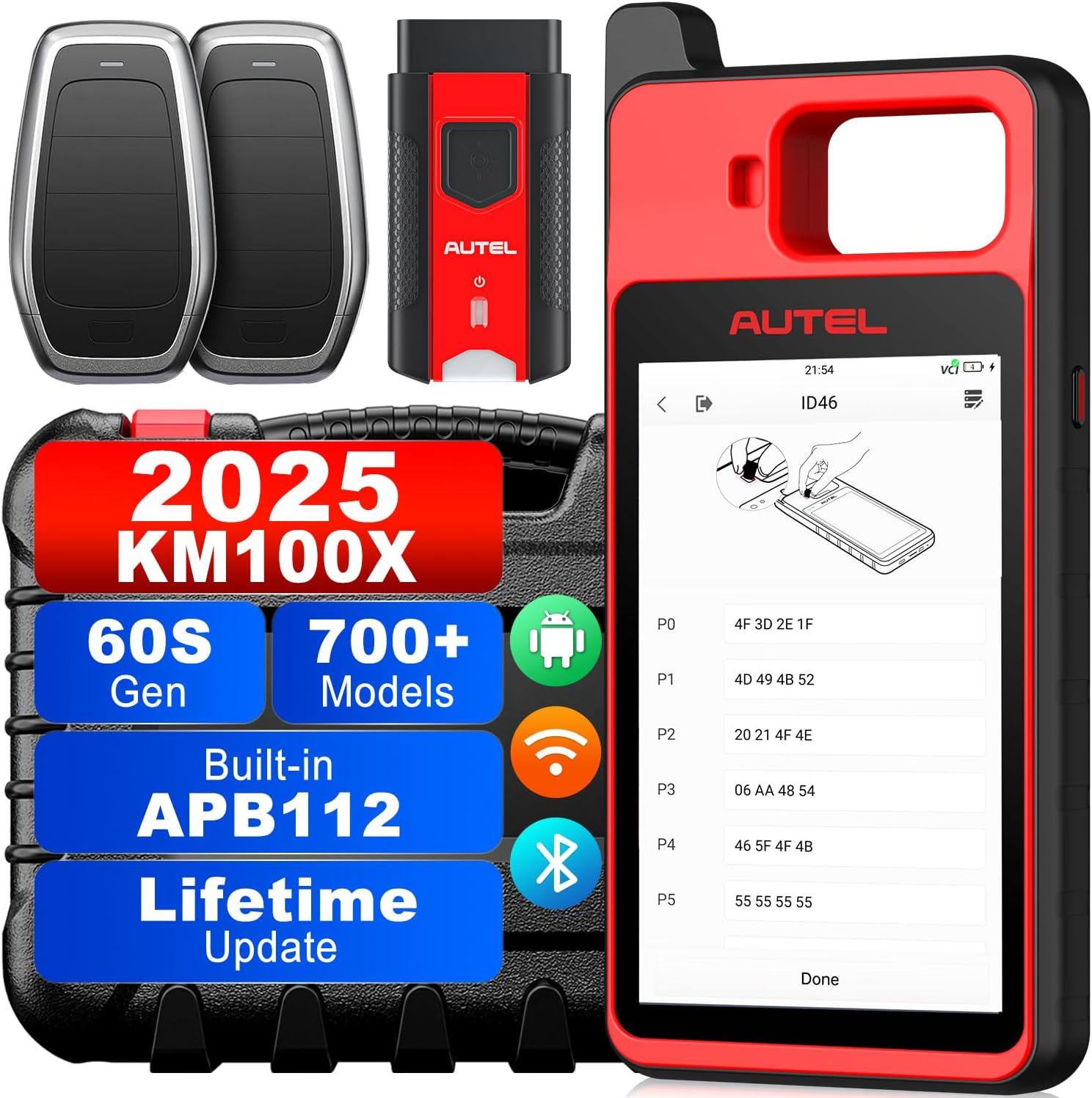

Image 1.1: Autel MaxiIM KM100X device, including the main unit, OBD dongle, and two blank keys.
Imatge 1.2: acabatview of the Autel MaxiIM KM100X's core capabilities, highlighting its speed and broad compatibility.
2. Què hi ha a la caixa
Upon unboxing your Autel MaxiIM KM100 (X), verify that all components are present:
- 1x Autel KM100X Main Unit
- 1x Bluetooth Wireless VCI Adapter (MaxiVCI V200)
- 2x Universal Smart Keys
- 1x adaptador de corrent
- 1x Cable USB (Tipus C)
- 1 cable USB-C a USB-C
- 1x Custom Mini USB Cable (for Key Programming)
- 1x Carrying Case (330x262x100mm)
- 1 x manual d'usuari
Image 2.1: Visual representation of all items included in the Autel MaxiIM KM100X product package.
3. Configuració i ús inicial
3.1 Engegada i càrrega
Connect the KM100X main unit to the power adapter using the provided USB Type-C cable. The device will automatically power on or can be powered on by pressing the power button. Ensure the device is fully charged before initial use for optimal performance.
3.2 Device Registration and Updates
To access all features and receive lifetime free updates, it is necessary to register your KM100X device. Follow the on-screen prompts for registration. If you encounter any issues with a pre-registered item, contact customer support for assistance.
Image 3.1: Information regarding the lifetime free updates provided with the Autel KM100X.
3.3 Configuració d'idioma
The device defaults to English. To switch to Spanish or Portuguese, send the 12-digit serial number (SN) located on the back of your KM100X to autelsupply@outlook.com for authorization.
4. Instruccions de funcionament
4.1 Key Generation and Learning
The KM100X excels in key generation, offering a rapid 60-second process for many vehicles. It supports reading, writing, and cloning of various chip types. The built-in APB112 module enhances key generation functions, supporting 46, 4D Data Collection, 46 Smart Password Calculation, Toyota 4D (94/D4, 98) Smart, and Toyota H (88/A8, A9, 30) Smart.
Image 4.1: The KM100X's efficient 60-second universal key generation process.
Image 4.2: Simplified two-step key learning process using the KM100X.
4.2 VIN Identification
The KM100X offers multiple methods for vehicle identification:
- VIN de l'automòbil: Automatically identifies vehicle data.
- Scan VIN/License: Uses the 8MP rear camera to quickly scan VINs or license plates.
- Entrada manual: Allows for direct entry of VIN.

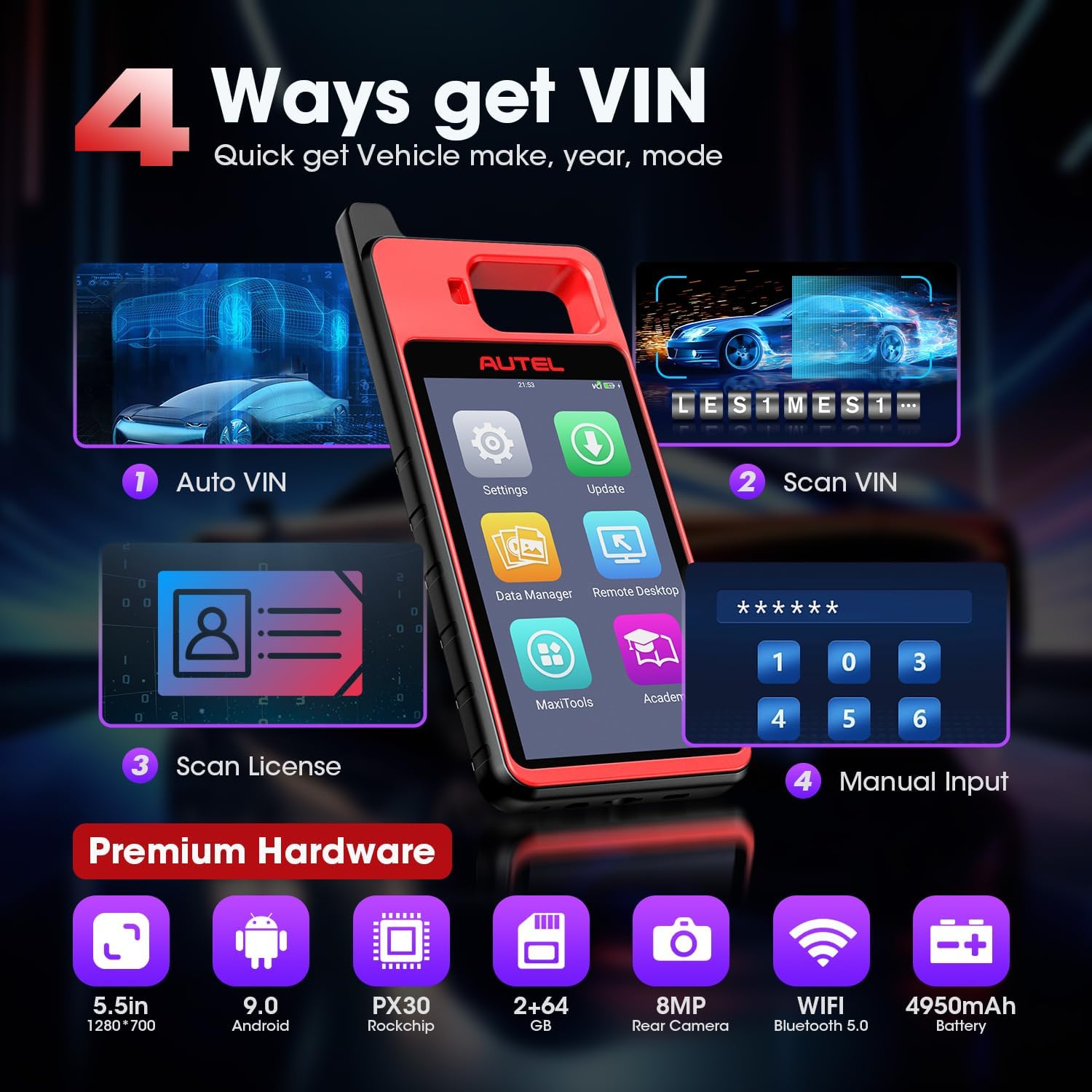

Image 4.3: Various methods for quick VIN acquisition with the KM100X.
4.3 Detecció de freqüència
The device can detect key frequencies, supporting both low frequency (315M/433M) and high frequency (868M/915M) signals. This feature is crucial for verifying key fob functionality.
Image 4.4: Frequency detection interface on the KM100X, displaying real-time frequency results.
4.4 Funcions especials
The KM100X includes over 10 special functions to assist with various tasks:
- Ignition Coil Detection: Gathers data on the vehicle's protocol and type via the ignition coil.
- Button Adjustment: For remote control button configuration.
- Processament de dades: For key data management, backup, and restoration.
- Universal Information Detection: Provides general information about the key or vehicle.
- Chip Conversion: Supports conversion between ID63 and ID83 for Ford vehicles.
Image 4.5: Interface showing the range of special functions available on the KM100X.
Image 4.6: Data processing and backup features for key information.
4.5 Compatibilitat del vehicle
The Autel KM100X covers over 700 popular mainstream vehicles from the past 10 years, including Volkswagen, Honda, Toyota, BMW, Land Rover, and Ford. It supports 1996-2024/2025 old and new cars with 95%+ coverage, which is continuously updated.
Image 4.7: Broad vehicle coverage supported by the Autel KM100X.
5. Manteniment
To ensure the longevity and optimal performance of your Autel MaxiIM KM100 (X) device, follow these general maintenance guidelines:
- Mantingueu el dispositiu net i lliure de pols i brutícia. Feu servir un drap suau i sec per netejar-lo.
- Eviteu exposar el dispositiu a temperatures extremes, humitat o llum solar directa.
- Store the device in its carrying case when not in use to protect it from physical damage.
- Regularly update the software to ensure access to the latest features and vehicle compatibility.
- Handle the cables and connectors with care to prevent damage.
6. Solució De Problemes
6.1 Compatibility Limitations
Please note the following known compatibility limitations:
- As of August 25, 2025, key programming functions for Ford vehicles have significant limitations. For Ford key programming, it is strongly recommended to send your Vehicle Identification Number (VIN) to autelsupply@outlook.com to check compatibility before attempting.
- The Autel KM100 (X), KM100, and KM100E models do not support key programming for Benz, Porsche, or Renault cars.
- The device does NOT support All Keys Lost (AKL) functions for GM, Toyota, Lexus, or Renault. For specific function compatibility, send your Car VIN and the desired function to autelsupply@outlook.com.
6.2 Device Registration Issues
If you receive a device that appears to be already registered, do not be concerned. Contact autelsupply@outlook.com for proper resolution and assistance with registration.
6.3 Problemes generals
If you encounter any other issues, ensure the device is fully charged, the software is up to date, and all connections are secure. Refer to the on-screen help or contact technical support if problems persist.
7. Especificacions
The Autel MaxiIM KM100 (X) features robust hardware for efficient operation:
- Sistema operatiu: Android 9.0
- Processador: RockChip PX30 CPU
- Memòria: 2 GB de RAM + 64 GB d'emmagatzematge
- Visualització: 5.5-inch screen (1280*700 resolution)
- Bateria: 4950mAh Lithium Polymer (8+ hours non-stop use)
- Càmera: 8MP Rear Camera (for VIN/License scanning)
- Connectivitat: Wi-Fi, Bluetooth 5.0
- Pes de l'article: 3.74 lliures
- Dimensions del paquet: 13.15 x 10.31 x 4.09 polzades
- Número de model: Newest MaxiIM K-M100X-US
- UPC: 849438095949
Image 7.1: Detailed hardware specifications of the KM100X.
7.1 Comparació de models
The table below provides a comparison of the KM100X with other Autel models, highlighting its unique features:
| Característica | KM100X | IM508S | IM608 PRO II |
|---|---|---|---|
| Actualització de programari | Gratuït de per vida | 1 any | 1 any |
| Sistema | Android 9.0 | Android 11.0 | Android 11.0 |
| Bateria | 4950 mAh | 5000 mAh | 10000 mAh |
| Funcions especialitzades | 10+ | ||
| 60s Key Generation | Sí | No | No |
| Key Simulation | Sí | No | No |
| Ignition Coil Detection | Sí | No | No |
| Universal Key Generation | Sí | Needs APB112 | Needs APB112 |
| Detecció de freqüència | Sí | Sí | Sí |
| Tractament de dades | Sí | Sí | Sí |
Table 7.1: Feature comparison between Autel KM100X, IM508S, and IM608 PRO II.
8. Garantia i Suport
The Autel MaxiIM KM100 (X) comes with a 1-year warranty. For any after-sales support, technical assistance, or vehicle compatibility inquiries, please contact Autel support directly via email:
autelsupply@outlook.com
Autel provides 24/7 technical support to assist users with their product-related questions and issues.
