Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your CANEST Smart Toilet FC-001P. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.
Precaucions de seguretat
Always follow basic safety precautions when using electrical products, especially when children are present. To reduce the risk of electrocution, fire, or injury, please observe the following:
- No manipuleu l'endoll elèctric amb les mans mullades.
- No submergiu el producte en aigua o altres líquids.
- Unplug the product from the outlet when not in use or before cleaning.
- No permeteu que els nens juguin amb l'aparell.
- Assegureu-vos d'una connexió a terra adequada per a les connexions elèctriques.
- Do not attempt to repair or modify the product yourself. Contact qualified service personnel for assistance.
Producte acabatview
The CANEST Smart Toilet FC-001P is designed to provide enhanced comfort and hygiene with its integrated bidet features and smart functionalities. Key components include:
- Integrated Bidet with adjustable warm water and self-cleaning nozzle.
- Heated Seat with adjustable temperature settings.
- Foot Sensor for touchless flushing.
- Dual-Flush System (1.1/1.6 GPF) for water efficiency.
- Night Light for gentle illumination in the dark.
- Wireless Remote Control for convenient operation.
- Automatic Deodorization system.
- Soft-Close Lid and Seat.
- ADA Comfort Height (17 inches).
- Built-in Tank for zero water pressure flushing.
Figure 1: CANEST Smart Toilet FC-001P with its wireless remote control and foot sensor feature highlighted.
Configuració i instal·lació
Installation should be performed by a qualified professional to ensure compliance with local plumbing and electrical codes. The product includes an instruction manual and mounting kits for installation.
Llista de verificació prèvia a la instal·lació:
- Verify rough-in dimensions (12 inches recommended).
- Ensure a 120V electrical outlet is available near the installation area.
- Confirm water supply line is accessible.
Components inclosos:
- One CANEST Smart Toilet unit
- Manual d'instruccions
- Kits de muntatge
- Control remot
- Vàlvula d'angle
- Anell de cera
- Spare Battery Box
Figure 2: Product dimensions and a list of included installation components.
Instruccions de funcionament
Your CANEST Smart Toilet offers a variety of features for a comfortable and hygienic experience. All functions can be controlled via the wireless remote or integrated sensors.
1. Foot Sensor Operation
The toilet features a touchless foot sensor for flushing. Simply tap the sensor with your foot to activate the flush. This enhances hygiene by eliminating the need to touch the toilet directly.
Figure 3: Illustration of foot sensor flushing and off-seat auto flushing.

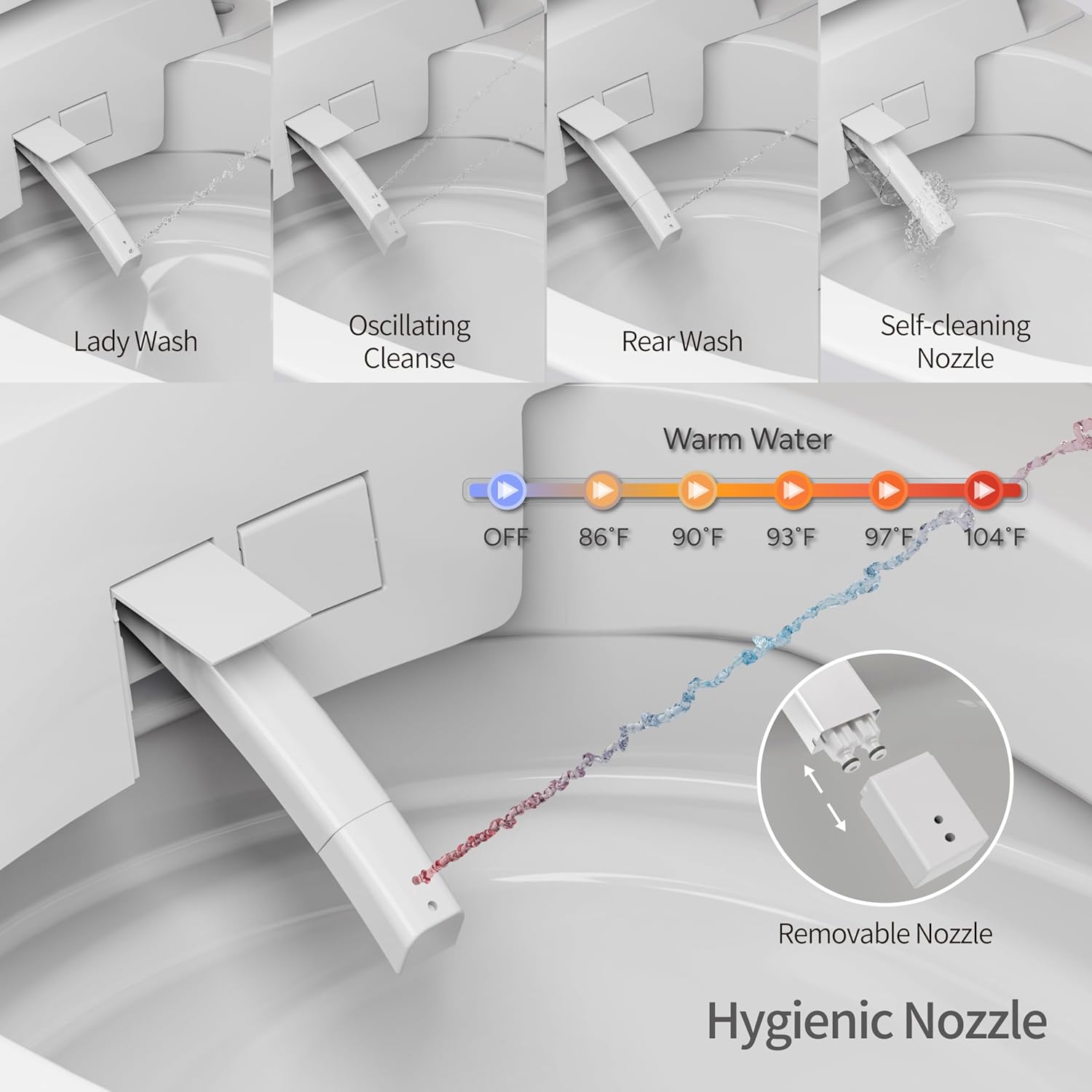

2. Bidet Functions
The integrated bidet offers multiple wash modes with adjustable warm water. Use the remote control to select your preferred settings.
- Rentat posterior: Per a la neteja posterior.
- Lady Wash: Gentle wash for feminine hygiene.
- Neteja oscil·lant: Nozzle moves back and forth for wider coverage.
- Temperatura de l'aigua ajustable: Select from various warm water settings (e.g., 86°F to 104°F).
- Broquet autonetejant: The nozzle automatically cleans itself before and after each use. The nozzle is also removable for manual cleaning.
Figure 4: Bidet nozzle functions and warm water temperature options.
3. Heated Seat
The seat can be heated to your desired comfort level. Adjust the seat temperature using the remote control.
Figure 5: The elongated heated seat with temperature controls.
4. Assecador d'aire calent
After washing, use the warm air dryer function to complete your cleansing experience. Temperature is adjustable.
Figure 6: Warm air dryer mechanism and temperature options.
5. Dual Auto Flush Options
The toilet offers both single flush (1.28 GPF) and dual flush (1.6/1.1 GPF) options to optimize water usage. The system automatically detects usage and flushes accordingly, or you can select full or half flush via the remote.
Figure 7: The 1000g MaP flushing score, indicating powerful and efficient flushing.
6. Llum nocturna
A built-in night light provides soft illumination, guiding you in the dark without needing to turn on bright bathroom lights.
Figure 8: The night light feature providing gentle illumination.
7. Automatic Deodorization
The smart toilet includes an automatic deodorization system that activates after each use, keeping your bathroom fresh.
Figure 9: Automatic deodorization system in action.
8. Control remot
The wireless remote control allows you to manage all features, including water temperature, seat temperature, wash modes, and flush options. The LED display on the toilet provides real-time information.
Figure 10: Wireless remote control and LED display for function management.
9. ADA Comfort Height
With a 17-inch ADA compliant comfort height seat, this toilet is designed for ease of use for all individuals, including seniors and those with mobility challenges.
Figure 11: ADA compliant comfort height for improved accessibility.
10. Zero Water Pressure Flushing
Equipped with a built-in tank, the CANEST Smart Toilet can operate effectively even with zero water pressure, making it suitable for households with low water pressure.
Figure 12: Built-in tank for zero water pressure flushing.
11. Blackout Flushing System
The toilet is designed with a blackout flushing system, ensuring it can still flush during power outages.
Figure 13: Blackout flushing system for continued operation during power interruptions.
12. SIAA Antibacterial Seat
The toilet features an SIAA antibacterial seat with an ultra-smooth base glaze and silver ionized composite glaze, promoting a healthy and sanitary bathroom environment.
Figure 14: SIAA antibacterial seat for enhanced hygiene.
Vídeos oficials de productes:
Vídeo 1: Acabatview of the CANEST Smart Toilet's features, including the auto-opening lid, remote control, and temperature display. This video demonstrates the product's ease of use and various smart functions.
Video 2: Demonstration of the CANEST Smart Toilet's foot sensor flushing and remote control operation. This video highlights the touchless convenience and powerful flushing capabilities.
Manteniment
Regular cleaning and maintenance will ensure the longevity and optimal performance of your CANEST Smart Toilet.
- Neteja: Use mild, non-abrasive cleaners. Avoid harsh chemicals, bleach, or abrasive pads that can damage the ceramic or plastic surfaces.
- Neteja de broquets: The bidet nozzle is self-cleaning. For deeper cleaning, it can be removed as shown in Figure 4.
- Manteniment del filtre: Reviseu i netegeu periòdicament el filtre d'entrada d'aigua per evitar obstruccions i mantenir el flux d'aigua.
- Apagar: Always unplug the toilet from the power outlet before performing any maintenance or cleaning.
Resolució de problemes
If you encounter any issues with your CANEST Smart Toilet, refer to the following common troubleshooting steps:
| Problema | Causa possible | Solució |
|---|---|---|
| Sense engegada/pantalla apagada | Cable d'alimentació desconnectat, interruptor automàtic saltat. | Comproveu la connexió d'alimentació, reinicieu l'interruptor automàtic. |
| Bidet not spraying water | Water supply valve closed, nozzle blocked, water filter clogged. | Open water supply valve, clean nozzle, clean water filter. |
| El seient calefactat no funciona | Temperature setting too low, power saving mode active. | Adjust seat temperature via remote, disable power saving mode. |
| Flushing issues | Low water pressure (unlikely with built-in tank), sensor obstruction. | Ensure foot sensor is clear, check water supply. |
| El comandament a distància no respon | Batteries low or dead, remote out of range. | Replace batteries, ensure remote is within operating range. |
If the problem persists after attempting these solutions, please contact CANEST customer support.
Especificacions
| Característica | Detall |
|---|---|
| Marca | CANEST |
| Número de model | FC-001P |
| Dimensions del producte | 28 "P x 16.7" W x 19.9" H |
| Material | Ceràmica (WC), Polipropilè (PP) (Seient) |
| Pes de l'article | 96 lliures |
| Tipus d'instal·lació | Muntat al terra |
| Forma | Oval |
| Flushing Mode | Raig sifònic |
| Mètode de drenatge | Desguàs cap avall |
| Dual Flush Options | 1.28 GPF (Single), 1.6/1.1 GPF (Dual) |
| MaP Flush Score | 1000 g |
| Altura de confort | 17 inches (ADA Compliant) |
| Voltage | 120 V |
| Certificacions | UL, CUPC Listed |
Garantia i Suport
CANEST provides a 1 any de garantia on all mechanical parts and the bidet seat. For any issues regarding installation, function, or quality, please contact CANEST customer support. We aim to respond within 24 hours and offer free replacement for damaged or defective units (proof such as photos, videos, and product barcode may be required for faster service).
Per obtenir més ajuda, visiteu el CANEST Store on Amazon.
