Introducció
Thank you for choosing the NPET Stainless Steel Wireless Pet Fountain. This automatic pet drinking fountain is designed to provide fresh, clean water for your pets, promoting better hydration and health. Its wireless design offers flexibility in placement, and the multi-layer filtration system ensures water quality. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your fountain.
Informació de seguretat
- Assegureu-vos que la font estigui col·locada sobre una superfície estable i plana per evitar vessaments.
- Do not immerse the main control module in water.
- Mantingueu sec el port de càrrega.
- Feu servir només el cable USB tipus C proporcionat per carregar.
- Regularly inspect the fountain for any damage or wear. Discontinue use if damaged.
- Aquest producte només està pensat per a ús interior.
Contingut del paquet
Desembaleu la caixa amb cura i assegureu-vos que hi hagi tots els elements:

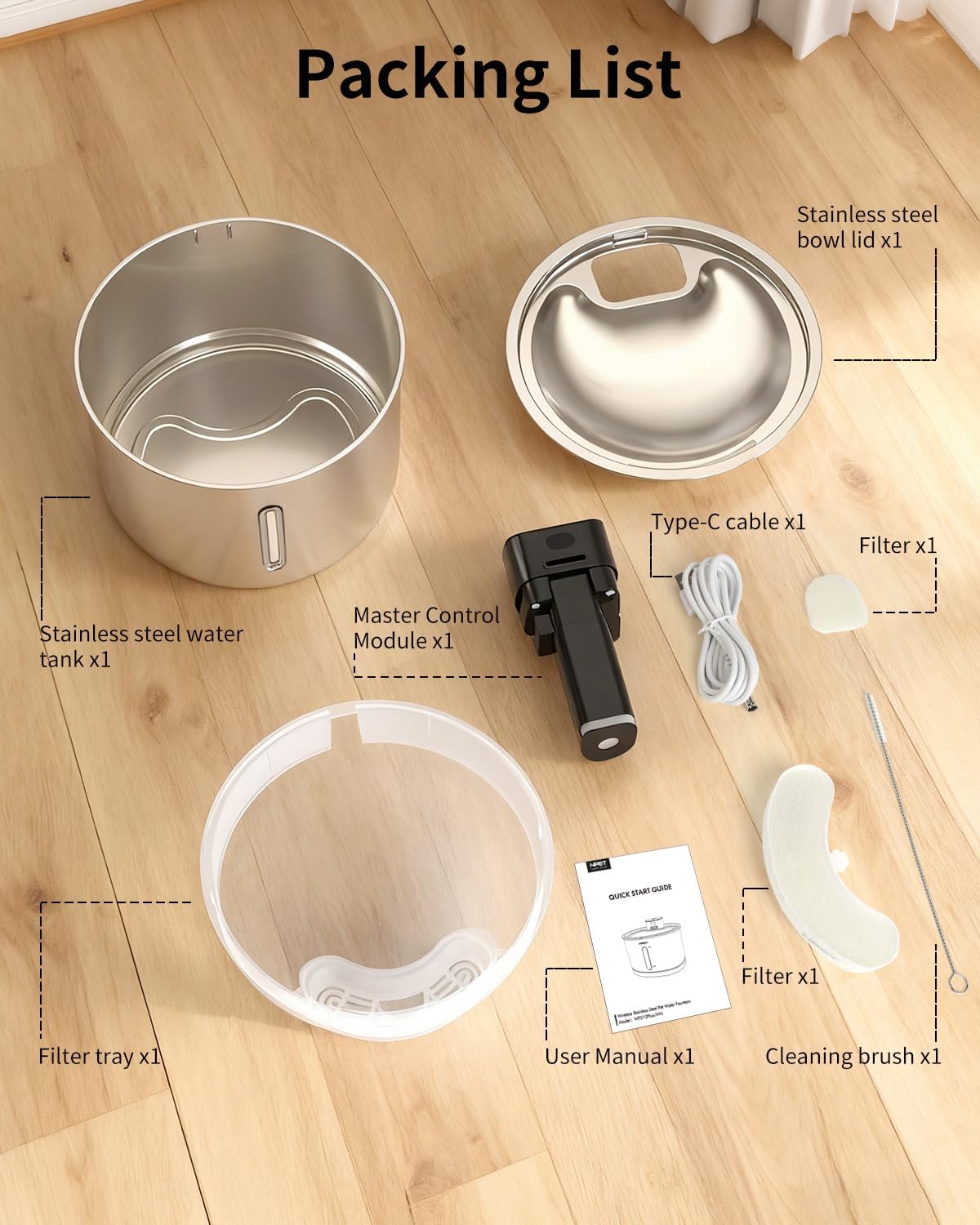

Image: All components of the NPET Stainless Steel Wireless Pet Fountain, including the stainless steel water tank, bowl lid, master control module, filter tray, two filters, cleaning brush, Type-C cable, and user manual.
- Stainless Steel Water Tank (x1)
- Stainless Steel Bowl Lid (x1)
- Master Control Module (x1)
- Filter Tray (x1)
- Filtre (x2)
- Raspall de neteja (x1)
- Cable USB tipus C (x1)
- Manual d'usuari (x1)
Instruccions de configuració
- Prepareu el filtre: Submerge the new filter in clean water for 5-10 minutes to remove any loose carbon dust and ensure proper water flow.
- Assemble the Filter System: Place the pre-soaked filter into the filter tray. Ensure it sits securely.
- Install the Master Control Module: Insert the master control module into the designated slot in the stainless steel water tank.
- Place the Filter Tray: Position the filter tray with the filter onto the master control module within the water tank.
- Omplir amb aigua: Fill the stainless steel water tank with clean water up to the 'MAX' line indicated on the water level window. Do not overfill.
- Place the Bowl Lid: Carefully place the stainless steel bowl lid on top of the water tank, ensuring it is properly seated.
- Encès: Press the power button on the master control module to turn on the fountain.

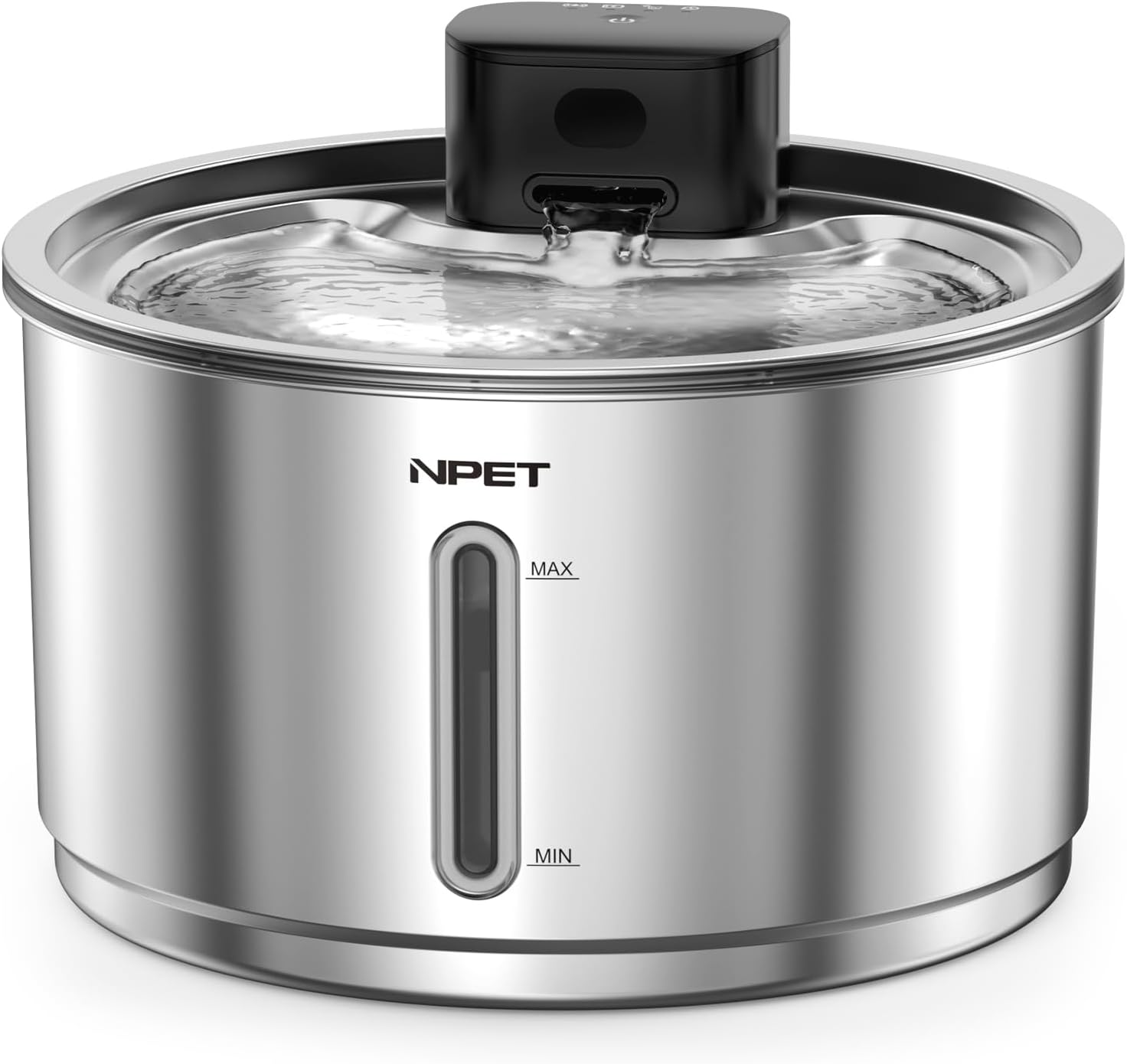

Image: The fully assembled NPET Stainless Steel Wireless Pet Fountain, showing water gently flowing from the spout and the water level window.
Instruccions de funcionament
Water Modes
The fountain features three distinct water modes to suit your pet's drinking habits and conserve energy:

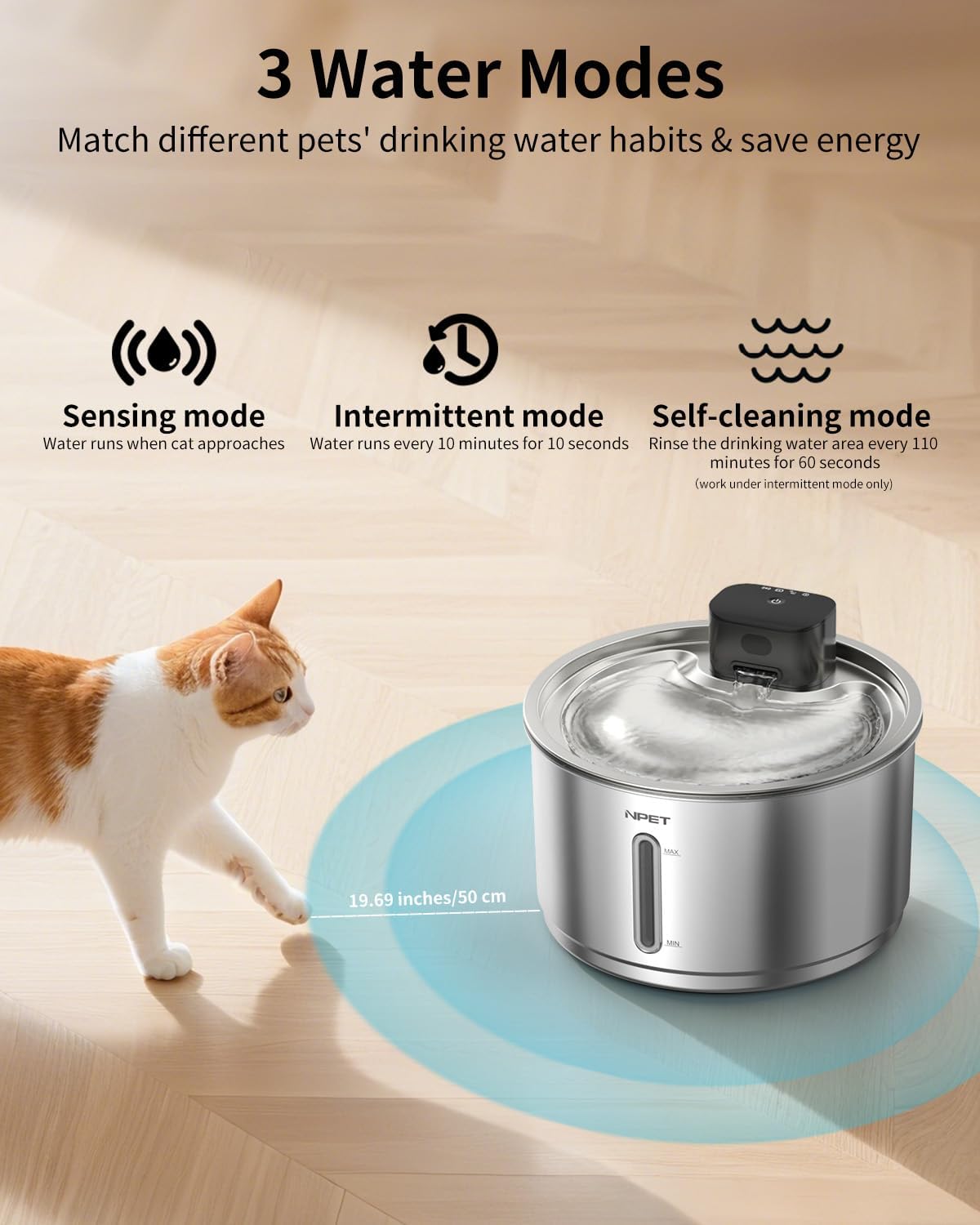

Image: A cat observing the NPET pet fountain, with graphical representations of the three water modes: Sensing mode (water runs when pet approaches), Intermittent mode (water runs 10s every 10 minutes), and Self-cleaning mode (rinses drinking area for 60s every 110 minutes, works during intermittent mode only).
- Mode de detecció: When your pet approaches the fountain, the water flow automatically activates. This mode is energy-efficient as water only flows when needed.
- Mode intermitent: Double-click the power button to switch to this mode. Water flows for 10 seconds every 10 minutes. This mode helps maintain water freshness while conserving battery life.
- Self-cleaning Mode: This mode operates during the intermittent mode. The drinking area is rinsed for 60 seconds every 110 minutes to prevent buildup.
Funcionament i càrrega de la bateria
The fountain is equipped with a built-in 4000mAh battery, providing extended operation. Under intermittent mode, the fountain can operate for up to 50 days on a single charge.
Image: An internal diagram of the NPET pet fountain highlighting the 4000mAh battery and the pump system, illustrating its long-lasting power capability.
When the battery is low, a red light indicator will illuminate, reminding you to recharge the fountain. Connect the provided Type-C USB cable to the charging port on the master control module and a suitable power adapter (not included).
Finestra de nivell d'aigua
The integrated water level window allows for easy monitoring of the water volume. Ensure the water level remains between the 'MIN' and 'MAX' indicators. When the water level is low, a red light reminder will activate, indicating it's time to add more water.
Image: The NPET pet fountain displaying two indicator lights: one for normal water supply and a red light for a reminder to add water, indicating water shortage or power outagprotecció.
The fountain has a 1-gallon (135oz) capacity, which can provide water for cats for up to 10 days or dogs for approximately 3 days, reducing the frequency of refills.
Image: The NPET pet fountain highlighting its 1 Gallon water capacity, with visual indicators suggesting it can last for 3 days for dogs and 10 days for cats, making it suitable for multi-pet households.
Manteniment
Neteja de la font
Regular cleaning is essential to maintain hygiene and extend the life of the fountain. The stainless steel components are easy to clean.
- Desmuntatge: Turn off the fountain and unplug the charging cable. Remove the bowl lid, filter tray, and master control module.
- Components nets: Wash the stainless steel water tank and bowl lid with mild soap and water. Rinse thoroughly.
- Clean the Master Control Module: Use the provided cleaning brush to clean the pump and any internal components of the master control module. Do not immerse the entire module in water.
- Torneu a muntar: Ensure all parts are dry before reassembling the fountain.
Substitució del filtre
The fountain utilizes a 5-layer filtration system to ensure clean and fresh water for your pets.

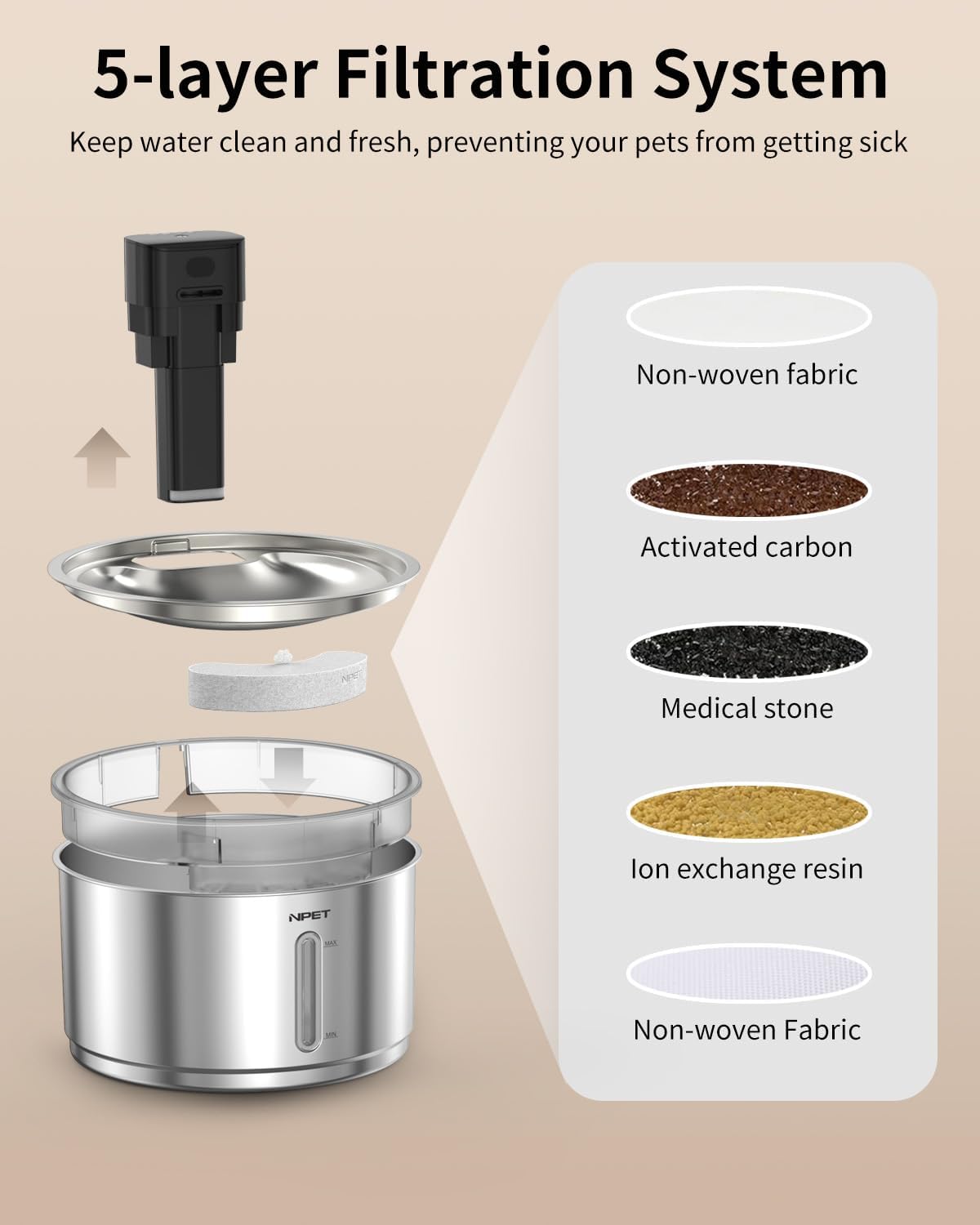

Image: An exploded diagram illustrating the 5-layer filtration system of the NPET pet fountain, detailing the layers: non-woven fabric, activated carbon, medical stone, ion exchange resin, and another non-woven fabric layer.
The filter consists of sponge, activated carbon, medical stone, ion exchange resin, and non-woven fabric. For optimal filtration, it is recommended to replace the filter every 2-4 weeks, depending on the number of pets and water quality.
- Elimina el filtre antic: Disassemble the fountain as described above and remove the used filter from the filter tray.
- Instal·la un filtre nou: Prepare a new filter by soaking it in water for 5-10 minutes. Place the new filter securely into the filter tray.
- Torneu a muntar: Reassemble the fountain and refill with fresh water.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Water not flowing or weak flow | Low water level, clogged filter, dirty pump, low battery. | Refill water to MAX line. Replace filter. Clean pump thoroughly. Recharge battery. |
| La font fa soroll | Low water level, dirty pump, improper assembly. | Ensure water is at adequate level. Clean pump. Check if all components are assembled correctly. |
| La llum indicadora vermella està encès | Curta d'aiguatage, low battery. | Add water to the fountain. Recharge the battery. |
| La font no s'encén | Battery depleted, faulty power button. | Recharge the battery completely. If issue persists, contact customer support. |
The fountain is designed to be ultra-silent, creating a quiet environment for you and your pets.
Image: A cat sleeping beside the NPET pet fountain, illustrating its ultra-silent operation. A graphic compares its noise level (30 dB) to a library (45 dB) and chat (60 dB).
Especificacions
| Característica | Detall |
|---|---|
| Nom del model | PETWF210Plus-WM-US |
| Marca | NPET |
| Material | Acer inoxidable |
| Capacitat | 1 Gallon (135 oz) |
| Font d'alimentació | Alimentat per bateria (4000 mAh) |
| Battery Life (Intermittent Mode) | Fins a 50 dies |
| Pes de l'article | 2.31 lliures |
| Dimensions del producte (LxWxH) | 9.06 x 9.06 x 5.51 polzades |
| Sistema de filtració | 5-layer (Sponge, Activated Carbon, Medical Stone, Ion Exchange Resin, Non-woven Fabric) |
| Públic objectiu | Cats, All Breed Sizes, All Life Stages |
| Usos específics | Interior |
Garantia i suport
This NPET product comes with a 1 any de garantia des de la data de compra. Aquesta garantia cobreix els defectes de fabricació i els problemes derivats de l'ús normal.
For warranty claims, technical support, or any questions regarding your NPET Stainless Steel Wireless Pet Fountain, please contact NPET customer service. Refer to the contact information provided on the product packaging or the official NPET weblloc.
Please have your model number (PETWF210Plus-WM-US) and proof of purchase ready when contacting support.
