Ufesa Steamy Pad Vertical Steam Iron - Instruction Manual

1. Introducció

The Ufesa Steamy Pad vertical steam iron is designed for efficient and convenient garment care. With its powerful steam output and adjustable settings, it helps remove wrinkles from various fabrics quickly and effectively. This manual provides essential information for the safe and proper use, assembly, operation, maintenance, and troubleshooting of your appliance.

Figure 1: Ufesa Steamy Pad Vertical Steam Iron in use with garments.

2. Instruccions de seguretat

Llegiu atentament totes les instruccions de seguretat abans d'utilitzar l'aparell. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis o lesions greus.

• Assegureu-vos sempre que l'aparell estigui desendollat ​​abans d'omplir o buidar el dipòsit d'aigua o quan no estigui en ús.
• No submergiu l'aparell, el cable d'alimentació ni l'endoll en aigua ni en altres líquids.
• Keep the steam head away from your body, hands, and face during operation to avoid steam burns.
• Use only distilled or demineralized water to prevent mineral buildup and prolong the life of the appliance.
• Do not operate the appliance with a damaged cord or plug. Contact customer service for repairs.
• Mantenir fora de l'abast dels nens i mascotes.
• Place the appliance on a stable, flat surface during use.

3. Components del producte

Familiarize yourself with the parts of your Ufesa Steamy Pad vertical steam iron:

• Unitat base: Conté el dipòsit d'aigua, l'element calefactor i el panell de control.
• Dipòsit d'aigua: Removable 1.35L capacity tank for water.


  Figure 2: Water tank with visible water level.
• Control Panel with LCD Screen: Allows selection of 9 steam levels.

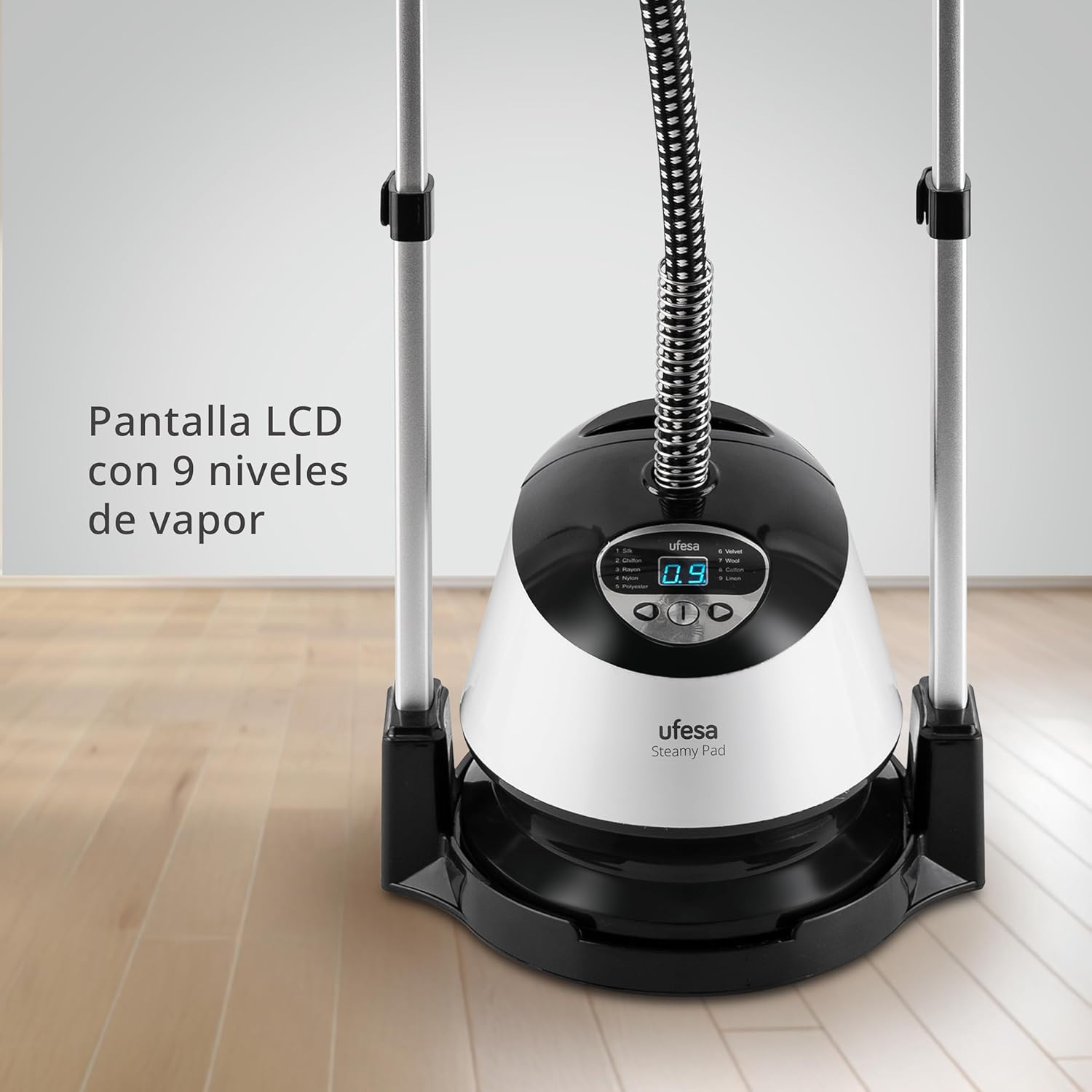

  Figure 3: LCD control panel for steam level selection.

• Pol telescòpic: Adjustable height pole for comfortable steaming.
• Steam Head/Nozzle: Delivers steam to garments.
• Mànega: Connects the base unit to the steam head.
• Vertical Curtain/Hanger: Provides a stable surface for steaming clothes.

4. Configuració

1. Muntatge: Assemble the telescopic pole and attach the vertical curtain/hanger securely to the top.
2. Water Tank Fill: Remove the water tank from the base unit. Fill it with distilled or demineralized water up to the MAX line. Reinsert the tank firmly into the base unit.
3. Connexió de la mànega: Ensure the steam hose is securely connected to the base unit and the steam head.
4. Connexió d'alimentació: Connecteu el cable d'alimentació a una presa de corrent adequada.

5. Instruccions de funcionament

The Ufesa Steamy Pad heats up in approximately 1 minute, providing up to 40 minutes of continuous steam.

1. Engegar i escalfar: Turn on the appliance. The LCD screen will indicate heating. Wait for approximately 1 minute until the appliance is ready to produce steam.
2. Selecciona el nivell de vapor: Use the control panel to select one of the 9 available steam levels. Choose a lower setting for delicate fabrics and a higher setting for heavier materials.
3. Prepara la roba: Hang the garment on the vertical curtain/hanger. Gently pull the fabric taut with one hand while applying steam with the other.
4. Tècnica de vaporització: Hold the steam head a few centimeters from the fabric and move it in a downward motion. For stubborn wrinkles, press the steam head gently against the fabric.
5. Vapor continu: The 1.35L water tank allows for up to 40 minutes of continuous steaming, ideal for multiple garments or larger items like curtains.

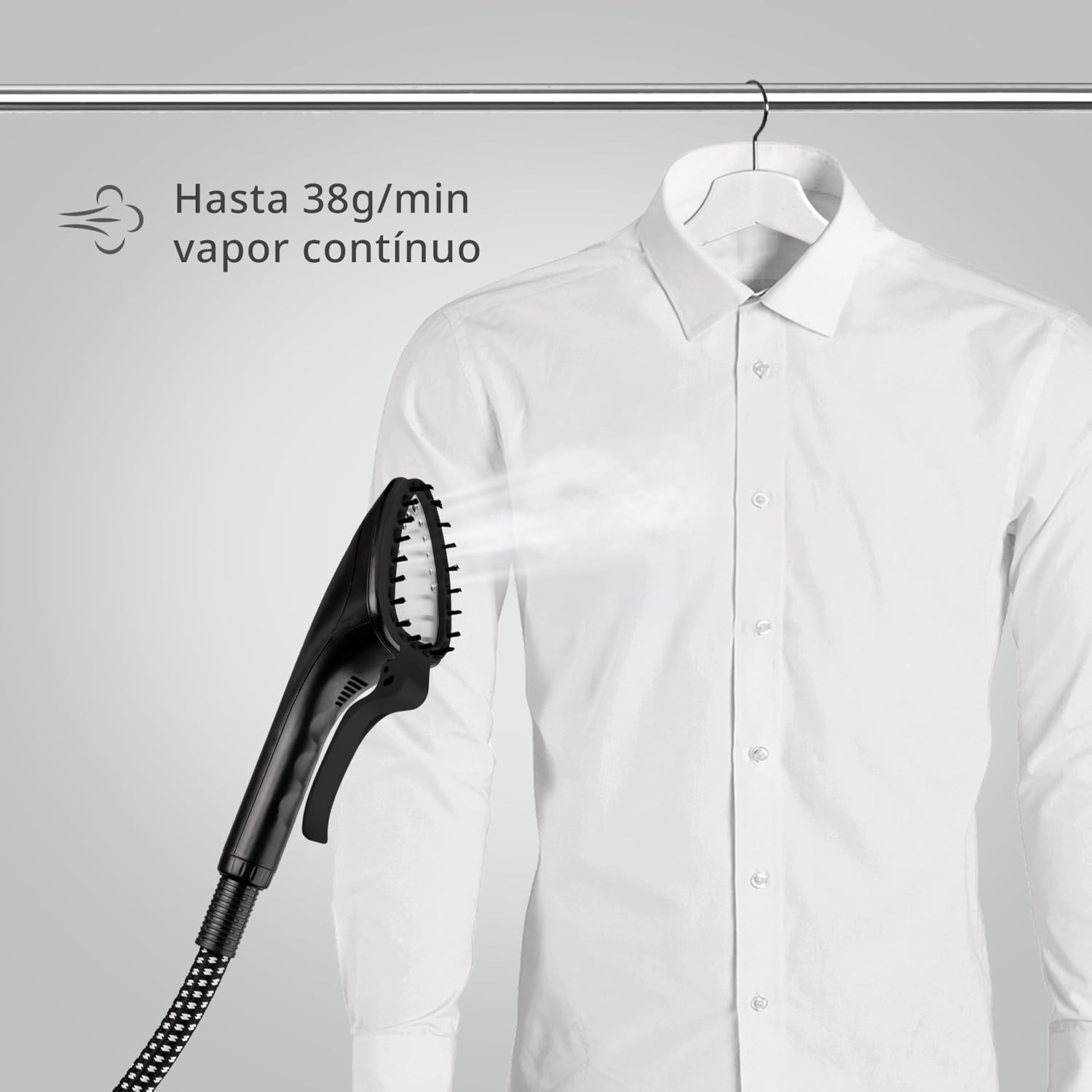

Figure 4: Steam head in action, removing wrinkles from a shirt.

Figure 5: Steam head positioned on a shirt for vertical steaming.

Vídeos d'operacions

6. Manteniment i Neteja

Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de la planxa de vapor.

• Dipòsit d'aigua buit: After each use, unplug the appliance and allow it to cool. Remove the water tank and empty any remaining water.
• Descalcificació: To prevent mineral buildup, descale the appliance every few months or as needed, depending on water hardness. Follow the manufacturer's instructions for descaling solutions or use a mixture of white vinegar and water.
• Capçal de vapor net: Netegeu el capçal de vapor amb anunciamp drap per eliminar qualsevol residu. No utilitzeu productes de neteja abrasius.
• Emmagatzematge: Store the appliance in a cool, dry place. Ensure the water tank is empty and the hose is not kinked.

7. Solució De Problemes

Si teniu algun problema, consulteu els següents problemes i solucions habituals:

• Sense vapor: Check if the water tank is filled and properly inserted. Ensure the appliance is plugged in and powered on. Allow sufficient time for preheating.
• Fuita d'aigua: Ensure the water tank cap is securely closed and the tank is correctly seated in the base. Check for any cracks in the hose or steam head.
• Sortida de vapor baixa: The appliance may need descaling if mineral buildup is present. Ensure the steam level is set appropriately for the fabric.
• L'aparell no s'encén: Verify the power cord is securely plugged into a working outlet. Check the power switch on the appliance.

If the problem persists, please contact Ufesa customer support.

8. Especificacions

9. Garantia i Suport

Your Ufesa Steamy Pad vertical steam iron comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions.

For technical support, spare parts, or warranty claims, please contact Ufesa customer service through their official weblloc web o la informació de contacte que es proporciona a la documentació del producte.

Conserveu el tiquet de compra com a comprovant de compra a efectes de garantia.
