Raddy PT-5 Solar Pool Thermometer Instruction Manual

Introducció

The Raddy PT-5 is a floating solar pool thermometer designed for accurate temperature monitoring in various water bodies such as swimming pools, hot tubs, ponds, aquariums, and ice baths. It features a clear digital display and dual power options for continuous operation, ensuring reliable temperature readings even on cloudy days.

Image: The Raddy PT-5 thermometer, showcasing its floating design and vibrant green and white colors, with water splashing around its base.

Contingut del paquet

Si us plau, verifiqueu que tots els elements siguin presents al paquet:

• 1 x Raddy PT-5 Solar Pool Thermometer
• 1 x cable de càrrega USB-C
• 1 x manual d'instruccions
• 1 x Tether Rope

Image: The retail packaging for the Raddy PT-5 Pool Thermometer, displaying the product name and an illustration of the thermometer.

Especificacions

Image: A detailed diagram highlighting the solar panel, USB-C charging port, temperature display, and power/°C/°F switch, along with the product dimensions.

Image: The Raddy PT-5 thermometer floating in a pool, with an inset showing a close-up of its high-accuracy sensor, indicating an accuracy of ±1°C (2°F).

Configuració

1. Càrrega inicial: Before first use, ensure the thermometer is fully charged. It can be charged via its built-in solar panel by placing it in direct sunlight, or by connecting the included USB-C cable to the charging port. A full charge ensures optimal performance.

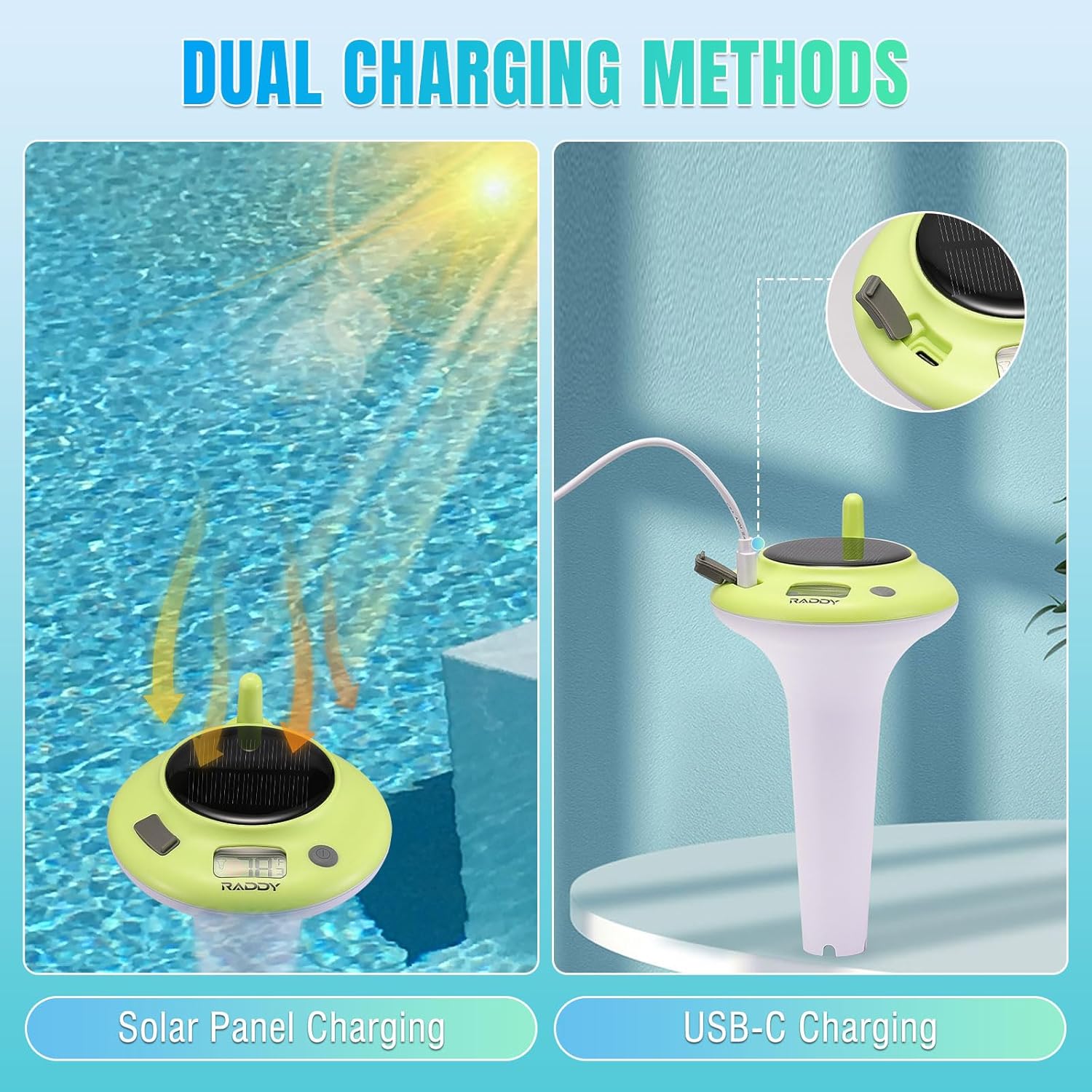

   Image: Illustrations demonstrating the dual charging methods: solar panel charging in sunlight and USB-C charging via cable.

2. Encès: Press and hold the power button (usually located near the display) for approximately 3 seconds to turn on the device. The digital display should illuminate.
3. Attach Tether (Optional): If you wish to keep the thermometer anchored in a specific location within your pool or pond, thread the included tether rope through the designated loop on the thermometer and secure it to a fixed point.
4. Col·locació: Gently place the Raddy PT-5 thermometer into the water body you wish to monitor. Ensure it floats freely and the solar panel is exposed to light for continuous charging.

Instruccions de funcionament

• Temperatura de lectura: The current water temperature will be displayed prominently on the digital LCD screen.
• Unitats de temperatura de commutació: To switch between Celsius (°C) and Fahrenheit (°F), briefly press the power button. The display will toggle between the two units.
• Indicador de bateria baixa: If the low battery symbol flashes on the display, it indicates that the product has not been charged sufficiently by solar power. Please use the USB-C cable to fully charge the device.
• Apagar: To turn off the thermometer, press and hold the power button for 3 seconds.

Image: A visual representation of the Raddy PT-5 thermometer's versatility, showing its use in a swimming pool, hot spring, bathtub, and aquarium.

Manteniment

• Neteja: Regularly wipe the thermometer's surface, especially the solar panel and display, with a soft, damp cloth to remove dirt, debris, or mineral buildup. Do not use abrasive cleaners or solvents.
• Càrrega: Ensure the solar panel receives adequate sunlight for optimal charging. If the device is used in low-light conditions or indoors, utilize the USB-C charging port to maintain battery levels.

  Image: A graphic emphasizing the 1200mAh rechargeable battery of the Raddy PT-5 thermometer, illustrating its power capacity.

• Emmagatzematge: When not in use for extended periods, clean the thermometer and store it in a cool, dry place away from direct sunlight and extreme temperatures.

Resolució de problemes

Garantia i Suport

For warranty information and technical support, please refer to the official Raddy weblloc o contacteu directament amb el servei d'atenció al client.

• Weblloc: www.iraddy.com
• Correu electrònic: support@iraddy.com

Image: The back of the product box, displaying contact information for Raddy support.
