VANNECT Upgraded Walking Pad Instruction Manual

1. Introducció

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your VANNECT Upgraded Walking Pad. Please read this manual thoroughly before initial use and retain it for future reference.

2. Informació de seguretat

Always follow basic safety precautions when using this appliance to reduce the risk of injury, electric shock, fire, and damage to the equipment.

• Assegureu-vos que la cinta de córrer es col·loca sobre una superfície plana i estable.
• Mantingueu els nens i les mascotes lluny de la cinta de córrer durant el funcionament.
• No feu servir la cinta de córrer si té el cable o l'endoll danyats o si no funciona correctament.
• Porteu calçat esportiu adequat.
• Use the safety key at all times. Attach the clip to your clothing before starting.
• Do not exceed the maximum weight capacity of 400 LBS (approximately 181 kg).
• Consulteu un metge abans de començar qualsevol programa d'exercici.

3. Producte acabatview

The VANNECT Upgraded Walking Pad is a versatile fitness machine designed for walking, jogging, and running, suitable for home or office use. It features an incline function, a powerful motor, and smart connectivity.

Figure 3.1: The VANNECT Upgraded Walking Pad with a user demonstrating its walking function. Note the 12% incline capability indicated on the image.

Components clau:

• Cinturó de running: Multi-layer, anti-slip belt for comfortable and safe exercise.
• Motor: High-performance 2.75HP/3.0HP quiet motor for smooth operation.
• Tauler de visualització: LED display showing time, speed, distance, calories, and heart rate.
• Nanses: Safety grip handles for support and stability.
• Incline Mechanism: Manual incline adjustment up to 12%.
• Magnetic Remote Control: For convenient speed and mode adjustments.
• Sistema d'absorció de xoc: 8 built-in shock absorbers and 2 silicone shock pads.

Figura 3.2: Un intern view highlighting the upgraded 3.0HP motor, designed for powerful yet quiet operation.

Figure 3.3: Illustration of the treadmill's two-tier architecture, including the 2-layer running deck, 2-layer silicone pads, 8 shock absorbers, and 7-layer non-slip running belt, all contributing to optimized performance and comfort.

Figura 3.4: Una imatge de dalt a baix view of the running track, indicating its ample size of 106.98 cm in length and 42 cm in width, providing sufficient space for comfortable walking or running.

4. Configuració

The VANNECT Upgraded Walking Pad requires minimal assembly. It is designed for quick setup to allow you to begin your workout promptly.

1. Desembalatge: Carefully remove the treadmill from its packaging. Retain all packaging materials for potential future transport or storage.
2. Col·locació: Place the treadmill on a flat, stable, and non-slip surface. Ensure there is adequate clear space around the treadmill for safe operation (at least 2 meters behind and 1 meter on each side).
3. Unfolding (if applicable): If the treadmill is in a folded position, gently unfold it according to the instructions provided in the quick start guide. Ensure all locking mechanisms are securely engaged before use.
4. Connexió d'alimentació: Connecteu el cable d'alimentació a una presa elèctrica amb connexió a terra.
5. Clau de seguretat: Locate the safety key and attach the clip to your clothing. The treadmill will not operate without the safety key in place.

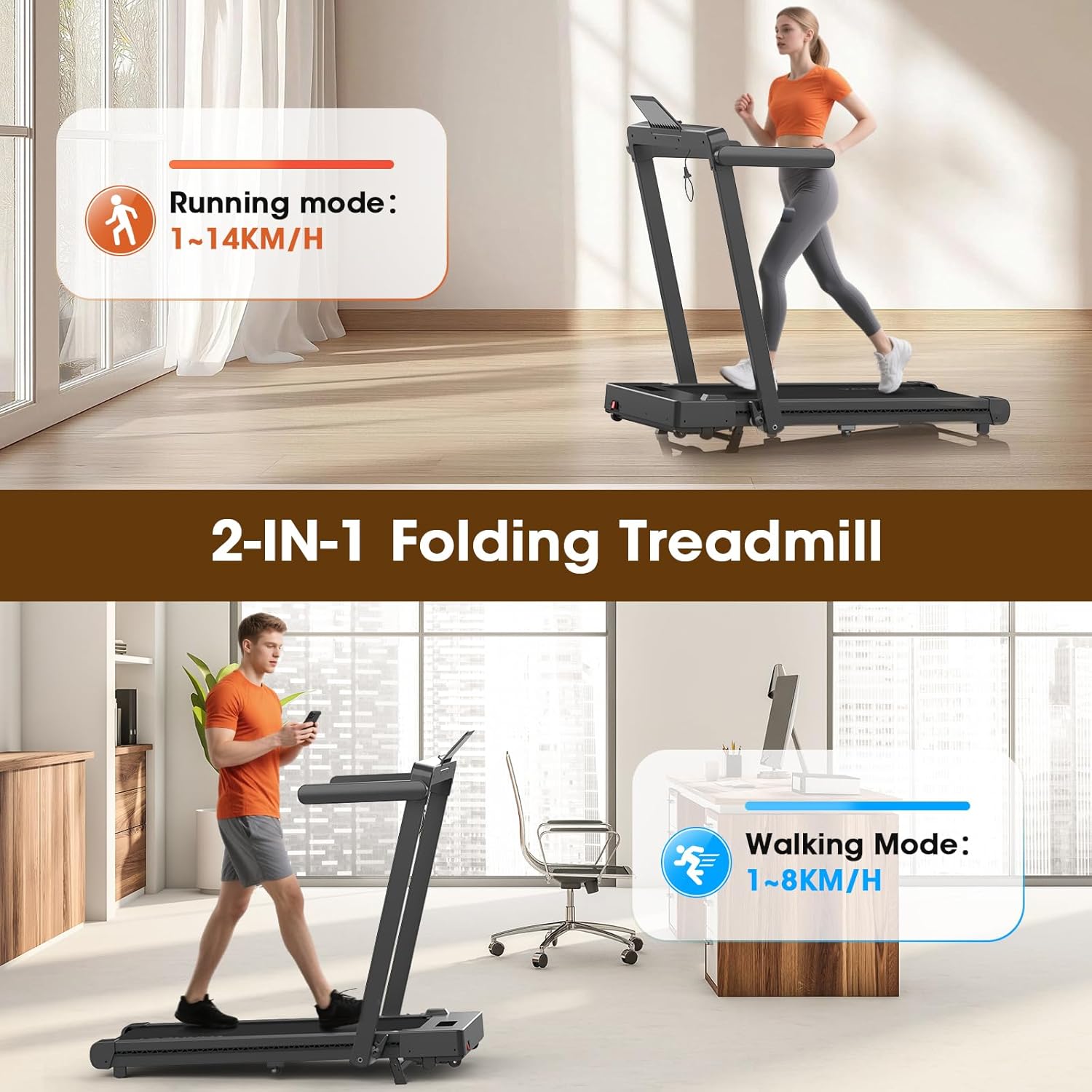

Figure 4.1: The 2-in-1 folding design of the treadmill, illustrating its compact form for storage and its upright position for running (1-14 KM/H) and flat position for walking (1-8 KM/H) under a desk.

5. Instruccions de funcionament

This section details how to operate your VANNECT Upgraded Walking Pad for various exercise routines.

5.1 Funcionament bàsic

1. Encès: Press the power button on the console. The display will illuminate.
2. Adjuntar la clau de seguretat: Ensure the safety key is properly inserted into its slot on the console and the clip is attached to your clothing.
3. Començar l'exercici: Press the "Start" button. The belt will begin to move at a low speed.
4. Ajustar velocitat: Use the "+" and "-" buttons on the console or the magnetic remote control to adjust the speed. The speed range is 1-14 KM/H.
5. Stop Exercise: Press the "Stop" button to gradually slow down and stop the belt. In case of emergency, pull the safety key to immediately stop the treadmill.

5.2 Ajust d'inclinació

The treadmill features a manual incline function up to 12%. To adjust the incline:

1. Ensure the treadmill is stopped and powered off.
2. Locate the incline adjustment points at the rear of the treadmill.
3. Manually lift or lower the rear of the treadmill to select the desired incline level (0% or 12%). Ensure it is securely locked into position before resuming exercise.

Figure 5.1: The treadmill's double-level manual incline feature, allowing users to switch between 0% incline (360 Kcal/H burn) and 12% incline (800 Kcal/H burn) for varied workout intensity. The maximum weight capacity is 400 LBS.

5.3 Display and Data Tracking

The LED display provides real-time feedback on your workout progress.

Figure 5.2: The multi-function LED display, clearly showing real-time data such as time, calories burned, distance, speed, and heart rate. It also indicates 12 pre-set programs and Bluetooth connectivity.

• Hora: Durada del teu entrenament.
• Calories: Calories cremades estimades.
• Distància: Distància total recorreguda.
• Velocitat: Current speed of the running belt.
• Freqüència cardíaca: Monitored via sensors on the handles.
• Programes: Select from 12 pre-set workout programs for varied intensity.

5.4 App Connectivity and Speaker

Enhance your workout experience by connecting your device to the treadmill.

Figure 5.3: A user engaging with the treadmill's wireless APP Sync feature, allowing for live training, heart rate tracking, and quiet belt drive. The image also highlights Bluetooth speaker functionality for music playback during workouts.

• Altaveu Bluetooth: Connect your smartphone or other Bluetooth-enabled device to the treadmill's built-in speaker to play music.
• Integració d'aplicacions: The treadmill supports app connectivity for tracking workouts, accessing training programs, and potentially participating in virtual runs. Refer to the specific app's instructions for pairing and usage.

6. Manteniment

Regular maintenance ensures the longevity and optimal performance of your walking pad.

• Neteja: Netegeu la cinta de córrer amb anuncisamp drap després de cada ús per eliminar la suor i la pols. No utilitzeu productes de neteja abrasius ni dissolvents.
• Lubricació de corretja: The running belt requires periodic lubrication to reduce friction and extend its lifespan. Use the provided lubricating oil or a silicone-based treadmill lubricant. Refer to the quick start guide for specific lubrication intervals and instructions.
• Tensió i alineació de la corretja: Check the running belt tension and alignment regularly. Adjust if necessary to prevent slipping or rubbing. Consult the quick start guide for adjustment procedures.
• Emmagatzematge: When not in use, the treadmill can be folded for compact storage. Ensure it is stored in a dry, cool place away from direct sunlight.

7. Solució De Problemes

This section addresses common issues you might encounter with your walking pad.

If you encounter issues not listed here or if solutions do not resolve the problem, please contact VANNECT customer support.

8. Especificacions

9. Garantia i Suport

VANNECT is committed to providing high-quality products and customer satisfaction.

9.1 Informació de la garantia

Your VANNECT Upgraded Walking Pad comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration. The warranty typically covers defects in materials and workmanship under normal use.

9.2 Atenció al client

For technical assistance, troubleshooting, or warranty claims, please contact VANNECT customer support. Have your model number (X420S) and purchase date ready when contacting support.

You can find contact information on the official VANNECT website or through your purchase platform. VANNECT offers lifetime technical support on Amazon for a superior customer experience.
