adorcam Indoor Camera Q1 User Manual

1. Introducció

Thank you for choosing the adorcam Indoor Camera Q1. This manual provides essential information for setting up, operating, and maintaining your security camera. The adorcam Q1 offers advanced surveillance with 2K resolution, 360° pan/tilt functionality, dual-band WiFi (2.4G & 5G), two-way audio, and enhanced night vision for comprehensive home monitoring.

2. Què hi ha a la caixa

• adorcam Indoor Camera Q1
• Adaptador d'alimentació
• Material de muntatge (cargols, tacs de paret)
• Manual d'usuari (aquest document)

3. Producte acabatview

The adorcam Q1 is designed for indoor security, offering a wide range of features to keep your home safe and connected.

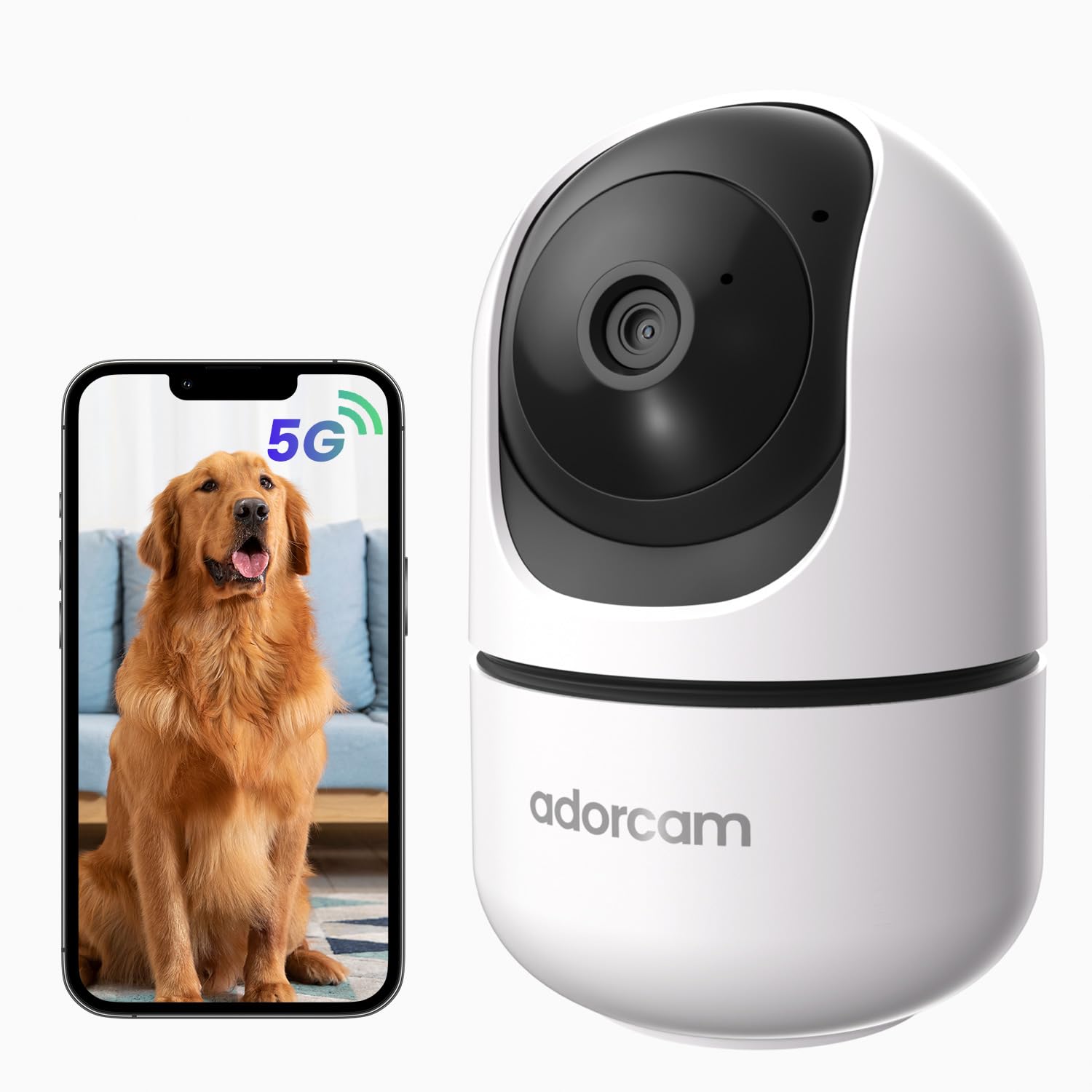

Image: The adorcam Indoor Camera Q1, a compact white dome-shaped camera.

Característiques principals:

• Vídeo 2K HD: Captures clear, high-quality images with 2304 x 1296 resolution.
• Panoràmica de 360° i inclinació de 100°: Provides comprehensive coverage of your space.
• WiFi de doble banda: Admet xarxes de 2.4 GHz i 5 GHz per a una connectivitat estable.
• Àudio bidireccional: Communicate remotely with family or pets.
• Visió nocturna per infrarojos: Clear visibility up to 10 meters (33 feet) in low light.
• Detecció de moviment: Sends instant alerts to your phone upon detecting movement.
• Emmagatzematge local i al núvol: Supports microSD card up to 256GB (not included) and cloud storage options.
• Compartició multiusuari: Allows multiple family members to view el feed de la càmera simultàniament.

4. Guia de configuració

4.1 Engegar la càmera

1. Connecteu l'adaptador de corrent proporcionat al port d'entrada d'alimentació de la càmera.
2. Connecteu l'adaptador d'alimentació a una presa de corrent estàndard.
3. The camera will power on and initiate its startup sequence. Wait for the indicator light to flash, indicating it's ready for setup.

4.2 Descàrrega de l'aplicació i creació de compte

1. Download the official adorcam app from your smartphone's app store (iOS App Store or Android Google Play Store).
2. Obre l'aplicació i segueix les instruccions que apareixen a la pantalla per crear un compte nou o iniciar la sessió si ja en tens un.

4.3 Connexió a Wi-Fi

The adorcam Q1 supports both 2.4GHz and 5GHz Wi-Fi networks for enhanced stability.

Image: Diagram illustrating the camera's support for both 2.4GHz and 5GHz Wi-Fi bands for a more stable signal.

1. In the adorcam app, tap the "Add Device" or "+" icon.
2. Select your camera model (adorcam Q1) and follow the in-app instructions.
3. Ensure your smartphone is connected to the same Wi-Fi network (2.4GHz or 5GHz) you intend to connect the camera to.
4. The app will guide you through scanning a QR code with the camera or using sound pairing to establish the connection.
5. Once connected, the camera's indicator light will turn solid, and you will see the camera feed in the app.

4.4 Instal·lació d'una targeta MicroSD (opcional)

For local video storage, install a microSD card (up to 256GB, not included).

1. Locate the microSD card slot on the camera (refer to the camera's physical design for exact placement, often near the lens or base).
2. Gently insert the microSD card into the slot with the gold contacts facing down until it clicks into place.
3. In the app, navigate to the camera settings to format the microSD card for optimal performance.

4.5 Muntatge de la càmera

The adorcam Q1 supports ceiling and wall mounting.

1. Choose a suitable location for mounting, ensuring a clear view i accés a una presa de corrent.
2. Use the provided mounting material to secure the camera bracket to the desired surface.
3. Attach the camera to the mounted bracket, ensuring it is securely fastened.

5. Instruccions de funcionament

5.1 Viu View

Access the live video feed from your camera through the adorcam app.

Image: Comparison showing the clarity of a 2K HD image versus a 1080p image from an indoor camera.

• Open the adorcam app and select your camera from the device list.
• The live video stream will appear on your screen.

5.2 Control de panoràmica i inclinació

Controla la càmera viewangle remot.

Image: A visual representation of the camera's 360° horizontal and 100° vertical movement, controlled via a smartphone app.

• En directe view screen, use the directional controls (often a joystick or arrows) to pan the camera horizontally (360°) and tilt it vertically (100°).
• The camera also features 4X digital zoom, accessible through pinch-to-zoom gestures on the live view.

5.3 Àudio bidireccional

Comunica't a través del micròfon i l'altaveu integrats a la càmera.

Image: A person talking into a phone and a child with a dog, illustrating the two-way audio communication feature.

• Tap the microphone icon on the live view screen to speak through the camera.
• Tap the speaker icon to hear audio from the camera's environment.

5.4 Visió nocturna

The camera automatically switches to infrared night vision in low-light conditions.

Image: A child sleeping in a dimly lit room, viewed through the camera's infrared night vision mode on a smartphone.

• No manual action is required; the camera adjusts automatically.
• Night vision provides clear black and white images up to 10 meters.

5.5 Detecció de moviment i alertes

Receive notifications when motion is detected.

Image: A dog playing in a living room, with a smartphone displaying a 'Motion Detected' notification from the camera.

• Enable motion detection and push notifications in the app's settings.
• Adjust sensitivity levels to minimize false alerts.

5.6 Enregistrament i emmagatzematge de vídeo

• Targeta MicroSD: If a card is installed and formatted, the camera will record based on your settings (continuous, event-triggered).
• Emmagatzematge al núvol: Subscribe to cloud storage services through the app for secure, off-site video backup. A free 7-day trial may be available.

5.7 Sharing with Multiple Users

Grant access to your camera feed to family members.

Image: Multiple people using smartphones to view the camera feed, indicating the multi-user sharing feature.

• A l'aplicació, navega fins a la configuració de la càmera i busca l'opció "Comparteix el dispositiu".
• Invite other users by entering their account information.

6. Manteniment

6.1 Neteja de la càmera

• Assegureu-vos que la càmera estigui apagada abans de netejar-la.
• Feu servir un drap suau i sec per netejar el cos de la càmera.
• For the lens, use a lens cleaning cloth to gently remove dust or smudges. Avoid abrasive cleaners.

6.2 Actualitzacions de programari

• Regularly check the adorcam app for firmware updates.
• Install updates to ensure optimal performance, security, and access to new features.

6.3 Gestió d'emmagatzematge

• Targeta MicroSD: Periòdicament review foo gravattage and delete unnecessary files to free up space. Format the card in-app if issues arise.
• Emmagatzematge al núvol: Manage your cloud subscription and stored videos through the adorcam app.

7. Solució De Problemes

7.1 La càmera no es connecta a la Wi-Fi

• Assegureu-vos que la vostra xarxa Wi-Fi sigui de 2.4 GHz o 5 GHz i estable.
• Comproveu que la contrasenya del Wi-Fi estigui introduïda correctament.
• Acosteu la càmera al router Wi-Fi.
• Reinicieu la càmera i el router.
• If using a dual-band router, try connecting to the other band.

7.2 Mala qualitat de vídeo

• Check your internet connection speed. A stable, high-speed connection is required for 2K streaming.
• Assegureu-vos que la lent de la càmera estigui neta i lliure d'obstruccions.
• Adjust video quality settings in the app if your network bandwidth is limited.

7.3 Motion Detection Not Working or Too Sensitive

• Verifiqueu que la detecció de moviment estigui activada a la configuració de l'aplicació.
• Adjust the motion detection sensitivity level.
• Ensure notification permissions are granted for the adorcam app on your smartphone.

7.4 Problemes d'àudio bidireccional

• Comproveu la configuració del volum al telèfon intel·ligent i a l'aplicació.
• Assegureu-vos que no hi hagi cap obstacle que bloquegi el micròfon o l'altaveu de la càmera.
• Verifiqueu que la vostra connexió a Internet sigui estable.

7.5 Càmera fora de línia

• Comproveu si la càmera està engegada i si l'adaptador de corrent està connectat correctament.
• Verify your Wi-Fi router is working correctly.
• Reinicieu la càmera desendollant-la i tornant-la a connectar.

8. Especificacions

9. Garantia i Suport

9.1 Informació de la garantia

Please refer to the warranty card included with your product or visit the official adorcam website for detailed warranty terms and conditions. Typically, products come with a limited manufacturer's warranty covering defects in materials and workmanship.

9.2 Atenció al client

For technical assistance, troubleshooting, or any product-related inquiries, please contact adorcam customer support through the following channels:

• Assistència integrada a l'aplicació: Many issues can be resolved through the help section within the adorcam app.
• Fabricant Weblloc: Visit the official adorcam weblloc web amb preguntes freqüents, recursos d'assistència i informació de contacte.
