Informació important de seguretat
Always read and understand all instructions before assembling or operating this grill. Failure to follow these instructions could result in property damage, bodily injury, or death. Keep this manual for future reference.
- Només per a ús a l'aire lliure. No utilitzar en interiors.
- Mantingueu els nens i les mascotes lluny de la graella en tot moment.
- Assegureu-vos una ventilació adequada.
- No guardeu mai una bombona de GLP de recanvi sota o a prop de la graella.
- Always perform a leak test before initial use and after any cylinder change.
Producte acabatview
The Char-Broil Performance Series FlavorMax 5-Burner Gas Grill (Model 463463325) is designed for outdoor cooking. It features a FlavorMax Cooking System, a side burner, and porcelain-coated grates for enhanced performance and durability.
Imatge: Frontal view of the Char-Broil Performance Series FlavorMax 5-Burner Gas Grill, showcasinel seu acabat negre i el seu disseny general.
Image: A diagram highlighting key features of the grill, including the temperature gauge, FlavorMax Cooking System, side burner, open shelf storage, and large wheels.
Muntatge i muntatge
This Char-Broil grill is designed for minimal assembly. Please ensure all components are present and undamaged before proceeding.
Desembalatge i inspecció
- Traieu amb cura tots els materials d'embalatge.
- Inspect all parts for any shipping damage. Contact customer support if any parts are damaged or missing.
- Ensure the user manual and any included components are accounted for.
LP Cylinder Connection
- Assegureu-vos que la vàlvula de la bombona de GLP estigui tancada.
- Connect the regulator hose to the LP cylinder valve. Hand-tighten firmly. Do not use tools.
- Perform a leak test: Apply a soapy water solution to all connections. Open the LP cylinder valve slowly. If bubbles appear, there is a leak. Close the valve and re-tighten connections. Repeat the test. If leaks persist, do not use the grill and contact customer support.
Instruccions de funcionament
Follow these steps for safe and effective operation of your gas grill.
Encendre els cremadors principals
- Obriu la tapa de la graella.
- Assegureu-vos que tots els botons de control del cremador estiguin en la posició "OFF".
- Obriu lentament la vàlvula del cilindre de LP.
- Push and turn one main burner control knob to 'HIGH'.
- Premeu el botó de l'encenedor electrònic repetidament fins que el cremador s'encengui.
- Once the first burner is lit, you can light adjacent burners by turning their knobs to 'HIGH'.
- If a burner does not light within 5 seconds, turn the knob to 'OFF', wait 5 minutes for gas to dissipate, and repeat the lighting procedure.
Encendre el cremador lateral
- Obriu la tapa lateral del cremador.
- Push and turn the side burner control knob to 'HIGH'.
- Premeu el botó de l'encenedor electrònic repetidament fins que el cremador s'encengui.
- If the side burner does not light within 5 seconds, turn the knob to 'OFF', wait 5 minutes, and repeat.
Cooking with the FlavorMax System
The FlavorMax Cooking System is designed to provide consistent heat distribution, reducing flare-ups and enhancing food flavor. The porcelain-coated grates offer a non-stick surface and are easy to clean.

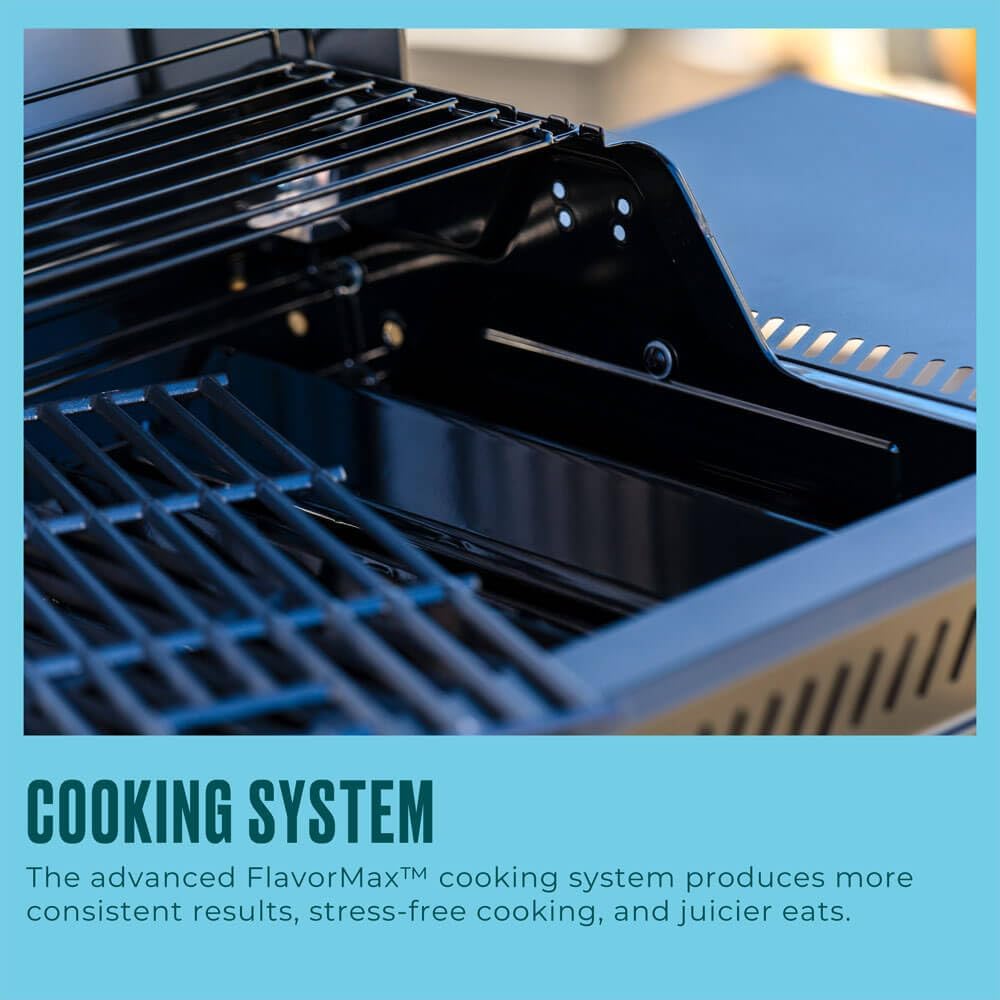

Imatge: Un primer pla view of the grill's interior, showing the FlavorMax cooking system with its grates designed for even heat and flavor.
Imatge: Una imatge superior view illustrating the 490 square inches of primary cooking surface, capable of holding numerous items like hamburger patties, chicken breasts, or steaks.
Using the Foldaway Warming Rack
The foldaway warming rack allows you to keep cooked food warm or indirectly cook delicate items. It can be easily swung away to maximize space on the primary cooking grates when not in use.
Image: Hands demonstrating the adjustment of the foldaway warming rack, showing its flexibility for different cooking needs.
Image: The Char-Broil grill in operation, with a variety of meats and vegetables cooking on both the main grates and the side burner.
Image: A person adjusting one of the main burner control knobs, demonstrating ease of temperature control during grilling.
Manteniment i cura
Una neteja i un manteniment regulars allargaran la vida útil de la barbacoa i garantiran un rendiment òptim.
Neteja de les reixes de cocció
- After each use, while the grates are still warm, brush off any food residue with a grill brush.
- For deeper cleaning, remove the porcelain-coated grates and wash with warm, soapy water. Rinse thoroughly and dry.
Neteja general
- Clean the exterior surfaces with mild soap and water. Avoid abrasive cleaners.
- Regularly clean the grease tray to prevent grease fires.
- Inspect burner ports for blockages (e.g., spider webs) and clean with a wire brush if necessary.
Emmagatzematge
- Store the grill in a dry, sheltered location when not in use.
- If storing outdoors, use a weather-resistant grill cover.
- Disconnect the LP cylinder and store it upright in a well-ventilated area, away from direct sunlight or heat sources.
Resolució de problemes
Aquesta secció tracta els problemes habituals que podeu trobar amb la vostra barbacoa de gas.
El cremador no s'encén
- Check LP Cylinder: Ensure the cylinder has gas and the valve is fully open.
- Comproveu les connexions: Verify all gas connections are tight and there are no leaks (perform a leak test).
- Igniter Spark: Listen for a clicking sound and look for a spark at the burner. If no spark, check the battery in the igniter module.
- Ports del cremador: Assegureu-vos que els ports del cremador estiguin lliures de residus.
Uneven Heat
- Neteja dels cremadors: Clogged burner ports can cause uneven heat. Clean them thoroughly.
- Grease Buildup: Excessive grease or food debris on the FlavorMax plates can affect heat distribution. Clean the interior of the grill.
Flama baixa
- Mode bypass: The LP cylinder's overfill protection device (OPD) may have activated, restricting gas flow. Turn off all burners and the cylinder valve. Disconnect the regulator, wait 30 seconds, then reconnect and slowly open the cylinder valve before attempting to light.
- Low Gas: The LP cylinder may be low on fuel.
Especificacions
Detailed technical specifications for the Char-Broil Performance Series FlavorMax 5-Burner Gas Grill.
Image: A diagram illustrating the grill's dimensions (52.34 inches width, 45.66 inches height) and weight (88 lbs).
| Característica | Detall |
|---|---|
| Marca | Char-Broil |
| Nom del model | 463463325 |
| Dimensions del producte | 37 "P x 23" W x 26" H |
| Color | Negre |
| Tipus de combustible | Gas (propà) |
| Ús recomanat | A l'aire lliure |
| Material | Metall |
| Material del mànec | Acer inoxidable |
| Pes de l'article | 104 lliures |
| Nombre de cremadors principals | 5 |
| Superfície de Cocció | 640 Square Inches (Total), 490 Square Inches (Primary) |
| Sistema de cocció | FlavorMax |
| Tipus d'instal·lació | De peu lliure |
| Muntatge obligatori | No (Configuració mínima) |
| Piles necessàries | Yes (for igniter) |
| UPC | 047362346339 |
Garantia i Suport
Your Char-Broil Performance Series FlavorMax 5-Burner Gas Grill is covered by a manufacturer's warranty.
Informació de la garantia
Aquest producte ve amb un 1 anys de garantia del fabricantSi us plau, conserveu el comprovant de compra per a reclamacions de garantia. La garantia cobreix defectes de materials i fabricació en condicions d'ús normal.
Atenció al client
For technical assistance, replacement parts, or warranty claims, please contact Char-Broil customer support. Refer to the contact information provided on the official Char-Broil website or your product registration card.
You can visit the official Char-Broil weblloc web per a recursos i suport addicionals: www.charbroil.com
