1. Informació important de seguretat
Please read all instructions carefully before installation and operation. Failure to follow these instructions may result in property damage, personal injury, or death. Keep this manual for future reference.
- Instal·lació professional: Installation, maintenance, and repair must be performed by qualified service personnel.
- Seguretat elèctrica: Ensure the unit is properly grounded and connected to a dedicated circuit with the correct voltage (230V). Do not use extension cords.
- Refrigerant: This unit uses R-32 refrigerant. Only qualified technicians should handle refrigerant.
- Liquidacions: Mantingueu una distància adequada al voltant de les unitats interiors i exteriors per a un flux d'aire i un accés adequats al servei.
- Nens i animals de companyia: Mantingueu els nens i les mascotes allunyats de la unitat durant el funcionament i el manteniment.
2. Producte acabatview
The PG Mini Split Air Conditioner Heat Pump System provides efficient heating and cooling for your space. This system includes an indoor unit, an outdoor unit, and a remote control, with optional Wi-Fi smart control capabilities.
2.1 Característiques clau
- Capacitat de refrigeració de 18,000 BTU: Ideal for larger rooms up to 750 sq ft.
- Tecnologia inversor: Ensures energy-efficient operation and consistent temperature.
- Connectivitat Wi-Fi: Allows remote operation via smartphone or voice assistants.
- Refrigerant R-32: Environmentally friendly refrigerant with low global warming potential.
- Heat Pump Functionality: Provides both heating and cooling for year-round comfort.
- Funcionament silenciós: Dissenyat per a un soroll mínim durant l'ús.
- Mode de repòs: Gradually adjusts temperature for nighttime comfort and energy efficiency.
2.2 Components del sistema
The PG Mini Split system typically includes the following components:
- Unitat interior (evaporador)
- Unitat exterior (condensador)
- Control remot
- Installation Kit (line set, drainage hose, electrical wiring - may vary)

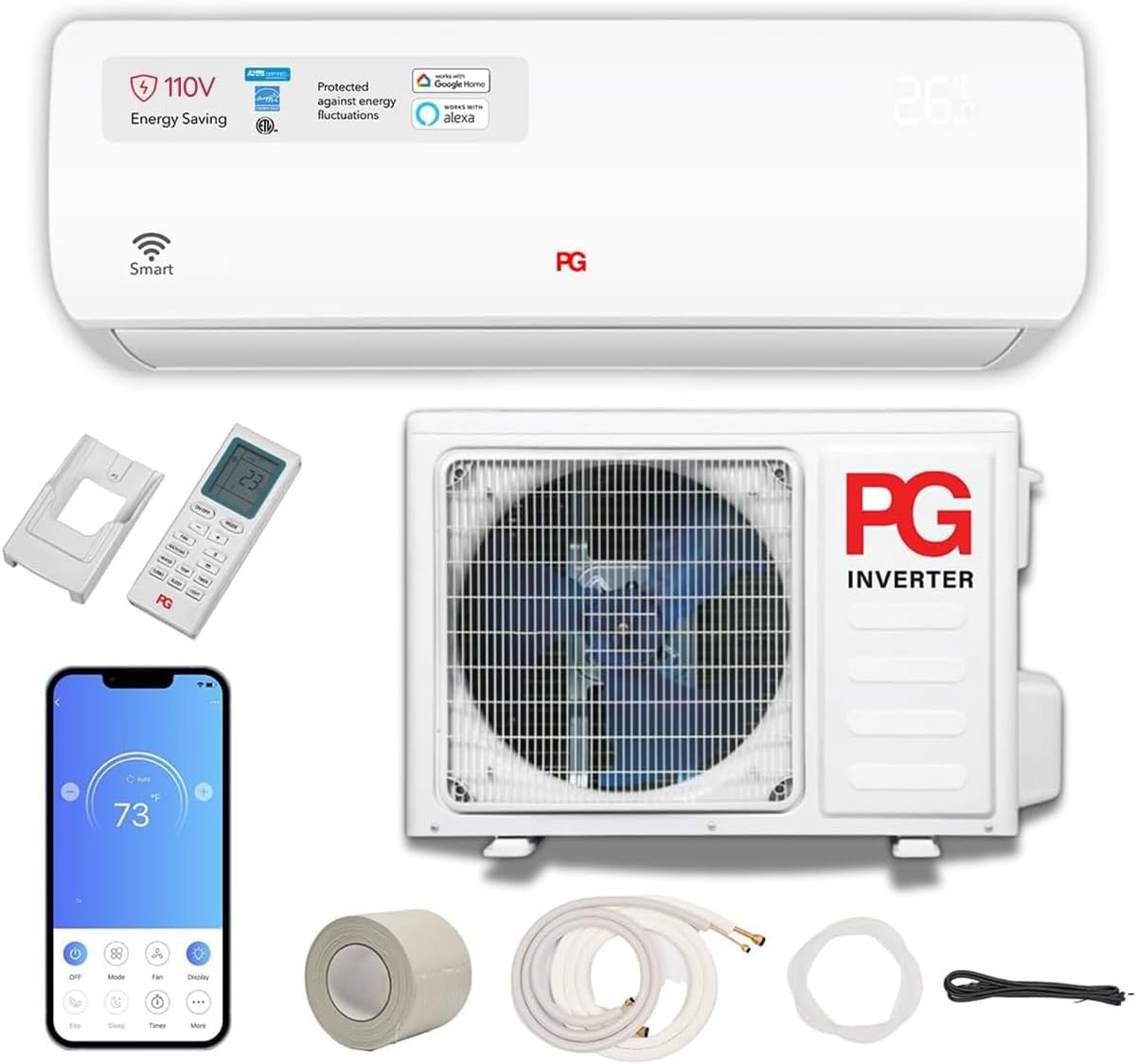

Figura 1: Acabatview of the PG Mini Split Air Conditioner Heat Pump System, showing the indoor unit, outdoor unit, remote control, smartphone app interface, and various installation accessories like copper tubing, insulation, and electrical cables.
3. Configuració i instal·lació
Installation of a mini-split system requires specialized knowledge and tools. It is strongly recommended that installation be performed by a certified HVAC professional to ensure proper function, safety, and warranty validity.
3.1 Llista de comprovació prèvia a la instal·lació
- Comproveu el vol correctetage (230V) and dedicated circuit availability.
- Ensure adequate space and clearances for both indoor and outdoor units.
- Confirmeu que tots els components siguin presents i no estiguin danyats.
- Consult local building codes and regulations.
3.2 Passos generals d'instal·lació (recomanat per professionals)
- Muntatge de la unitat interior: Secure the mounting plate to the wall, ensuring it is level.
- Forat de paret: Feu un forat a la paret per a les línies de refrigerant, la mànega de desguàs i els cables elèctrics.
- Connecting Piping and Wiring: Connect the refrigerant lines, drain hose, and electrical cables between the indoor and outdoor units. This step requires specialized tools for flaring and vacuuming.
- Muntatge de la unitat exterior: Place the outdoor unit on a stable, level surface or mount it using a wall bracket, ensuring proper vibration isolation.
- Aspiració i càrrega de refrigerant: Evacuate the system to remove air and moisture, then release the refrigerant from the outdoor unit.
- Connexions elèctriques: Connect the power supply to the outdoor unit and ensure all electrical connections are secure and correct.
- Drenatge: Ensure the drain hose is properly sloped to allow for condensate drainage.
- Prova d'execució: Perform a test run to verify proper operation in both cooling and heating modes.
Figura 2: The indoor unit installed, illustrating its capacity and coverage area. Professional installation ensures optimal performance.
4. Instruccions de funcionament
Your PG Mini Split system can be operated using the included remote control or via the Wi-Fi smart control feature.
4.1 Funcionament del control remot
The remote control allows you to adjust settings from anywhere in the room. Ensure the remote is pointed towards the indoor unit when sending commands.
Figura 3: Remote control for the PG Mini Split system, detailing the function of each button for easy climate management.
- Botó d'engegada (ENCÈS/APAGAT): Encén o apaga la unitat.
- Botó de mode: Cycles through operating modes: Cool, Heat, Fan, Dry, and Auto.
- Botó del ventilador: Ajusta la velocitat del ventilador (Automàtic, Baixa, Mitjana, Alta).
- TEMP Buttons (+/-): Ajusta la temperatura desitjada.
- Botó Turbo: Activates maximum cooling or heating for rapid temperature change.
- Botó de dormir: Engages Sleep Mode for quiet, energy-efficient nighttime operation.
- Botó del temporitzador: Sets a timer for automatic on/off operation.
- Botó de llum: Controls the display backlight or AC panel lighting.
4.2 Control intel·ligent Wi-Fi
The system supports Wi-Fi connectivity, allowing control via a smartphone app or voice assistants like Alexa and Google Home. Refer to the separate Wi-Fi setup guide for detailed instructions on connecting your unit to your home network.
Figura 4: Smartphone app interface for controlling the PG Mini Split system, demonstrating remote temperature and mode adjustments.
Figura 5: Smart control via smartphone, allowing convenient management of your air conditioner from anywhere.
4.3 Funcions avançades
- 4D Air Supply: This feature optimizes airflow to avoid direct blowing, enhancing comfort.
- Mode de repòs: When activated, the unit gradually adjusts the temperature over several hours to maintain comfort and reduce energy consumption during sleep.
Figura 6: The 4D Air Supply feature ensures comfortable air distribution without direct drafts.
Figura 7: Sleep Mode provides a quiet and comfortable environment for restful sleep.
5. Manteniment
Regular maintenance ensures optimal performance and extends the lifespan of your PG Mini Split system. Always turn off the power to the unit before performing any maintenance.
5.1 Neteja del filtre d'aire
- Obriu el panell frontal de la unitat interior.
- Traieu els filtres d'aire.
- Clean filters with a vacuum cleaner or wash them with lukewarm water. Allow them to dry completely before reinserting.
- Netegeu els filtres cada 2-4 setmanes o amb més freqüència si la unitat s'utilitza molt o en ambients polsegosos.
5.2 Neteja de la unitat exterior
- Clear any debris (leaves, dirt) from around the outdoor unit.
- Gently clean the condenser coils with a soft brush or water hose. Avoid bending the fins.
- Ensure the drainage outlet is not blocked.
5.3 Servei professional
It is recommended to have a certified HVAC technician inspect and service your system annually. This includes checking refrigerant levels, electrical connections, and overall system performance.
6. Solució De Problemes
Abans de contactar amb l'atenció al client, consulteu els següents problemes i solucions habituals.
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén. | Sense alimentació, piles del comandament a distància baixes, interruptor automàtic saltat. | Comproveu el subministrament d'alimentació, substituïu les piles del comandament a distància i reinicieu l'interruptor automàtic. |
| Refrigeració/calefacció insuficient. | Filtres d'aire bruts, unitat exterior bloquejada, mode/configuració de temperatura incorrectes, refrigerant baix. | Clean filters, clear outdoor unit, adjust settings, contact technician for refrigerant check. |
| Fuita d'aigua de la unitat interior. | Mànega de desguàs obstruïda, instal·lació incorrecta. | Clear drain hose, ensure proper slope. If issue persists, contact technician. |
| Soroll inusual. | Peces soltes, obstrucció del ventilador, problema amb el compressor. | Check for loose panels or obstructions. If noise is persistent or loud, contact technician. |
| Problemes de connexió Wi-Fi. | Router issues, incorrect Wi-Fi settings, app malfunction. | Restart router, reconfigure Wi-Fi settings in the app, ensure app is updated. |
7. Especificacions
Detailed technical specifications for the PG Mini Split Air Conditioner Heat Pump System.
| Especificació | Detall |
|---|---|
| Marca | PG |
| Informació del model | PG-18S18E-HP/PG-18S18C-HP |
| Capacitat de refrigeració | 18,000 BTU (1.5 tones) |
| Ràtio d'eficiència energètica estacional (SEER) | 17 |
| Voltage | 230 Volts |
| Wattage | 1840 watts |
| Refrigerant | R-32 |
| Nivell de soroll | 55 decibels |
| Cobertura de la superfície del sòl | Fins a 850 peus quadrats |
| Dimensions del producte | 21.64 "P x 31.49" W x 26" H |
| Pes de l'article | 27.5 lliures |
| Característiques especials | Heating & Cooling Function, Inverter Compressor, Remote Controlled, Sleep Mode |
| Components inclosos | Remot |
8. Garantia i Suport
For warranty information, please refer to the documentation included with your purchase or contact PG customer support. Keep your proof of purchase for warranty claims.
For technical support, troubleshooting assistance, or to schedule service, please contact PG customer service. Contact details can typically be found on the manufacturer's weblloc web o a l'embalatge del producte.
