1. Informació important de seguretat
Llegiu atentament totes les instruccions abans d'utilitzar l'aparell i conserveu-les per a futures consultes. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis o danys a l'aparell.
- Seguretat elèctrica: Ensure the appliance is properly grounded. Do not use extension cords or multiple adapters. Disconnect from power before cleaning or maintenance.
- Connexió d'aigua: Connect the appliance to the water supply using new hose sets. Do not reuse old hose sets. Ensure all connections are secure to prevent leaks.
- Instal·lació: The appliance must be installed by two persons due to its weight. Ensure the machine is level and stable. Do not install in areas prone to freezing temperatures.
- Seguretat infantil: This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities. Children should be supervised to ensure they do not play with the appliance.
- Ús adequat: Do not wash items that are soiled with flammable substances. Do not use solvents or abrasive cleaners on the appliance. Only use detergents suitable for washing machines.
- Eliminació: This appliance is marked according to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). Ensure proper disposal at designated collection points.
2. Producte acabatview
The CHiQ CW086581AX is an 8 kg front-load washing machine designed for efficient and convenient laundry care. It features a 13.5-inch LED touch screen, a powerful BLDC motor, and various wash programs including Steam Wash and Quick Wash.
Figura 2.1: Davant view of the CHiQ CW086581AX washing machine, showcasing its modern design and LED display.
Característiques principals:
- 13.5-inch LED Touch Screen: Intuitive control panel for easy program selection and monitoring.
- Eficiència energètica: Rated A-10%, optimizing energy consumption.
- 12 programes de rentat: Includes Steam Wash for deep disinfection, Quick Wash 15 Min for express refreshments, and Smart Wash in 1 Touch.
- BLDC Inverter Motor: High efficiency, ultra-quiet operation with a maximum spin speed of 1400 rpm.
- Capacitat de 8 kg: Large 530 mm drum suitable for bulky laundry, with compact dimensions (600 x 520 x 847 mm).
- Segell de porta antibacterià: Enhances hygiene by preventing bacterial growth.
Figura 2.2: Dimensions of the CHiQ CW086581AX washing machine (Width: 600mm, Depth: 520mm, Height: 847mm).
3. Configuració i instal·lació
3.1 Desembalatge
Carefully remove all packaging materials. Inspect the appliance for any damage during transit. Keep packaging materials out of reach of children. Remove all transport bolts from the rear of the machine before use. Failure to do so will cause severe vibration and damage.
3.2 Posicionament
Col·loqueu la rentadora sobre una superfície ferma i anivellada. Assegureu-vos que hi hagi prou espai al voltant de l'aparell per a la ventilació i el manteniment. Eviteu la llum solar directa o les temperatures extremes.
3.3 Connexió d'aigua
Connect the inlet hose to a cold water tap with a 3/4-inch thread. Ensure the connection is tight to prevent leaks. Position the drain hose into a standpipe or over the edge of a sink, ensuring it is securely fixed to prevent displacement during operation.
3.4 Connexió elèctrica
Connecteu el cable d'alimentació a una presa de corrent amb connexió a terra. Assegureu-vos que el volumtage and frequency match the specifications on the rating label of the appliance. Do not use adapters or extension cords.
3.5 Anivellació
Adjust the adjustable feet at the bottom of the washing machine until the appliance is perfectly level. Use a spirit level to verify. Proper leveling reduces vibration and noise during operation.
4. Instruccions de funcionament
4.1 Tauler de control acabatview
The washing machine features a 13.5-inch LED touch screen for intuitive control. The screen displays program information, cycle status, and allows for customization of settings.
Figura 4.1: Close-up of the 13.5-inch LED touch screen, showing various program icons and settings.
4.2 Càrrega de la roba
Obriu la porta i carregueu la roba al tambor. No sobrecarregueu la màquina; assegureu-vos que hi hagi prou espai perquè la roba pugui girar lliurement. Tanqueu la porta fermament.
Figura 4.2: The washing machine door open, revealing the spacious drum for laundry loading.
4.3 Addició de detergent
Add the appropriate amount of detergent and fabric softener to their respective compartments in the dispenser drawer. Refer to detergent packaging for dosage recommendations.
4.4 Selecció d'un programa
Turn on the machine. Use the touch screen to select your desired wash program. Available programs include:
- Barreja: Per a teixits mixtos.
- Cotó: Per a articles de cotó.
- Quick Wash 15 Min: Ideal for lightly soiled items needing a fast refresh.
- Llana: Rentat suau per a llanes.
- Rentat amb vapor: For deep disinfection and wrinkle reduction.
- Eco 40-60: Programa d'eficiència energètica per a peces de cotó, lli o fibres mixtes amb un nivell de brutícia normal.
- Neteja del tambor: Per mantenir la higiene del tambor.
- Smart Wash (One Touch): Press and hold for 3 seconds for an intelligent wash cycle.

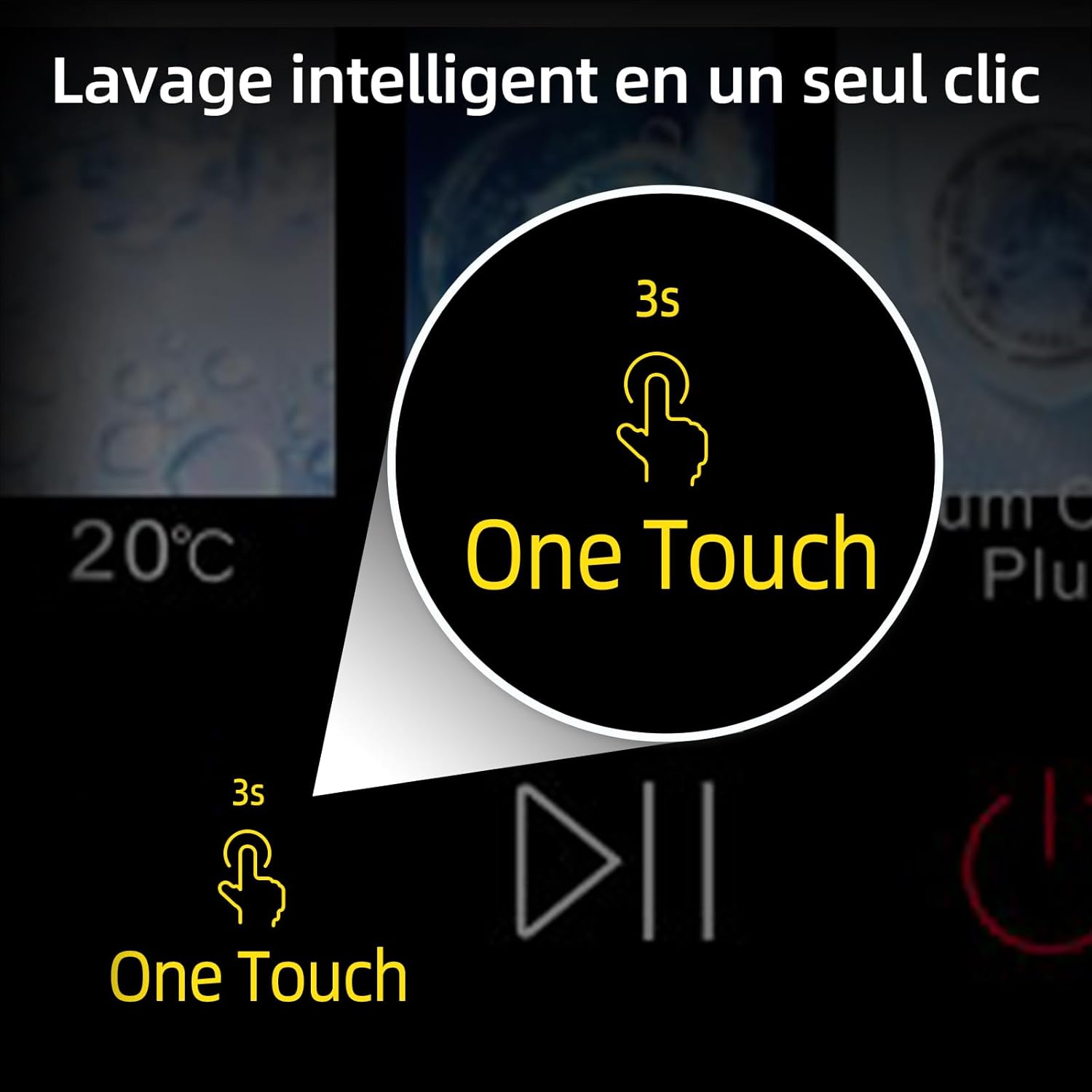

Figura 4.3: The 'One Touch' feature on the control panel for initiating a smart wash cycle.
Figura 4.4: Illustration of the 15-minute quick wash cycle, ideal for fast cleaning.
Figura 4.5: Visual representation of the steam wash function, providing deep cleaning and disinfection.
4.5 Inici d'un cicle de rentat
After selecting the program and any desired options (e.g., temperature, spin speed), press the Start/Pause button to begin the wash cycle.
4.6 Finalitzar un cicle de rentat
The machine will signal when the cycle is complete. Open the door and remove your laundry. Turn off the machine and close the water tap.
5. Manteniment i cura
Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de la rentadora.
5.1 Neteja del tambor
Use the dedicated 'Drum Clean' program periodically to clean the interior of the drum and remove any residue or odors.
Figura 5.1: Illuminated interior of the washing machine drum, highlighting its design for effective cleaning.
5.2 Neteja del dispensador de detergent
Remove the detergent dispenser drawer and rinse it under running water to remove any detergent or softener buildup. Clean the housing of the drawer as well.
5.3 Manteniment del segell de la porta
Regularly wipe the antibacterial door seal with a damp cloth to remove any lint, dirt, or mold buildup. This helps maintain hygiene and prevents odors.
5.4 Neteja exterior
Netegeu l'exterior de la màquina amb un damp tela. No utilitzeu netejadors abrasius ni dissolvents.
6. Solució De Problemes
If you encounter any issues with your washing machine, refer to the following common problems and solutions before contacting customer service.
- La màquina no arrenca: Check if the power cord is securely plugged in, the door is fully closed, and the water tap is open. Ensure a program has been selected and the Start/Pause button pressed.
- Sense omplir d'aigua: Check if the water tap is open and the inlet hose is not kinked or blocked.
- L'aigua no s'escorre: Check if the drain hose is kinked or blocked. Ensure the drain filter is clean.
- Vibració/soroll excessiu: Ensure the machine is level and all transport bolts have been removed. Check if the laundry load is balanced.
- Codis d'error que es mostren: Refer to the specific error code in a more detailed manual (if available) or contact customer support.
7. Especificacions tècniques
Detailed specifications for the CHiQ CW086581AX washing machine.
| Característica | Especificació |
|---|---|
| Marca | XiQ |
| Número de model | CW086581AX |
| Capacitat | 8 quilos |
| Dimensions (L x P x A) | 600 x 520 x 847 mm |
| Pes de l'article | 65 kg |
| Velocitat màxima de gir | 1400 rpm |
| Tipus de motor | Motor inversor BLDC |
| Energy Efficiency Class (Eco 40-60) | A-10% (42 kWh/100 cycles) |
| Consum d'aigua (Eco 40-60) | 47 litres/cicle |
| Emissió de soroll (gir) | 76 dB(A) |
| Característica especial | 13.5 inch LED Touch Screen |
| Components inclosos | Mànega de desguàs |
Figura 7.1: The energy label for the CHiQ CW086581AX, indicating its A-10% energy efficiency rating.
Per obtenir informació més detallada sobre el producte, consulteu la base de dades EPREL: https://eprel.ec.europa.eu/qr/2233451
8. Informació de la garantia
The CHiQ CW086581AX washing machine comes with a 12-year warranty on the BLDC Inverter Motor, reflecting its durability and quality. For other components, standard warranty terms apply as per local regulations. Please retain your proof of purchase for warranty claims.
9. Atenció al client
If you require further assistance, have questions not covered in this manual, or need to report a fault, please contact CHiQ customer service. Have your model number (CW086581AX) and purchase details ready when contacting support.
