1. Introducció
This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your Kenmore KM8K-R 8,000 BTU Window Air Conditioner. Please read this manual thoroughly before using your air conditioner and retain it for future reference.
The Kenmore KM8K-R is designed to provide reliable cooling for medium-sized rooms up to 350 sq. ft., offering features such as remote control, digital display, and multiple operating modes for enhanced comfort.
2. Instruccions de seguretat importants
Per reduir el risc d'incendi, descàrrega elèctrica o lesions quan utilitzeu l'aire condicionat, seguiu aquestes precaucions bàsiques:
- Llegiu totes les instruccions abans d'utilitzar l'aparell.
- Connecteu-lo a una presa de terra de 3 puntes. No traieu la punta de terra.
- No utilitzeu un adaptador.
- No utilitzeu un cable d'extensió.
- Desconnecteu l'alimentació abans del servei.
- No feu funcionar cap aparell d'aire condicionat amb el cable o l'endoll danyats.
- No bloquegeu les obertures d'aire.
- Utilitzeu dues o més persones per moure i instal·lar l'aire condicionat.
- Ensure the unit is installed securely in a window according to installation instructions.
- The electrical box is fire-resistant for added safety.
3. Característiques del producte
The Kenmore KM8K-R air conditioner is equipped with several features designed for optimal comfort and efficiency:
- Capacitat de refrigeració de 8,000 BTU: Effectively cools rooms up to 350 sq. ft.
- Funcionament multimode: Includes Cooling, Sleep, Auto, and Eco modes.
- Tres velocitats del ventilador: Adjust airflow for personalized comfort.
- Digital Controls & Remote: Easy-to-use touch panel and included remote control for convenient operation.
- Eficient energètic: Features a CEER rating of 10.9 to help reduce energy consumption.
- Filtre d'aire rentable: Reusable filter improves air quality and simplifies maintenance.
- Reinici automàtic: Reprèn automàticament la configuració anterior després d'una apagadatage.
- Self-Evaporating Condensate System: Reduces internal moisture buildup for consistent operation.
- Fire-Resistant Electrical Box: Provides an additional layer of safety.
Image: Kenmore KM8K-R 8,000 BTU Window Air Conditioner installed in a window, with a family relaxing nearby. This image shows the Kenmore KM8K-R window air conditioner properly installed in a window, providing cooling for a living space.
4. Configuració i instal·lació
The Kenmore KM8K-R is designed for easy installation in most standard windows. It is recommended that two people install the unit due to its weight (approximately 69.4 lbs).
4.1 Desembalatge
- Traieu amb cura l'aire condicionat del seu embalatge.
- Check for any shipping damage. If the unit is damaged, do not install it. Contact customer support.
- Ensure all included components are present: Air Filter (pre-installed), Remote Control.
4.2 Requisits de la finestra
The unit requires a window opening with a maximum width of 18.58 inches and a maximum height of 13.31 inches. The product dimensions are 15.59"D x 18.58"W x 13.31"H.
Image: Diagram showing the dimensions of the Kenmore KM8K-R 8,000 BTU Window Air Conditioner. This diagram provides the exact measurements of the Kenmore KM8K-R air conditioner: 18.58 inches width, 15.59 inches height, and 13.31 inches depth.
4.3 Requisits elèctrics
The air conditioner operates on a 115V / 60Hz power supply. It comes with a 4.9 ft. power cord. Ensure your electrical outlet meets these specifications and is properly grounded. Do not use extension cords or adapters.
4.4 Passos d'instal·lació
Refer to the detailed installation guide included with your product for specific step-by-step instructions. Generally, installation involves:
- Preparing the window opening.
- Attaching the top mounting rail and side panels.
- Placing the unit into the window opening.
- Securing the unit with brackets and screws.
- Sealing any gaps to prevent air leakage.
5. Instruccions de funcionament
Your Kenmore KM8K-R air conditioner can be operated using the control panel on the unit or the included remote control.

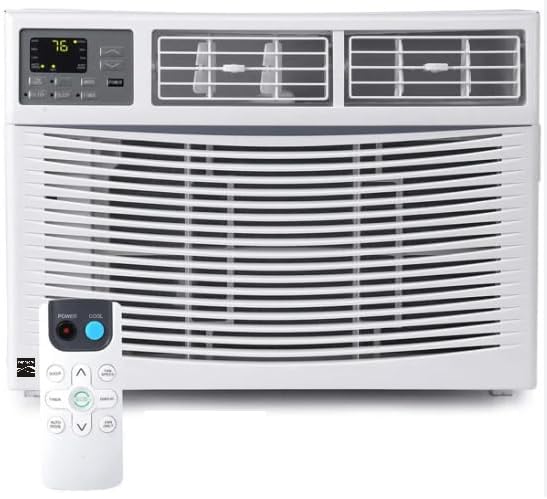

Imatge: Frontal view of the Kenmore KM8K-R 8,000 BTU Window Air Conditioner. A clear front view of the Kenmore KM8K-R window air conditioner, highlighting its control panel and air vents.
5.1 Tauler de control i comandament a distància
The digital display shows the current temperature and settings. Buttons on the control panel and remote allow you to:
- Encès/apagat: Enceneu o apagueu la unitat.
- Selecció del mode: Cycle through Cooling, Fan Only, Eco, and Sleep modes.
- Ajust de temperatura: Set your desired temperature (Indoor Cooling range: 16-31°C / 61-88°F).
- Velocitat del ventilador: Select Low, Medium, or High fan speed.
- Temporitzador: Programa la unitat perquè s'encengui o s'apagui a hores específiques.
5.2 Modes de funcionament
- Mode de refrigeració: Provides maximum cooling. Adjust temperature and fan speed as desired.
- Mode només per a ventiladors: Circulates air without cooling. Useful for ventilation.
- Mode Eco: Saves energy by cycling the compressor and fan on and off once the set temperature is reached.
- Mode de repòs: Gradually increases the set temperature over several hours to conserve energy and provide comfortable sleeping conditions.
- Mode automàtic: Automatically selects the appropriate operating mode (Cooling or Fan Only) and fan speed based on the room temperature.
Image: Person sleeping comfortably with the Kenmore KM8K-R air conditioner providing quick cooling at an ideal temperature. This image illustrates the comfort provided by the air conditioner's quick cooling and sleep mode, maintaining an ideal temperature for rest.
6. Manteniment
Un manteniment regular garanteix un rendiment òptim i una llarga vida útil del vostre aire condicionat.
6.1 Neteja del filtre d'aire
The reusable air filter should be cleaned every two weeks, or more often depending on usage and air quality.
- Apagueu l'aire condicionat i desendolleu-lo de la presa de corrent.
- Obriu el panell frontal i feu lliscar amb cura el filtre d'aire cap a fora.
- Renteu el filtre amb aigua tèbia i sabó. Esbandiu-lo bé.
- Allow the filter to air dry completely before reinserting it. Do not use hot water or dry with direct heat.
- Reinstall the dry filter and close the front panel.
6.2 Neteja general
- Netegeu l'armari amb un drap suauamp cloth. Do not use harsh cleaners or abrasive materials.
- Assegureu-vos que les sortides d'entrada i sortida d'aire estiguin lliures d'obstruccions.
- The self-evaporating condensate system manages internal moisture, reducing the need for manual draining under normal operating conditions.
7. Solució De Problemes
Abans de contactar amb el servei d'atenció al client, review aquesta secció per a problemes i solucions habituals.
| Problema | Causa possible | Solució |
|---|---|---|
| L'aire condicionat no s'engega. | No power; tripped circuit breaker; unit unplugged. | Check power cord connection; reset circuit breaker; ensure unit is plugged into a live outlet. |
| La unitat no refreda prou. | Filtre d'aire brut; entrada/extracció d'aire bloquejada; habitació massa gran; finestres/portes obertes. | Clean air filter; clear obstructions; ensure room size is within specifications; close windows and doors. |
| Aigua que goteja a fora. | Normal operation in high humidity. | This is normal. The self-evaporating system handles most condensate, but some dripping may occur. |
| La unitat fa soroll. | Loose installation; fan obstruction; normal compressor noise. | Ensure unit is securely installed; check for obstructions in fan area; some compressor noise is normal (62 Decibels). |
8. Especificacions
| Marca | Kenmore |
| Nom del model | KM8K-R |
| Potència de refrigeració | 8,000 unitats tèrmiques britàniques |
| Cobertura de la superfície del sòl | Fins a 350 peus quadrats |
| Dimensions del producte (P x A x A) | 15.59 "P x 18.58" W x 13.31" H |
| Pes de l'article | 69.4 lliures |
| Voltage | 115.0 V |
| Wattage | 730 W |
| Eficiència (CEER) | 10.9 |
| Nivell de soroll | 62 decibels |
| Refrigerant | R-32 |
| Tipus d'instal·lació | Finestra |
| Mètode de control | Control remot, tàctil |
| Components inclosos | Air Filter, Remote Control |
| UPC | 860013726928 |
9. Producte acabatview Vídeo
Video: Official product video demonstrating the features and operation of the Kenmore KM8K-R Window Air Conditioner. This video provides a visual guide to the air conditioner's functions and benefits.
10. Garantia i Suport
Your Kenmore KM8K-R Window Air Conditioner comes with a Garantia limitada d'1 any. For detailed warranty information, please refer to the warranty card included with your product.
For technical assistance, troubleshooting beyond this manual, or to inquire about warranty service, please contact Kenmore America customer support. Contact information can typically be found on the product packaging or the official Kenmore weblloc.
