Introducció
This manual provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your SENIX 4-Cycle 18-Inch Gas Chainsaw, Model CS4QL-L1. Please read this manual thoroughly before using the chainsaw to ensure proper handling and to prevent injury or damage.
Image: The SENIX 4-Cycle 18-Inch Gas Chainsaw, Model CS4QL-L1.
Informació de seguretat
Operating a chainsaw can be dangerous if proper safety precautions are not followed. Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, gloves, and sturdy footwear. Ensure the work area is clear of bystanders and obstacles. Never operate the chainsaw under the influence of alcohol or drugs. Always refer to the full safety guidelines in the comprehensive user manual.
Image: Illustration highlighting the benefits of a 4-stroke engine, including reduced noise, smoother operation, and lower maintenance.
Contingut del paquet
Upon unpacking, verify that all items are present and undamaged:
- SENIX 4-Cycle 18-Inch Gas Chainsaw (Main Unit)
- 18-inch Bar & Chain
- Coberta de barra
- Tools for assembly and maintenance
- Engine Oil (100ml 4-cycle engine oil)
- Manual d'instruccions
Image: The SENIX 4-Cycle 18-Inch Gas Chainsaw with its included accessories, such as the bar cover, tools, and engine oil, as typically found in the packaging.
Muntatge i muntatge
Follow these steps to assemble your chainsaw. Always wear protective gloves during assembly.
- Desembalatge: Obriu la caixa amb cura i traieu tots els components.
- Traieu la coberta: Unscrew and remove the side cover to access the sprocket area.
- Install the Chain Plate: Place the guide bar onto the studs, ensuring it aligns with the sprocket.
- Instal·leu la cadena: Carefully wrap the chain around the sprocket and guide bar. Ensure the cutting teeth are facing the correct direction as indicated by the arrow on the guide bar.
- Reinstall the Cover: Place the side cover back over the guide bar and chain, then hand-tighten the screws.
- Ajustar la tensió de la cadena: Use the tensioning screw to adjust the chain tension. The chain should be snug but still able to be pulled freely by hand. Once tension is correct, fully tighten the cover screws.
- Afegeix oli de motor: Place the chainsaw on a flat surface. Remove the engine oil cap and pour 100ml of the provided 4-cycle engine oil into the engine oil tank. Replace the cap securely.
- Afegeix combustible: Carefully pour fresh, unleaded gasoline into the fuel tank, avoiding spillage. Immediately replace the fuel cap and hand tighten. Wipe up any fuel spillage.
- Add Bar & Chain Oil: Fill the chain oil tank with bar and chain oil. This lubricates the chain during operation.
Video: Detailed instructions on how to unpack and assemble the SENIX 4-Cycle Gas Chainsaw, including installing the bar and chain, adding engine oil, and fueling the unit.
Instruccions de funcionament
Starting a Cold Engine
- Encendre el motor: Press the primer bulb 10 times until fuel is visible in the primer bulb and fuel line.
- Engage Choke: Pull the choke knob all the way out to the FULL CHOKE position.
- Secure Chainsaw: Hold the product firmly on the top handle and insert your foot into the rear handle safeguard for stability.
- Pull Starter Rope: Pull the starter rope up to 5 times until the engine attempts to start.
- Desactivar l'estrangulador: Push the choke knob in. The choke is now in the Run position.
- Arrancar el motor: Rapidly pull the starter rope until the engine starts. If the engine does not start, squeeze the trigger to take the choke off and follow the warm start procedure.
- Release Chain Brake: Carefully pull the chain brake back toward the front handle to disengage it.
Starting a Warm Engine
- Encendre el motor: Press the primer bulb 5 times until fuel is visible in the primer bulb and fuel line.
- Engage Choke: Pull the choke knob all the way out to the FULL CHOKE position.
- Secure Chainsaw: Hold the product firmly on the top handle and insert your foot into the rear handle safeguard for stability.
- Arrancar el motor: Rapidly pull the starter rope until the engine starts. If the engine does not start, squeeze the trigger to take the choke off.
- Release Chain Brake: Carefully pull the chain brake back toward the front handle to disengage it.
Procediment d'apagada
- Deixeu anar el gallet de l’accelerador.
- Push the engine stop switch to the 'OFF' position.
Image: The chainsaw highlighting its 49cc gas engine, designed for strong power and quick starting.
Image: The 18-inch bar and chain of the SENIX chainsaw, capable of cutting at speeds up to 59.05 ft/s.

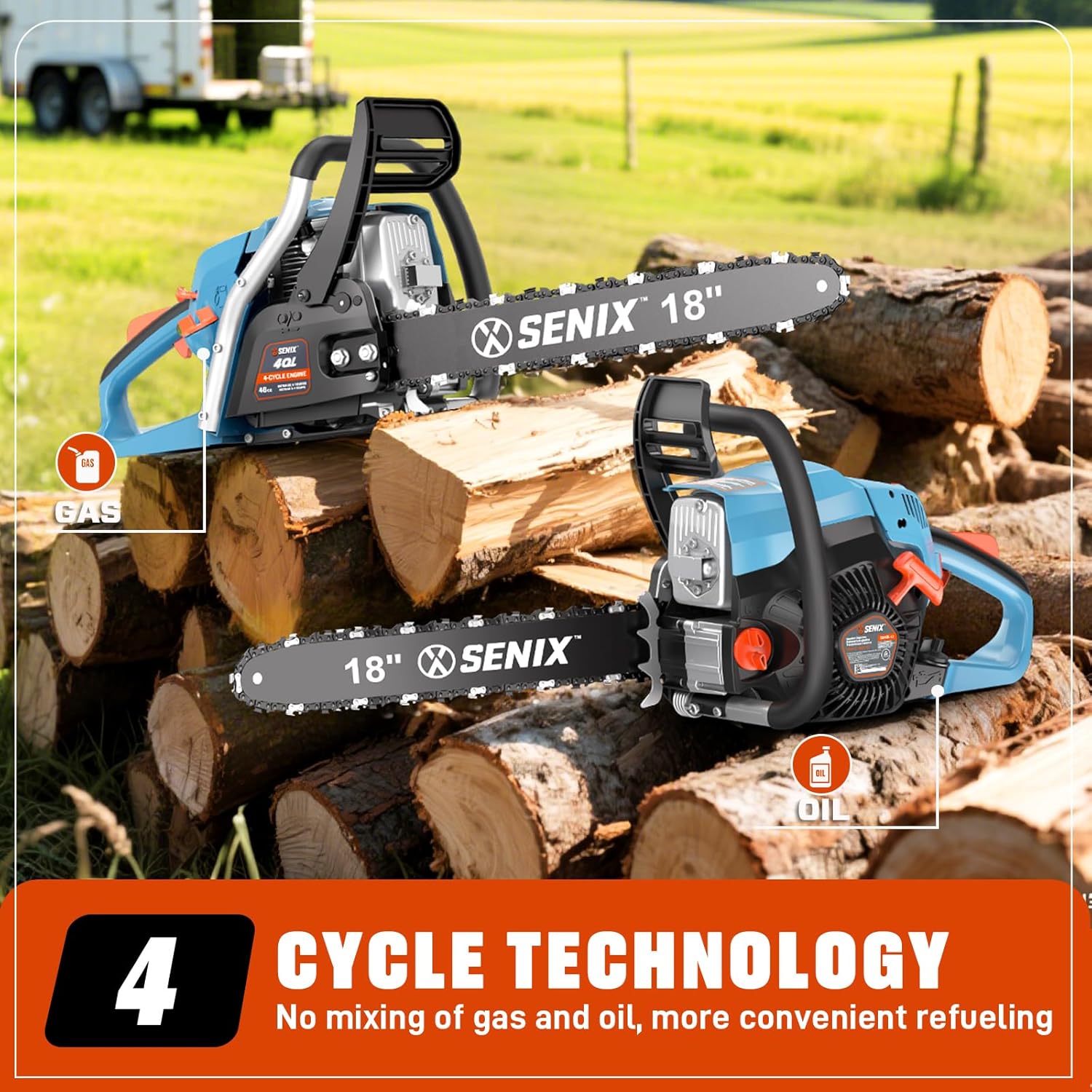

Image: Demonstrates the 4-cycle technology, eliminating the need for gas and oil mixing for more convenient refueling.
Manteniment
Regular maintenance ensures the longevity and safe operation of your chainsaw. Always disconnect the spark plug before performing any maintenance.
- Olidor automàtic: The chainsaw features an automatic oiling system that provides continuous lubrication to the bar and chain. Regularly check the chain oil level and refill as needed.
- Afilat de cadena: Keep the chain sharp for optimal cutting performance and safety. Refer to the full manual for detailed chain sharpening instructions or consult a professional.
- Filtre d'aire: Clean the air filter regularly to maintain engine performance.
- Bujía: Inspeccioneu i netegeu la bugia periòdicament. Substituïu-la si està desgastada.
- Emmagatzematge: When not in use, always protect the bar and chain with the scabbard. Store the chainsaw in a dry, secure location away from children and unauthorized users.
Image: The automatic oiler system of the chainsaw, ensuring continuous lubrication for the chain and bar.
Resolució de problemes
If you encounter issues with your chainsaw, refer to the following common troubleshooting tips. For more complex problems, consult the full manual or a qualified service technician.
- El motor no arrenca: Check fuel level, ensure choke is correctly set, and verify spark plug condition.
- Rendiment de tall baix: Inspect chain for sharpness and proper tension. Ensure the bar and chain oil reservoir is full.
- Vibració excessiva: Check for loose components or damaged chain/bar.
Especificacions
| Característica | Especificació |
|---|---|
| Dimensions del producte | 33.46 cm de llargada x 10.04 cm d'amplada x 12.01 cm d'alçada |
| Pes de l'article | 16 lliures |
| Tipus de motor | Motor de gasolina de 4 temps |
| Desplaçament del motor | 49 cc |
| Longitud de la barra | 18 polzades |
| Cavalls de força | 2.17 |
| Velocitat de la cadena | Fins a 59.06 peus/s |
Garantia i Suport
Your SENIX 4-Cycle 18-Inch Gas Chainsaw is backed by a 2-year limited warranty. For warranty claims, technical support, or replacement parts, please refer to the contact information provided in your full user manual or visit the official SENIX Tools weblloc.
