1. Introducció
The Pecron E600LFP Portable Power Station is a versatile and reliable power solution designed for various applications, including camping, RV use, emergency backup, and home power needs. Featuring a 614Wh LiFePO4 battery and a 1200W AC output, it provides stable and efficient power for a wide range of electronic devices and appliances.

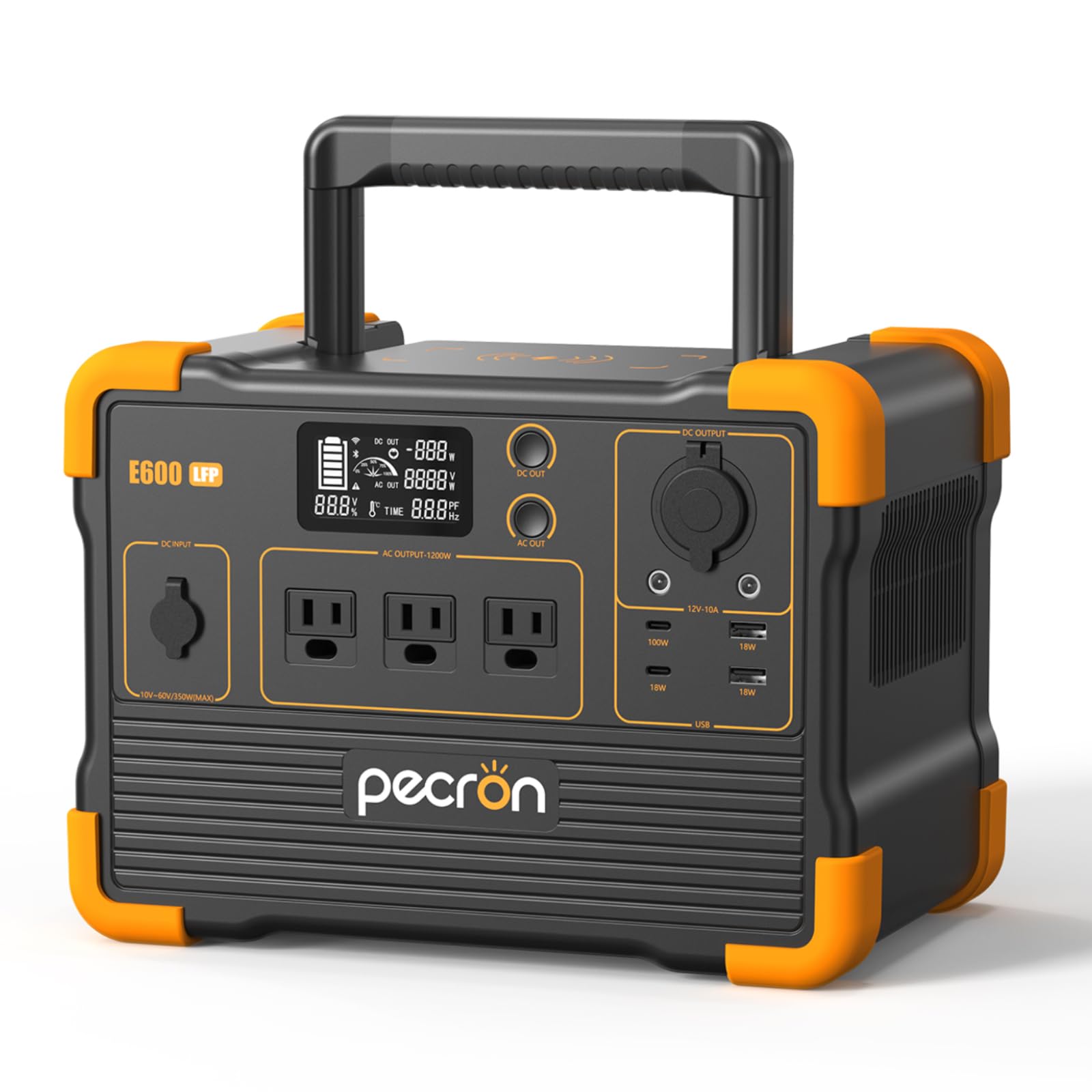

Image 1: The Pecron E600LFP Portable Power Station, showcasing its compact design and multiple output ports.
2. Informació de seguretat
Please read and understand all safety instructions before operating the Pecron E600LFP Power Station. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- No desmunteu, no repareu ni modifiqueu la unitat.
- Mantingueu la unitat allunyada del foc, l'aigua i les temperatures extremes.
- Assegureu-vos una ventilació adequada durant l'ús per evitar el sobreescalfament.
- No utilitzeu la unitat si està danyada o si ha caigut.
- Mantenir fora de l'abast dels nens.
- Desfeu-vos de la unitat i de la bateria d'acord amb la normativa local.
3. Producte acabatview
The Pecron E600LFP is equipped with a variety of ports and features to meet diverse power requirements.
3.1. Característiques clau
- Capacitat de la bateria: Bateria LiFePO4 de 614 Wh.
- Sortida de CA: 1200W rated power (pure sine wave).
- Cicle de vida: Over 3500 cycles to 80%+ capacity.
- Portabilitat: Compact design with integrated handle.
- Seguretat: Built-in Battery Management System (BMS) for protection against overheating, overloads, and short circuits.
3.2. Ports de sortida
Imatge 2: Detallada view of the Pecron E600LFP's 11 output ports, including AC, USB, and DC options.
- Preses de CA: 3 x 1200W AC outlets (100V~120V).
- Ports USB-C: 2 ports (18W / 100W Max).
- Ports USB-A: 2 ports (18W each).
- DC 5525 Output: 2 ports.
- 12V Cigar Port: 1 port.
- Carregador sense fils: 1 on top of the unit.
3.3. Mostra informació
La pantalla LCD integrada proporciona informació en temps real sobre l'estat de la central elèctrica:
- Battery charge level (percentage and graphic).
- DC output wattage.
- Potència de sortida de CAtage.
- Estimated remaining runtime (in hours).
4. Configuració
Before first use, fully charge your Pecron E600LFP Power Station.
4.1. Unboxing i Inspecció
- Traieu amb cura tots els components de l'embalatge.
- Verify that all included components are present (E600LFP unit, AC adapter, car charger cable, solar charging cable, user manual).
- Inspect the unit for any visible damage. If damaged, do not use and contact customer support.
Image 3: All components included with the Pecron E600LFP, such as the power station, various charging cables, and the user manual.
4.2. Càrrega inicial
It is recommended to fully charge the power station before its first use to optimize battery performance.
- Connect the AC adapter to the DC input port on the power station.
- Connecteu l'adaptador de CA a una presa de corrent estàndard.
- The display will indicate charging status. The unit is fully charged when the battery icon is full and the percentage arriba al 100%.
5. Instruccions de funcionament
5.1. Encendre/apagar
- To turn on the main unit, press and hold the main power button.
- To activate AC output, press the 'AC OUT' button. The AC icon will appear on the display.
- To activate DC output, press the 'DC OUT' button. The DC icon will appear on the display.
- To turn off AC/DC output, press the respective button again.
- To turn off the entire unit, press and hold the main power button.
5.2. Dispositius de connexió
Plug your devices into the appropriate output ports. Ensure the total wattage of connected devices does not exceed the power station's rated output of 1200W.
- For AC-powered devices, use the 3-prong AC outlets.
- For USB-powered devices, use the USB-A or USB-C ports. The 100W USB-C port supports fast charging for compatible devices.
- For 12V DC devices, use the DC 5525 ports or the 12V cigar port.
5.3. Càrrega sense fil
Place your Qi-compatible device on the wireless charging pad located on top of the power station. Ensure the device is centered for optimal charging.
6. Càrrega de la central elèctrica
The Pecron E600LFP offers multiple charging options for convenience.
Image 4: Illustration of the Pecron E600LFP's fast recharging capabilities via solar, AC outlet, and car outlet.
6.1. Càrrega de paret de CA
- Connect the provided AC adapter to the DC input port (12V-18V, 100W Max) on the power station.
- Connecteu l'adaptador de CA a una presa de corrent estàndard.
- A full charge from a standard wall outlet takes approximately 3.3 hours.
6.2. Càrrega solar
Image 5: The Pecron E600LFP connected to a solar panel for efficient outdoor charging.
- Connect compatible solar panels (10V~60V, Max 350W PV input) to the GX16MF port on the power station using the appropriate cable.
- Position solar panels in direct sunlight for optimal charging efficiency.
- Charging time varies depending on solar panel wattage and sunlight intensity.
6.3. Càrrega de cotxes
Image 6: The Pecron E600LFP being charged via a car's 12V outlet, providing convenient power on the go.
- Connect the car charger cable to the DC input port (12V-18V, 100W Max) on the power station.
- Plug the other end into your vehicle's 12V cigarette lighter socket.
- Charging via car outlet is slower than AC wall charging.
7. Manteniment
Proper maintenance ensures the longevity and optimal performance of your Pecron E600LFP Power Station.
7.1. Cura de la bateria
- For best results, fully charge the unit every 3-6 months, even if not in use.
- Eviteu esgotar completament la bateria amb freqüència.
- The LiFePO4 battery is designed for over 3500 charge cycles to retain 80%+ capacity.
7.2. Emmagatzematge
- Guardeu la central elèctrica en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Assegureu-vos que la unitat estigui apagada abans de guardar-la.
7.3. Neteja
- Utilitzeu un drap suau i sec per netejar l'exterior de la unitat.
- No utilitzeu netejadors abrasius ni dissolvents.
8. Solució De Problemes
If you encounter issues with your Pecron E600LFP, refer to the following common troubleshooting steps:
- La unitat no s'encén: Ensure the battery is charged. Press and hold the main power button for a few seconds.
- No hi ha sortida dels ports: Verify that the specific output (AC or DC) is activated by pressing its respective button. Check if the device is properly connected and within the power station's wattage límits.
- Càrrega lenta: Ensure the charging cable and adapter are correctly connected. For solar charging, verify panels are in direct sunlight and clean.
- Protecció contra sobrecàrrega activada: If the unit shuts down due to overload, disconnect some devices and restart the unit. Ensure total wattage no supera els 1200W.
For persistent issues, please contact Pecron customer support.
9. Especificacions
| Característica | Especificació |
|---|---|
| Nom del model | E600LFP |
| Tipus de bateria | LiFePO4 |
| Capacitat de la bateria | 614 Wh |
| Potència de sortida de CA. | 1200W (Rated), 1.2 Kilowatts (Max) |
| Vol. De sortida de CAtage | 100 V ~ 120 V |
| Sortida USB-C | Màxim 100W |
| DC Input (Car/AC Adapter) | 12 V-18 V, 100 W màx |
| Solar Input (GX16MF) | 10V~60V, 350W Max |
| Dimensions del producte | 11.7 cm de llargada x 7.8 cm d'amplada x 8.5 cm d'alçada |
| Pes | Approximately 20 lbs (from image PT02) |
| Temperatura de funcionament (càrrega) | De 32 °F a 113 °F (de 0 °C a 45 °C) |
| Temperatura de funcionament (descàrrega) | -4 °F a 113 °F (-20 °C a 45 °C) |
10. Garantia i Suport
Pecron warrants the E600LFP power station for one year from the date of purchase. If the original purchaser registers their purchase within 30 days of purchase, the power station warranty is extended for an additional 1 year, totaling 2 years.
For warranty claims, technical support, or any inquiries, please visit the official Pecron weblloc o poseu-vos en contacte amb el seu equip d'atenció al client.
