SOOPYK Self-Cleaning Hot and Cold Water Cooler Dispenser with Ice Maker User Manual

1. Introducció

Thank you for choosing the SOOPYK Self-Cleaning Hot and Cold Water Cooler Dispenser with Ice Maker. This appliance is designed to provide convenient access to hot, cold, and room-temperature water, along with bullet-shaped ice. Featuring a bottom-loading design, touch screen controls, a child safety lock for hot water, and a self-cleaning function, this unit offers a versatile solution for your hydration needs. Please read this manual thoroughly before operation to ensure proper use and maintenance.

2. Informació important de seguretat

• Connecteu sempre el dispensador a una presa de corrent amb connexió a terra.
• No feu funcionar el dispensador amb un cable d'alimentació o un endoll danyats.
• Mantingueu el dispensador allunyat de la llum solar directa i de fonts de calor.
• Assegureu-vos que hi hagi una ventilació adequada al voltant de la unitat. Manteniu almenys 4 cm de distància de les parets.
• Do not immerse the dispenser in water or other liquids.
• The hot water dispenser features a child safety lock. Always engage this lock when not in use, especially around children, to prevent accidental burns.
• Desendolleu la unitat abans de netejar-la o realitzar qualsevol manteniment.
• Use only 3 or 5-gallon water bottles with this dispenser.

3. Contingut del paquet

• SOOPYK Water Cooler Dispenser with Ice Maker
• Water Probe/Hose Assembly
• Safata de degoteig extraïble
• Manual d'usuari

4. Instruccions de configuració

4.1 Desembalatge

• Carefully remove all packaging materials from the dispenser.
• Place the dispenser on a firm, level surface. Ensure it is not placed on a carpeted surface to allow for proper ventilation.
• Netegeu l'exterior de la unitat amb un damp tela.

4.2 Water Bottle Installation (Bottom Loading)

This dispenser features a convenient bottom-loading design, eliminating the need for heavy lifting and potential spills.

1. Obriu la porta inferior de l'armari del dispensador.
2. Traieu el tap de l'ampolla d'aigua de 3 o 5 galons.
3. Insert the water probe/hose assembly into the bottle opening. Ensure the probe reaches the bottom of the bottle.
4. Feu lliscar l'ampolla d'aigua a l'armari inferior.
5. Close the lower cabinet door securely.
6. Connecteu el dispensador a una presa de corrent amb connexió a terra.

Text Description for Figure 1: This image shows the lower front panel of the SOOPYK water dispenser opened, revealing a compartment designed to hold a 5-gallon water bottle. A hand is shown guiding the water bottle into place, with the water probe already inserted into the bottle's opening. This illustrates the ease of the bottom-loading feature.

Text Description for Video 1: This video demonstrates the process of installing a water bottle into the bottom-loading compartment of the SOOPYK water dispenser. It shows the user opening the lower door, inserting the water probe into a new bottle, placing the bottle into the compartment, and closing the door. The video also briefly highlights the touch screen controls and dispensing functions.

5. Instruccions de funcionament

5.1 Tauler de control acabatview

Text Description for Figure 2: Aquesta imatge ofereix un primer pla view of the SOOPYK water dispenser's touch screen control panel. It displays various icons and indicators, including 'Making ice', 'ECO' (Energy saving), 'Ice volume' (with a blue bar indicator), 'Child lock', 'Lack of water', 'Hot water' (with steam icon), 'Fresh water' (with drop icon), 'Cold water' (with snowflake icon), and 'ON/OFF'. The 'Child lock' icon is highlighted, indicating its importance for hot water dispensing.

• ON/OFF: Encén o apaga la unitat.
• Aigua freda: Dispensa aigua freda.
• Aigua dolça: Dispenses room-temperature water.
• Aigua calenta: Dispenses hot water (requires child lock release).
• Bloqueig per a nens: Safety feature for hot water. Press first, then hot water button.
• Fer gel: Indicator for ice production.
• Ice Volume: Indicates the current ice level.
• ECO (Energy Saving): Activates/deactivates energy-saving mode.
• Lack of Water: Indicator for an empty water bottle.

5.2 Dispensing Water (Hot, Cold, Room Temperature)

Text Description for Figure 3: This image shows a user's hand pressing a button on the touch screen control panel of the SOOPYK water dispenser. Below the spouts, a glass is being filled with ice and cold water, while a mug is positioned to receive hot water. Icons for Hot Water, Fresh Water, Cold Water, and Ice Cubes are displayed on the left side of the image, illustrating the multi-temperature and ice dispensing capabilities.

• Aigua freda: Place your cup under the cold water spout and press the 'Cold Water' button. Press again to stop dispensing.
• Room-Temperature Water: Place your cup under the room-temperature water spout and press the 'Fresh Water' button. Press again to stop dispensing.
• Hot Water (Child Safety Lock): To dispense hot water, first press the 'Child Lock' button, then immediately press the 'Hot Water' button. Release the 'Hot Water' button to stop dispensing.

5.3 Ice Making Function

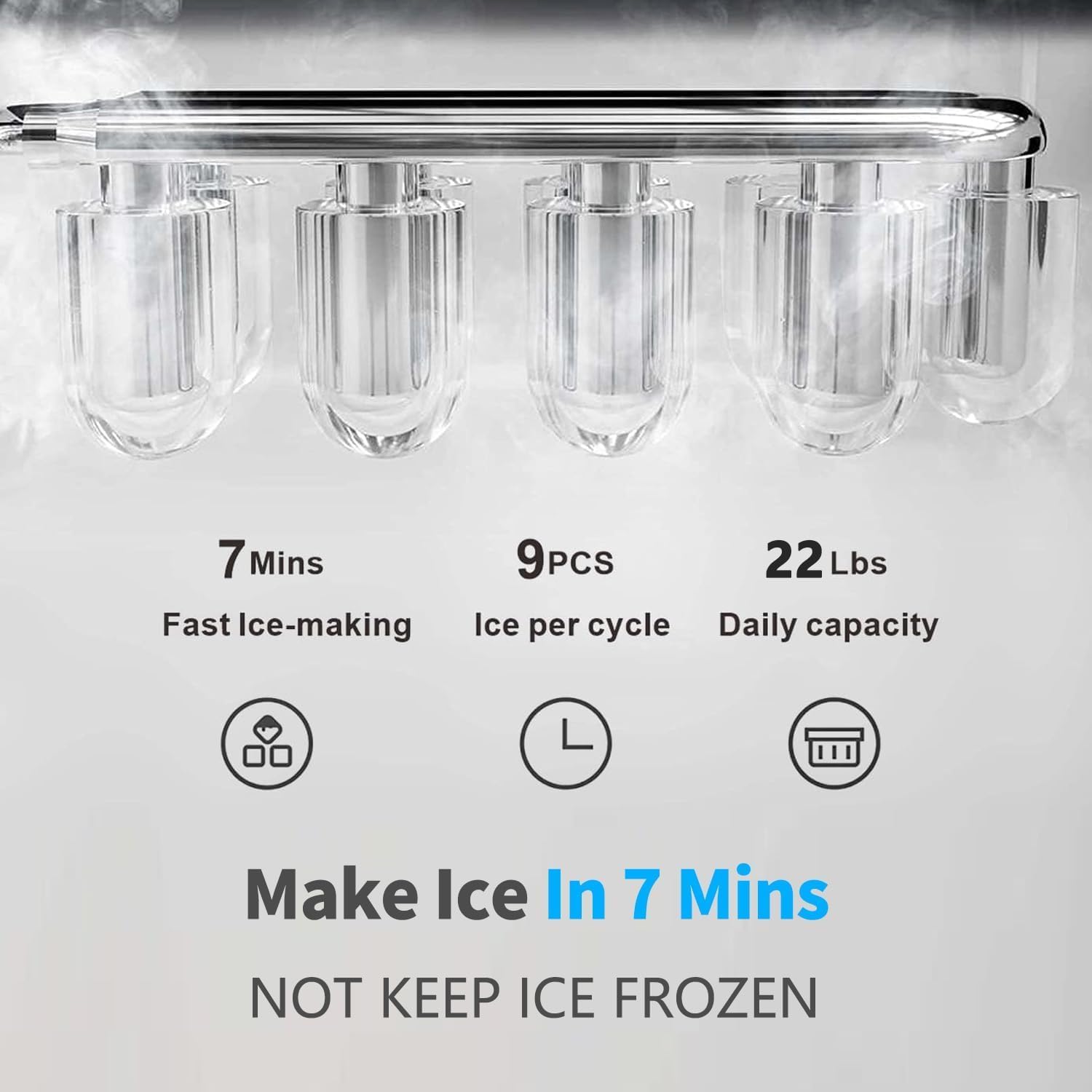

Text Description for Figure 4: This image highlights the ice-making capabilities of the SOOPYK water dispenser. It shows bullet-shaped ice cubes and text indicating '7 Mins Fast Ice-making', '9 PCS Ice per cycle', and '22 Lbs Daily capacity'. A crucial note states 'NOT KEEP ICE FROZEN', clarifying that the unit produces ice but does not function as a freezer.

• The dispenser automatically makes bullet-shaped ice.
• To dispense ice, place your cup under the ice dispensing paddle and push the paddle.
• The unit can store up to 0.88 lbs of ice and produce up to 22 lbs daily. Note that the unit does not keep ice frozen; it will melt if not used.
• To activate or deactivate ice making, press the 'Making Ice' button on the control panel.

5.4 Mode ECO

• Press the 'Energy Saving' button to turn on the ECO mode function. In this mode, the machine will stop heating water at night to conserve energy.
• Press and hold the 'Energy Saving' button to turn it off.

5.5 Nightlight Feature

Text Description for Figure 5: This image shows the SOOPYK water dispenser in a dimly lit environment, with its nightlight feature active. The blue light illuminates the dispensing area, making the water spouts and the removable drip tray clearly visible. This feature is designed for convenience during low-light conditions and activates when water or ice is dispensed.

• The nightlight feature illuminates the water spouts, making them visible in low-light conditions.
• It also provides visual access to the removable drip tray, indicating when it needs cleaning.
• The nightlight will activate when the machine is dispensing water or ice.

5.6 Empty Bottle Alert

• The 'Lack of Water' indicator light will illuminate when the water bottle is empty and needs to be replaced.

6. Manteniment

6.1 Funció d'autoneteja

Text Description for Figure 6: Aquesta imatge mostra un retall view of the SOOPYK water dispenser, highlighting its UV-infused cleaning technology. A purple light, representing UV light, is shown inside the cold water tank, targeting and reducing harmful contaminants. Text on the image emphasizes that this technology 'Reduces harmful contaminants in water and tanks', 'Improves taste of water', and 'Minimizes maintenance'.

• To activate the self-cleaning function, press and hold the 'Making Ice' button for 3 seconds.
• The ice indicator will blink, and the power light will remain on during the cleaning cycle.
• The machine will automatically shut off after approximately 10 minutes. A UV light is visible in the cold water tank during this process.

6.2 Neteja de la safata de degoteig

• The removable drip tray collects any spills or drips.
• Regularly check and empty the drip tray to prevent overflow and maintain hygiene.
• To clean, simply slide out the drip tray, empty its contents, wash with mild soap and water, rinse thoroughly, and replace.

7. Solució De Problemes

8. Especificacions

Text Description for Figure 7: This image displays the SOOPYK water dispenser in a home setting, with clear labels indicating its dimensions: 40.75 inches in height, 12.2 inches in width, and 16.54 inches in depth. This visual aid helps users understand the physical footprint of the appliance.

9. Garantia i Suport

For warranty information, technical support, or any questions regarding your SOOPYK water cooler dispenser, please refer to the contact information provided on the product packaging or visit the official SOOPYK weblloc. Conserveu el rebut de compra per a reclamacions de garantia.
