Ballu Convection Panel Space Heater NCA1-4.6 Instruction Manual

Introducció

Thank you for choosing the Ballu Convection Panel Space Heater. This manual provides essential information for the safe and efficient operation of your new heater. Please read all instructions carefully before use and retain for future reference.

Imatge: Frontal view of the Ballu Convection Panel Space Heater, showcasinpel seu disseny elegant i la seva reixa metàl·lica perforada.

Instruccions importants de seguretat

Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica i lesions a les persones.

• Llegiu totes les instruccions abans d'utilitzar aquest escalfador.
• No feu funcionar cap escalfador amb el cable o l'endoll danyats, o després que l'escalfador no funcioni correctament o s'hagi deixat caure o s'hagi fet malbé de qualsevol manera.
• No utilitzar a l'aire lliure.
• Aquest escalfador està calent quan s'utilitza. Per evitar cremades, no deixeu que la pell nua toqui superfícies calentes.
• Mantingueu els materials combustibles, com ara mobles, coixins, roba de llit, papers, roba i cortines, a almenys 0.9 m de la part frontal de l'escalfador i allunyats dels costats i la part posterior.
• Cal extremar la precaució quan l'escalfador s'utilitza per o a prop de nens o persones invàlides i sempre que l'escalfador es deixi en funcionament sense vigilància.
• Desconnecteu sempre l'escalfador quan no l'utilitzeu.
• No passeu el cable sota la catifa. No cobriu el cable amb catifes, corredors o revestiments similars. Col·loqueu el cable lluny de la zona de trànsit i on no s'ensopegui.
• Per desconnectar l'escalfador, apagueu els controls i, a continuació, traieu l'endoll de la presa.
• Connecteu-vos només a endolls de terra correctament.
• No introduïu ni deixeu que entrin objectes estranys a cap obertura de ventilació o d'escapament, ja que això podria provocar una descàrrega elèctrica o incendi, o danyar l'escalfador.
• Per evitar un possible incendi, no bloquegeu de cap manera les entrades d'aire o l'escapament. No l'utilitzeu en superfícies toves, com un llit, on les obertures es poden bloquejar.
• Un escalfador té parts calentes i amb arcs o espurnes a l'interior. No l'utilitzeu en zones on s'utilitzi o emmagatzemen gasolina, pintura o vapors o líquids inflamables.
• Utilitzeu aquest escalfador només tal com es descriu en aquest manual. Qualsevol altre ús no recomanat pel fabricant pot causar incendi, descàrrega elèctrica o lesions a les persones.
• This heater includes a built-in smart tip-over protection and overheat protection. If the heater tips over or overheats, it will automatically shut off.
• The insulated alloy case and V0-rated flame-retardant power cord enhance safety.

Contingut del paquet

Please check the package contents. If any items are missing or damaged, contact customer support.

• Ballu Convection Panel Space Heater (Main Unit)
• Remote Control with LCD Display
• Feet with Casters (2 units)
• Wall Mount Kit (screws and anchors)
• Manual d'usuari
• Dust-proof Storage Cover

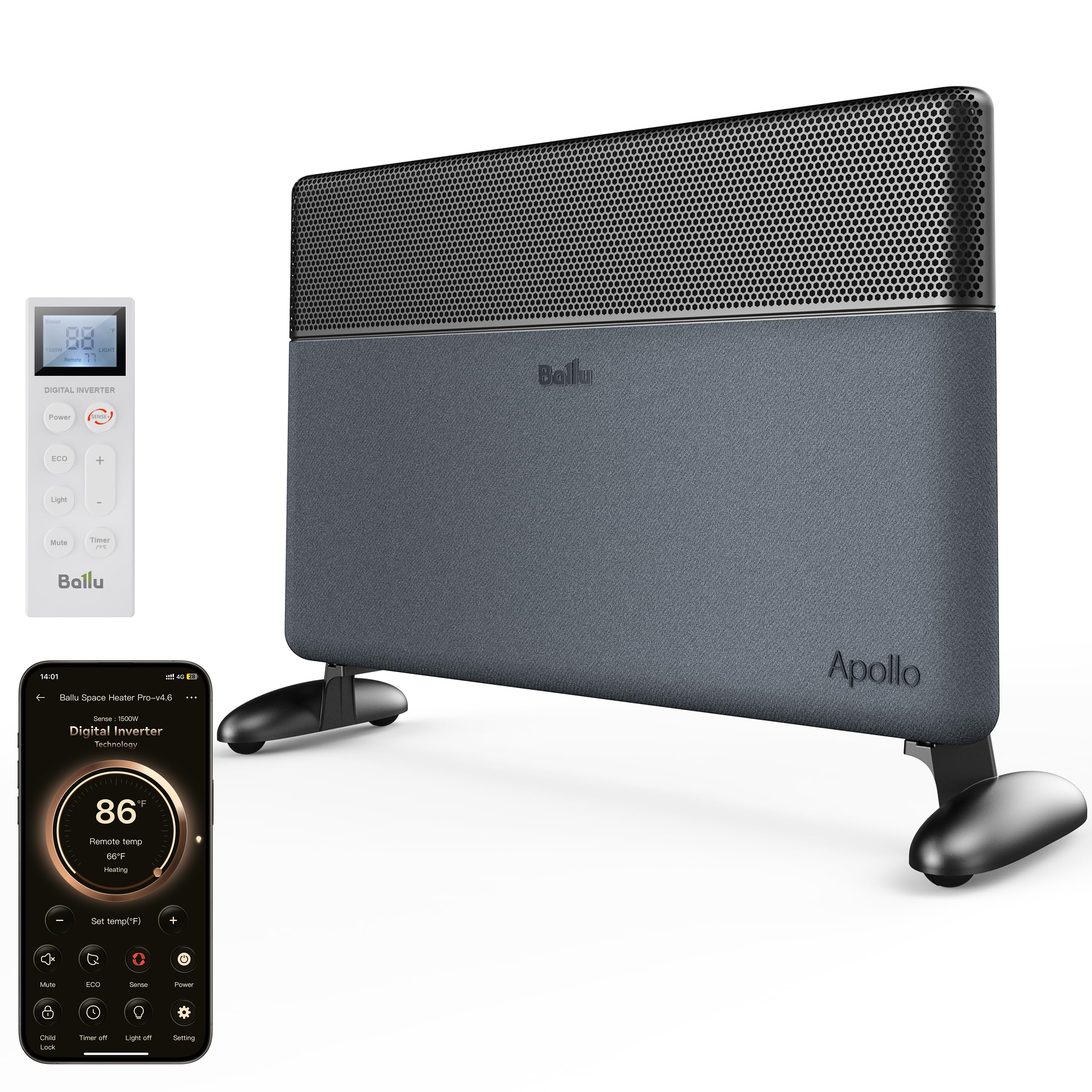

Imatge: Frontal view of the Ballu Convection Panel Space Heater, showcasing its sleek design and perforated metal grille, along with its remote control, detachable feet with casters, wall mounting hardware, and user manual spread out beside it.

Instruccions de configuració

Instal·lació independent

1. Carefully unpack the heater and all accessories.
2. Attach the two feet with casters to the bottom of the heater using the provided screws. Ensure they are securely fastened.
3. Col·loqueu l'escalfador sobre una superfície estable i plana.

Image: A diagram illustrating the easy installation of the sliding casters onto the heater for portable use.

Instal·lació de paret

1. Identify a suitable wall location, ensuring at least 12 inches of clear space above and below the heater.
2. Use the provided wall mount kit (screws and anchors) to securely attach the heater to the wall. No special tools are required.
3. Ensure the heater is level and firmly attached before plugging it in.

Image: A diagram showing the dimensions and appearance of the Ballu heater when wall-mounted, highlighting its slim profile.

Instruccions de funcionament

Tauler de control

The heater features an intuitive control panel located on the top. Use the buttons to power on/off, adjust temperature, and select modes.

Image: Close-up of the heater's top control panel with an LED display showing the temperature and various function buttons.

Control remot

The sleek remote control features an LED display showing set temperature, current room temperature, and heating mode. It includes a built-in temperature sensor for accurate readings.

• Potència: Enceneu o apagueu l'escalfador.
• Ajust de temperatura: Use '+' and '-' buttons to set desired temperature (40°F to 86°F).
• Modes: Switch between Sense (default 86°F for rapid heating) and Eco (default 77°F for energy saving) modes.
• Temporitzador: Configureu un temporitzador de 24 hores per a l'apagada automàtica.
• Llum: Control the display light.
• Silenciar: Silence button beeps.
• Bloqueig per a nens: Activate to prevent accidental changes.

Image: A diagram illustrating the dual sensor system, showing the remote sensor, digital inverter, and exposed sensor working together for intelligent environmental sensing.

Control avançat d'aplicacions

Download the Ballu app to control your heater from anywhere. The app allows you to set schedules, switch modes, view power levels, and integrate with Alexa for hands-free control.

• Set personalized heating schedules.
• Monitor current room temperature and power consumption.
• Adjust settings remotely.
• Voice control with Alexa.

Image: A smartphone screen displaying the Ballu app interface, showing temperature settings, modes, scheduling options, and contact information.

Característiques clau

• Hedgehog Heating Element: Patented aerospace-grade aluminum element for reliable, long-lasting warmth.
• Tecnologia d'inversor digital: Smart algorithms adjust energy use, saving up to 50% on energy costs.
• Sistema de sensor dual: Remote and device sensors provide accurate temperature control.
• Funcionament silenciós: Fanless design ensures silent heating for a peaceful environment.
• Escalfament ràpid: 36% increased air contact surface for quick warmth (30 seconds) and efficient room heating (1-2 hours for 250 sq.ft).
• Seguretat millorada: Features include smart tip-over protection, overheat protection, and a 24-hour timer.
• Instal·lació versàtil: Can be used freestanding with casters or easily wall-mounted.

Imatge: Un retall view of the heater highlighting the patented Hedgehog Heating Element, emphasizing its larger heating surface and 136% heating volume for best efficiency.

Manteniment i emmagatzematge

• Always unplug the heater and allow it to cool down completely before cleaning or storing.
• Utilitzeu un suau, damp cloth to clean the exterior surfaces. Do not use abrasive cleaners or solvents.
• For storage, use the provided dust-proof cover to protect the heater from dust and debris.

Image: Two Ballu heaters, one covered with a dust-proof storage cover and another standing freely, illustrating the storage solution.

Resolució de problemes

• L'escalfador no s'encén: Check if the power cord is securely plugged into a working outlet. Ensure the tip-over protection switch is engaged (heater is upright).
• La calefacció s'apaga inesperadament: This may be due to overheat protection or tip-over protection. Ensure the heater is on a stable surface and not covered. Allow it to cool down before restarting.
• Sense producció de calor: Verify the desired temperature setting is higher than the current room temperature. Check the selected heating mode.
• Olor de cremat: A slight burning smell may occur during initial use as dust burns off the heating element. This is normal and should dissipate quickly. Ensure the heater is clean and not covered.

Image: A diagram highlighting the safety features of the Ballu heater, including overheat protection, child lock, 45-degree tip-over protection, and V0 flame retardant materials.

Especificacions

Garantia i Suport

The Ballu Convection Panel Space Heater comes with a 2-year warranty, ensuring long-term performance and peace of mind.

For technical support, warranty claims, or any inquiries, please contact Ballu customer service:

• Correu electrònic: Support@ballu.com
• Weblloc: www.ballu.com/support
