Introducció
This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your DEEPOWER QS7 Electric Bike. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.
Image: The DEEPOWER QS7 Electric Bike, showcasing its robust frame, fat tires, and integrated battery design.
Informació de seguretat
Always prioritize safety when operating your electric bike. Adhere to local traffic laws and wear appropriate safety gear, including a helmet. Regular inspections and maintenance are crucial for safe operation.
- Porteu sempre un casc homologat.
- Assegureu-vos que tots els components estiguin ben fixats abans de cada viatge.
- No conduïu la bicicleta sota els efectes de l'alcohol o les drogues.
- Be aware of your surroundings and traffic conditions.
- Avoid riding in adverse weather conditions if visibility is compromised.
Muntatge i muntatge
Your DEEPOWER QS7 electric bike arrives 90% pre-assembled. The remaining assembly steps are straightforward and can be completed by following the included instructions or by watching the assembly video available on the product page.
Passos inicials:
- Desembalatge: Traieu amb cura tots els components de l'embalatge.
- Instal·lació del manillar: Attach and secure the handlebars. Ensure all controls are correctly positioned and tightened.
- Instal·lació de la roda davantera: Instal·leu la roda davantera, assegurant-vos que el disc de fre estigui correctament alineat amb la pinça.
- Fixació del pedal: Attach the pedals, noting that the left and right pedals are distinct (usually marked L and R).
- Ajust del tija del seient: Insert the seat post and adjust the saddle height for comfortable riding.
- Càrrega de la bateria: Fully charge the battery before the first use. Connect the charger to the battery port and then to a power outlet. The indicator light on the charger will change when fully charged.
Image: A diagram illustrating key assembly points for the DEEPOWER electric bike, including handlebar, front wheel, and pedal attachment.
Instruccions de funcionament
Encès/apagat:
To power on the bike, press and hold the power button on the intelligent colorful display. To power off, press and hold the same button until the display turns off.
Intelligent Colorful Display:
The display provides real-time information about your ride. It shows current speed, gearshift, battery level, ODO (odometer), and electric assistance level.
Image: Close-up of the DEEPOWER QS7's intelligent colorful display, showing various indicators like speed, battery level, and ODO. Also visible are the hydraulic brake lever, horn, turn signal switch, mobile phone stand, 7S shifter, display board, and twist throttle.
Modes de conducció:
- Mode elèctric pur: Engage the twist throttle for motor-only propulsion.
- Mode d'assistència al pedaleig (PAS): The motor provides assistance as you pedal. Adjust the assistance level via the display.
- Mode bicicleta: Ride without any electric assistance, similar to a traditional bicycle.
Image: A graphic illustrating the three riding modes: Pure Electric, Pedal Assist (PAS), and Bicycle Mode, demonstrating how the bike can be used for various riding styles and distances.
Canvi de marxes:
The DEEPOWER QS7 features a 7-speed precision gear system. Use the shifter on the handlebar to change gears, allowing you to adapt to different terrains and optimize pedaling efficiency.
Imatge: Una imatge detallada view of the 7-speed precision gear system and the handlebar shifter, highlighting the smooth gear-shifting capability of the DEEPOWER QS7.
Funcionament d'il·luminació:
The bike is equipped with 360° LED lighting, including a headlight, brake light, and turn lights. Operate these lights using the controls on the handlebar to ensure visibility, especially during night rides.
Image: A comparison showing the strong spot front lights of the DEEPOWER QS7, emphasizing their brightness for illuminating the road ahead.
Image: A visual representation of the DEEPOWER QS7's tail light, demonstrating its bright glow and integrated turn signal functionality for enhanced visibility from the rear.
Manteniment
Regular maintenance ensures the longevity and safe operation of your DEEPOWER QS7 electric bike.
- Cura de la bateria:
- Carregueu la bateria regularment, fins i tot si no l'esteu fent servir, per mantenir-ne el bon estat.
- Eviteu descarregar completament la bateria amb freqüència.
- Guardeu la bateria en un lloc fresc i sec, lluny de la llum solar directa.
- Pressió dels pneumàtics: Check tire pressure before each ride. Maintain the recommended pressure (typically found on the tire sidewall) for optimal performance and safety. The 20" x 4.0" fat tires require specific pressure.
- Inspecció de frens: Regularly inspect the dual mechanical disc brakes for wear and proper function. Ensure brake levers are responsive and provide adequate stopping power.
- Lubricació de la cadena: Keep the chain clean and lubricated to ensure smooth gear shifting and prevent wear.
- Neteja general: Netegeu la bicicleta regularment amb anuncisamp drap. Eviteu utilitzar dolls d'aigua a alta pressió directament sobre els components elèctrics.
- Comprovació de fixació: Periodically check all bolts and fasteners for tightness, especially after the first few rides.

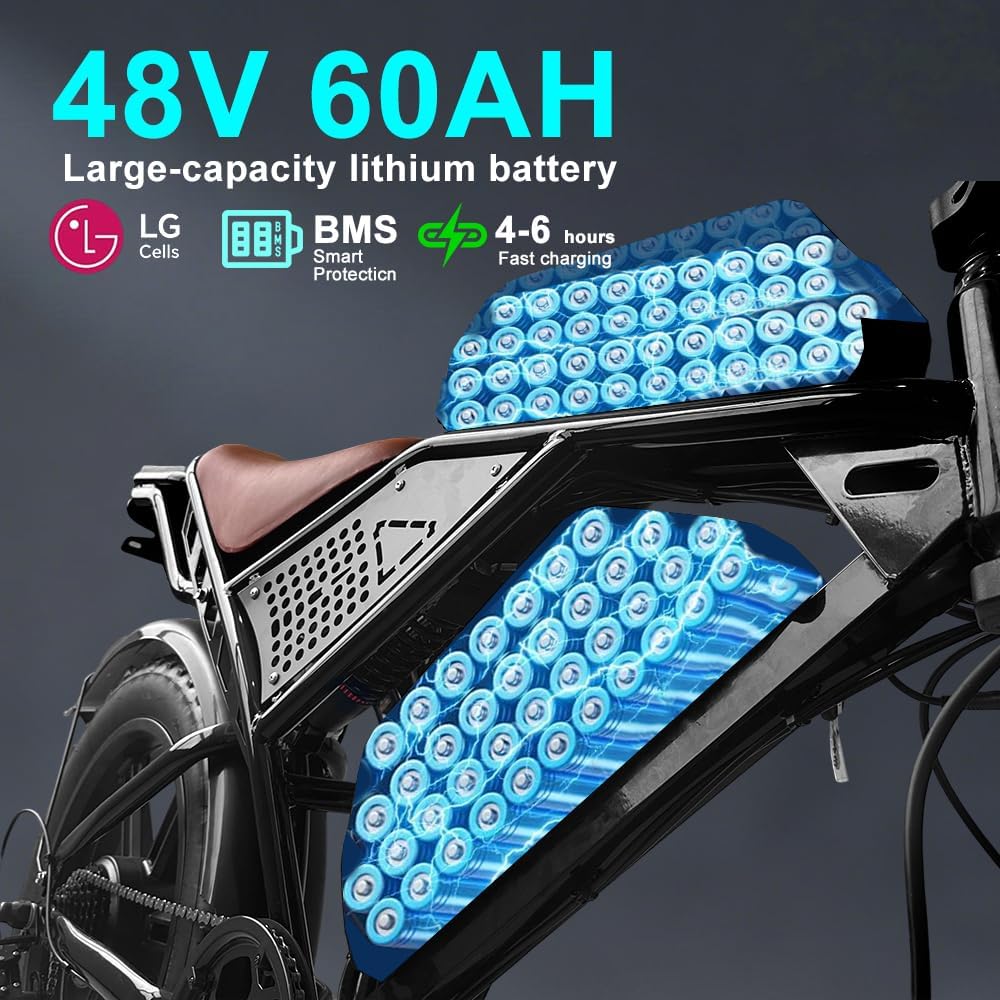

Image: An illustration of the DEEPOWER QS7's dual 48V 60AH large-capacity lithium battery system, highlighting its components and fast charging capability.
Resolució de problemes
Aquesta secció tracta els problemes habituals que podeu trobar. Per a problemes que no figuren aquí, poseu-vos en contacte amb l'atenció al client.
| Problema | Causa possible | Solució |
|---|---|---|
| La bicicleta no s'encén. | Battery not charged, battery not properly seated, power button issue. | Ensure battery is fully charged and securely installed. Check power button connection. |
| El motor no ajuda. | Low battery, PAS level set to zero, brake lever engaged, motor connection issue. | Charge battery. Increase PAS level on display. Release brake levers. Check motor cable connections. |
| Els frens es noten febles. | Brake pads worn, cable loose, disc rotor dirty. | Inspect brake pads for wear and replace if necessary. Adjust brake cable tension. Clean disc rotors. |
| Sorolls inusuals durant el trajecte. | Components solts, problemes de cadena, problema de motor. | Check all fasteners. Lubricate chain. If noise persists, contact support. |
Especificacions
Key technical specifications for the DEEPOWER QS7 Electric Bike (3500W-Dual Motor-60AH variant):
- Motor: 1500W Peak + 2000W Peak Rear Motor (3500W Peak Total)
- Parell: 95 N·m
- Velocitat màxima: Fins a 32 MPH
- Bateria: 48V 25Ah + 35Ah Dual High-Density Batteries (Total 60Ah)
- Interval: Up to 180 miles (with dual batteries)
- Temps de càrrega: 5-6 hours (single battery)
- Pneumàtics: 20" x 4.0" Puncture-Proof Wide Fat Tires
- Frens: Frens de disc mecànics duals
- Suspensió: Double Shoulder Front Fork (80mm travel) and Rear Suspension
- Material del marc: Acer al carboni
- Engranatges: 7-Velocitat
- Il·luminació: 360° LED (Headlight, Brake Light, Turn Lights)
- Capacitat de càrrega màxima: 330 lliures (aprox. 150 kg)
- Overall Dimensions (L/W/H): 68.11 x 25.19 x 43.70 polzades
- Pes de l'article: 40 quilos
- Característiques especials: LCD-Display, Waterproof (IPX5)
Image: A diagram detailing the dimensions of the DEEPOWER QS7 electric bike, including total length, wheelbase, handlebar height, saddle height, and recommended rider height range (5'2" - 6'2").
Garantia i Suport
DEEPOWER provides a 12 mesos de garantia for your electric bike. This warranty covers parts that are proven to be damaged within one year of purchase, provided corresponding pictures or videos are supplied.
For warranty claims or any technical assistance, please contact DEEPOWER customer service. You can find contact information on the DEEPOWER website or through Amazon's seller contact options. Our professional after-sales service team aims to respond within 24 hours on working days.
Informació de contacte:
- Suport per correu electrònic: Refer to the DEEPOWER website or product page for specific email addresses.
- Horari de treball: 9:00 am - 6:00 pm EST, Monday - Friday.
Image: A graphic detailing DEEPOWER's customer service, including 12-month warranty information, contact hours, and a QR code for email support.
